Description

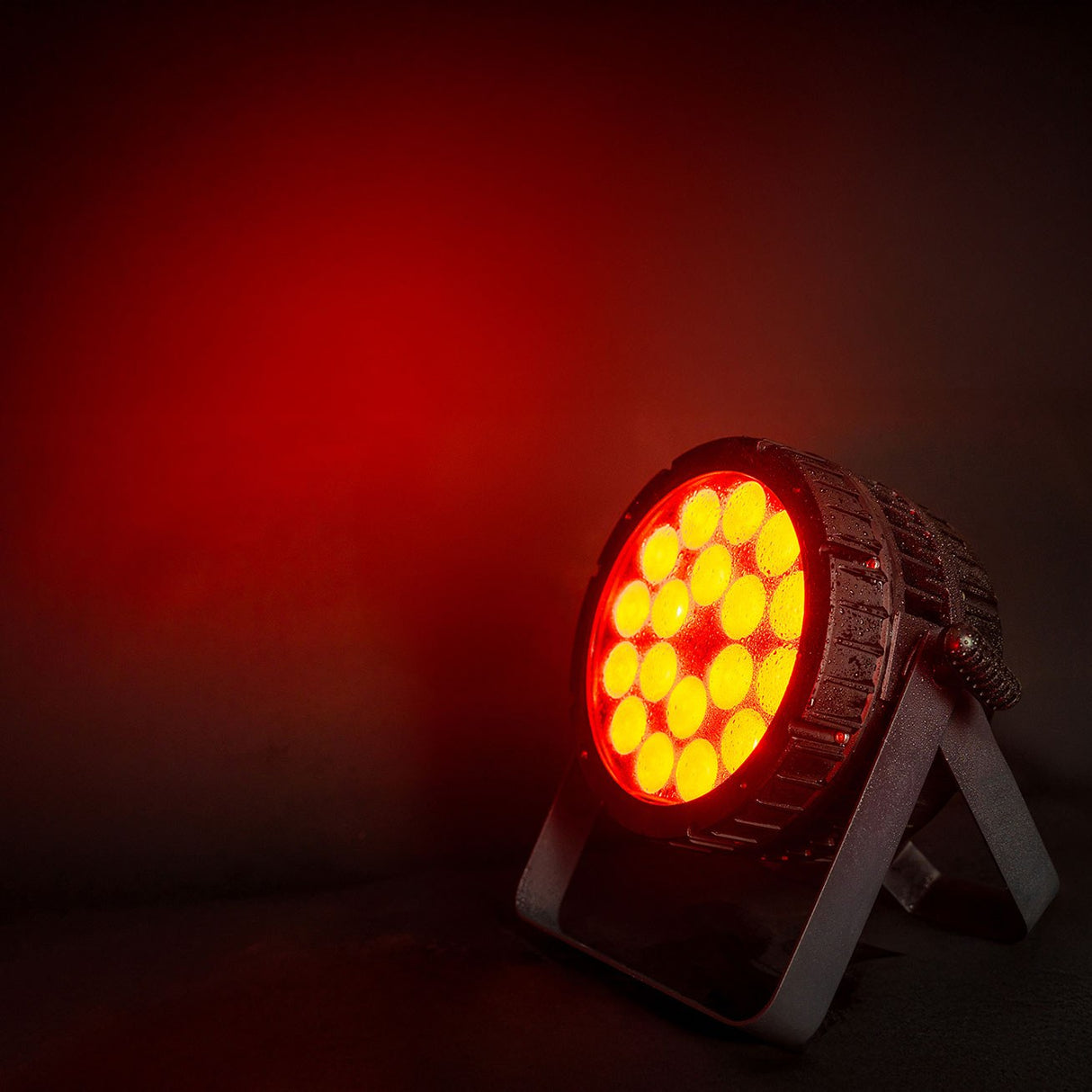

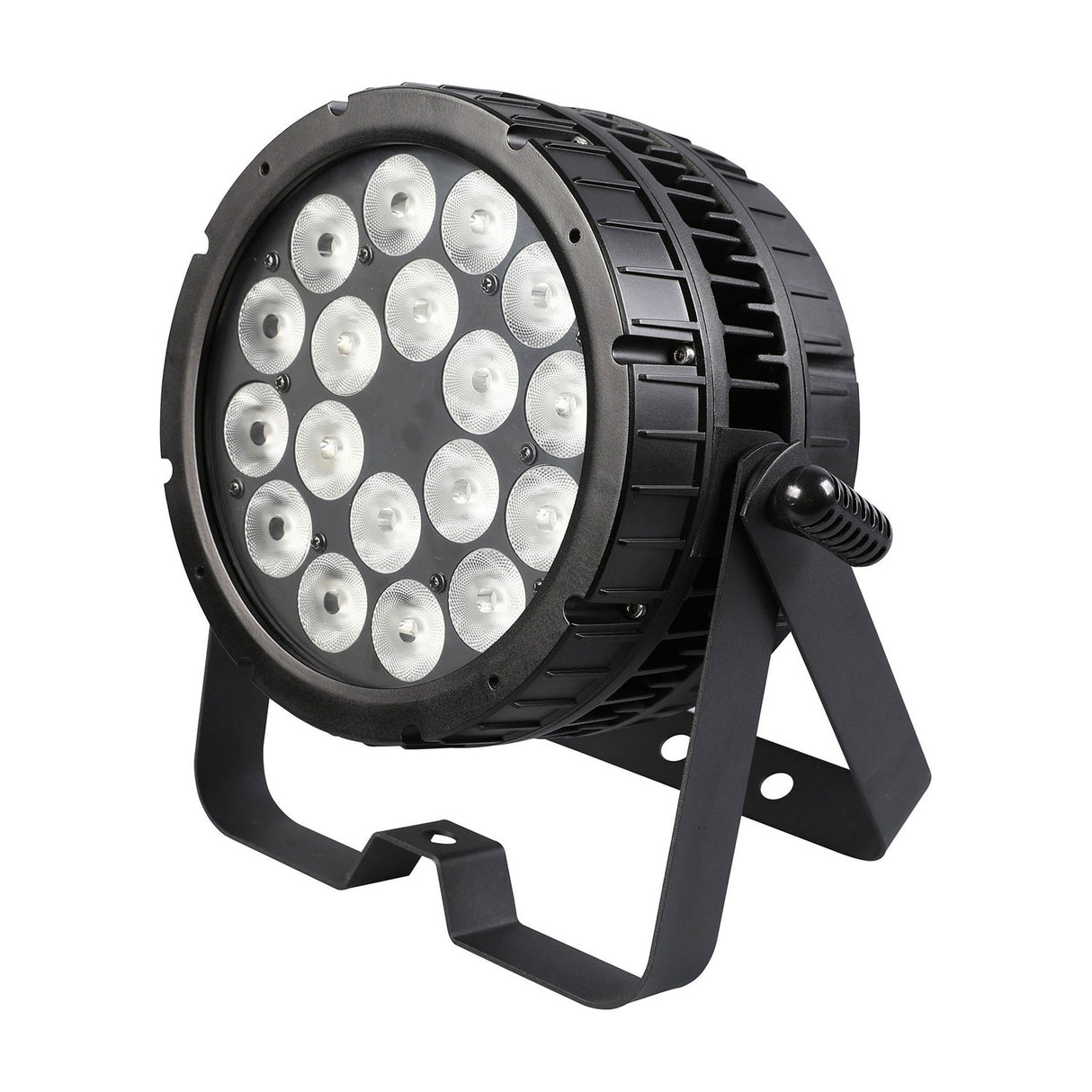

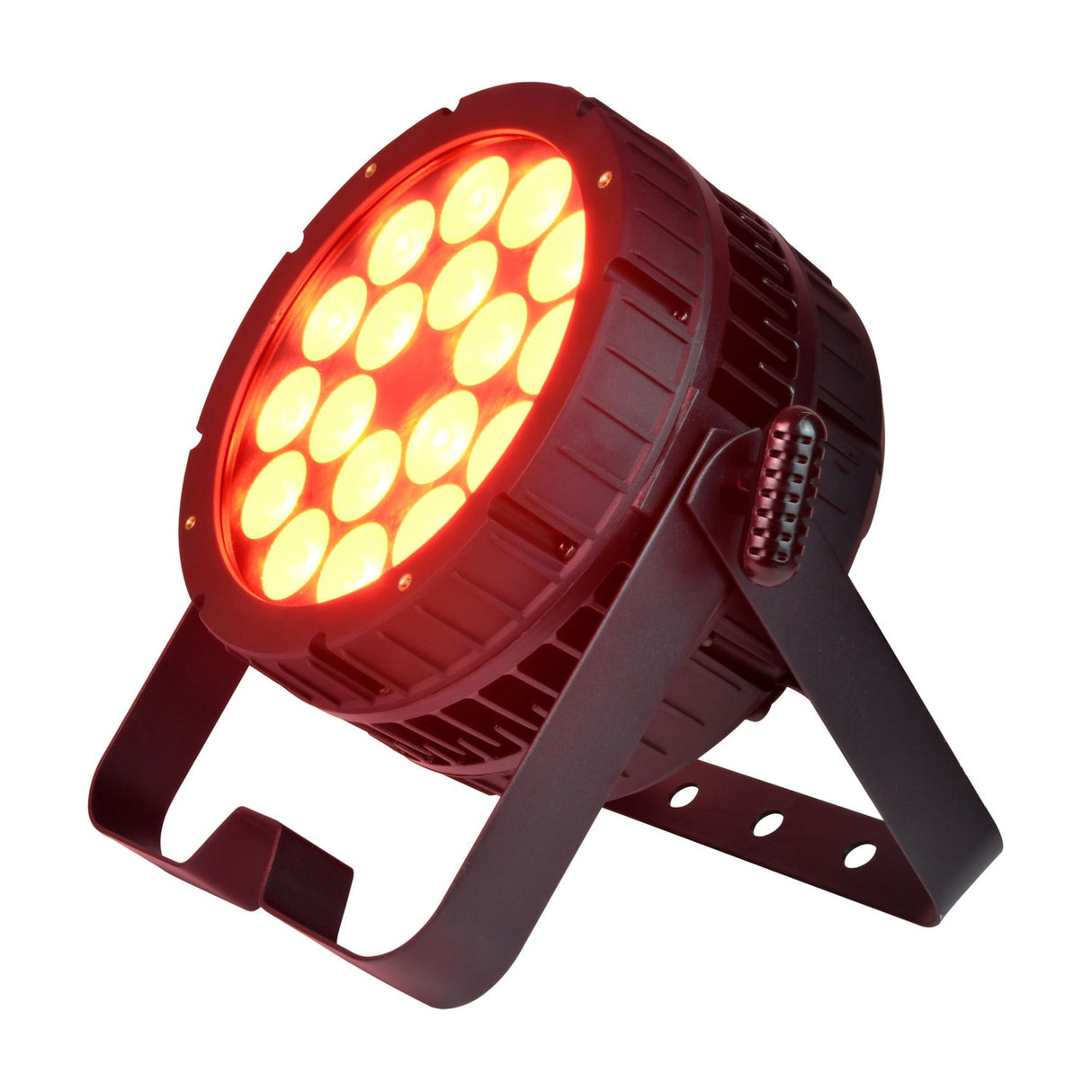

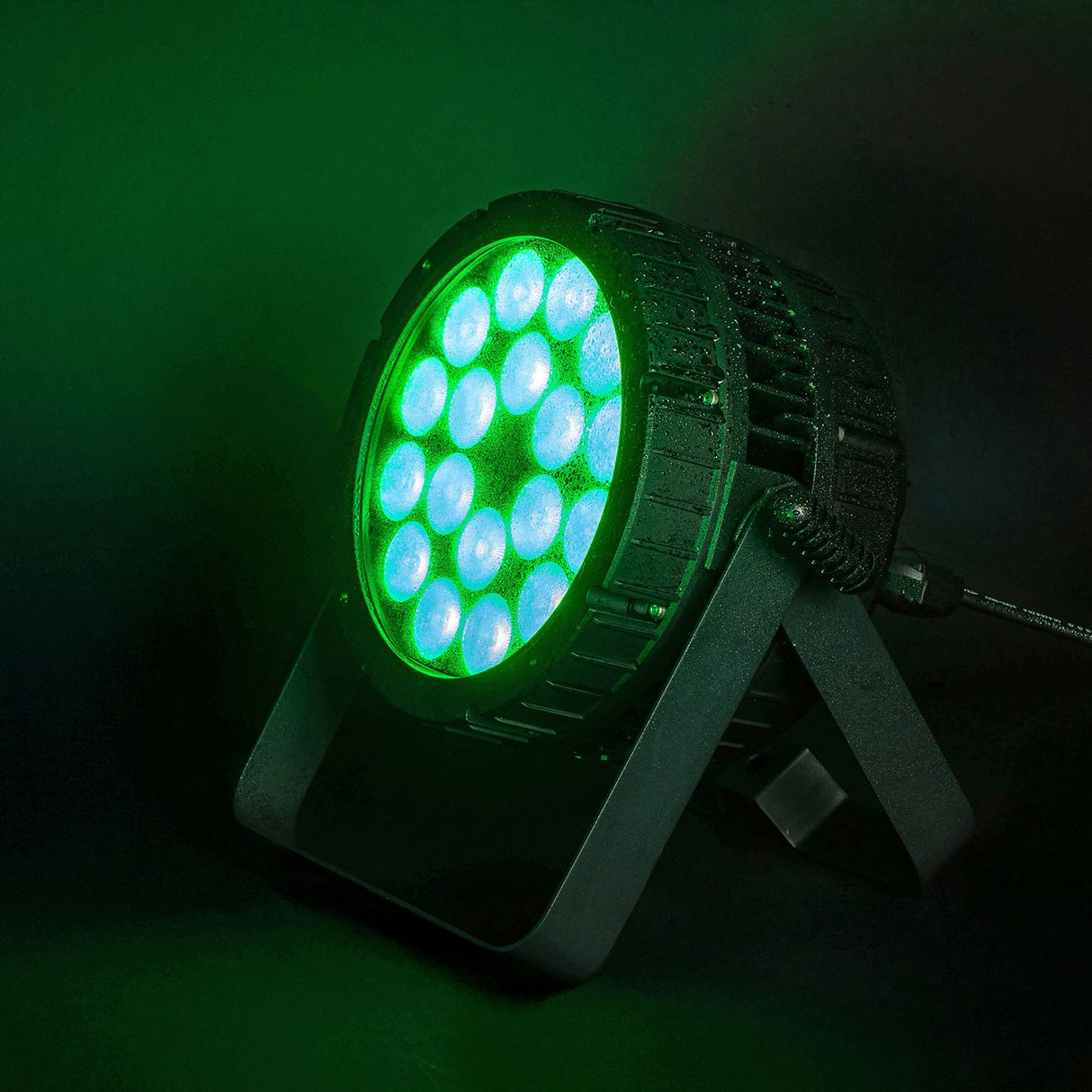

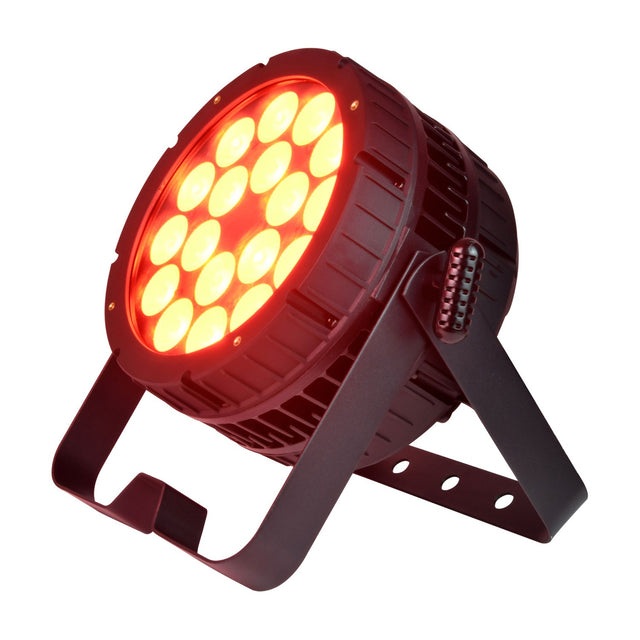

The Citronic HIPAR-200 is a high power LED PAR can built around 18 super bright 15W 6-in-1 RGBLA-UV COB LEDs. That gives you red, green, blue, amber and lime mixing plus a dedicated UV channel, so you can run a full colour wash or switch to ultraviolet illumination from a single fixture. With a 25 degree beam angle and 200W of output, it suits both background washes and more focused effects at parties and events.

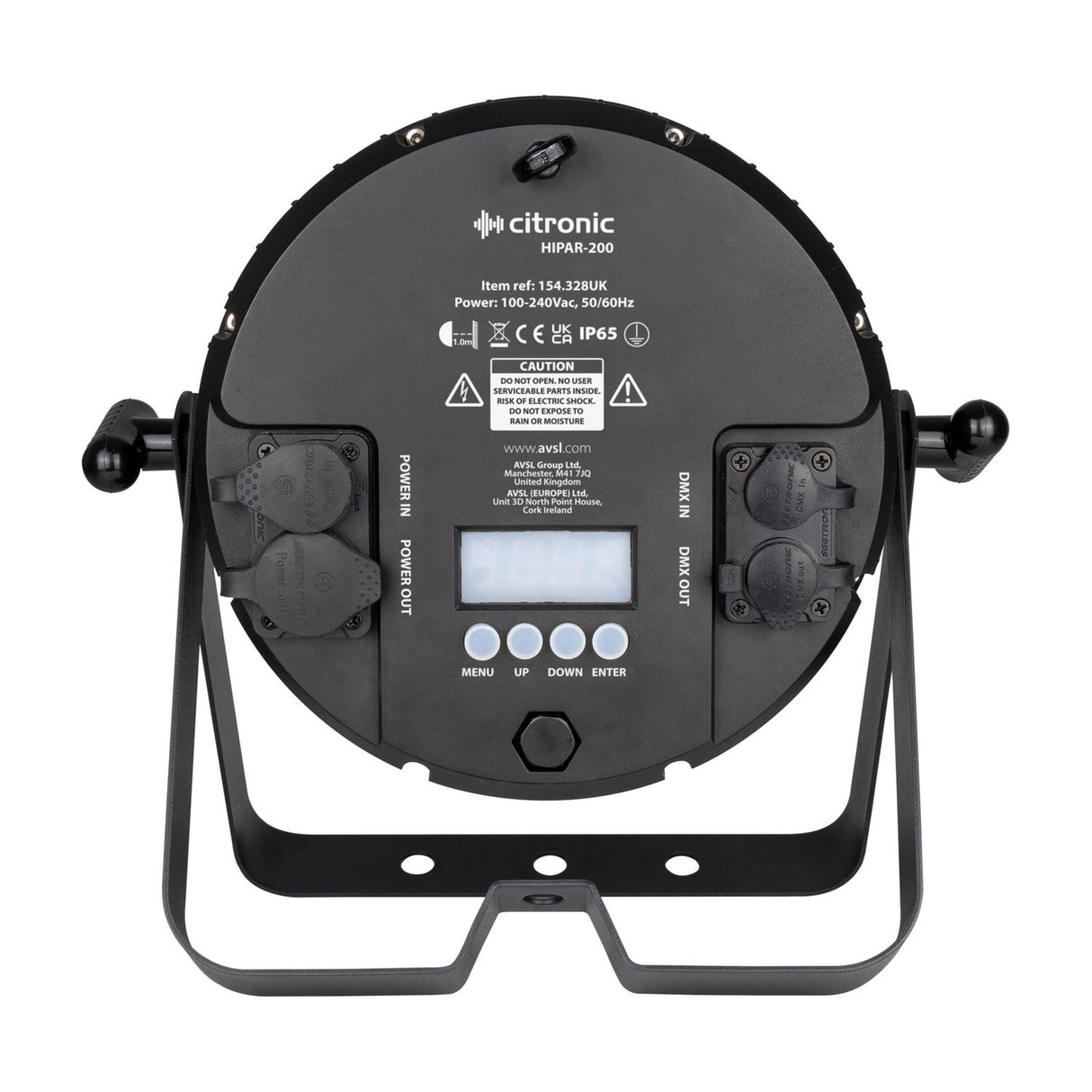

The housing uses a split IP65 weatherproof design, so the same unit works outdoors or indoors without needing separate rain covers. Power connections are IP65 twist and lock leads with both an input and output, which lets you daisy-chain several cans from one supply. DMX (control signal) runs through IP65 5-pin XLR in and out sockets, and you can choose 6, 7, 8 or 10 channel DMX-512 modes depending on how much control you want.
You can run the HIPAR-200 standalone using its internal auto, static and sound-activated programs, or link units in master/slave mode. For precise control, connect a DMX512 controller and address each fixture as needed. It ships with a dual mounting bracket that hangs the light or acts as a floor stand. At 231 x 231 x 155mm and 4.36kg, it is compact enough to rig quickly and move between venues.
Specification
| Power supply |
100-240Vac, 50/60Hz |
| Power consumption |
200W |
| LED : power |
18 x 15W RGBLA-UV |
| DMX channels |
6, 7, 8 or 10CH |
| IP rating |
IP65 |
| Beam angle |
25° |
| Modes |
Manual, Auto, Sound-activated, Master/slave, DMX512 |
| Connections |
Power in/out (waterproof twist and lock), DMX in/out (5pin XLR) |
| Dimensions |
231mm x 231mm x 155mm |
| Weight |
4.36KG |
Downloads
Product Manual
Frequently Asked
Can the HIPAR-200 be used outdoors?
Yes. It has a split IP65 weatherproof housing and IP65 twist and lock power connections, so it is rated for outdoor use as well as indoor events.
What colours can it produce?
It uses 6-in-1 RGBLA-UV LEDs, giving red, green, blue, amber and lime colour mixing plus a separate UV (ultraviolet) channel for wash or blacklight effects.
How do I control the light?
You can use the internal auto, static and sound-activated programs, run master/slave, or connect a DMX512 controller. DMX modes cover 6, 7, 8 or 10 channels.
Can I link several units together?
Yes. Power in and out and DMX in and out let you daisy-chain multiple cans, reducing the number of separate cables you need to run.
How is it mounted?
It comes with a dual mounting bracket that lets you hang the fixture or stand it on the floor.
What connectors does it use?
Power uses IP65 waterproof twist and lock leads (in and out), and DMX uses IP65 5-pin XLR in and out.
