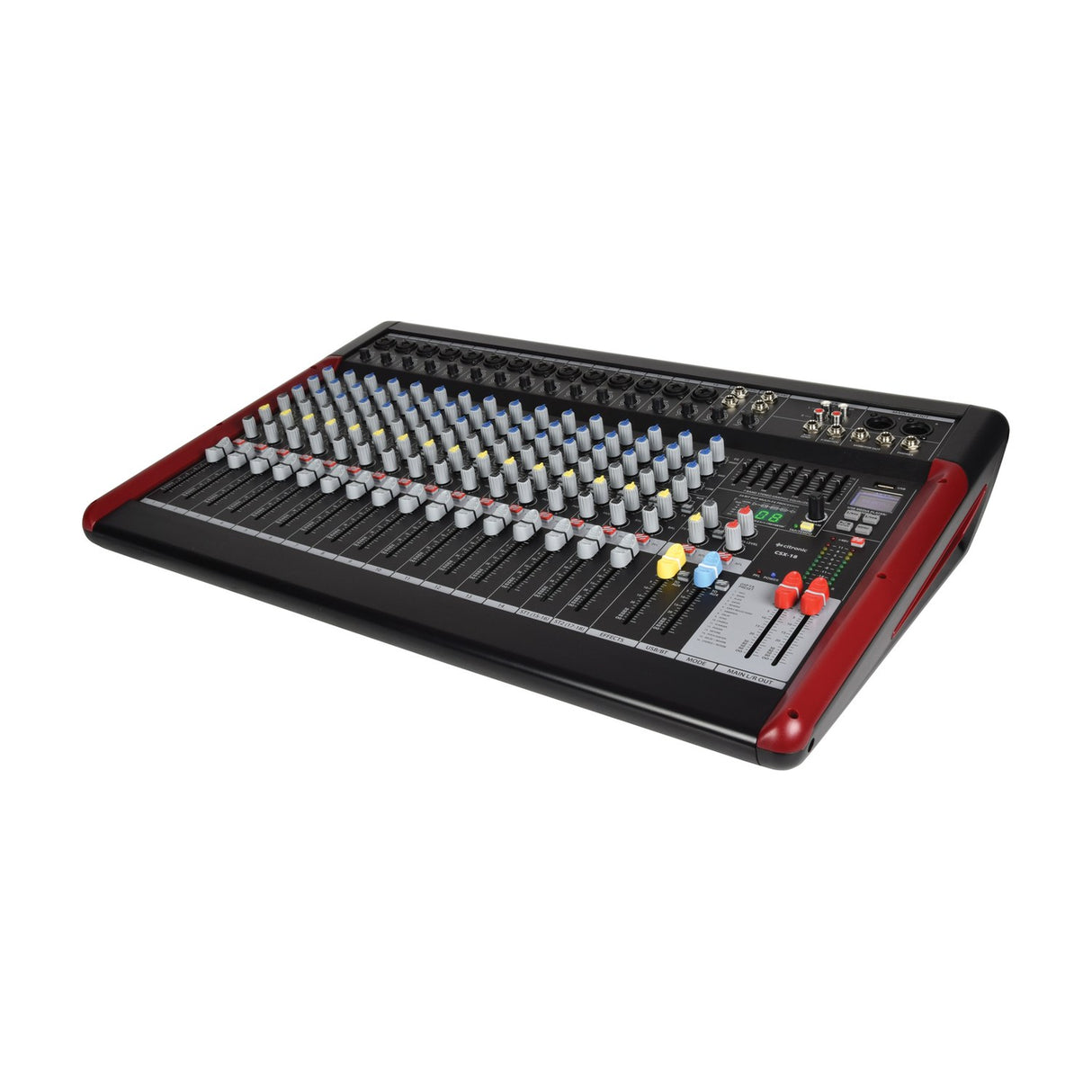

Citronic CSX-18 Live Mixing Console with USB/BT

£31999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

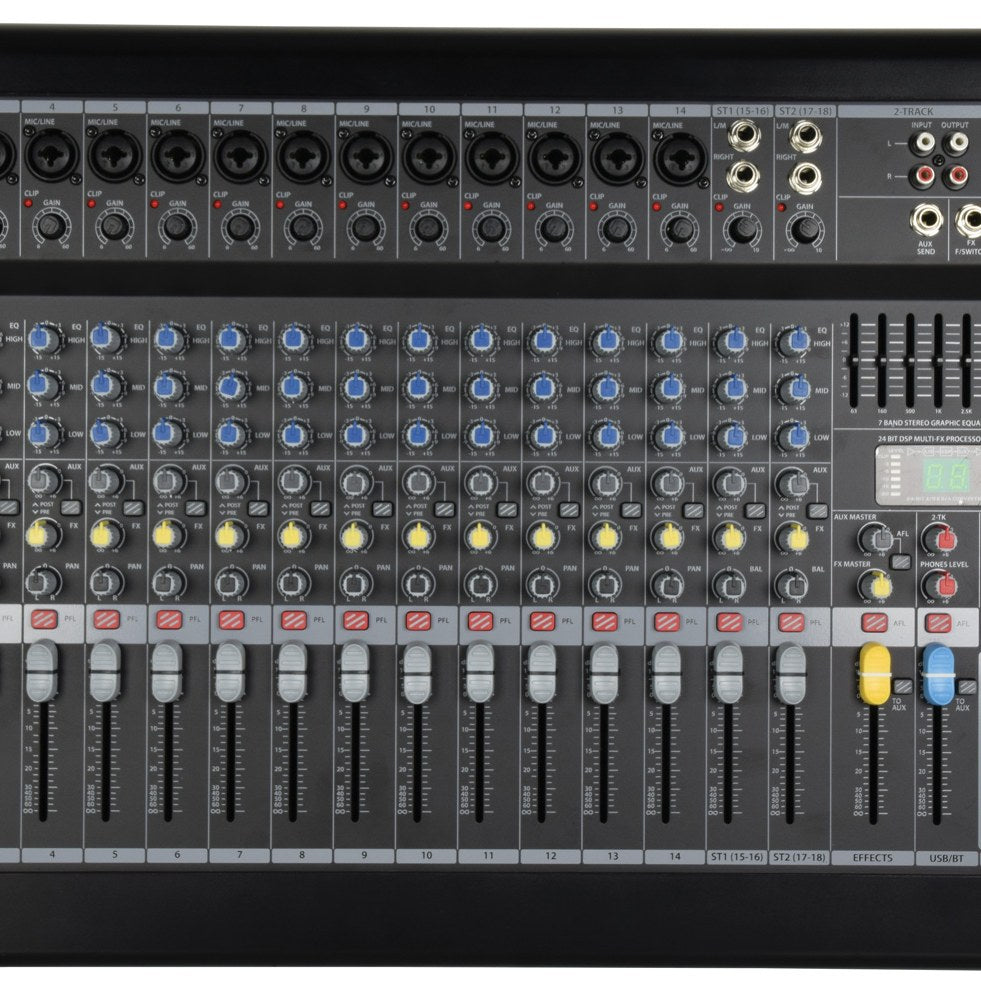

The Citronic CSX-18 is a live mixing console (mixing desk) built for stage, conference and theatre work. It gives you 14 mono channels on balanced XLR/jack inputs, plus 2 stereo jack inputs, so you have plenty of room for microphones, line sources and instruments. Every mono channel has gain, 3-band EQ, a switchable pre/post aux send, FX send, pan, a PFL switch and a 60mm fader, which keeps your level control smooth and consistent across the mix.

Phantom power is switchable globally at +48V to all XLR inputs, ready for condenser microphones and active DI boxes. Internal effects come from a 24-bit DSP engine with 16 programs, each with its own level fader and AFL switch for monitoring. The built-in media player accepts a USB memory stick for playback of stored tracks, and it can record the mix output so you can document rehearsals or performances. Bluetooth (BT) wireless pairing lets you stream from a phone or tablet for remote playback.

Global tone shaping is handled by a 7-band graphic EQ, and the master faders feed left and right balanced XLR outputs. A 2-track RCA line input has its own level control for adding a playback source, while the 2-track RCA output can go to recording gear or serve as an extra feed. The frequency response runs 20Hz to 30kHz, THD+N stays below 0.01%, and channel crosstalk is greater than 82dB, so the audio path stays clean and quiet. The desk measures 622 x 402 x 108mm and weighs 6.3kg, running from a universal 100-240Vac IEC supply.

Specification

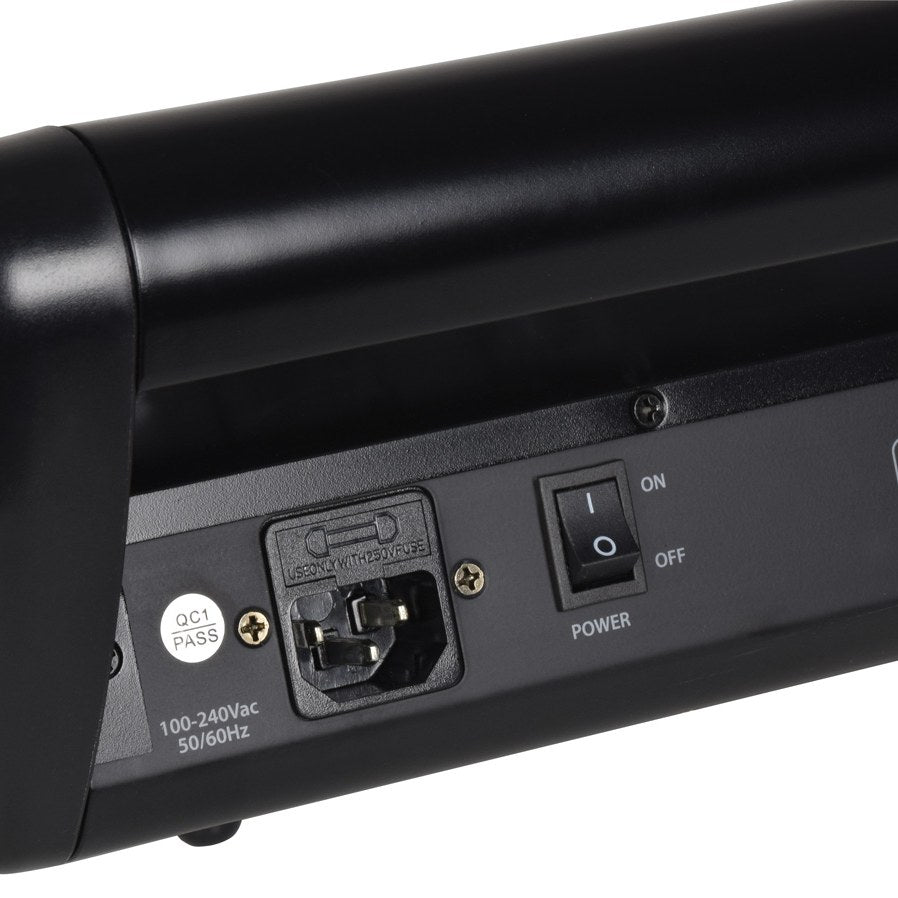

Power supply 100-240Vac, 50/60Hz (IEC)
DSP effects processor 24-bit sigma-delta, 64/128 times over-sampling, 40kHz
Output connections Main L+R balanced XLR, Monitor L+R 6.3mm jack
THD +N <0.01% (Channel to mix out)
Power consumption max. 30W
Fuse T3AL @ 230V / T6AL @ 115V
Input level +24dBu (mic/line), +20dBu (stereo line) max.
Phantom power +48V globally switched to XLR inputs
EQ: high 12kHz ±15dB (shelving)
EQ: mid 2.5kHz ±15dB (band pass)
EQ: low 80Hz ±15dB (shelving)
2-track L+R RCA, 4k Ohm, -2dBu
Bluetooth version 5.0
Output level +26dBu (XLR), +20dBu (TRS jack) max.
REC output L+R RCA, <75 Ohm, -2dBu
Headphone impedance 30-600 Ohm
Frequency response 20Hz - 30kHz (-0.5dB)
Channel crosstalk >82dB
CMRR >75dB (Mic @ 1kHz)
Noise rms : 22Hz-22kHz EIN -122dBu, Residual output ＜-90dBu, Main/Aux mix ＜-82dBu
Dimensions 622mm x 402mm x 108mm
Weight 6.30KG
Downloads

Product Manual

Frequently Asked

How many inputs does the CSX-18 have?

It has 14 mono balanced XLR/jack inputs and 2 stereo jack inputs, plus a 2-track RCA line input for a playback source.

Can it record my mix?

Yes. The built-in media player records the mix output to a USB memory stick, which is handy for documenting rehearsals and performances. There is also a 2-track RCA output for external recording gear.

Does it have Bluetooth?

Yes. The BT receiver lets you pair a phone or tablet for wireless playback through the desk.

What phantom power does it provide?

It supplies +48V phantom power, globally switched to all XLR inputs, so you can run condenser microphones and active DI boxes.

What effects are built in?

A 24-bit DSP engine gives you 16 effect programs, each with an independent level fader and an AFL switch for monitoring.

How is the master EQ set up?

A 7-band graphic EQ handles the overall mix at 63, 160, 500, 1k, 2.5k, 6.3k and 16kHz. Each channel also has its own 3-band EQ.
