Citronic CMB-10 Mixing Console with DSP & USB/BT Player

£14999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

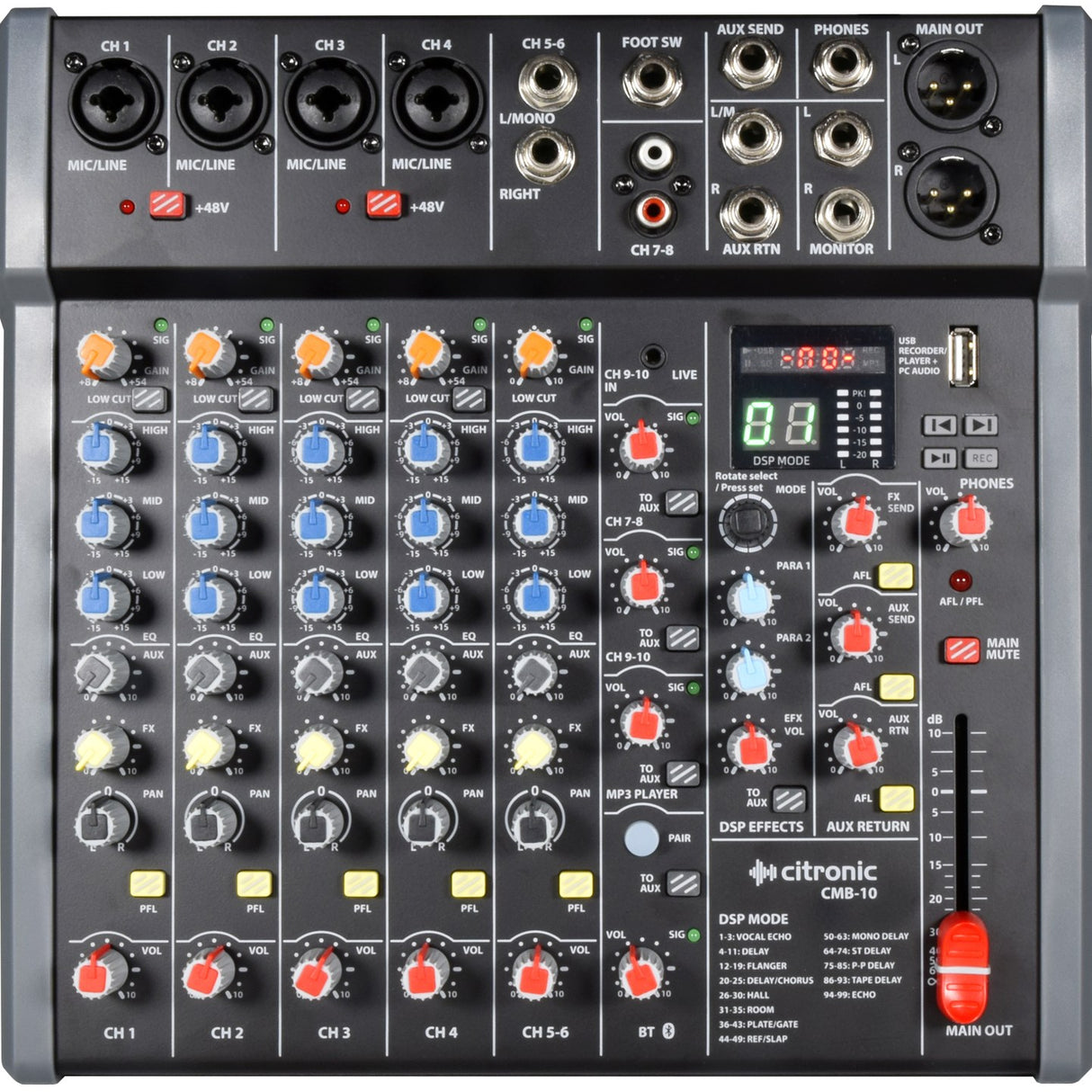

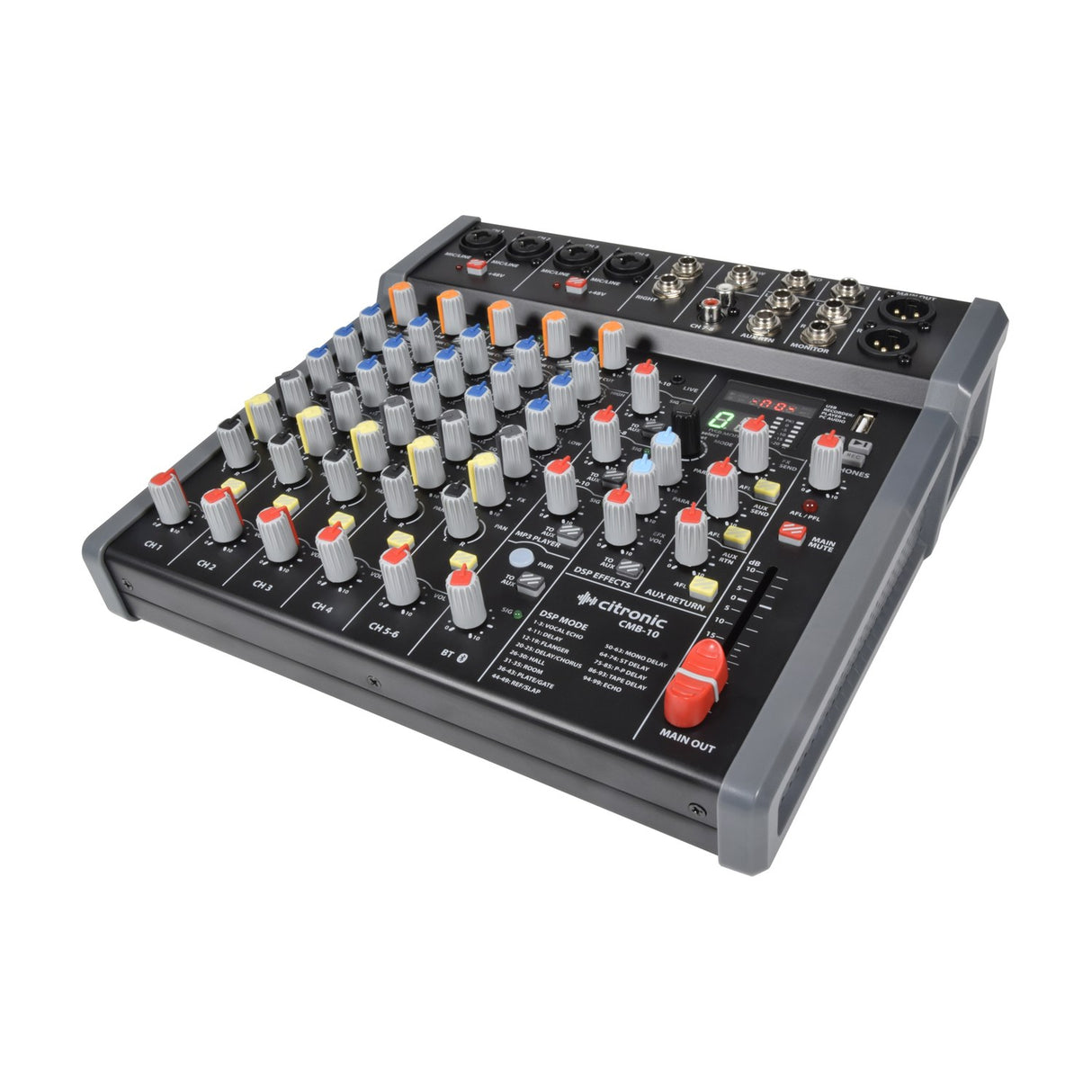

The CMB-10 is a fully featured audio mixer built for live performers and project studio recordists who want larger console features in a more manageable format. It gives you four mono input channels, a stereo line input, a stereo Aux input and a further minijack (3.5mm) stereo input, so you can bring together microphones, instruments and playback sources on one desk. Each mono mic/line channel uses a combo XLR/jack input with switchable +48V phantom power, applied in pairs for the XLR inputs, plus a Gain control for matching the source and a low-cut switch to filter out rumble or handling noise.

Every mono channel has High/Mid/Low EQ, Aux out level, FX level and Pan, giving you plenty of control over the mix. The onboard DSP effects engine is foot-switchable and carries 99 presets covering delay, reverb and modulation, each adjustable with two parameter controls. A built-in Bluetooth receiver (v5.1) has an illuminated pairing button and its own independent volume control, so wireless playback sits neatly alongside your other sources. The USB type-A port on the top panel plays audio files, records the main outputs to a USB storage device, or works as an external audio device when connected to a laptop or Mac.

Main output runs to left and right XLR, with 6.3mm monitor and headphone outputs and an independent Aux send with stereo return loop. Power comes via a USB type-C connection with the mains adaptor included, keeping the desk compact on stage or at the desk. With balanced XLR/jack inputs, a 3-band EQ per channel and a clean signal path (EIN of -122dBu, THD+N below 0.05%), the CMB-10 handles vocals, instruments and playback with room to grow your setup.

Specification

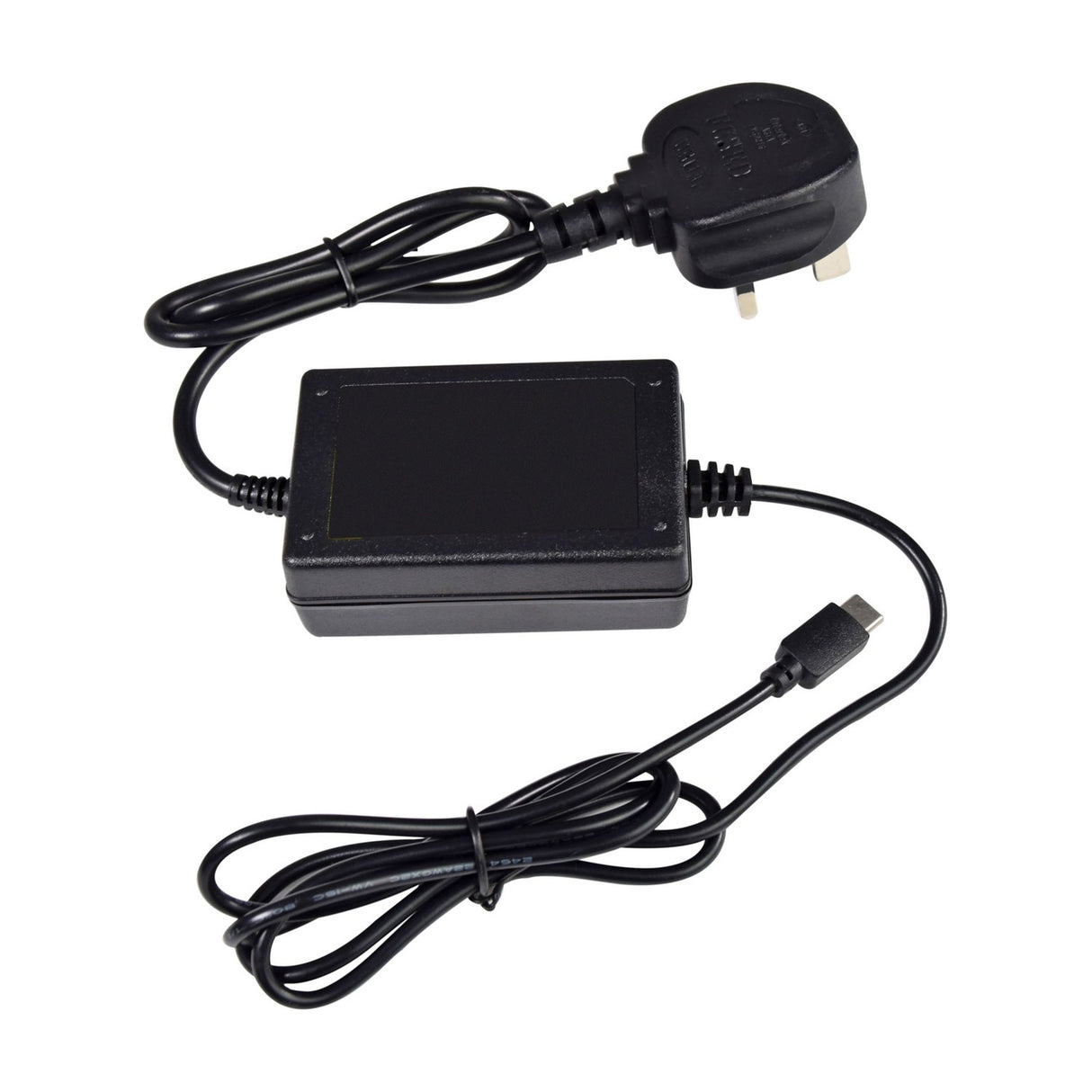

Power supply 5Vdc 2A min. (USB-C adaptor included)
Power consumption max. 10W
Effects 99 program DSP (2 parameter controls)
Inputs 4 x combo XLR/jack, stereo L+R 6.3mm, stereo RCA + stereo 3.5mm
Audio source Bluetooth receiver, USB mp3 player/recorder
Bluetooth version v5.1 (+BR+EDR+BLE)
EQ: low ±15dB @ 80Hz
EQ: mid ±15dB @ 2.5kHz
EQ: high ±15dB @ 12kHz
Phantom power +48V switchable in pairs (XLR inputs only)
Frequency response 20Hz - 22kHz (±1dB)
Input level Mic +10dBu max. / Line +22dBu max.
Input impedance Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm (unbal 20k Ohm)
THD +N <0.05% @ 1kHz
Noise EIN -122dBu (22Hz - 22kHz)
CMRR >75dB (Mic 1kHz)
Sensitivity XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
Crosstalk >80dB (1kHz fader shutoff)
Outputs Main L+R XLR, L+R Monitor 6.3mm, Headphones 6.3mm
Max. output level XLR +22dBu, TRS +20dBu
Sends : returns 1 Aux send, L+R return
Dimensions 270mm x 260mm x 74mm
Weight 1.50KG
Downloads

Product Manual

Frequently Asked

What inputs does the CMB-10 have?

It has four combo XLR/jack mono inputs, a stereo 6.3mm line input, stereo RCA and a stereo 3.5mm minijack input, so you can connect microphones, instruments and playback devices together.

Does it supply phantom power for condenser microphones?

Yes. The CMB-10 offers switchable +48V phantom power, applied in pairs to the XLR inputs, so you can run condenser mics that need it.

How does the Bluetooth playback work?

There is an onboard Bluetooth v5.1 receiver with an illuminated pairing button and its own independent volume control, letting you stream audio wirelessly without affecting your other channel levels.

Can I record from the mixer?

Yes. The USB type-A port records the main outputs to a USB storage device, plays audio files, or acts as an external audio device when connected to a laptop or Mac.

What effects are included?

The foot-switchable DSP engine has 99 presets covering delay, reverb and modulation, each with two parameter controls for fine adjustment.

How is the mixer powered?

It runs from a USB type-C connection using the included 5Vdc 2A mains adaptor, with a maximum power consumption of 10W.
