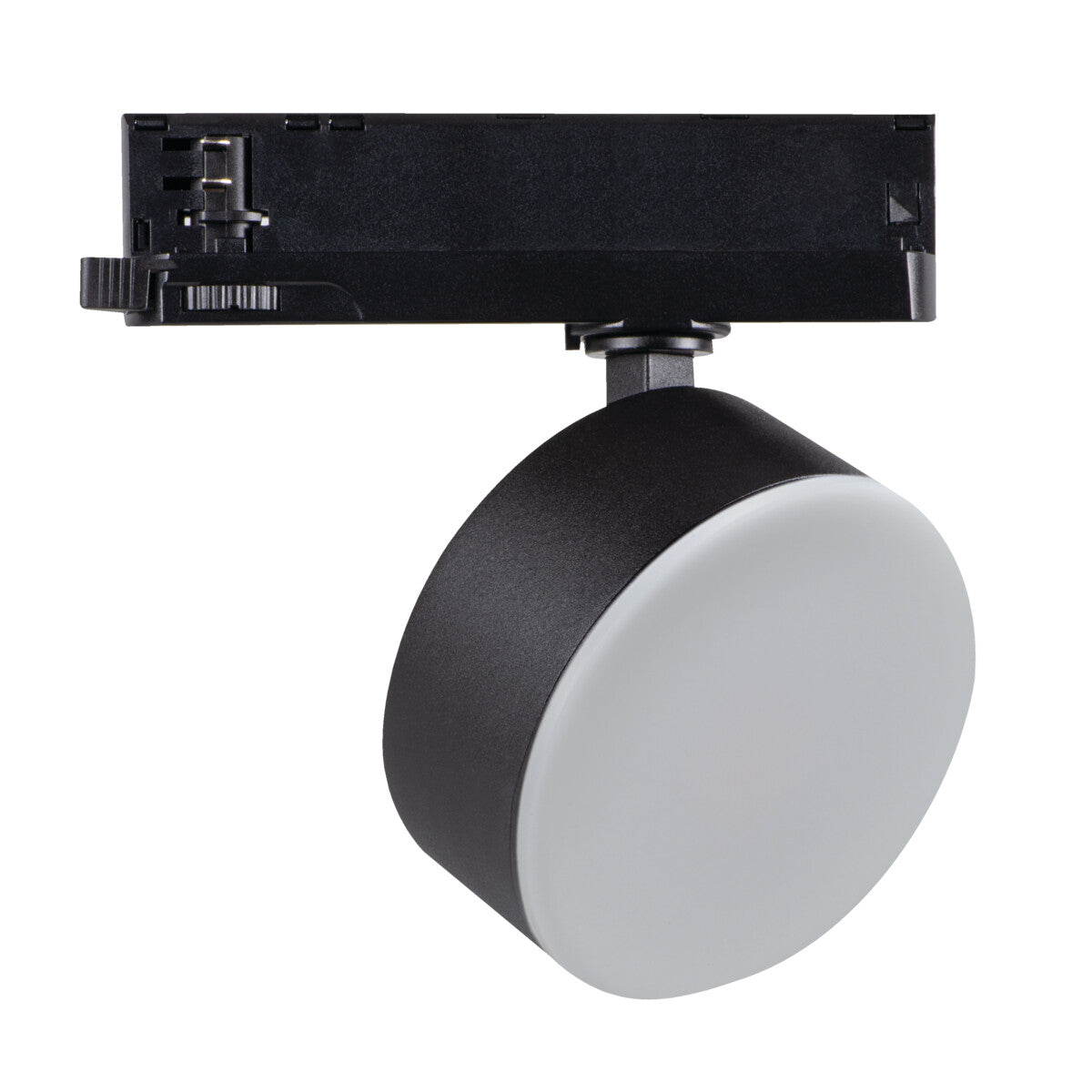

Description
The BTLW is an 18W LED track head that mounts onto a lighting track to put light exactly where a layout needs it. It draws 220-240V AC and produces 1400 lumens at a warm 3000K, with a high Ra 90 colour rendering that keeps finishes and merchandise looking true. The wide 120 degree beam spreads a soft, even wash rather than a tight accent spot, so a row of heads covers a broad area without harsh pools or gaps. In the US this format is known as track lighting, the most familiar name there for a head that clips onto a continuous powered rail.
Across a track run, the BTLW suits retail display walls, kitchens, hallways and open-plan living and work spaces where the lighting needs to follow the room rather than sit in fixed positions. The 120 degree spread makes it a good general-purpose head for washing a wall, a worktop or a seating zone, and several heads can be spaced along the track to build the level of coverage a space wants. Because it is a dry indoor fitting only, keep it clear of bathrooms, porches and any damp or exposed location. It is best paired with standard ceiling heights where the wide beam can open out without throwing light past the working area.
The body is aluminium alloy in a black finish, a low-weight head at just 260 g that the track carries easily even in longer runs. It runs direct from mains voltage through the track, so no separate driver needs to be specified, and it carries an IP20 rating that confirms its dry indoor remit. The fitting is not dimmable, and its rated lifespan is 50,000 hours. The BTLW sits within our wider track range, so heads, connectors and track sections can be combined to suit the room.
Specification
| Power |
18W |
| Voltage |
220-240 AC |
| Luminous flux |
1400 lm |
| Efficiency |
78 lm/W |
| Colour temperature |
3000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
120° |
| IP rating |
IP20 |
| Dimmable |
No |
| Mounting |
Track Mounted |
| Lifespan |
50,000 hours |
| Weight |
260 g |
| Material |
Aluminium Alloy |
| Finish |
Black |
Downloads
Frequently Asked
How does track lighting work?
A powered track is fixed to the ceiling or wall, and individual heads like the BTLW clip onto it and draw power from the rail. This lets you position several heads along a single circuit and aim them where light is needed, rather than wiring each fitting separately.
What track does the BTLW fit?
The BTLW is a track-mounted head designed to clip onto a compatible lighting track from the same range. Check whether your run uses a single-circuit or three-phase track before ordering, as the head and track must match for the heads to seat and power correctly.
Can I add or move heads as my layout changes?
Yes. The BTLW slots onto the track and can be repositioned along its length or added to over time, so you can adjust spacing and aim as a display or room changes. At 260 g per head the track carries multiple fittings comfortably.
How do I clean the fitting?
Switch off and let the head cool, then wipe the aluminium body and lens with a soft dry or slightly damp cloth. Avoid solvents and abrasive cleaners, which can mark the black finish, and do not let moisture enter the head as this is a dry indoor IP20 fitting.
