Description

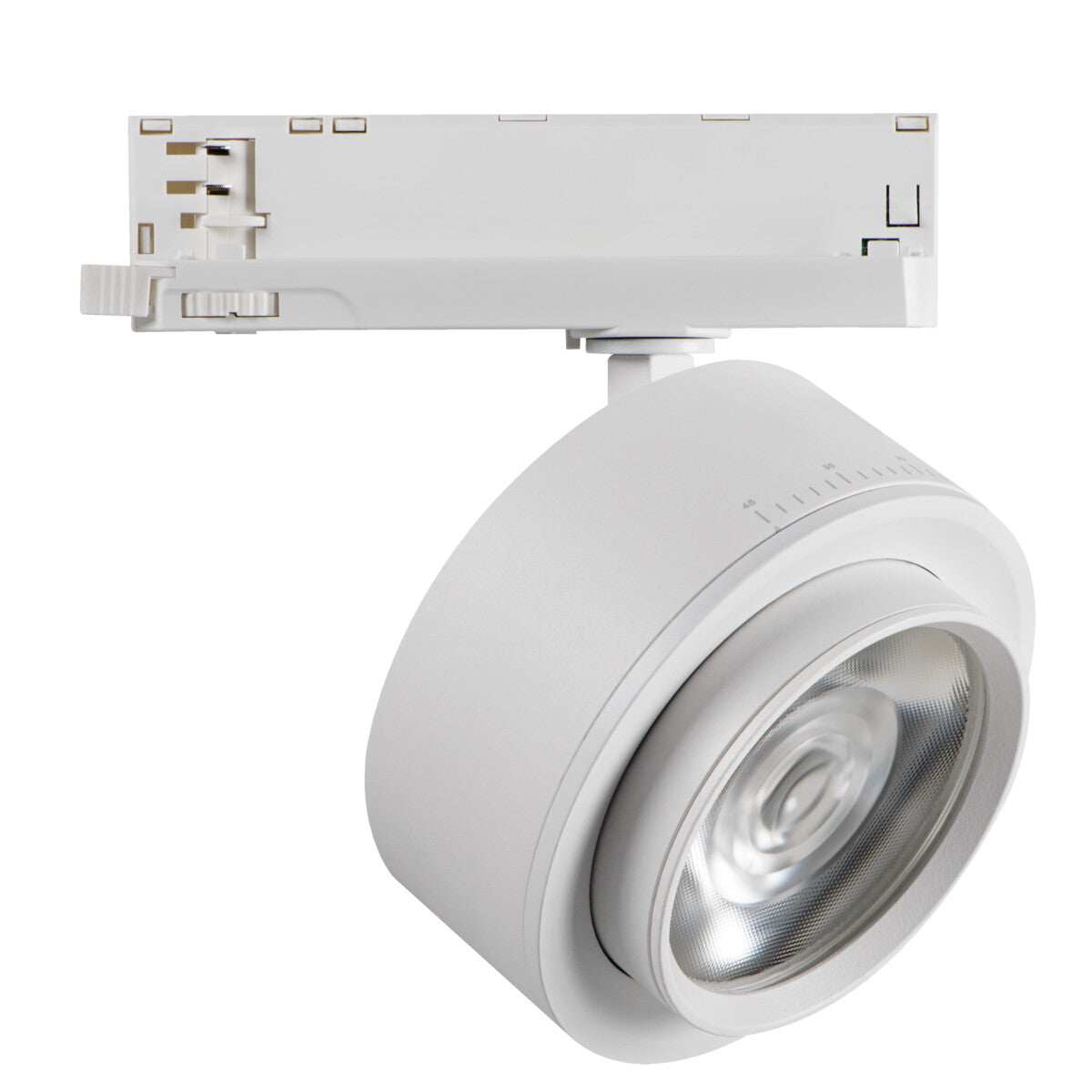

The BTL is a track light head that fixes onto a three-phase track to direct focused light wherever it is needed. It draws 38W and pushes out 4000 lumens at a high 105 lm/W efficiency, with a 4000K cool white tone that keeps colours crisp and neutral. The adjustable beam runs from a tight 15° spot up to a wider 45° spread, so the same head can pick out a single object or wash a broader zone. American buyers will know this format as track lighting, the head clipping into a continuous track rail rather than wiring to a fixed point.

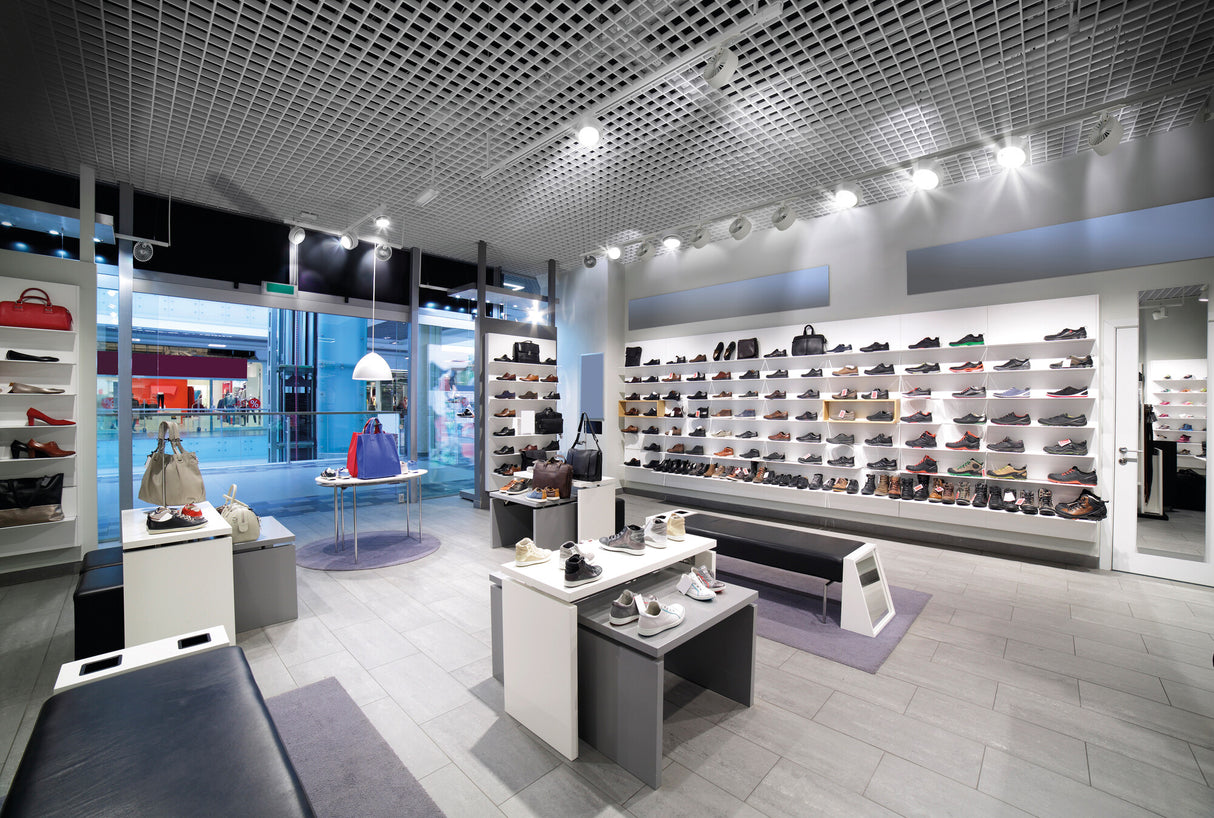

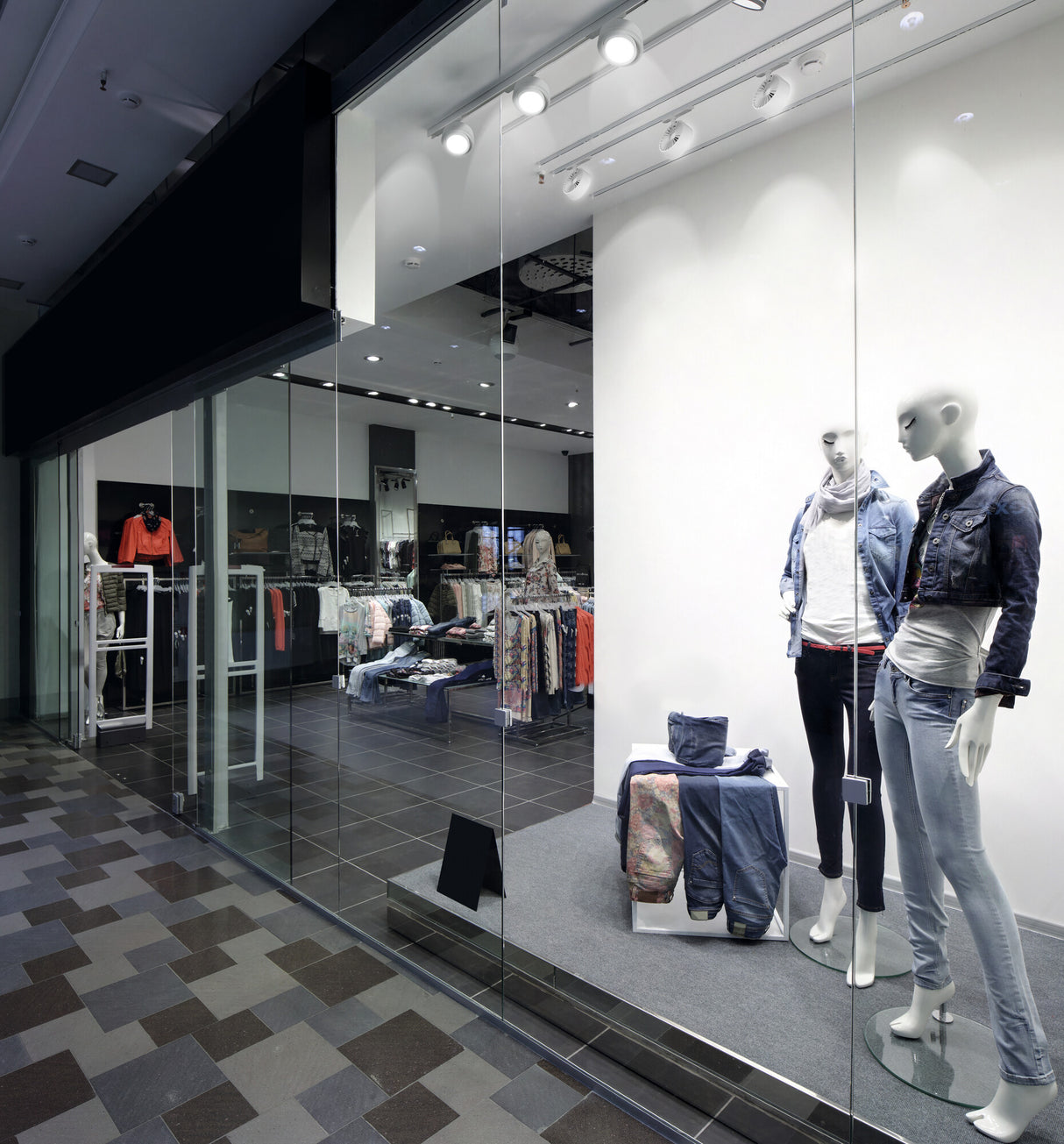

Track heads like this earn their place in retail floors, showrooms, galleries and display areas where the lighting needs to follow the goods rather than the room layout. With the beam tightened to 15° the BTL throws a concentrated pool that highlights a product, sign or artwork, while opening it out to 45° covers a shelf bay or display table with a softer edge. Aim several heads along one rail to layer accent and feature lighting across a wall or aisle. It is an indoor fitting rated IP20, so it belongs in dry interior spaces and should be kept out of damp, exposed or bathroom locations.
Built from aluminium alloy in a white finish, the BTL weighs 804g and carries a rated lifespan of 50,000 hours. The Ra 90 colour rendering shows finishes, fabrics and packaging in true tone, which matters for merchandising and gallery work. It mounts directly onto a compatible three-phase track and is not dimmable, so it is set to a fixed output. Heads can be added, repositioned or removed along the rail as a display changes, giving a layout that adapts over time. The wider BTL range covers further beam and wattage options on the same track system.
Specification
| Power |
38W |
| Voltage |
220-240 AC |
| Luminous flux |
4000 lm |
| Efficiency |
105 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
15-45° |
| IP rating |
IP20 |
| Dimmable |
No |
| Mounting |
Track Mounted |
| Lifespan |
50,000 hours |
| Weight |
804 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What is track lighting and how does it work?
Track lighting uses a continuous powered rail mounted to the ceiling or wall, onto which individual heads clip and draw power. The BTL head fixes anywhere along the track and aims independently, so you can point light exactly where it is wanted. It is a flexible way to light retail, display and gallery spaces without fixed wiring points.
What track does the BTL head fit?
The BTL clips into a standard three-phase track rail. As long as the track is compatible, the head locks into place and takes its 220-240V AC supply directly from the rail, so no separate wiring run is needed to each fitting.
Can I add or move heads as my layout changes?
Yes. Heads slot into the track and can be repositioned, added or removed along the rail at any time. This makes it easy to re-aim the lighting or expand a run when a display, shelf bay or showroom layout changes.
How do I clean the BTL track head?
Wipe the aluminium body and lens with a soft, dry or slightly damp cloth once the fitting is switched off and cool. Avoid solvents or abrasive cleaners on the white finish. Keeping the lens clear helps maintain the full 4000 lumen output and sharp beam.
