Description

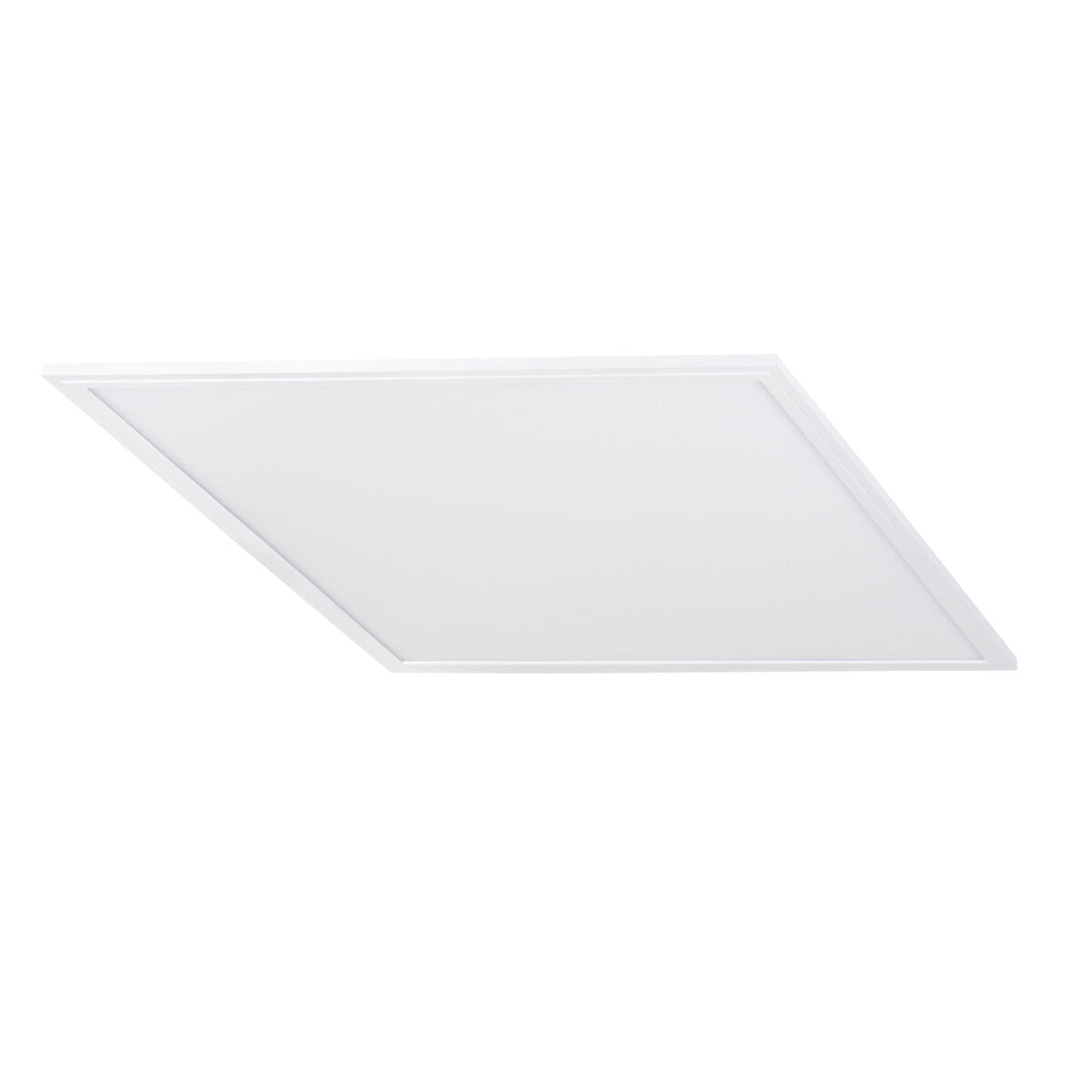

The Bravo is a square recessed LED panel light measuring 595 x 595 mm, sized to drop neatly into a standard 600 x 600 ceiling grid. It draws 40W and delivers 4000 lm of even, glare-controlled output at a cool 4000K, with a wide 110 degree beam that washes the whole panel face for flat, shadow-free coverage. North American specifiers will know this nominal footprint as a 2x2 panel, the most common drop-ceiling format on that side of the Atlantic. At 100 lm/W and Ra 80 colour rendering, it gives clean, neutral light suited to working spaces.
Cool 4000K output and a broad 110 degree spread make the Bravo a natural fit for offices, classrooms, reception areas, corridors and retail floors where consistent overhead light matters. At general lighting levels its 4000 lm covers around 13 m², so a single panel handles a small meeting room or a compact office, while a grid of them scales to open-plan floors. As a recessed fitting it sits into the ceiling void and needs clearance above the grid for the body and wiring, so it is best planned into suspended-ceiling layouts with adequate plenum depth. The IP20 rating means it is intended for dry indoor rooms only.
Built around a steel frame with a white finish and a square 11 mm low-profile body, the Bravo weighs 2.36 kg and seats flush within the ceiling grid once recessed. The driver is supplied separately, so a compatible remote driver should be specified to match the 40W load. The diffuser spreads light across the full face for a soft, uniform glow, and the panel carries a rated lifespan of 25,000 hours. The Bravo range includes further sizes and colour temperatures to suit larger or mixed installations.
Specification
| Power |
40W |
| Luminous flux |
4000 lm |
| Efficiency |
100 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
110° |
| IP rating |
IP20 |
| Driver included |
No |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
25,000 hours |
| Shape |
Square |
| Dimensions |
595 × 595 × 11 mm |
| Weight |
2.36 kg |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
Will this panel fit a standard suspended ceiling grid?
Yes. The Bravo measures 595 x 595 mm, which drops into the standard 600 x 600 modular grid used in most suspended ceilings. As a recessed fitting it needs clearance in the ceiling void above the grid for the body and driver wiring, so plan for adequate plenum depth.
How many lumens does it give and what room size does it cover?
The panel produces 4000 lm at 4000K. At general lighting levels that covers around 13 m², enough for a small office or meeting room on its own. Larger or open-plan spaces are lit by arranging several panels across the grid.
Does it come with a driver?
No, the driver is supplied separately. You will need to specify a compatible remote driver rated to suit the 40W panel. Matching the driver correctly is important for stable output and the full 25,000 hour lifespan.
How do I clean the panel?
Switch off and let it cool, then wipe the diffuser face with a soft, dry or lightly damp cloth. Avoid solvents and abrasive cleaners, which can mark the surface. The flush, low-profile face makes it quick to keep dust-free.
