Description

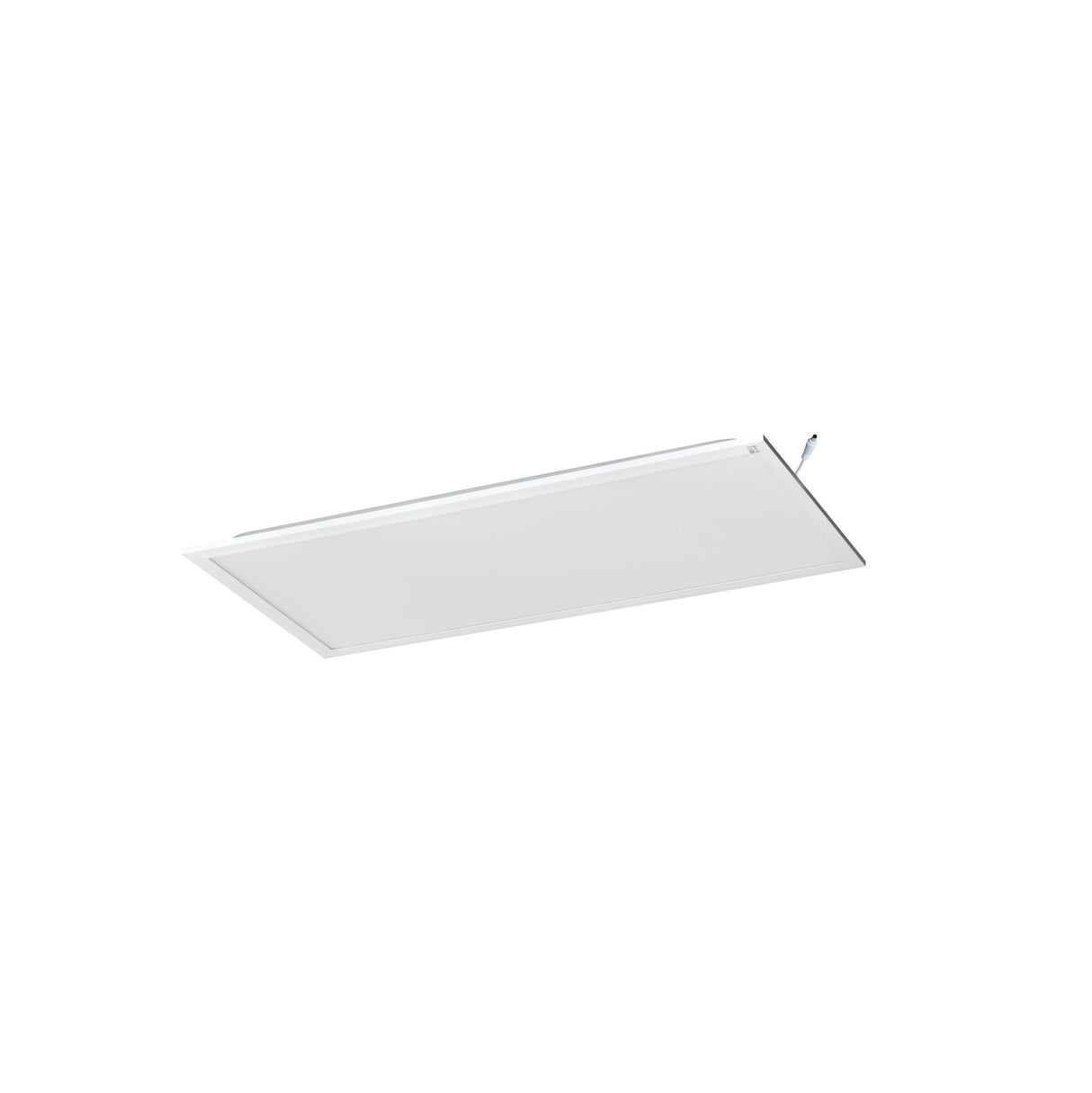

The Blingo UIP is a recessed LED panel light delivering up to 24W and 3000 lumens of cool white 4000K output, with a wide 90 deg beam that spreads light evenly across the room below. Across the Atlantic the same rectangular 600x300 mm format is known as a 1x2 troffer, the standard drop-ceiling size for offices and utility spaces. It is a driverless panel, which means the electronics sit on board and it wires straight to mains AC with no separate driver to find or fit. With a Ra 90 colour rendering figure, colours and surfaces look natural and true under its light.
This panel suits offices, kitchens, corridors and reception areas where a clean, low-profile ceiling line is wanted. At 3000 lumens it covers around 10 m² at general lighting levels, so a pair or more can be planned across a larger open-plan floor for a consistent wash. Because it is recessed, it needs a suspended grid or a ceiling void with clearance above for the body, and at only 30 mm deep it fits shallow plenums comfortably. The IP54 splash rating also makes it sound in bathroom zones and covered outdoor spots such as a porch or carport, though it should be kept away from direct water jets and fully exposed positions.
Built from steel with a white finish, the Blingo UIP measures 595 × 295 × 30 mm and weighs 810 g, slim enough to recess neatly into a grid. The IP54 sealing on the lit face guards against splashes and dust ingress. As a driverless fitting it runs direct from the mains with no external transformer required, simplifying both the wiring and the spares list. The integrated LEDs are rated for 50,000 hours of service. The Blingo range also includes colour-selectable and low-glare variants for project specifiers who need to match several areas.
Specification
| Power |
max 24W |
| Luminous flux |
3000 lm |
| Efficiency |
max 125 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
90° |
| IP rating |
IP54/20 |
| Driver included |
No |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
50,000 hours |
| Shape |
Rectangular |
| Dimensions |
595 × 295 × 30 mm |
| Weight |
810 g |
| Material |
Steel |
| Finish |
White |
Downloads
Product Specification Sheet
Range Datasheet
Frequently Asked
Does this panel need a separate driver?
No. The Blingo UIP is a driverless panel, so the control electronics are built in and it connects straight to mains AC. There is no external driver or transformer to source or wire in.
Does it recess into a standard suspended ceiling?
Yes. At 595 × 295 mm it drops into a standard 600x300 grid module, and the slim 30 mm body suits shallow ceiling voids. It is a recessed fitting, so it needs clearance above rather than sitting on the surface.
How many lumens does it give and what area does it cover?
It produces 3000 lumens at 4000K cool white. At general lighting levels that covers around 10 m², so larger rooms are best served by laying out several panels for an even spread.
How do I clean the panel?
Wipe the lit face with a soft, dry or barely damp cloth once isolated from the supply. Avoid solvents and abrasive pads, which can mark the diffuser, and let it dry fully before switching back on.
