Beacon Type A Fire Telephone Outstation - Brushed Stainless Steel

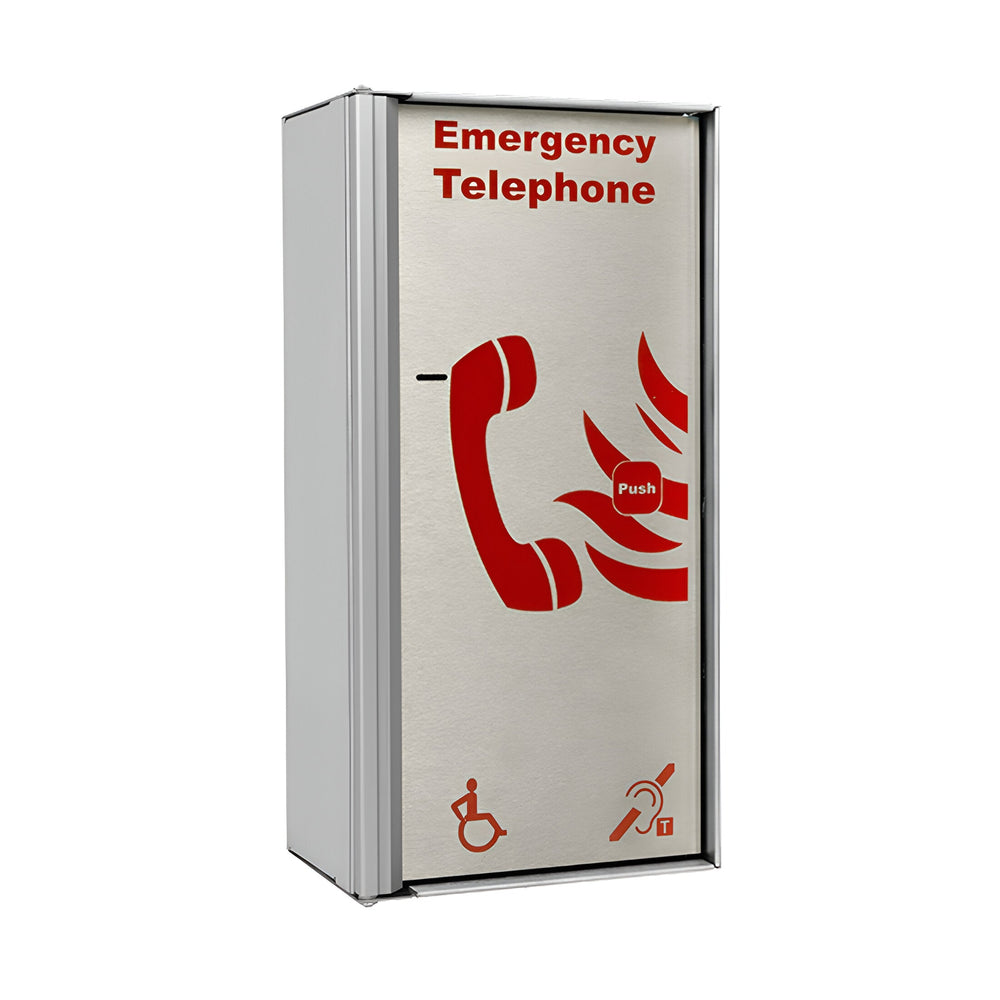

The Beacon Type A fire telephone outstation is a wall-mounted emergency communication point designed for use in fire alarm systems to BS5839-9:2021. It provides duplex audio communication between the outstation and a master control unit, allowing firefighters or building personnel to communicate during an emergency. The unit is housed in a brushed stainless steel enclosure measuring 340mm high by 190mm wide by 140mm deep, with red graphics identifying it as an emergency telephone and accessibility symbols for wheelchair users and hearing-impaired individuals.

Designed for installation in commercial buildings, public spaces, hotels, hospitals and large residential blocks where fire regulations require two-way voice communication between outstations and a central control point, the Beacon Type A outstation mounts directly to internal walls at approximately 1.2m-1.4m from floor level to comply with accessibility requirements. The large handset is tethered to the unit and sits on the left side when not in use, while a push-button activates the call. An LED indicator on the front panel shows call status, confirming when the line is active and when communication has been established.

The stainless steel housing resists impact and surface damage in high-traffic areas, and the brushed finish reduces visible fingerprints and smudging compared to polished stainless. The high-volume ringer ensures the outstation can be heard in noisy environments or where ambient sound levels are elevated during an alarm condition. The duplex audio allows simultaneous two-way conversation without needing to press-to-talk, which speeds communication and reduces confusion during emergency use. At 2.2kg net weight the unit is substantial enough to withstand daily handling without movement on the wall once correctly fixed.

Product Specification Sheet

Product Manual

What is a Type A fire telephone outstation?

A Type A outstation is a two-way voice communication point that connects to a master fire telephone control panel. It allows firefighters or building personnel to communicate between floors or zones during an emergency. Type A outstations are required in certain buildings under BS5839-9:2021 fire alarm system regulations.

Does this require specific wiring?

Yes. The outstation connects to a compatible fire telephone master control unit via a two-wire or four-wire circuit depending on the system configuration. Wiring must comply with fire alarm cable standards and be installed by a competent person familiar with BS5839 requirements.

Is the handset replaceable?

Yes. The large handset is tethered to the unit with a coiled cable and can be replaced if damaged. Replacement handsets are available separately from ESP or through Niori.

What height should it be mounted at?

BS5839-9:2021 recommends mounting fire telephone outstations at approximately 1.2m-1.4m from floor level to the centre of the unit, ensuring accessibility for wheelchair users and ease of use during an emergency.
