AV:Link VGA Wall Plate Module - Socket to Female Tail

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

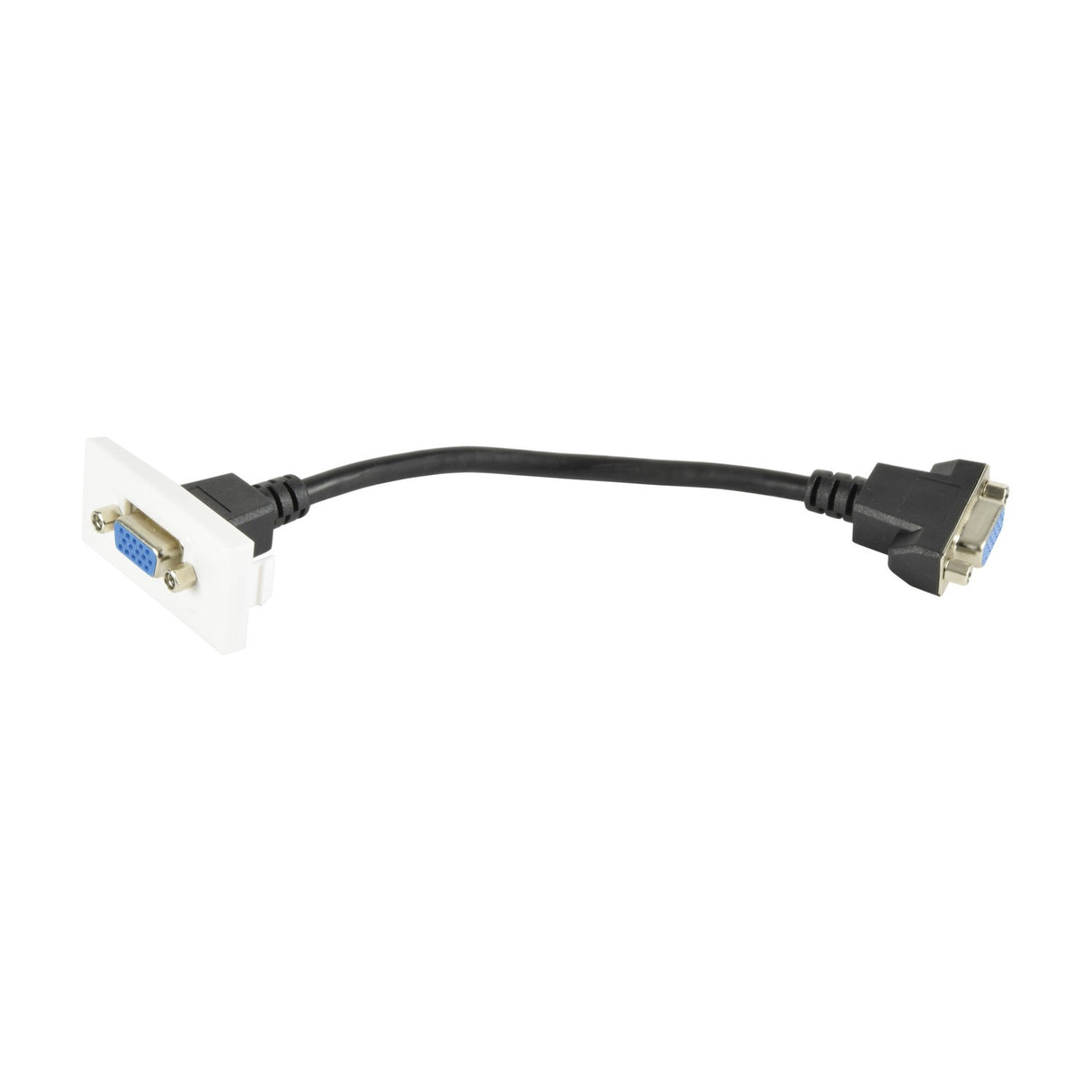

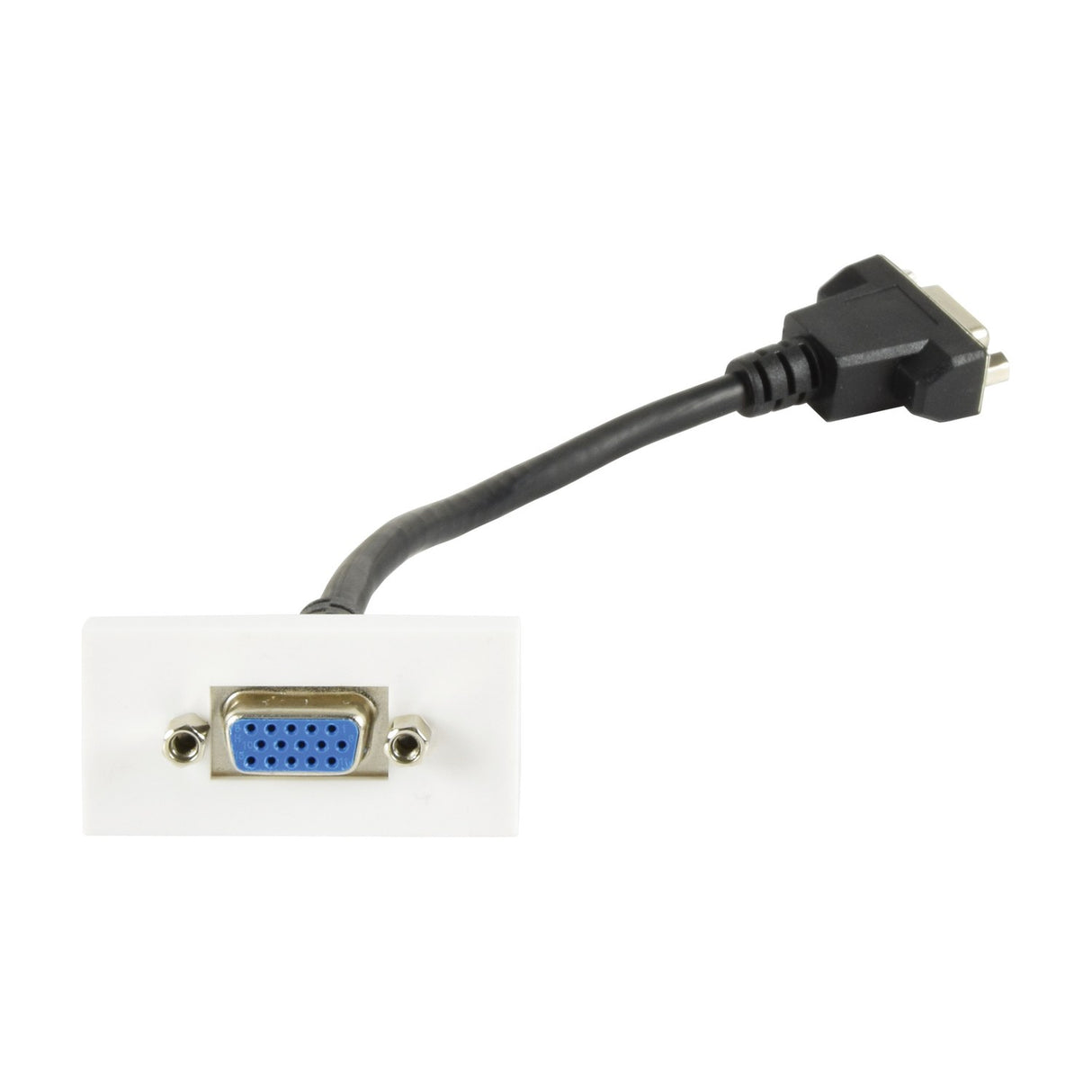

The AV:Link VGA wall plate module is a 50mm x 25mm clip-in module with a VGA socket on the faceplate side and a 19mm female tail projecting from the rear. The module sits within a compatible modular faceplate frame, allowing VGA display cables to terminate at a wall outlet rather than trailing across rooms or desks.

Designed for classrooms, meeting rooms, offices and home AV installations where display devices are mounted or positioned away from source equipment, the module creates a fixed connection point that keeps cables contained within walls or trunking. The female tail accepts a standard VGA cable from the source equipment behind the wall, while the front socket accepts the display cable running to a projector, monitor or screen.

The module clips into AV:Link modular frames (122.500UK single-gang or 122.505UK double-gang, sold separately), which mount onto standard UK back boxes. Multiple modules can be combined in a single frame to create custom AV outlet configurations mixing VGA, HDMI, audio and other connection types. The white finish matches standard electrical accessories and the compact 50 x 25mm footprint allows two modules side-by-side in a double-gang frame.

Specification
Dimensions 50 x 25 x 195mm
Weight 35g
Frequently Asked

What faceplate frame does this module fit?

The module clips into AV:Link modular frames 122.500UK (single-gang) or 122.505UK (double-gang). These frames are sold separately and mount onto standard UK single or double back boxes.

How long is the female tail at the back?

The female tail projects 19mm from the rear of the module. This connects to a VGA cable from the source equipment, which runs behind the wall or through trunking to the back box.

Can multiple modules be combined in one faceplate?

Yes. The 50 x 25mm module size allows two modules to sit side-by-side in a double-gang frame (122.505UK), or one module in a single-gang frame (122.500UK). This allows custom combinations of VGA, HDMI, audio and other AV connection types in a single wall outlet.

What back box depth is required?

A standard 35mm back box is typically sufficient, but deeper boxes (47mm) may be needed if multiple cables terminate behind the module or if the VGA cable has a bulky connector shroud. Check the total projection of the female tail plus the VGA plug before finalising the back box depth.
