AV:Link USB-C Wall Plate Module - Socket to Male Tail

£899
The RRP is the manufacturer's recommended retail price of the item.
100 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

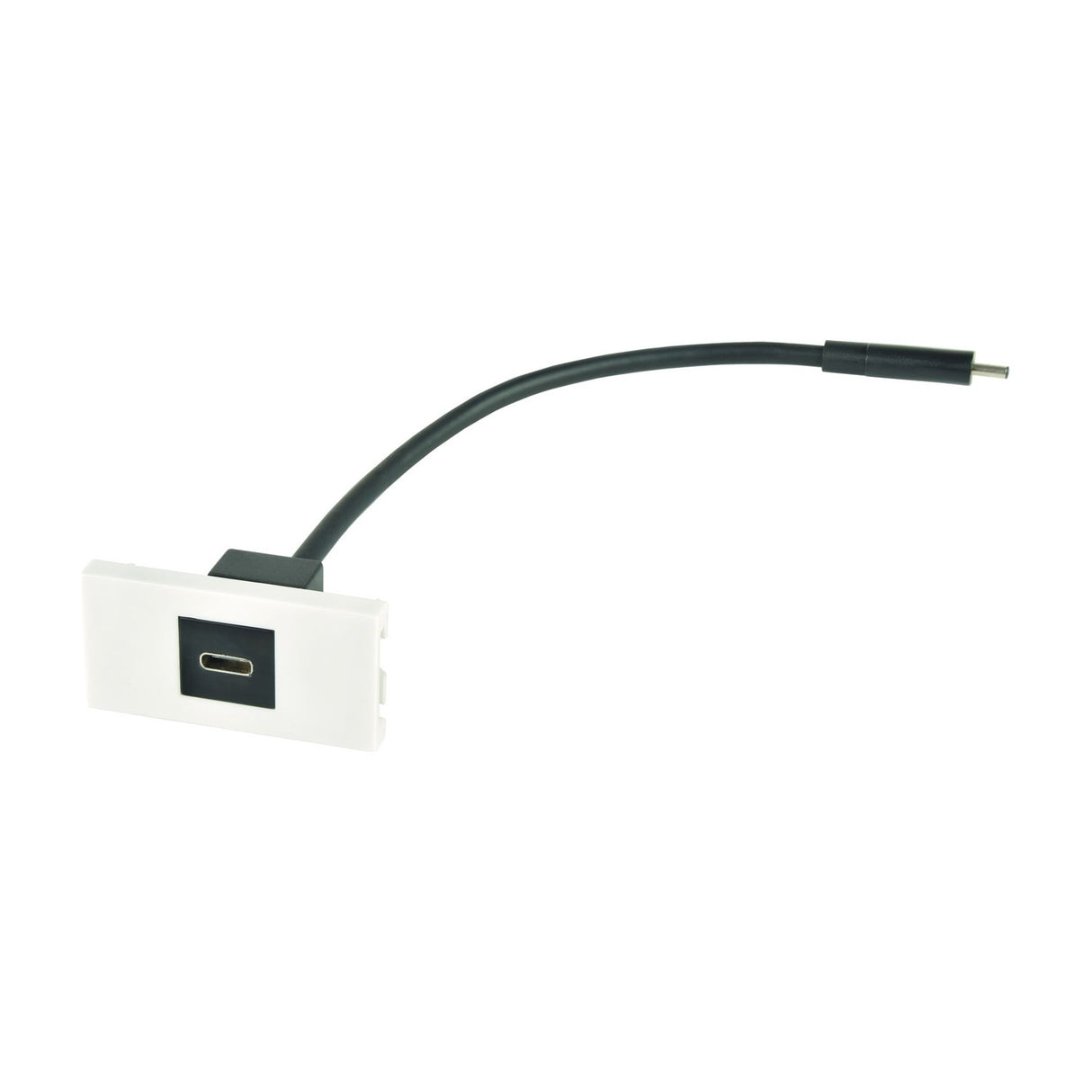

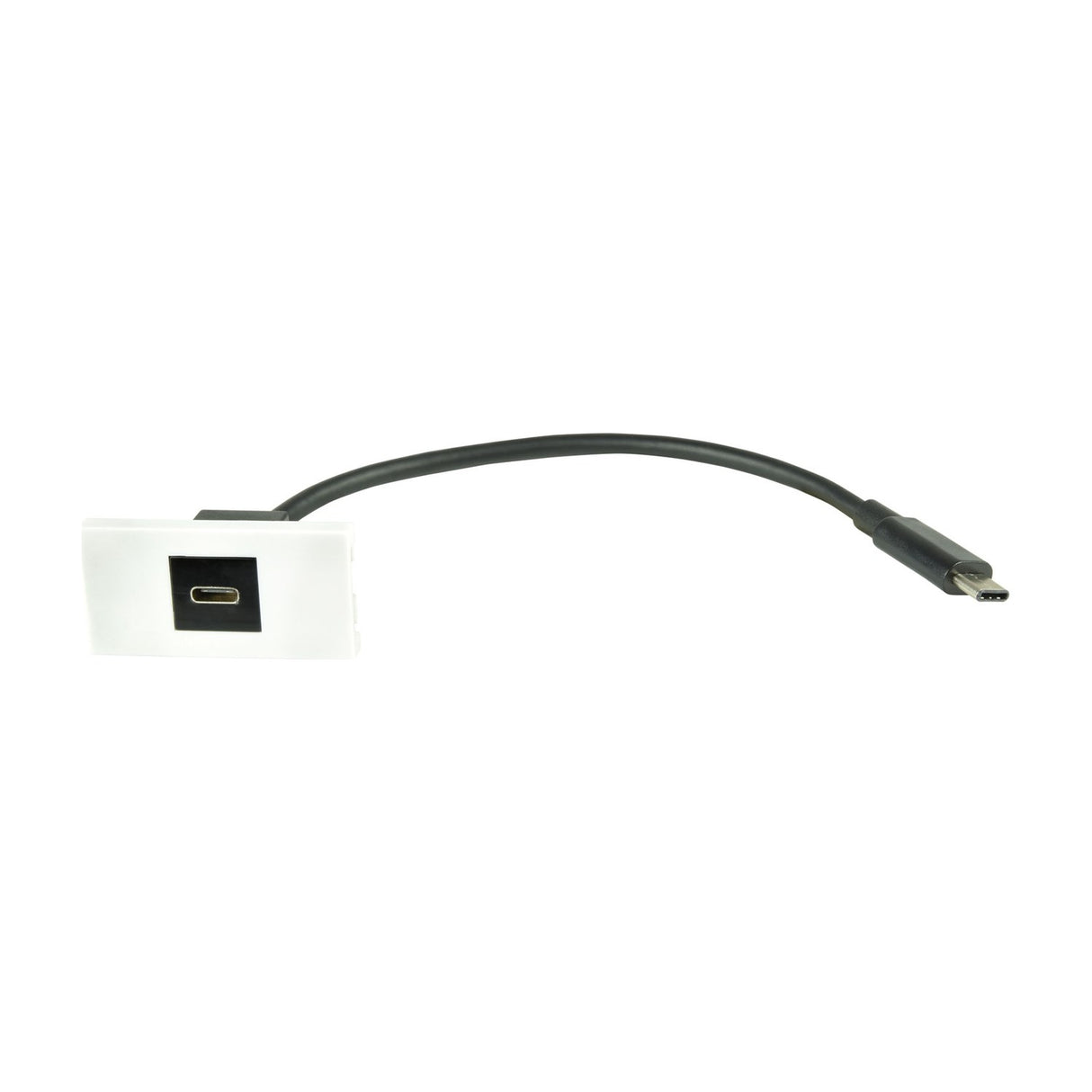

The AV:Link USB-C wall plate module is a 50mm x 25mm clip-in unit with a USB Type-C socket on the front faceplate and a male USB-C tail extending 20mm from the rear. The module allows USB-C cables to connect through a wall plate rather than trailing across surfaces, keeping installation paths concealed behind walls or furniture.

Designed for installation into modular wall plate frames (122.500UK and 122.505UK, sold separately), the module suits residential media walls, office AV setups, educational lecture rooms and commercial conference spaces where USB-C connectivity is needed at the wall rather than at the source device. The module supports USB 3.0 with data transfer rates up to 5 Gbps, making it suitable for both charging and data sync applications including external drives, tablets and smartphones.

The white faceplate with black insert matches standard UK modular wiring accessories and sits flush once clipped into a compatible frame. The 19g weight keeps the module light enough that multiple units can be installed in a single multi-gang frame without pulling the frame forward from the wall. The male tail at the rear connects to USB-C extension cables or source devices positioned behind the wall plate, allowing the visible cable run to be limited to the front-facing connection only.

Specification
Dimensions 50mm x 25mm x 215mm
Weight 0.02KG
Data transfer rate 5 Gbps (max)
USB version 3.0
Power : max. 20V~5A (100W)
Frequently Asked

What frames does this module fit?

The module is compatible with AV:Link modular wall plate frames 122.500UK (single aperture) and 122.505UK (double aperture). These frames are sold separately and allow multiple modules to be combined in a single wall plate installation.

Does it support USB-C power delivery for charging?

The module is primarily a connectivity solution for extending USB-C connections through a wall plate. Power delivery capability depends on the source device connected to the male tail at the rear. The module itself does not generate or regulate power.

What is the male tail used for?

The 20mm male USB-C tail at the rear of the module connects to a USB-C extension cable or source device positioned behind the wall plate, allowing the visible cable run to be concealed and the connection point to be brought forward to the wall surface.

Can it be used for video output over USB-C?

USB-C video output (DisplayPort Alt Mode) depends on the capabilities of both the source device and the receiving display. This module acts as a passive connector, so video transmission is possible if both connected devices support it, but the module does not convert or process the signal.
