AV:Link HDMI Wall Plate Module - Socket to Female Tail

£499
The RRP is the manufacturer's recommended retail price of the item.
100 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

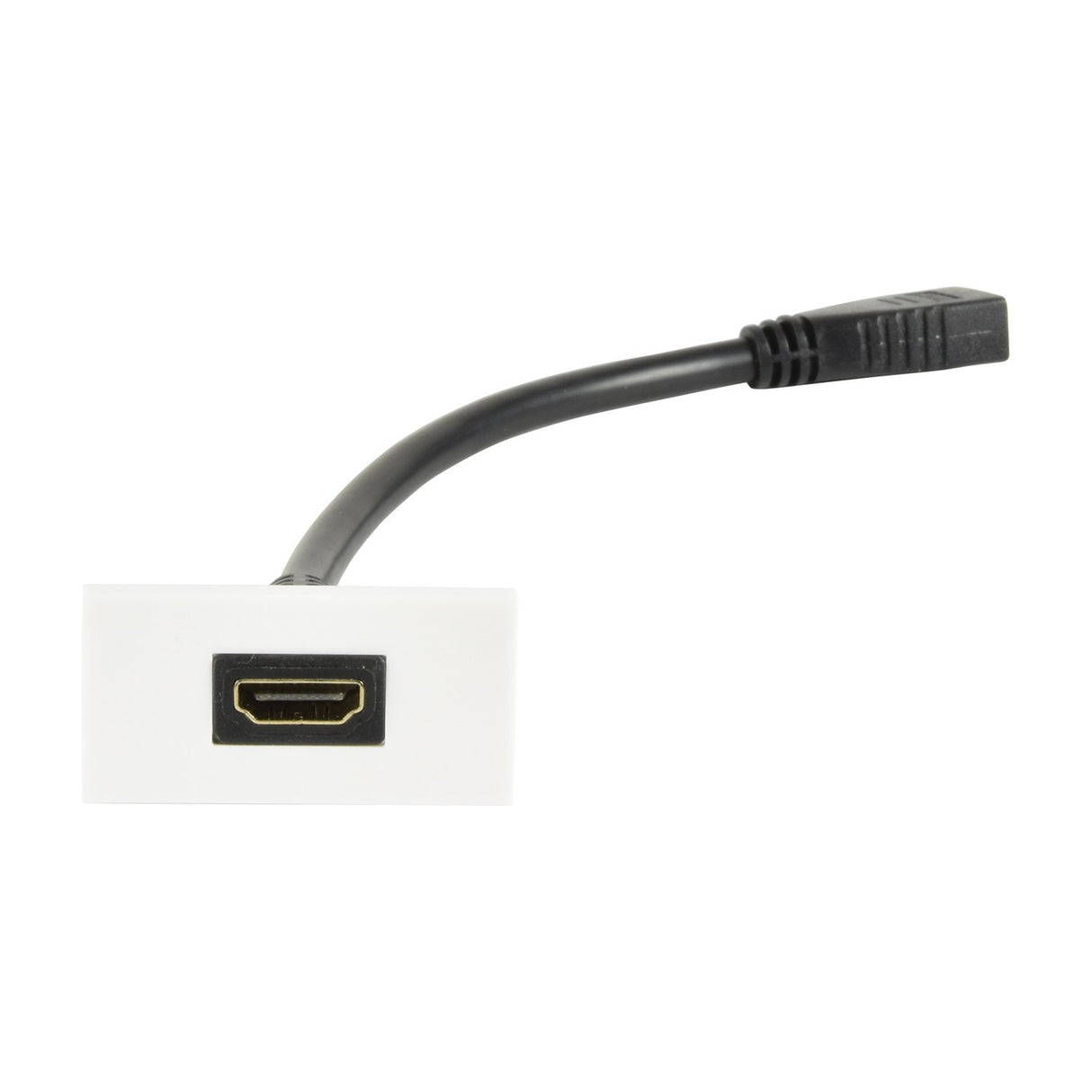

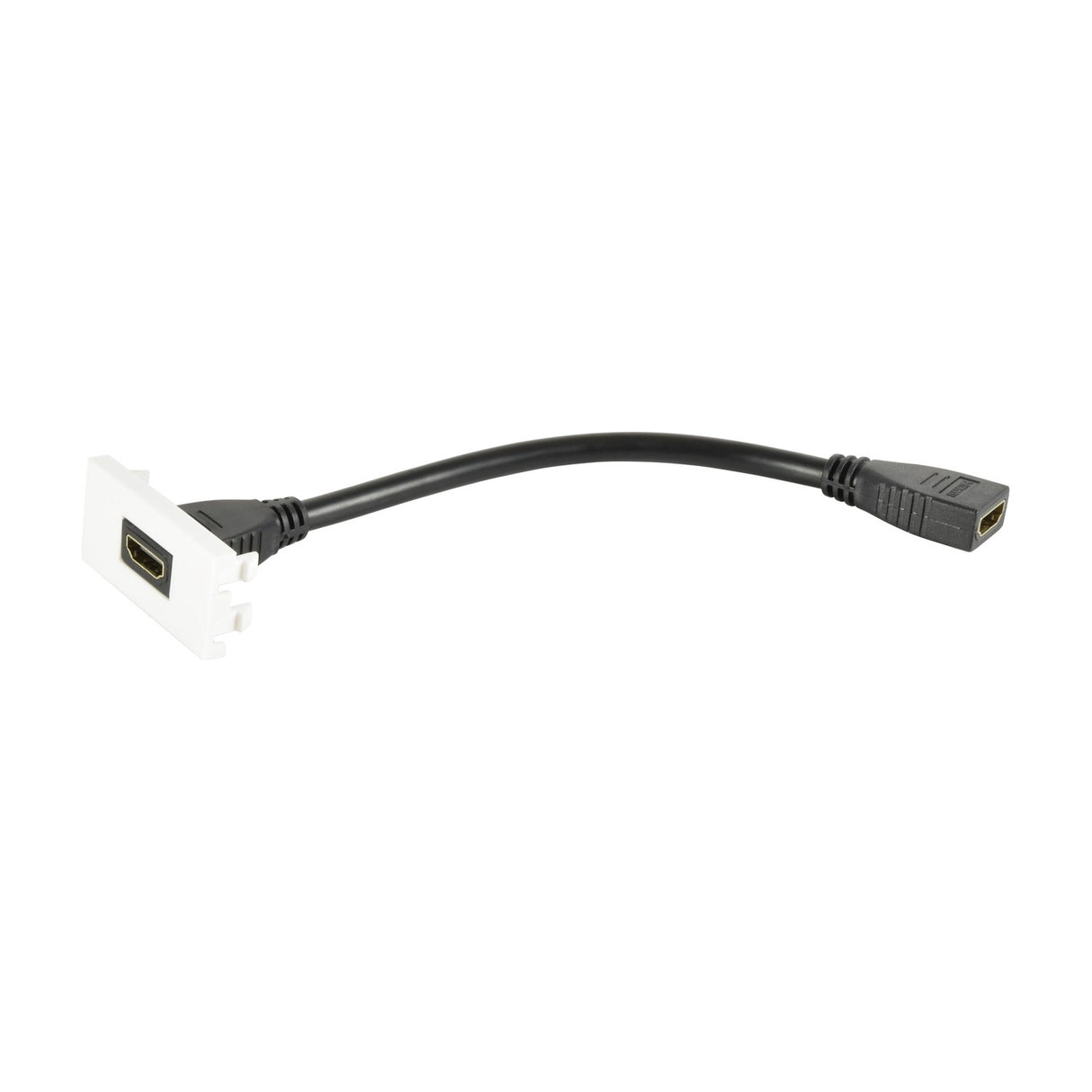

The AV:Link HDMI wall plate module is a 50mm x 25mm euromodule with a gold-plated HDMI 2.0 socket on the front faceplate and a 15mm female HDMI tail extending from the rear. The module clips into standard 25mm euromodule frames (AV:Link frames 122.500UK and 122.505UK are compatible), allowing HDMI sources to be connected at the wall plate without exposed cable runs.

Designed for domestic AV installations, commercial conference rooms and educational settings where display devices are mounted separately from source equipment, the module allows an HDMI cable to run behind the wall or through conduit between the source location and the display. The female tail at the rear of the module accepts a standard male HDMI plug from the source equipment, while the front socket accepts the HDMI cable running to the display.

The gold-plated contacts resist corrosion and provide better signal contact than unplated terminals, reducing the risk of intermittent connection or signal degradation over time. The HDMI 2.0 specification supports resolutions up to 4K at 60Hz, HDR pass-through, and audio return channel (ARC) where the display and source both support it. At 32g the module adds minimal weight to a wall plate assembly and the 50mm x 25mm footprint allows two modules to fit side-by-side in a standard twin-gang euromodule frame.

Specification
Max. resolution 3840 x 2160 @ 60Hz
Max. bandwidth 18Gbps
Dimensions 50mm x 25mm x 215mm
Weight 0.03KG
Frequently Asked

What wall plate frames is this compatible with?

The module clips into standard 25mm euromodule frames. AV:Link frames 122.500UK (single-gang) and 122.505UK (double-gang) are confirmed compatible. Other euromodule frames with 25mm apertures should also accept the module.

Does it support 4K resolution?

Yes. The HDMI 2.0 specification supports resolutions up to 4K at 60Hz, along with HDR pass-through and audio return channel (ARC) where the connected devices support these features.

How long is the female tail at the rear?

The female HDMI tail extends 15mm from the back of the module. When planning cable routing behind the wall plate, allow clearance for this tail plus the depth of the male HDMI plug that connects to it.

Can two modules fit in a twin-gang frame?

Yes. The 50mm x 25mm footprint allows two modules to sit side-by-side in a standard double-gang euromodule frame, giving two HDMI connection points at a single wall plate location.
