AV:Link 3.5mm Stereo Wall Plate Module in White

£299
The RRP is the manufacturer's recommended retail price of the item.
500 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

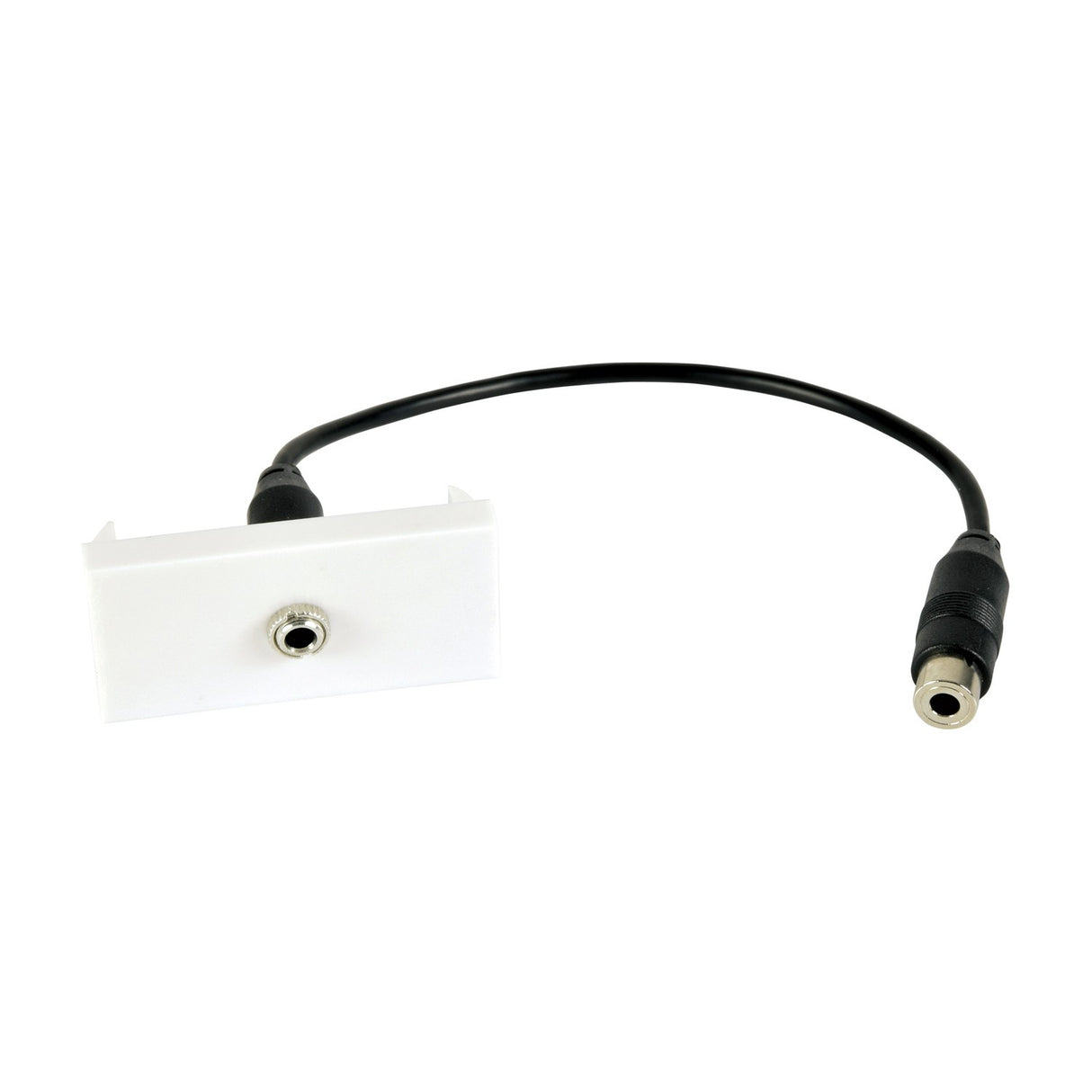

The AV:Link wall plate module presents a front-facing 3.5mm stereo jack socket in a white 50mm x 25mm clip-in unit, with a 20mm female fly lead extending from the rear. The front socket accepts standard 3.5mm stereo jack plugs from headphones, portable speakers or audio devices, while the rear tail connects to an audio source cable concealed behind the wall.

Designed for permanent audio connection points in homes, offices, schools and commercial spaces, the module eliminates trailing cables across floors and desks by routing audio through the wall cavity. The module clips into compatible grid frames (AVSL 122.500UK single-gang or 122.505UK double-gang frames, sold separately) which mount onto standard UK back boxes, allowing multiple audio or AV modules to be combined in a single faceplate.

The white finish matches standard UK electrical accessories and blends into light-coloured walls. At 13g the module adds minimal weight to a multi-module grid plate. The 50mm x 25mm footprint is a single-width grid module, so two of these can fit side-by-side in a double-gang frame to create left and right channel connection points for stereo systems.

Specification
Dimensions 50mm x 25mm x 200mm
Weight 0.01KG
Frequently Asked

What grid frame does this fit?

The module clips into AV:Link 122.500UK (single-gang) or 122.505UK (double-gang) grid frames. These frames are sold separately and mount onto standard UK 25mm back boxes.

How long is the rear fly lead?

The female tail extends 20mm from the back of the module. This connects to a 3.5mm male jack cable routed through the wall cavity to the audio source location.

Can two modules be used for stereo?

Yes. Two of these 50mm-wide modules fit side-by-side in a double-gang 122.505UK frame, allowing separate left and right channel connection points for a stereo system. Each module would connect via its rear tail to the corresponding left or right output cable from the audio source.

Is this suitable for speaker-level signals?

The module is designed for line-level audio signals from headphone outputs, portable devices and pre-amplified sources. It is not rated for amplified speaker-level signals which require higher-gauge cable and different connector types.
