Description

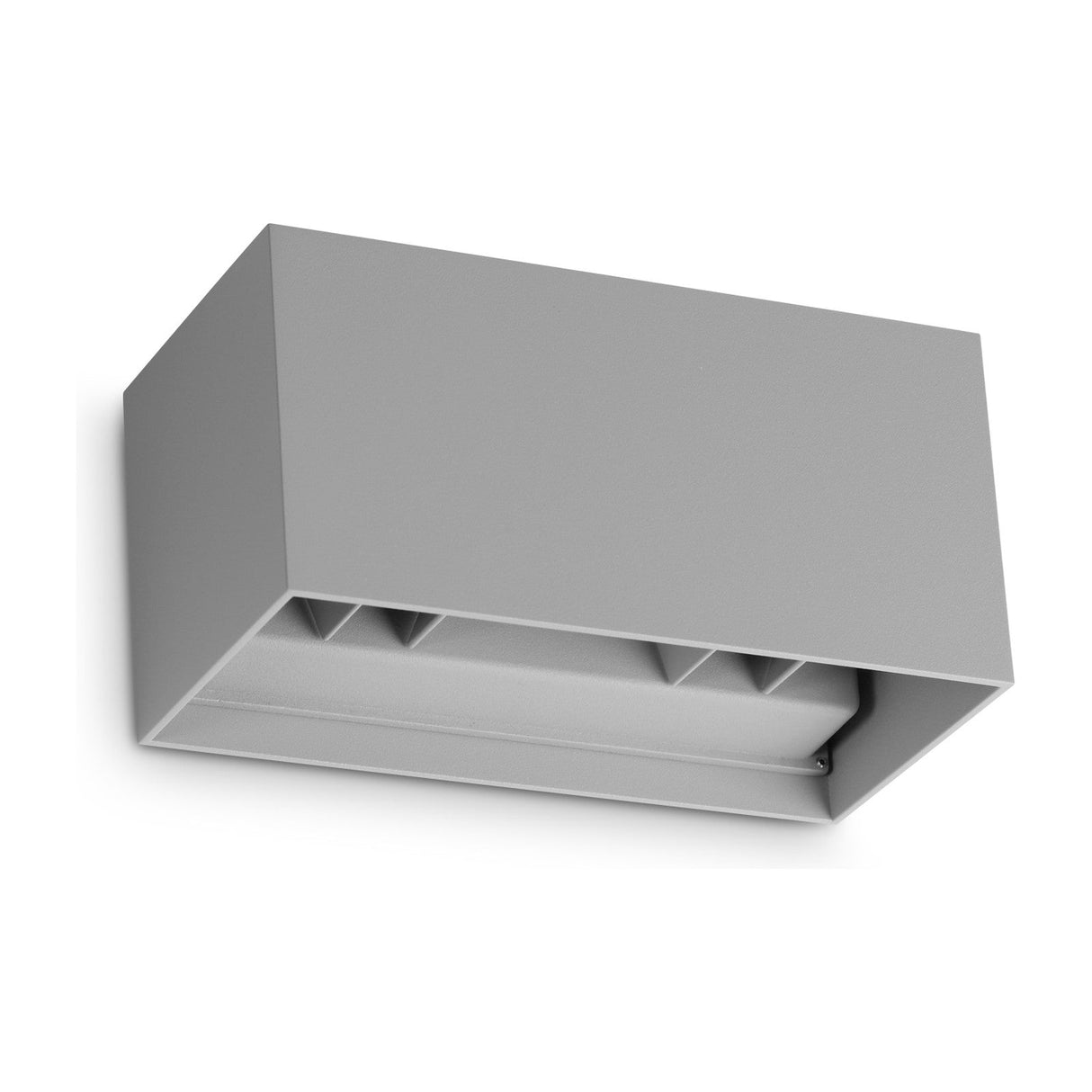

The Atom is a small outdoor wall cube that pushes light up and down the wall it sits on, rather than throwing it forward. A slot at the top and another at the bottom send two broad beams along the surface, and the movable wings on each let you narrow or widen those bands to suit the spot. Lit after dark, it draws two clean strokes of light above and below a solid block; by day it reads as a plain grey cube on the wall.
The body measures 200mm across and stands 100mm tall, projecting 100mm from the wall, a compact square that holds its own by a door, along a path or between windows on a facade without crowding the surface. Its grey finish sits quietly against brick or render and the up and down wash grazes the wall for texture rather than glare. Rated IP54 against dust and splashing water, it is built for a sheltered outdoor wall, a porch or an entrance.
The cube is powder-coated aluminium with glass diffusers top and bottom, and the light comes from an integrated LED giving 2400 lumens of neutral 4000K output at a colour rendering index above 90, so brick, stone and planting keep true tone at night. Rated for around 30,000 hours, the module is built in and included, so no bulb is ever bought or replaced. It wires straight to the outdoor circuit.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 25W total (2400lm, 4000K, CRI>90, 30,000h, included) |
| Colour temperature |
4000K (neutral white) |
| Width |
200mm |
| Height |
100mm |
| Projection |
100mm |
| Emission |
Up and down, adjustable width with movable wings |
| IP rating |
IP54 (outdoor, dust and splash resistant) |
| Dimmable |
No |
| Frame / Structure finish |
Grey powder-coated aluminium |
| Diffuser / Glass |
Glass diffusers, top and bottom |
| Materials |
Powder-coated aluminium body, glass diffusers |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Atom give?
A twin wash up and down the wall rather than a forward beam. A slot at the top and bottom sends two broad bands across the surface at 4000K neutral white, and the movable wings let you set how wide each band spreads. It grazes the wall for texture, with a colour rendering index above 90.
Does it need bulbs?
No. An integrated LED giving 2400 lumens is built into the cube and included, so there is nothing separate to fit. The module is rated for around 30,000 hours of normal outdoor use.
Can it be used outside?
Yes. It is rated IP54, sealed against dust and splashing water, so it suits a sheltered outdoor wall, a porch, an entrance or a path. As with any outdoor fitting, it should be wired by a qualified electrician.
How big is it and where does it suit?
The cube is 200mm across, 100mm tall and projects 100mm from the wall. Its size and up and down wash suit a spot by a front door, between windows on a facade or along an outdoor wall where grazed light is wanted.
