Description

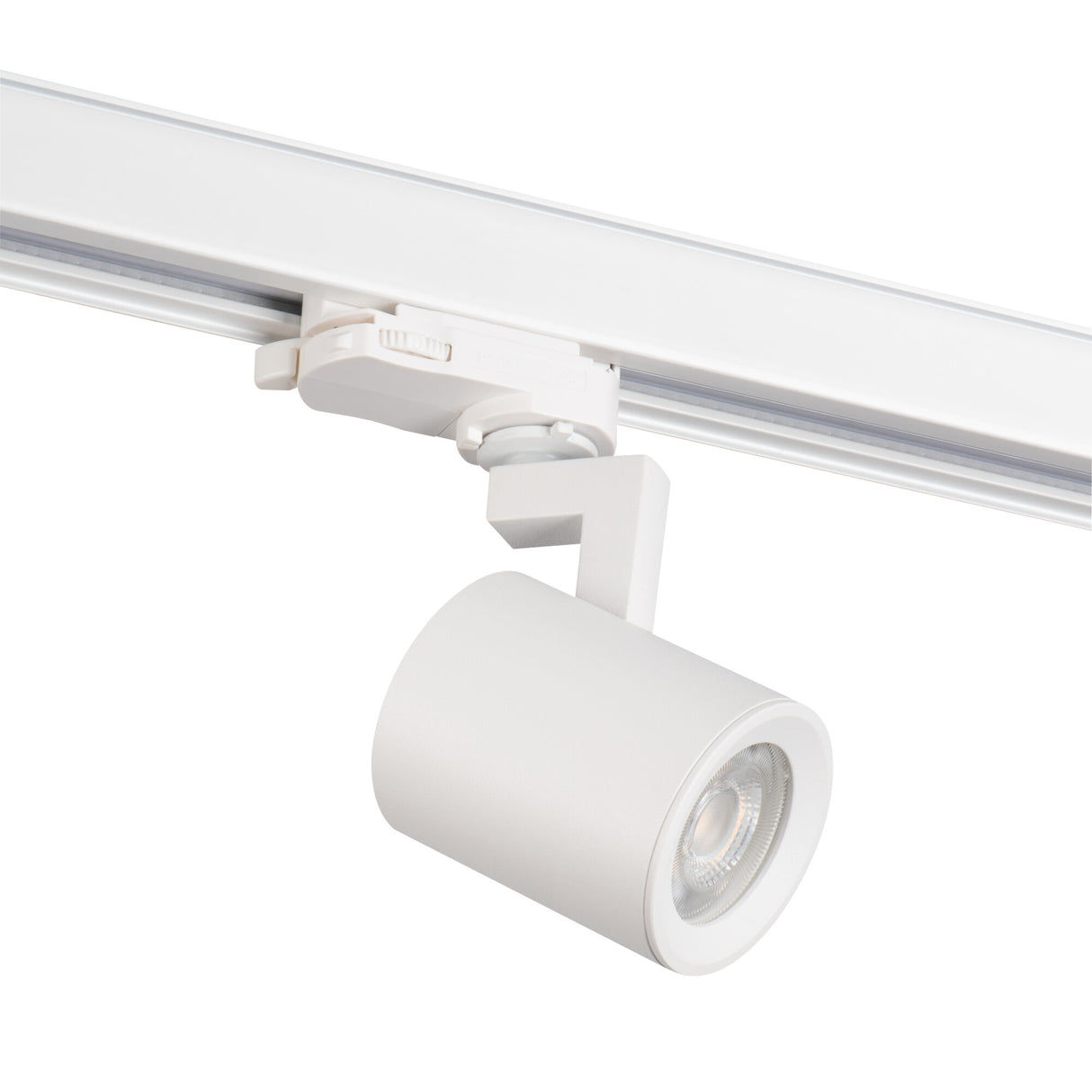

The ATL4 GU10-W is a track light head that takes a single GU10 lamp and clips onto a continuous track for flexible indoor lighting. Across the US this format is what shoppers mean by track lighting, the most-searched term for a rail of moveable heads. It runs on 220-240V AC and carries a GU10 PAR16 lamp drawing up to 10W, so the light is directional and easy to aim at a specific spot rather than spreading evenly across a room.

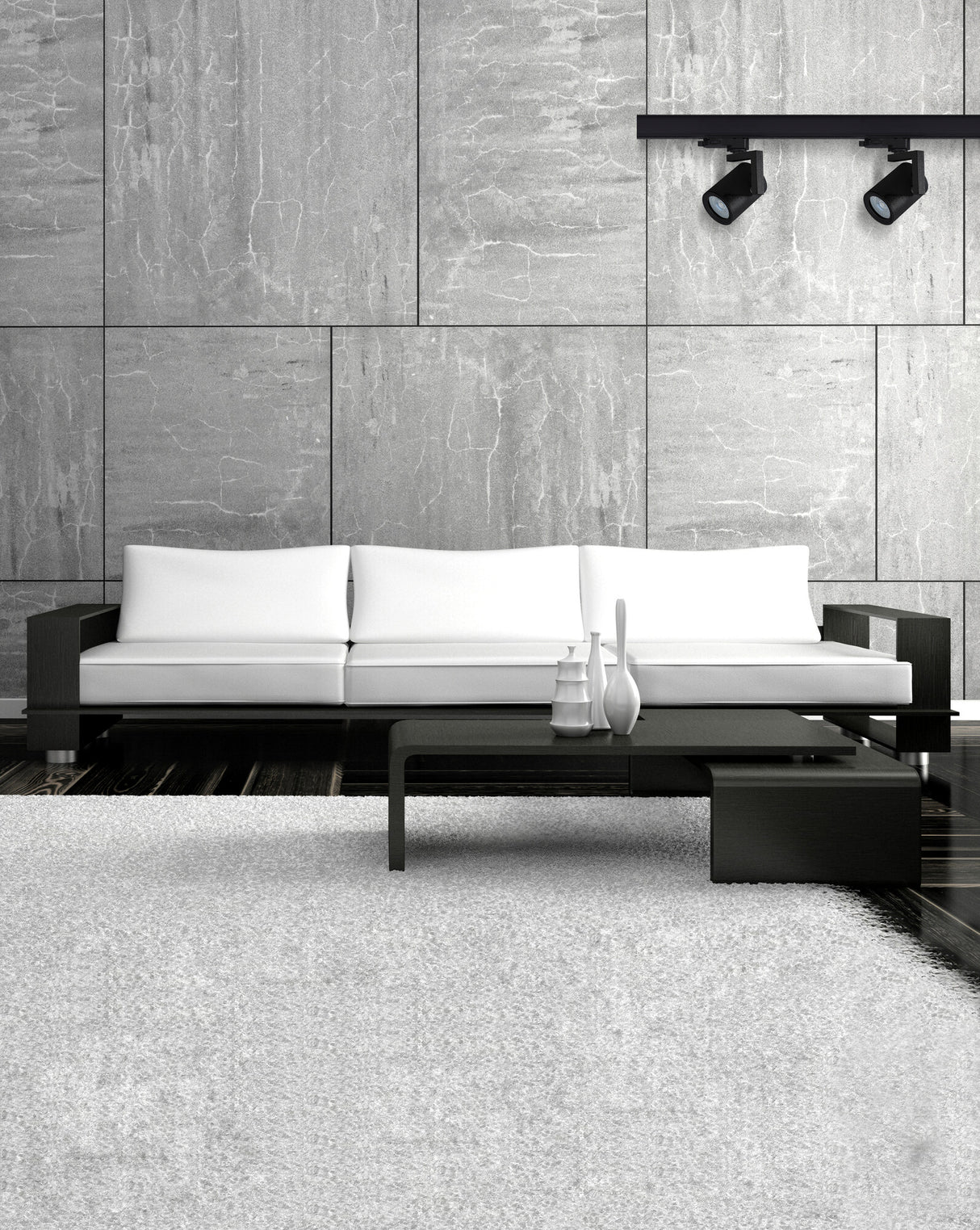

Track lighting suits rooms where the focus changes, such as kitchens lighting a worktop and an island, living spaces picking out shelving or artwork, and retail or display areas. Because each head pivots and slides along the rail, you point the beam exactly where it is wanted and reposition it as the layout shifts. Coverage here is a focused pool rather than broad ambient fill, so several heads are usually combined along one run for even task and accent light. The fitting is for dry indoor use only and is not suitable for bathrooms, porches or any damp location.
The body is aluminium alloy in a white finish, weighing 234g, with an IP20 rating that confirms its dry indoor remit. It mounts onto a three-phase track adaptor, letting multiple heads share one powered rail with separate circuit switching. No GU10 lamp or driver is included, so you choose the beam angle and colour temperature of the bulb to suit the space, and the head takes a standard mains-voltage GU10. This head is part of the wider ATL4 range, with matching track and connectors available to build out a run.
Specification
| Power |
max 10W |
| Voltage |
220-240 AC |
| IP rating |
IP20 |
| Driver included |
No |
| Mounting |
Track Mounted |
| Cap / base |
GU10 |
| Light source |
PAR16 |
| Weight |
234 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What is track lighting and how does it work?
Track lighting is a powered rail onto which individual light heads clip, slide and pivot. The ATL4 GU10-W head draws power from the track rather than a fixed ceiling point, so you can position and reposition each light along the run. This makes it easy to direct light at worktops, shelving or display areas.
What track does it fit?
The ATL4 GU10-W mounts onto a three-phase track, which allows separate circuit switching across a single run of heads. Matching ATL4 track and connectors are available to build the layout you need. Check that any existing track is the compatible three-phase type before adding heads.
Can I add or move heads as my layout changes?
Yes. Each head clips onto the track and can be slid along it or repositioned at any time, and further heads can be added along the same run. This makes it well suited to spaces where the lighting focus shifts, such as a kitchen or a display area.
Is a GU10 bulb included and is it dimmable?
No bulb is included, so you choose your own GU10 PAR16 lamp up to 10W and select the beam angle and colour temperature to suit the room. Whether the head dims depends on the lamp you fit and the switch on the circuit, so pair a dimmable GU10 with a compatible dimmer if you want that control.
