Description

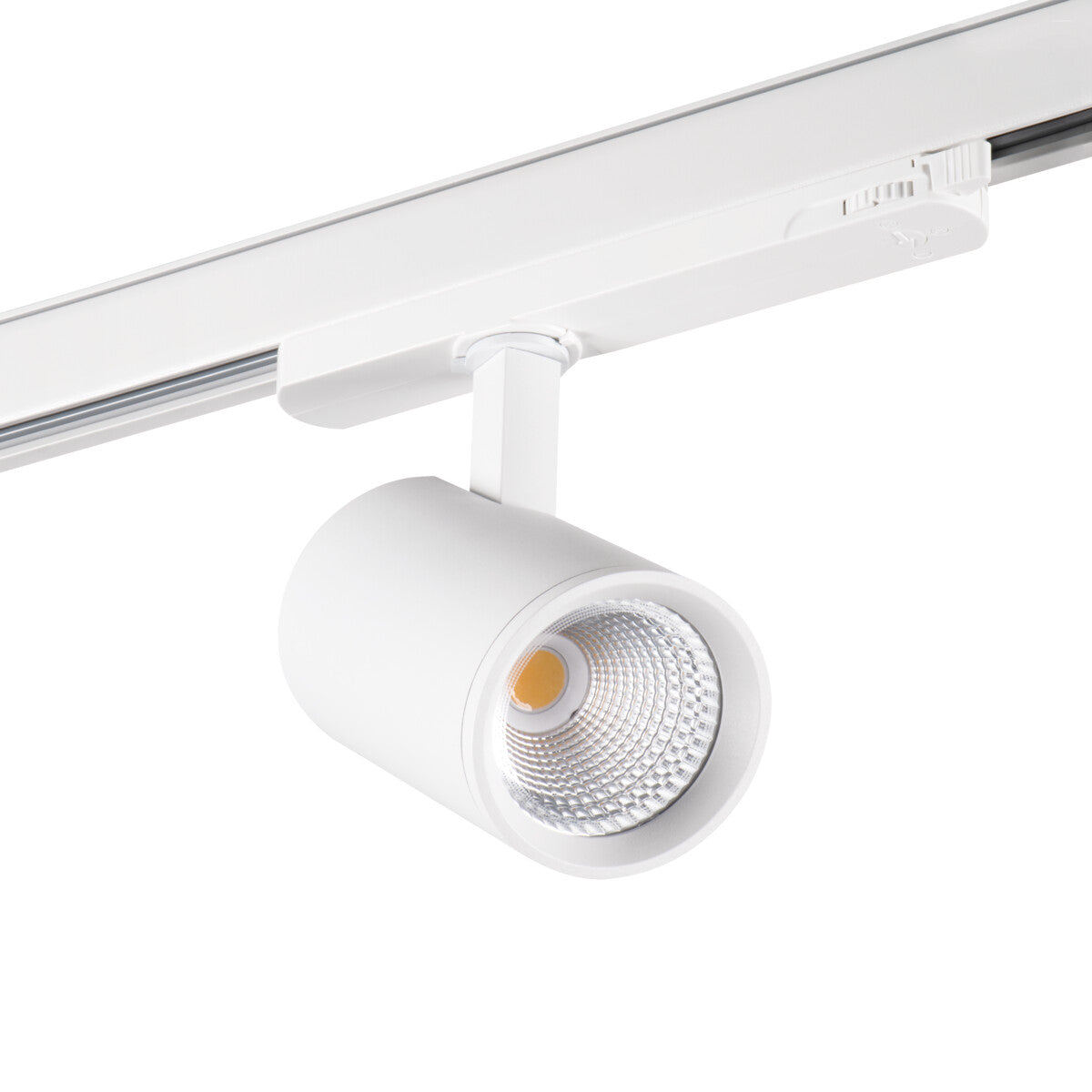

The Atl1 is an 18W LED track head that clips onto a three-phase track to throw a controlled, directional beam wherever it is aimed. It draws 220-240V AC mains, puts out 1700 lumens at an efficiency of 94 lm/W, and runs at a fixed 3000K warm white with a high Ra 90 colour rendering. Track lighting like this is the format many shoppers in the US call a track light or track head, and the 60 degree beam gives a moderately wide spread that keeps a single object or a short run of wall evenly lit without scatter.

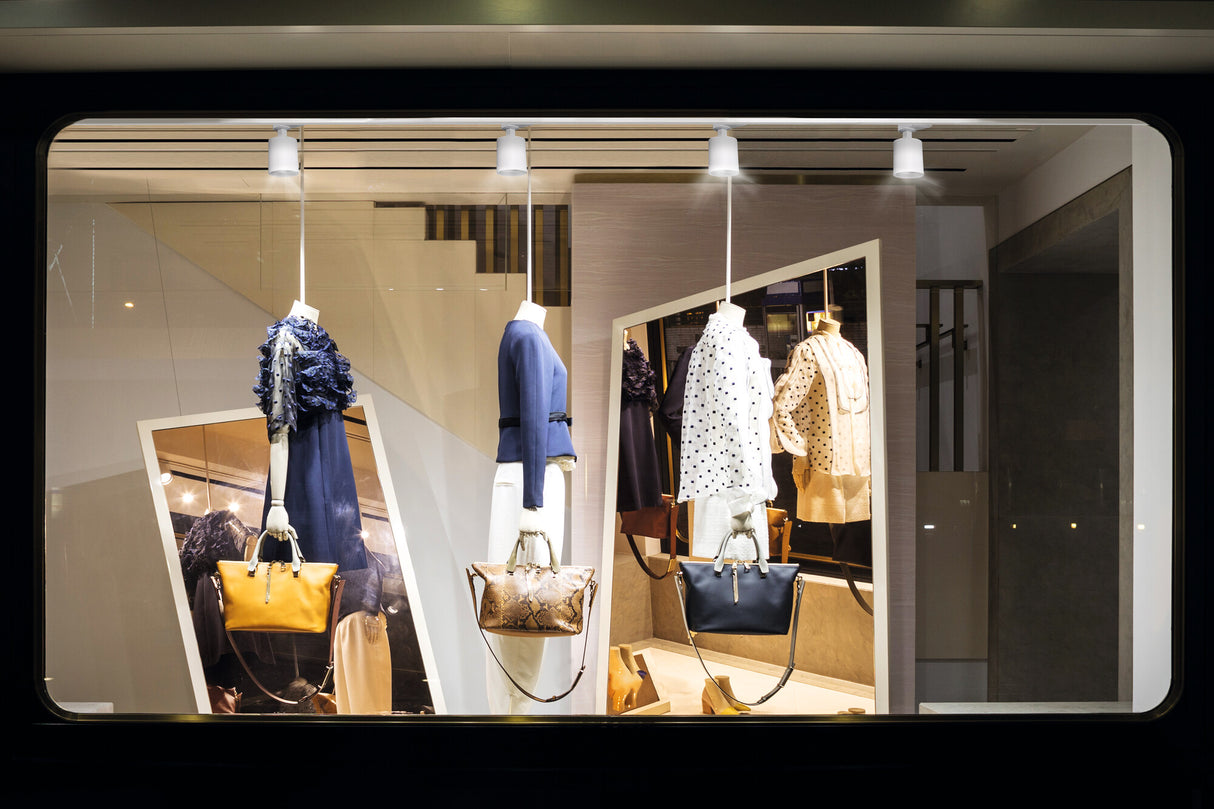

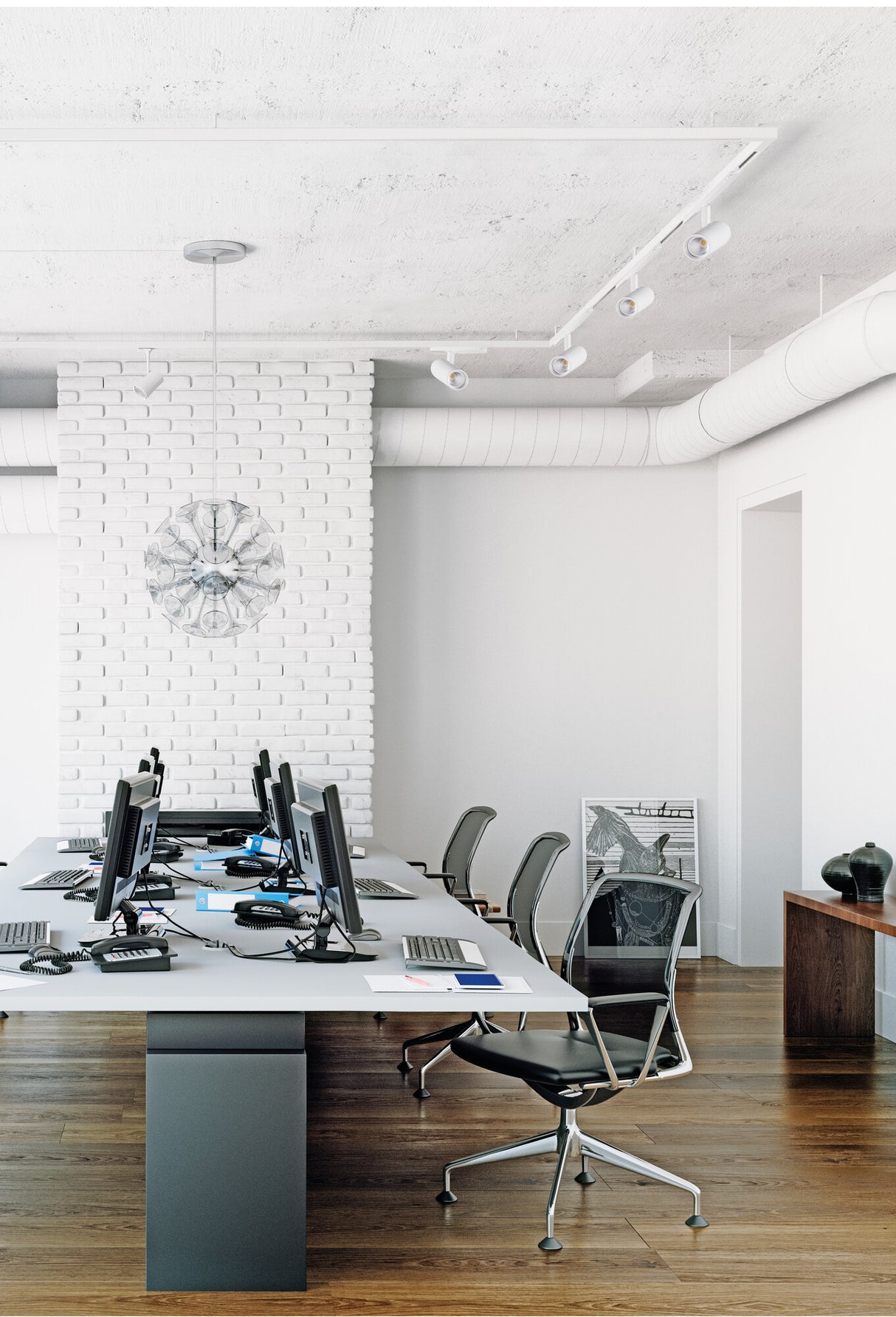

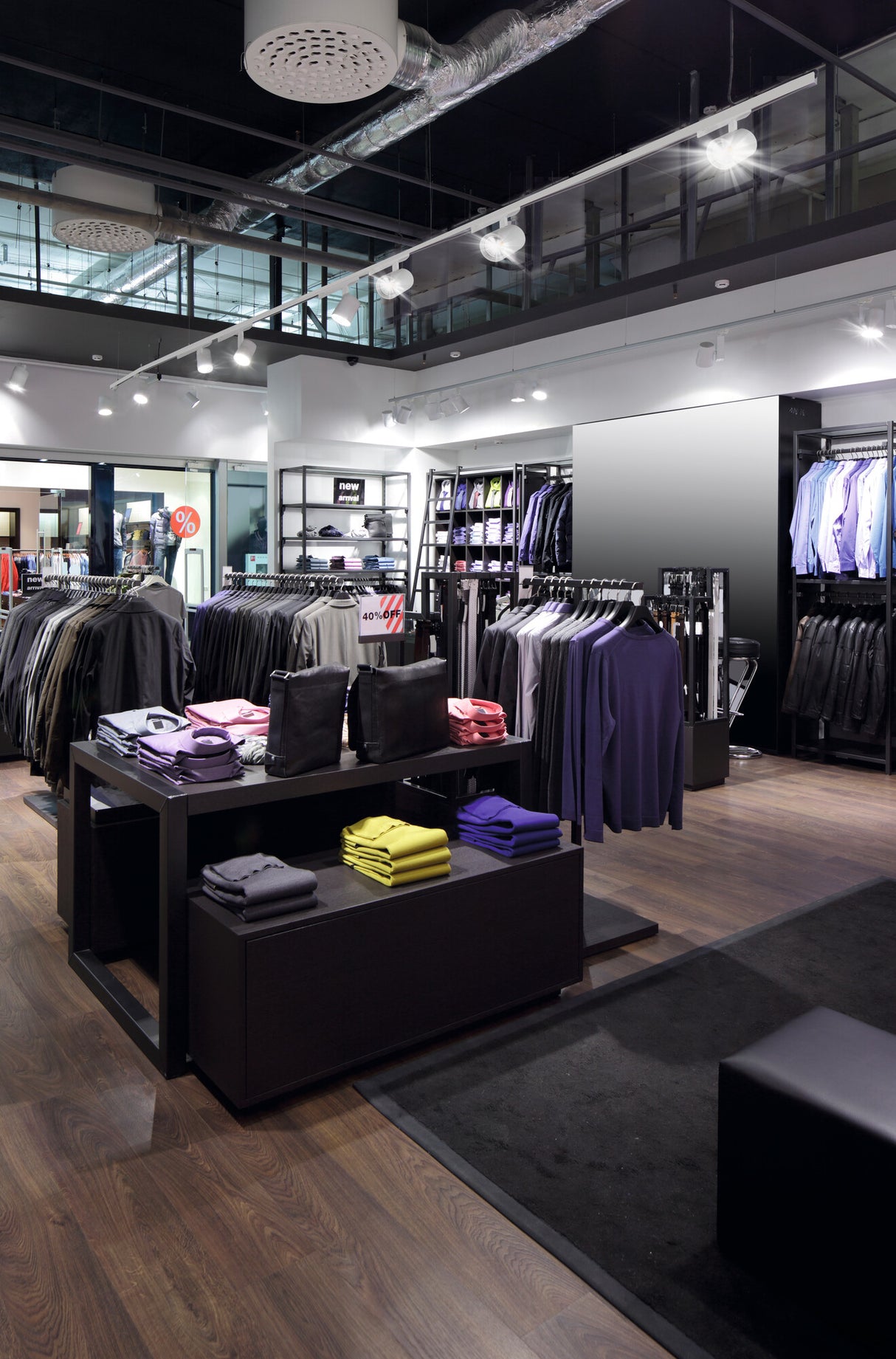

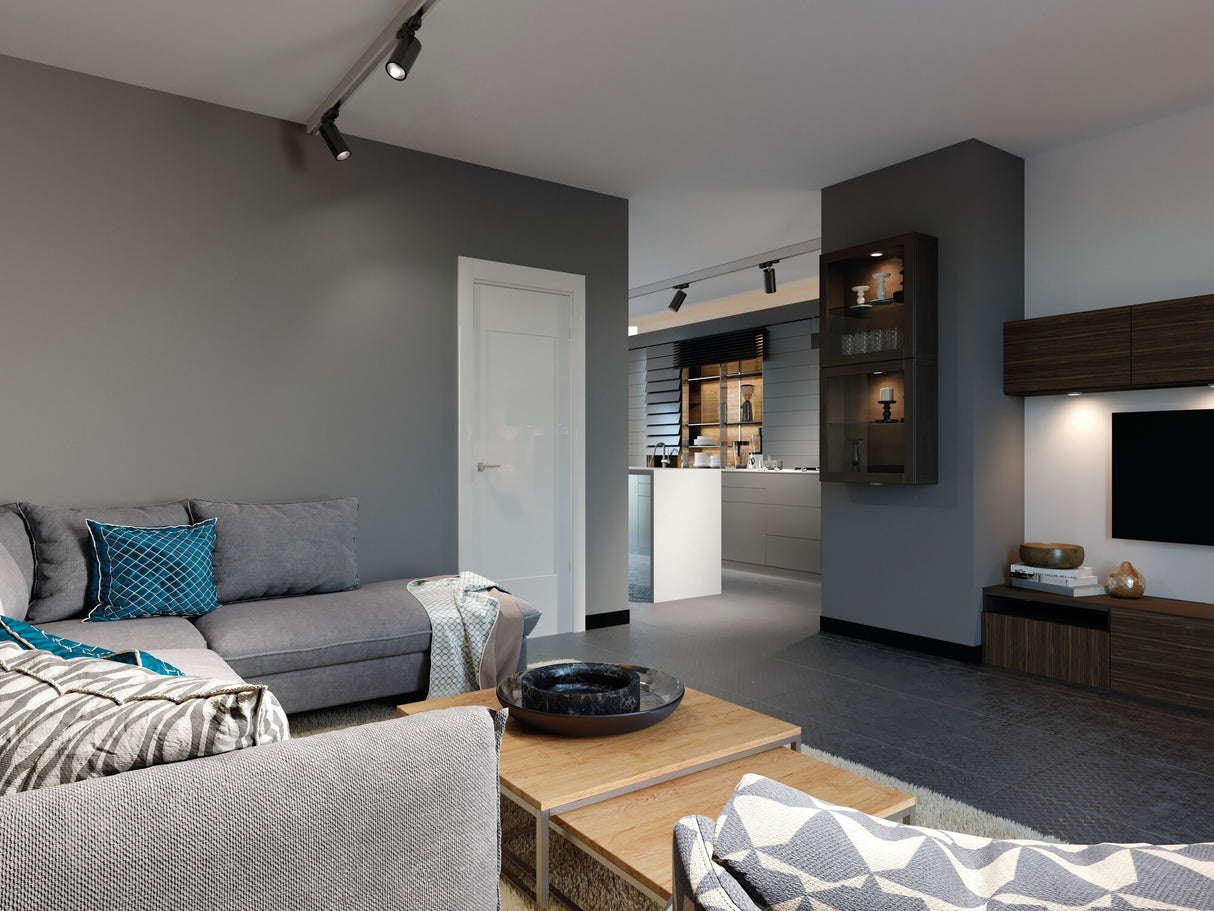

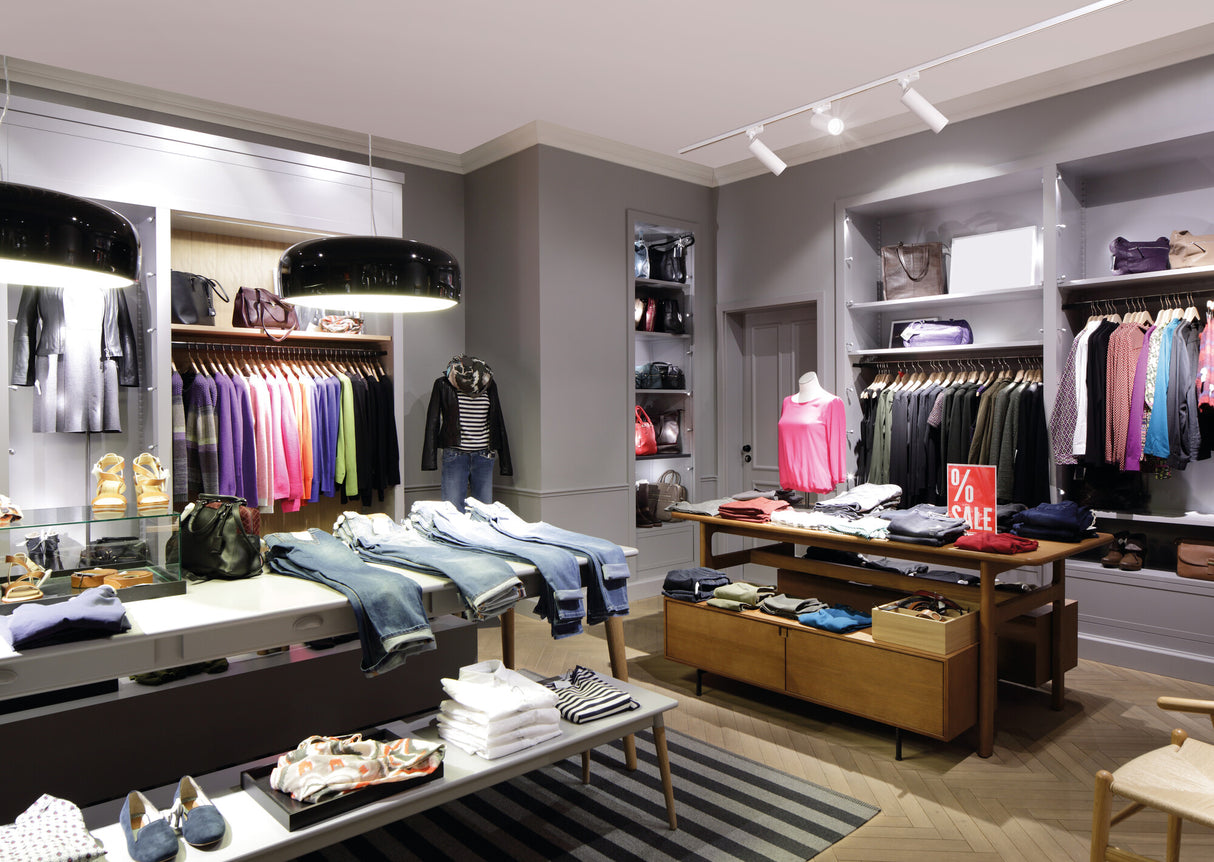

Because each head pivots and slides along the rail, the Atl1 suits retail displays, gallery walls, kitchen islands and feature areas where the light needs to point at something specific rather than wash a whole room. With a 60 degree beam and 1700 lumens per head, expect a focused pool that grazes artwork, shelving or a worktop run; adding more heads along the track widens the covered zone and lets you re-aim the layout as a display changes. It is built for indoor mounting only, so position the track on ceilings or walls inside the building rather than in any exposed or damp location.
The head is made from aluminium alloy in a white finish, weighing 530 g, and carries an IP20 rating that keeps it to dry interior use. It mounts directly onto compatible three-phase track and the warm 3000K output is fixed rather than colour selectable. This head is not dimmable, so pair it with switched circuits rather than a dimmer. Our Atl1 range includes further heads on the same track system, letting you build and rearrange a lighting scheme from a single rail.
Specification
| Power |
18W |
| Voltage |
220-240 AC |
| Luminous flux |
1700 lm |
| Efficiency |
94 lm/W |
| Colour temperature |
3000K |
| Colour rendering (CRI) |
Ra 90 |
| Beam angle |
60° |
| IP rating |
IP20 |
| Dimmable |
No |
| Mounting |
Track Mounted |
| Lifespan |
50,000 hours |
| Weight |
530 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What is track lighting and how does this head work?
Track lighting is a system where individual heads clip onto a powered rail rather than wiring each fitting separately. The Atl1 head slides along the track and pivots, so you can position and aim 1700 lumens of light exactly where it is wanted. It runs on standard 220-240V AC mains through the track.
What track does the Atl1 fit?
It is designed for a three-phase track system, which carries multiple circuits so heads can be split across separate switching. Make sure your rail and connectors are three-phase compatible before installing. The head fixes directly to the rail with no separate driver needed.
Can I add or move heads as my layout changes?
Yes. Heads slide along the track and lock into position, so you can add further Atl1 heads or reposition existing ones whenever a display or room layout changes. Each head also tilts to re-aim the 60 degree beam onto a new target.
How do I clean the Atl1 track head?
Switch off the power and let the head cool, then wipe the aluminium alloy body and the lens with a soft, dry or barely damp cloth. Avoid solvents or abrasive cleaners on the white finish. As an IP20 fitting it is for dry indoor use, so keep moisture clear of the head.
