Description

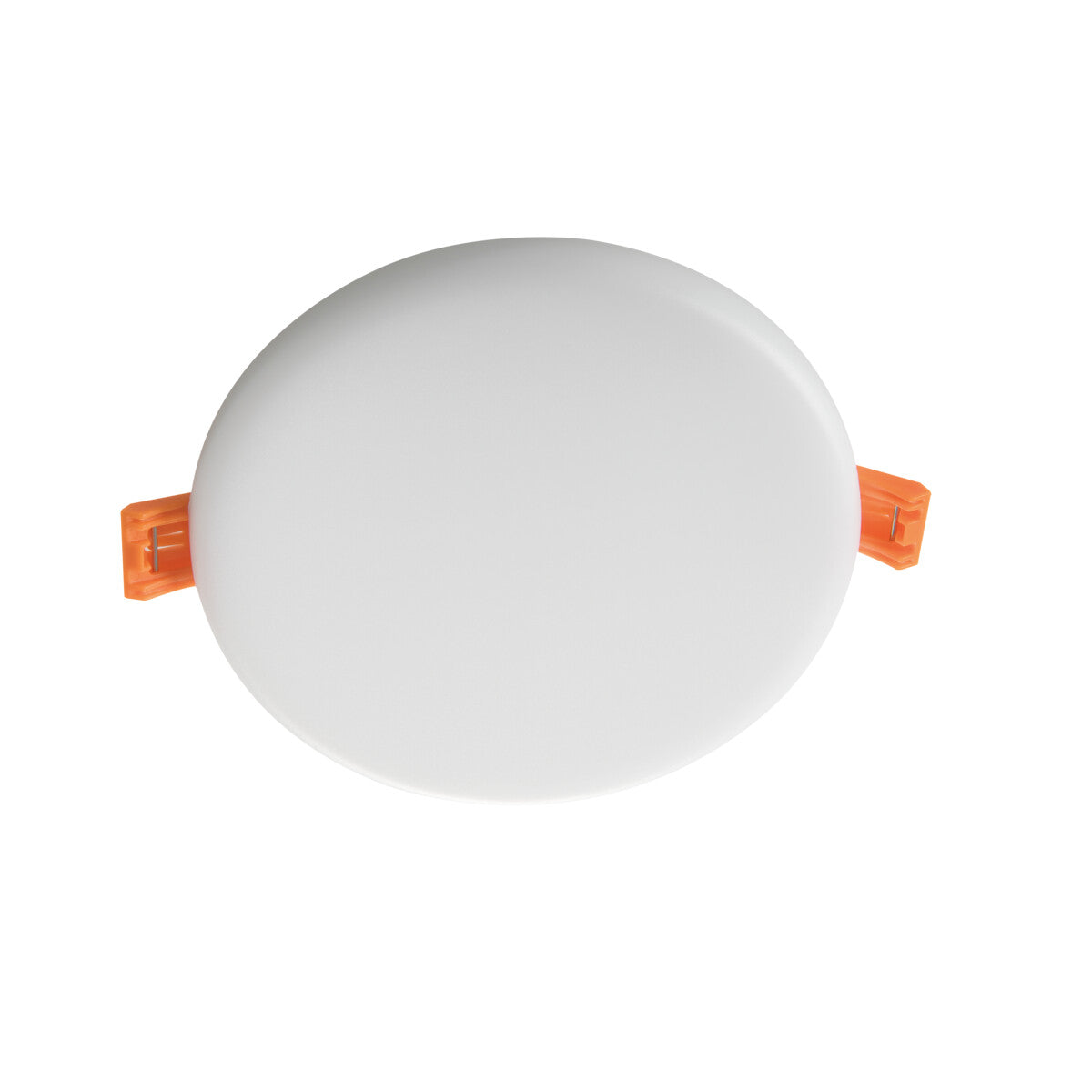

The AREL is a recessed downlight that draws 10W and pushes out 890 lumens of warm white light at a fixed 3000K, spread across a wide 120 degree beam. The round white fitting sits flush in the ceiling once installed, giving an even wash rather than a tight spot. North American buyers will recognise this format as a recessed can light, the small downlight that drops into a ceiling void and disappears into the surface. Running direct from 220-240V AC mains, it covers the everyday job of general ceiling lighting in a compact Ø126 mm body.
Because it carries an IP65 rating, the AREL suits damp and exposed positions that an ordinary indoor downlight cannot handle, such as a bathroom ceiling above a shower zone, a covered porch, a soffit or a sheltered outdoor canopy. At general lighting levels the 890 lumen output works out at roughly 3 m², so plan several across a larger ceiling and keep them spaced for an even result. The wide 120 degree beam helps fill the space without harsh pools, and the warm 3000K tone keeps the light soft and relaxed for living and washroom areas. The slim 23 mm depth makes it easier to fit where ceiling void is tight.
Built from an aluminium alloy body in a white finish, the AREL is made to cope with moisture thanks to its IP65 sealing. It is a recessed fitting that mounts into a cut-out in the ceiling, with a 10W integrated LED rated for 15,000 hours, so there is no separate bulb to replace. The light is fixed at 3000K and is not dimmable, so pair it with a standard switch rather than a dimmer. The round white face keeps the look discreet against a plain ceiling. The wider Arel range covers further sizes and outputs for matching a run across several rooms.
Specification
| Power |
10W |
| Voltage |
220-240 AC |
| Luminous flux |
890 lm |
| Efficiency |
89 lm/W |
| Colour temperature |
3000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
120° |
| IP rating |
IP65/20 |
| Dimmable |
No |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
15,000 hours |
| Shape |
Round |
| Dimensions |
Ø126 × 23 mm |
| Weight |
154 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
Is the AREL downlight dimmable?
No, this version is not dimmable. It should be wired to a standard on/off switch rather than a dimmer, as fitting it to a dimming circuit can cause flicker or shorten the life of the integrated LED.
What size cut-out does it need?
The AREL drops into a recessed cut-out in the ceiling, which is the hole the body sits in and is slightly smaller than the Ø126 mm overall trim diameter. Check the supplied spec sheet for the exact cut-out figure and confirm there is enough void above for the 23 mm depth before drilling.
Can it be used in a bathroom or outdoors?
Yes. With its IP65 rating the AREL is weatherproof and suitable for damp and exposed positions, including bathroom ceilings, covered porches and sheltered outdoor soffits. It withstands splashing and water jets, so it is rated well beyond a dry-indoor only fitting.
How do I clean the fitting?
Wipe the white face with a soft, dry or slightly damp cloth once the light is switched off and cool. Avoid abrasive pads and harsh solvents, which can mark the finish, and never spray cleaner directly into the recess.
