4 Gang Modular Faceplate - Polished Brass Screwless

£999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

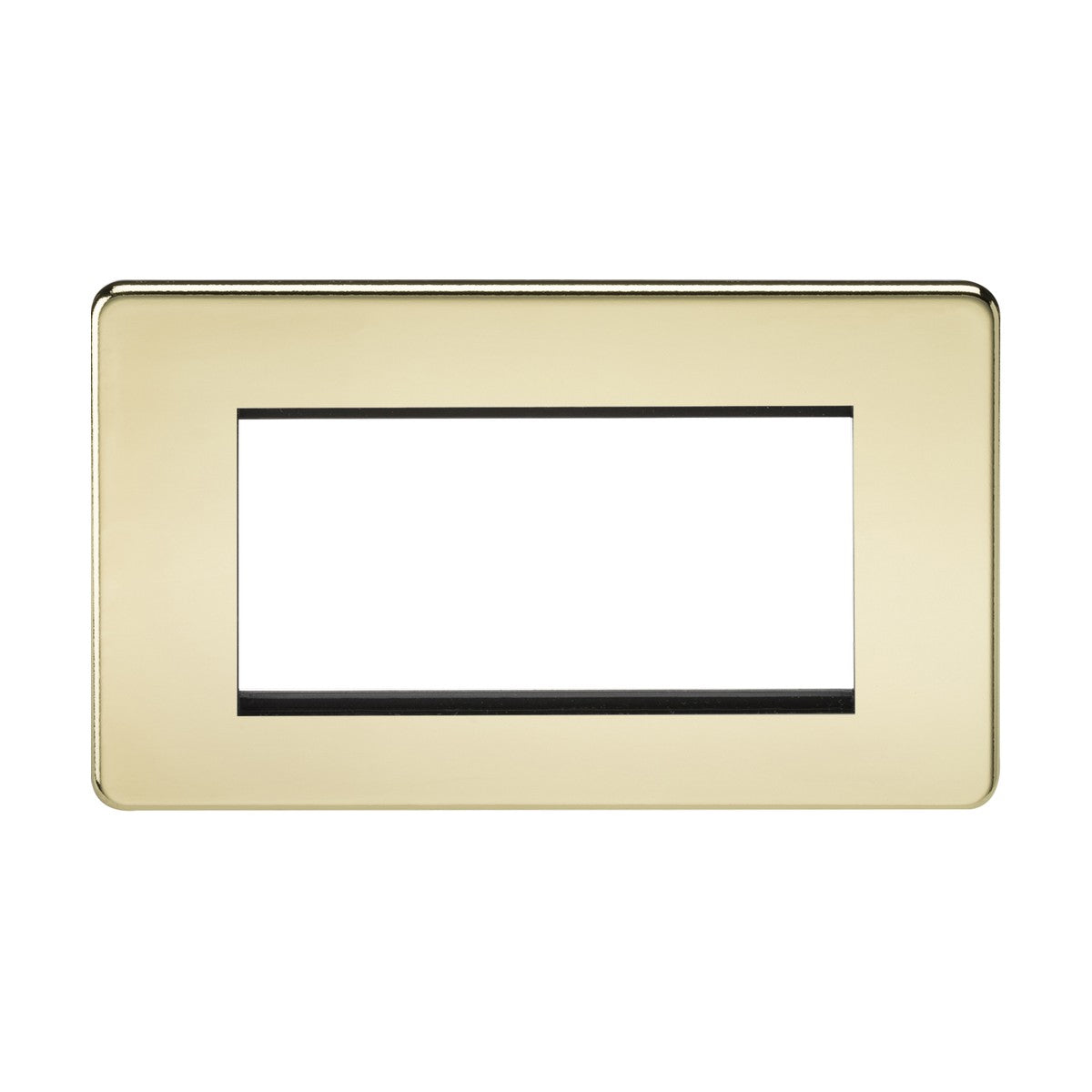

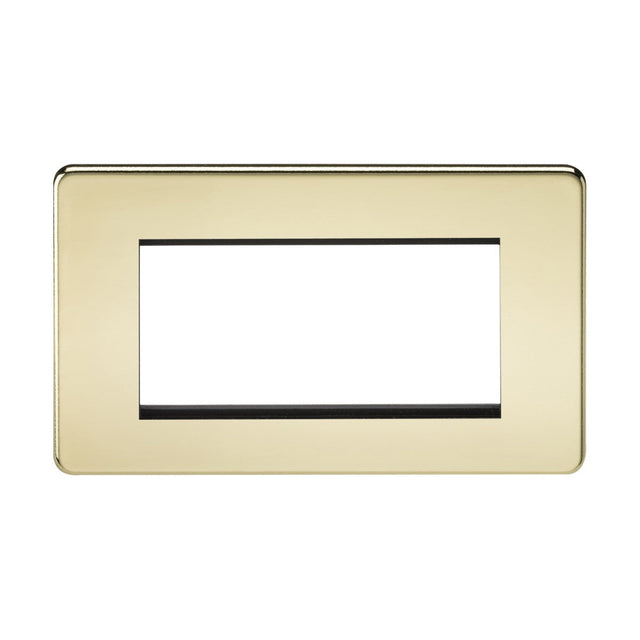

The Knightsbridge 4-gang modular faceplate provides a polished brass screwless surround for euro module inserts, allowing custom configurations of TV coax, HDMI, USB, RJ45 data, telephone and other low-voltage connections behind a single plate. The faceplate accepts four 25 x 50mm euro modules, two 50 x 50mm modules, or a combination of both sizes depending on the installation requirement.

Designed for media walls, home offices and AV installations where multiple connection types need to sit together cleanly, the faceplate pairs with separately-purchased euro module inserts (sold individually at Niori). Common configurations include HDMI + coax + dual RJ45 for a wall-mounted TV setup, or HDMI + USB-A + USB-C + coax for a combined media and charging point. The screwless cover plate clips onto a separate metal sub-frame fixed to the back box, hiding all fixings once installed.

The polished brass finish is premium-grade steel with a high-gloss lacquered surface that resists tarnishing and pairs well with traditional, classical and warm-toned contemporary interiors. The built-in gasket between the cover plate and sub-frame provides an IP20-rated seal, protecting the back of the euro modules from dust ingress. At 147.5mm wide and 87.5mm tall, the plate occupies a standard 4-gang footprint and projects just 4.3mm from the wall once fitted.

Specification
Height 87.5 mm
Width 147.5 mm
Projection 4.3 mm
Construction Premium grade steel
Finish Polished Brass
Class I
IP Rating IP20
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What euro modules does this faceplate accept?

The faceplate accepts four 25 x 50mm euro modules, two 50 x 50mm modules, or a combination of both. Common euro modules include HDMI, TV coax, RJ45 data, USB-A, USB-C, telephone and satellite connections. Euro module inserts are sold separately.

What back box depth is required?

The back box depth depends on the euro modules being used. Most standard euro modules (HDMI, USB, data) require a 25mm minimum back box, but some modules such as dual HDMI or powered USB may need 35mm or deeper. Check the specification of your chosen euro modules before installation.

Is the screwless plate removable?

Yes. The polished brass cover plate clips onto a separate metal sub-frame that is fixed to the back box with screws. The cover can be removed by gently releasing the clips, allowing access to the euro modules or redecorating around the plate without disconnecting cables.

What other finishes are available?

Knightsbridge produces this 4-gang modular faceplate in a range of finishes including polished chrome, brushed chrome, antique brass, matt black and white. Use the search function or filters to find other variants in stock at Niori.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
