4 Gang Modular Faceplate - Brushed Chrome Flat Plate

£999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

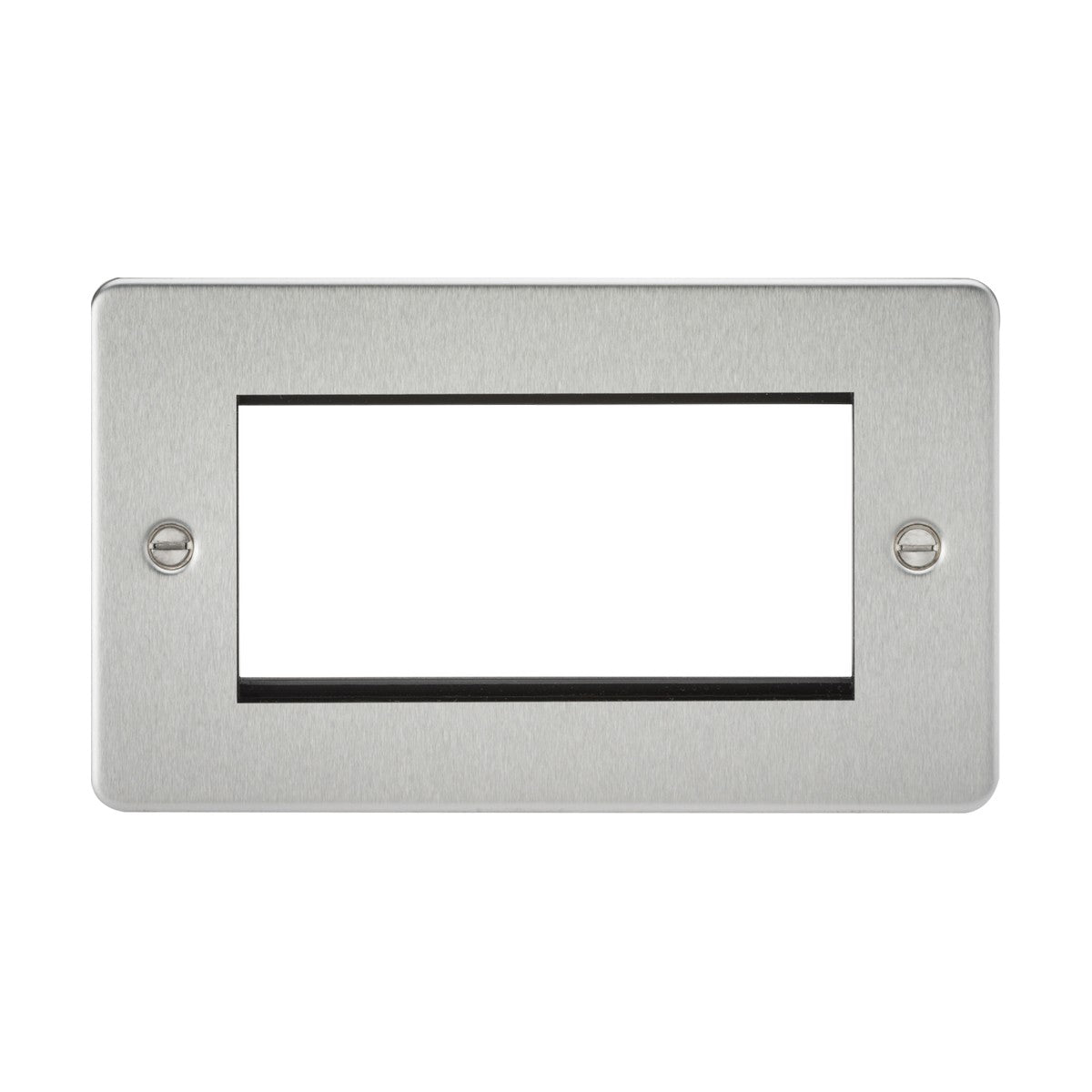

The Knightsbridge 4-gang modular faceplate provides a brushed chrome mounting frame for euro module inserts, allowing custom configurations of TV, data, HDMI, USB, telephone and audio connectors behind a single flat plate. The faceplate accepts four 25 x 50mm euro modules, two 50 x 50mm modules, or a combination of both sizes within the same frame.

Designed for AV installations, home offices and media walls where multiple connection types need to be grouped in one location, the modular system gives installers flexibility to match the exact connector mix a room requires without needing pre-configured socket types. Modules clip into the frame from the front after the back box and faceplate are fixed to the wall, allowing for reconfiguration without re-wiring.

The flat plate design has a 2.5mm projection from the wall once installed, sitting nearly flush with the wall surface. The brushed chrome finish is produced on premium-grade steel and carries a 25-year warranty. A built-in gasket behind the faceplate improves dust resistance and gives an IP20 rating suitable for dry indoor environments.

Specification
Height 87.5 mm
Width 147.5 mm
Projection 2.5 mm
Construction Premium grade steel
Finish Brushed Chrome
IP Rating IP20
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What euro modules fit this faceplate?

The faceplate accepts any standard euro module in 25 x 50mm or 50 x 50mm format, including HDMI, RJ45 data, coaxial TV, USB, telephone, 3.5mm audio and optical audio modules. Modules are sold separately and clip into the frame from the front after installation.

What back box depth is required?

The required back box depth depends on the euro modules being used. Most HDMI, data and USB modules need a minimum 35mm back box. Check the specification of your chosen modules before ordering the back box.

Can modules be changed after installation?

Yes. Euro modules clip into the faceplate from the front and can be removed and replaced without removing the faceplate from the wall or disturbing the back box wiring. This allows configurations to be updated as AV requirements change.

What other finishes are available?

Knightsbridge produces modular faceplates in polished chrome, brushed chrome, matt black, white and other finishes. Use the search function or filters to find other variants in stock at Niori.
