20AX 2 Way SP Key Switch Module EMG LTG TEST - Smoked Bronze

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

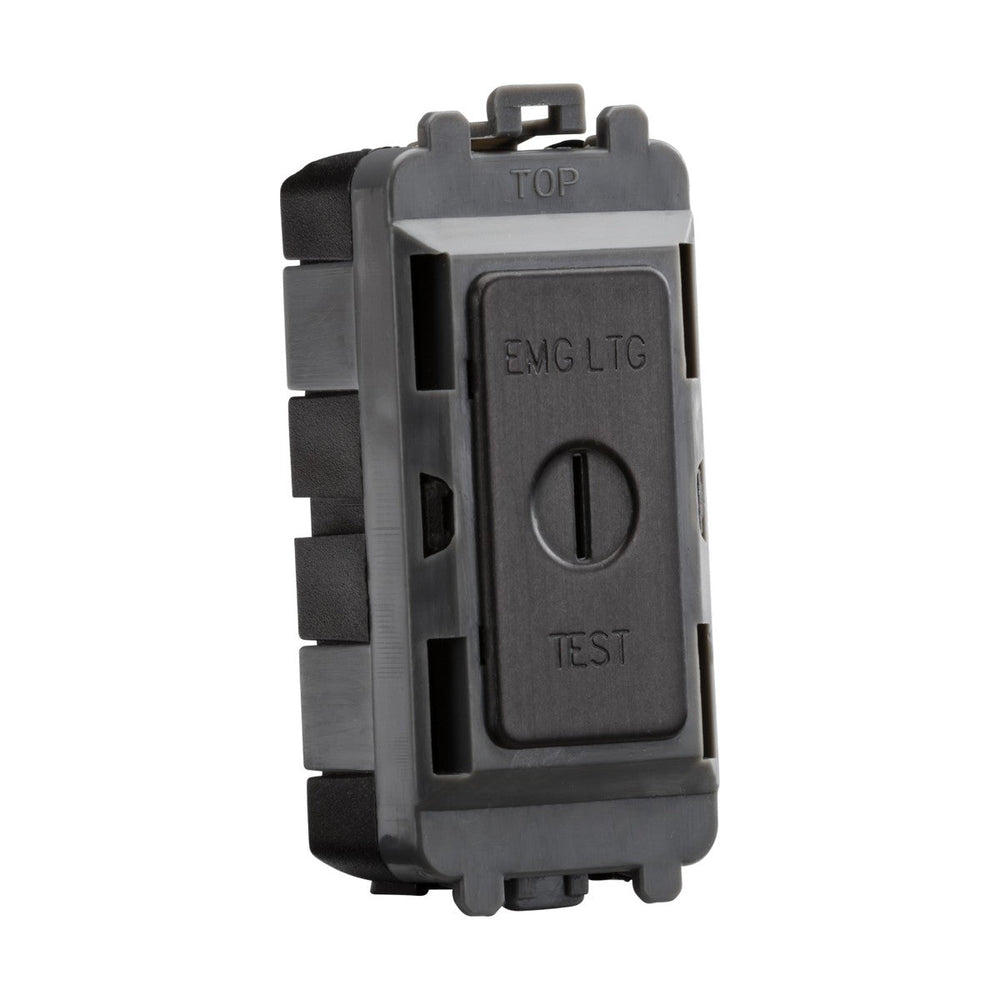

The Knightsbridge 20AX 2-way SP key switch module is a single-pole key-operated switch marked 'EMG LTG TEST' for emergency lighting test circuits. The module clips into modular grid frames (sold separately) from the front without tools, and includes a removable key that restricts operation to authorised personnel only. The 20AX rating at 230V handles loads up to 4,600W on a single pole.

Designed for emergency lighting systems in commercial buildings, schools, hospitality venues and residential developments where Building Regulations require monthly and annual testing of emergency luminaires. The key-operated control prevents casual switching that could disable emergency lighting circuits during normal use. The 2-way switching configuration allows the module to be paired with a second switch location if required, or used as a simple on/off control in a single-location installation.

The smoked bronze finish is a dark metallic bronze tone with a subtle brushed texture that sits between matt black and polished bronze in appearance. The module construction uses ABS polymer for the faceplate and steel for the switching mechanism. At 24.8mm wide the module occupies a single grid position in Knightsbridge's modular system, allowing it to be combined with sockets, data ports and other modules on a single faceplate. The 17.3mm recessed depth fits 35mm minimum back boxes.

Specification
Height 56.3 mm
Width 24.8 mm
Projection 2.5 mm
Recessed Depth 17.3 mm
Min. Mounting Box Depth 35mm
Construction ABS
Construction 2 & steel
Finish Smoked Bronze
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

Does the module include a mounting frame?

No. This module clips into Knightsbridge modular grid frames which are sold separately. You will need a frame sized to accommodate the number of modules you want to install (1-gang, 2-gang, 3-gang or 4-gang frames are available).

Is the key removable when the switch is in the 'on' position?

Key-operated switches typically allow key removal only in one position (usually 'off') to prevent the key being lost while the circuit is live. Check the datasheet linked above for the specific key-retention behaviour of this model.

What is the 2-way function used for?

2-way switching allows this module to be wired in a circuit with a second switch location, so the emergency lighting test can be operated from two points. Alternatively it can be used as a simple on/off switch in a single location.

What other finishes are available in this range?

Knightsbridge produces modular grid components in a range of finishes including polished chrome, brushed chrome, matt black, white, polished brass and smoked bronze. Use the search function or filters to find other finishes in stock at Niori.
