12-24V DC CCT LED Controller Receiver 75mm IP20

£2799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

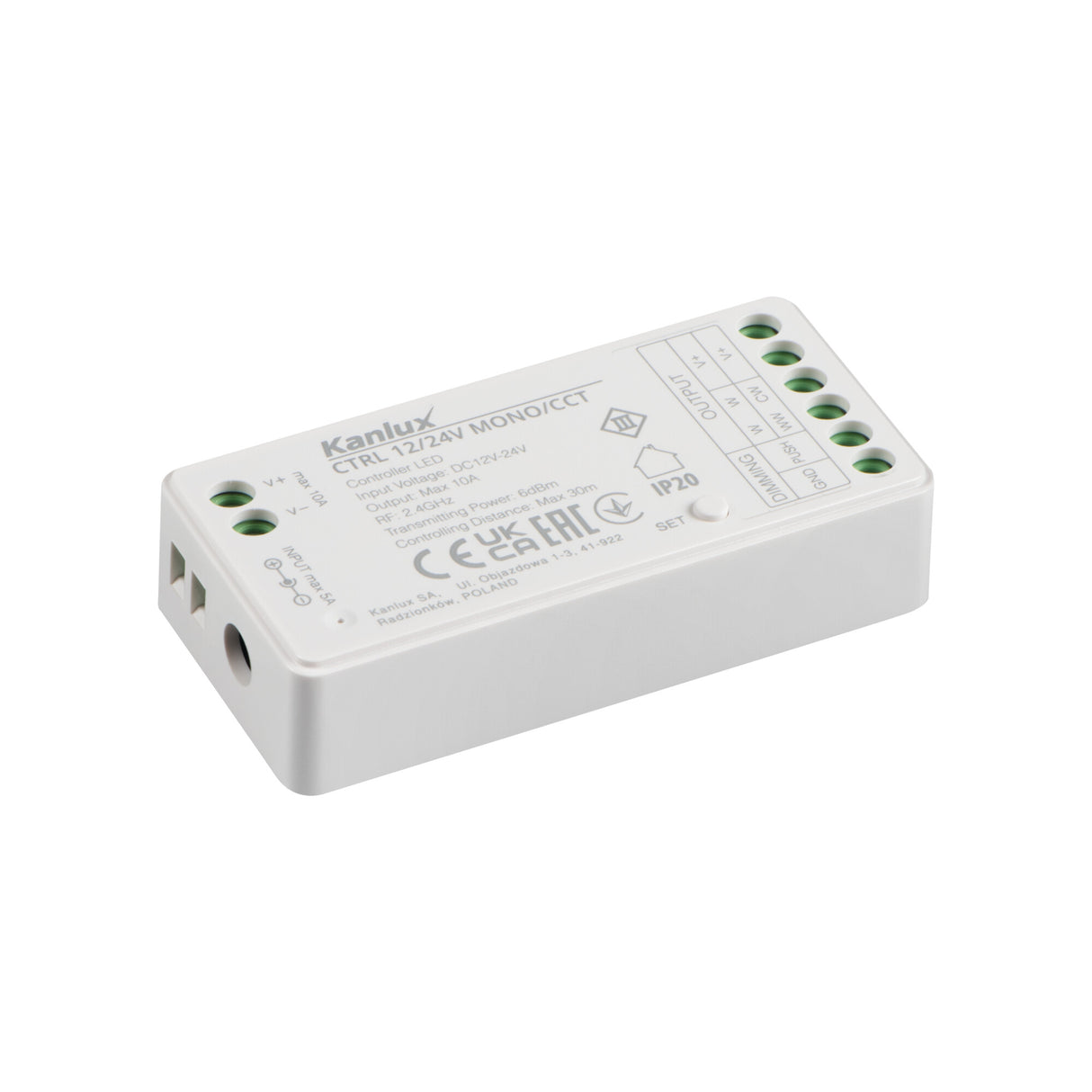

Decoded from the article code CTRL 12/24V MONO/CCT, this is an inline tunable-white control module for low-voltage LED runs. It wires between the driver and a colour-adjustable LED strip, taking a 12V or 24V DC input and switching the warm and cool channels so the connected lighting can be tuned from one tone to another. Control is by RF on the 2.4GHz band, so a paired remote or wall transmitter sets the blend and brightness without a wired switch leg. The white plastic body measures 75 x 36 x 16 mm and is rated IP20 for dry indoor positions, sitting neatly in a ceiling void, cabinet or behind a profile.

It pairs with any matching low-voltage CCT strip and a constant-voltage driver of the same 12V or 24V output; the controller passes the supply through and handles the channel mix only. Keep it clear of damp and run all connections inside the strip's own DC circuit. We also stock the tunable-white LED strips, profiles and constant-voltage drivers that pair with this controller.

Specification
Input voltage 12 DC; 24 DC
Colour mode CCT
IP rating IP20
Detection / control RF 2, 4GHz
Material Plastic
Colour White
Dimensions 75 × 36 × 16 mm
Frequently Asked

What does this controller do?

It sits between the driver and a tunable-white LED strip and blends the warm and cool channels, letting you adjust the connected lighting's tone and brightness. It is a control module and does not light up on its own.

What is the maximum load it can handle?

Match it to the wattage of your connected strip and driver, keeping the total within the controller's rated capacity. Splitting a long run across more than one unit is the safest approach for high-power installations.

Does it work with CCT or RGB strips?

It is built for CCT tunable-white strips, controlling the warm and cool channels only. For colour-changing runs you would need an RGB or RGBW controller instead.

Can it be used outdoors?

No. It is rated IP20 for dry indoor use only, so keep it out of damp, wet or exposed locations such as bathrooms or outdoor areas.

Downloads

Product Specification Sheet

Range Datasheet
