10AX 1 Gang 2-Way Toggle Switch - Brushed Brass Flat Plate

£1099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

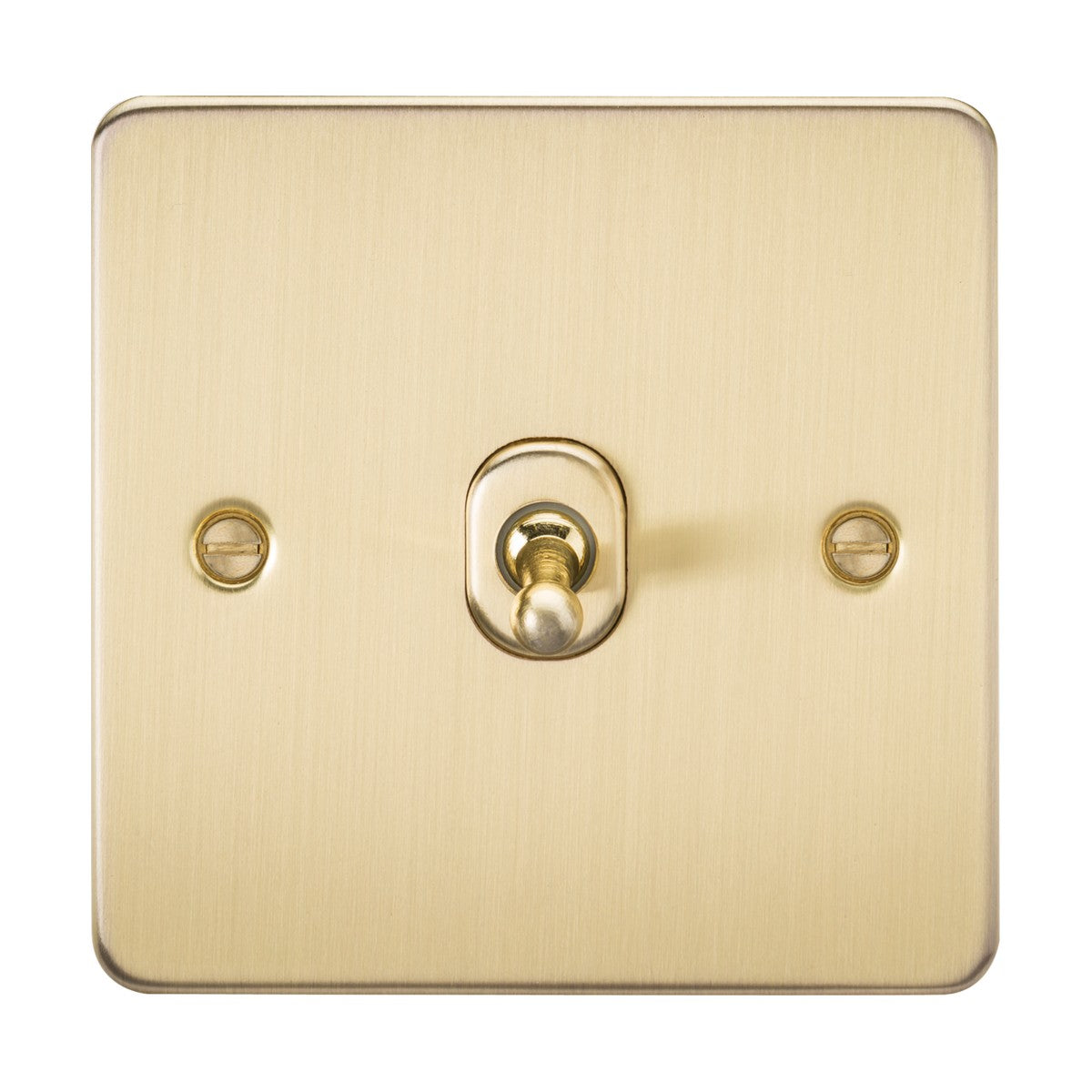

The Knightsbridge 10AX 1-gang 2-way toggle switch combines a brushed brass flat plate with a matching metal toggle lever set in a recessed aperture. The flat plate construction measures 87.5mm square with a 2.5mm projection from the wall, giving an ultra-low profile that sits nearly flush with the plaster or wall finish. The 10AX rating handles lighting loads up to 2,300W on 230V mains.

Designed for 2-way lighting control, the switch allows a single lighting circuit to be controlled from two separate locations — typically at either end of a hallway, at the top and bottom of stairs, or at multiple entry points into a large room. The toggle operates on a rocker mechanism with a positive on/off action and tactile click. A built-in gasket around the back of the plate seals the edge against the wall surface, preventing plaster dust ingress and giving a clean finish after installation.

The brushed brass finish is applied to premium-grade steel and shows a linear grain pattern that diffuses reflections and resists fingerprints better than polished brass. The finish develops a subtle patina over time, particularly in high-use locations. The switch fits a standard 16mm minimum depth back box and is certified to EN 60669-1 for residential and light commercial use. Knightsbridge backs this model with a 25-year warranty.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 2.5 mm
Min. Mounting Box Depth 16mm
Construction Premium grade steel
Finish Brushed Brass
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What does 2-way mean?

A 2-way switch allows the same lighting circuit to be controlled from two separate wall switches — for example at either end of a hallway or at the top and bottom of stairs. To wire 2-way control you need two 2-way switches on the same circuit.

What back box depth is required?

The switch requires a 16mm minimum depth back box. The ultra-flat plate design keeps total wall projection to 2.5mm, making it suitable for installations where a low profile is needed.

What load can a 10AX switch handle?

10AX rated at 230V can switch up to 2,300W of resistive load — sufficient for most domestic lighting circuits including multi-bulb chandeliers and LED driver banks. The rating applies to resistive loads; inductive loads may require derating.

Will the brushed brass tarnish?

Brushed brass develops a natural patina over time, particularly in high-use areas or where exposed to moisture. This is a characteristic of the material. The brushed finish shows less tarnishing than polished brass and can be cleaned with a soft dry cloth.
