1 Gang Grid Faceplate - Brushed Chrome Flat Plate

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

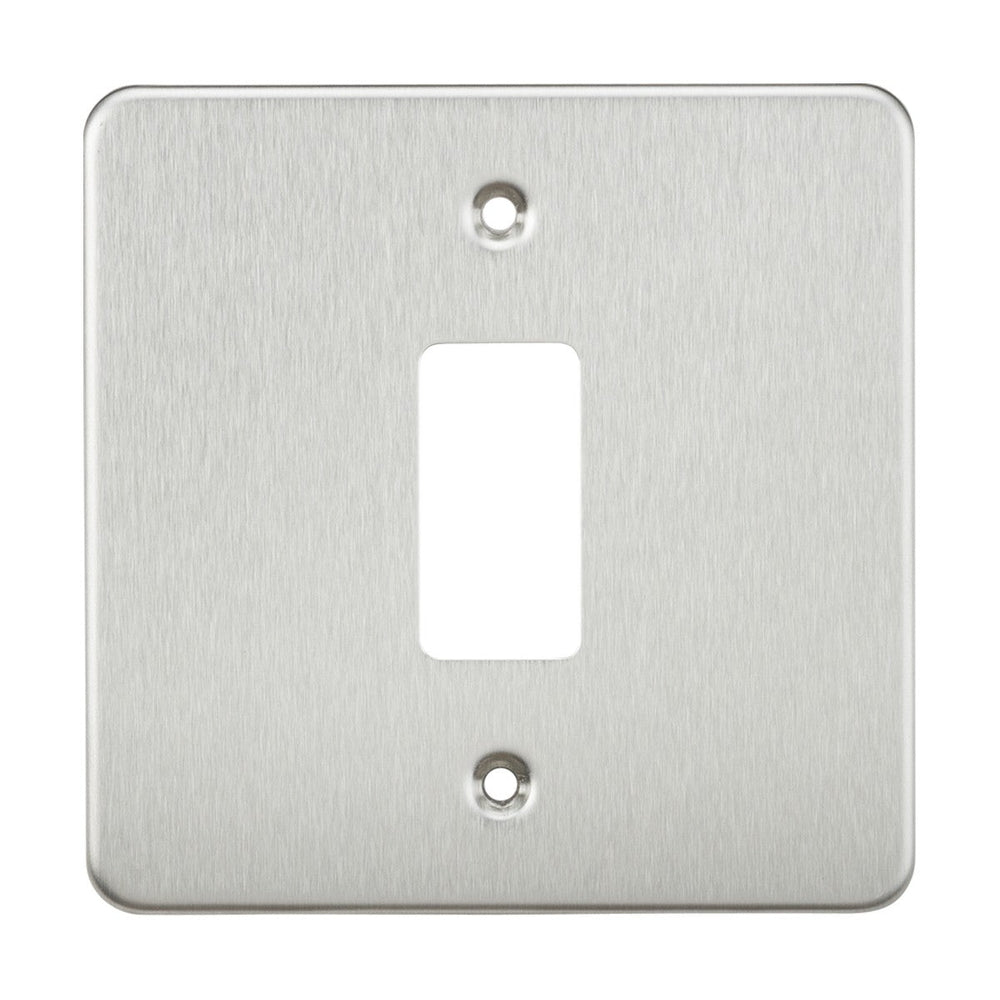

The Knightsbridge 1-gang grid faceplate is an 87.5mm square brushed chrome cover plate designed to hold one GDF001F grid module (sold separately). The plate forms part of Knightsbridge's modular grid system, which allows switches, sockets, dimmers and data outlets to be configured into custom combinations rather than fixed factory layouts.

The grid system suits commercial installations, retrofit projects where existing wall boxes limit placement options, and residential settings where non-standard switch/socket combinations are needed. The faceplate accepts one grid module in the centre aperture and clips onto a separate mounting frame fixed to the back box. The module is then clipped into the faceplate from the front, making installation and future reconfiguration possible without re-wiring.

The brushed chrome finish matches the wider Knightsbridge Flat Plate range, allowing grid faceplates to sit alongside standard switches and sockets with consistent visual language. The steel construction provides a 3.5mm ultra-flat profile that projects minimally from the wall once fitted. The plate carries an IP20 rating, making it suitable for dry internal locations.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 3.5 mm
Construction Premium grade steel
Finish Brushed Chrome
IP Rating IP20
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

What grid module does this faceplate take?

This 1-gang faceplate accepts one GDF001F grid module in the centre aperture. The module is sold separately and must be ordered alongside the faceplate. Grid modules are available in various configurations including switches, sockets, dimmers and data outlets.

Is this compatible with standard switches and sockets?

No. This faceplate is designed exclusively for the Knightsbridge Flat Plate Grid System and will only accept GDF001F grid modules. It cannot be used with standard Knightsbridge switches or sockets.

What back box depth is required?

The back box depth requirement depends on the grid module being installed. Most grid modules need a 25mm minimum back box depth, but check the specification of the specific GDF001F module you are pairing with this faceplate.

Can the faceplate be removed for redecorating?

Yes. The faceplate clips onto a separate mounting frame, allowing it to be removed for painting or decorating around the fitting and re-clipped without disturbing the wiring or grid module.
