TV Coaxial Outlet Non-Isolated - Brushed Chrome Flat Plate

£799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

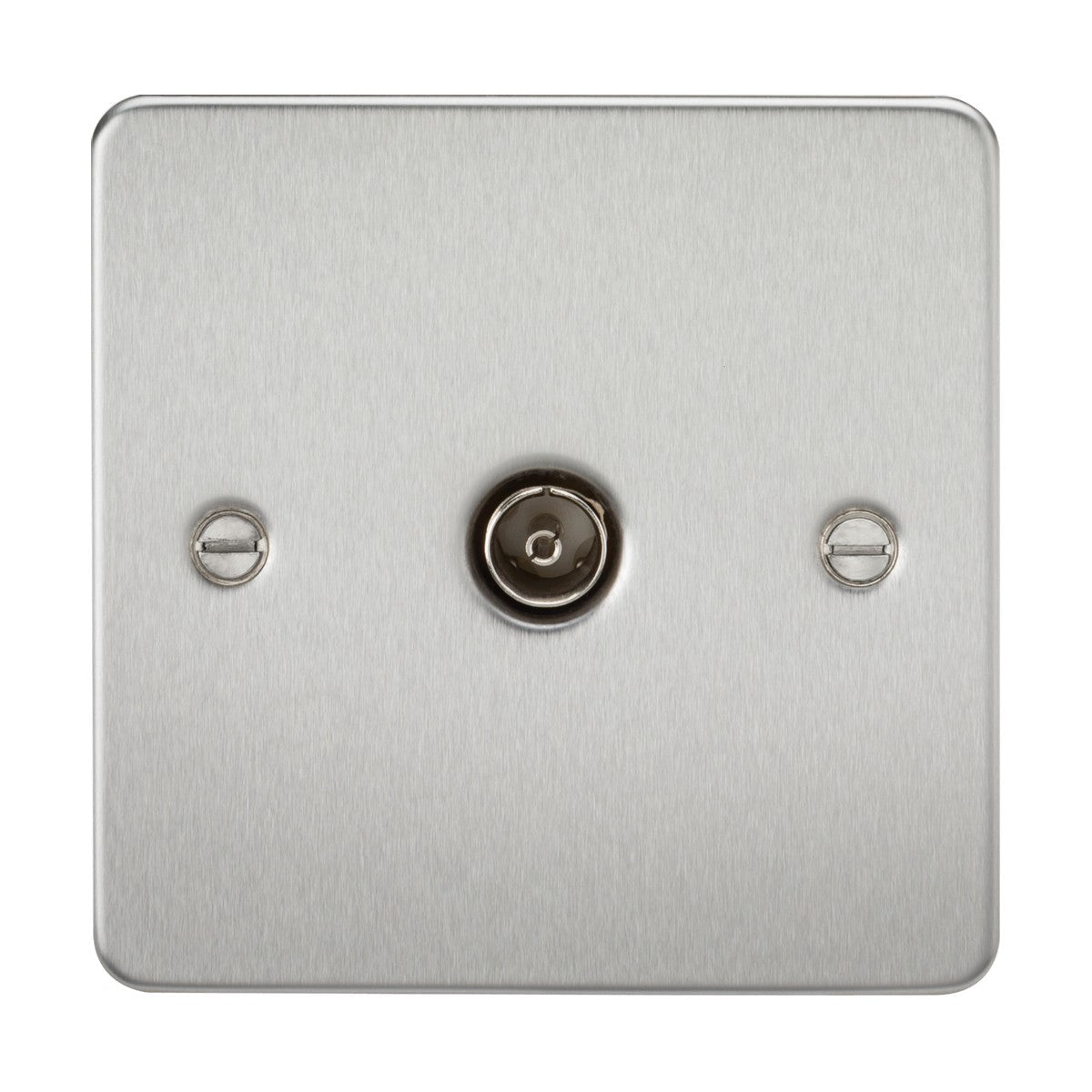

The Knightsbridge FP0100BC is a non-isolated coaxial TV outlet with a brushed chrome flat plate. The outlet provides a female coaxial connection for standard TV aerial or satellite feeds, terminating the cable run at the wall point where a TV or set-top box connects. Non-isolated means the signal is not electrically separated from the distribution network, making this suitable for single-outlet or end-of-run installations rather than mid-point splits.

Designed for residential and light commercial installations, the outlet fits a standard 25mm minimum back box depth and projects just 2.5mm from the wall once fitted. The flat plate design uses a built-in gasket that sits flush against the wall surface, giving a cleaner profile than traditional raised-edge plates. The 87.5mm square footprint matches standard UK switch and socket sizing, so it can be grouped alongside other accessories on a consistent grid.

The brushed chrome finish is a directional satin metal with a subtle grain, softer in reflection than polished chrome and well-suited to both contemporary and traditional interiors. The premium-grade steel construction gives rigidity to the plate, preventing flexing during cable insertion. The outlet is certified to BS 5733 and includes an earth terminal for proper grounding of the coaxial screen, reducing interference and maintaining signal quality.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 2.5 mm
Min. Mounting Box Depth 25mm
Construction Premium grade steel
Finish Brushed Chrome
IP Rating IP20
Earth Terminal Yes
TV Connection Type Female
Terminal Clamp & Screw Terminal
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What is a non-isolated TV outlet?

Non-isolated means the signal is not electrically separated from the distribution network. This type of outlet is suitable for single-outlet installations or as the final outlet on a daisy-chain run, but not for mid-point splits where signal isolation is needed to prevent interference between outlets.

What back box depth is required?

A 25mm minimum back box depth is required. The flat plate adds just 2.5mm of projection from the wall once installed, making it one of the lowest-profile TV outlets available.

Is the earth terminal necessary?

Yes. The earth terminal grounds the coaxial cable screen, reducing interference and improving signal quality. Proper earthing is required under BS 5733 and should be connected during installation.

What other finishes are available in this range?

Knightsbridge produces the Flat Plate range in multiple finishes including polished chrome, matt black, white, antique brass and polished brass. Use the search function or filters to find other variants in stock at Niori.
