Description

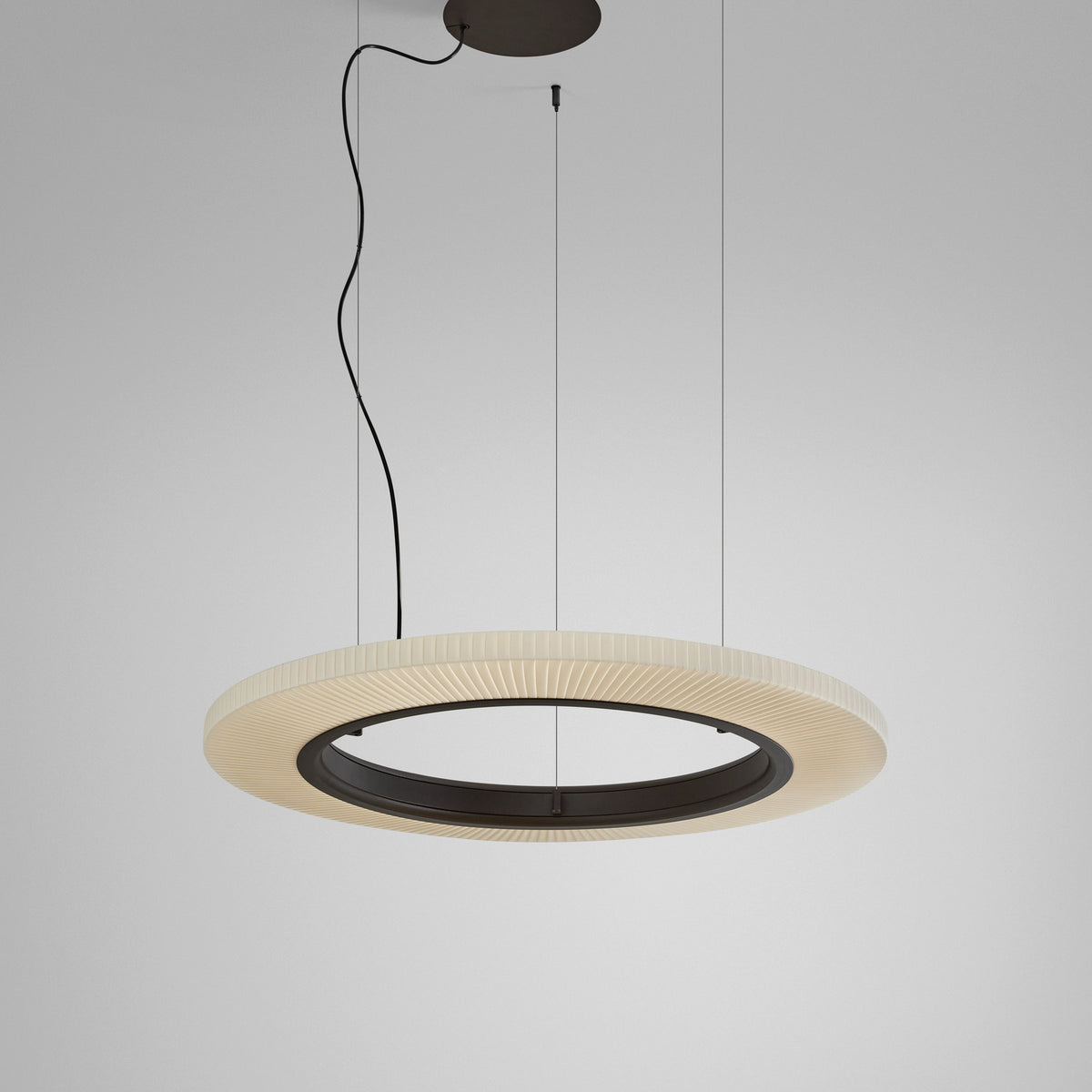

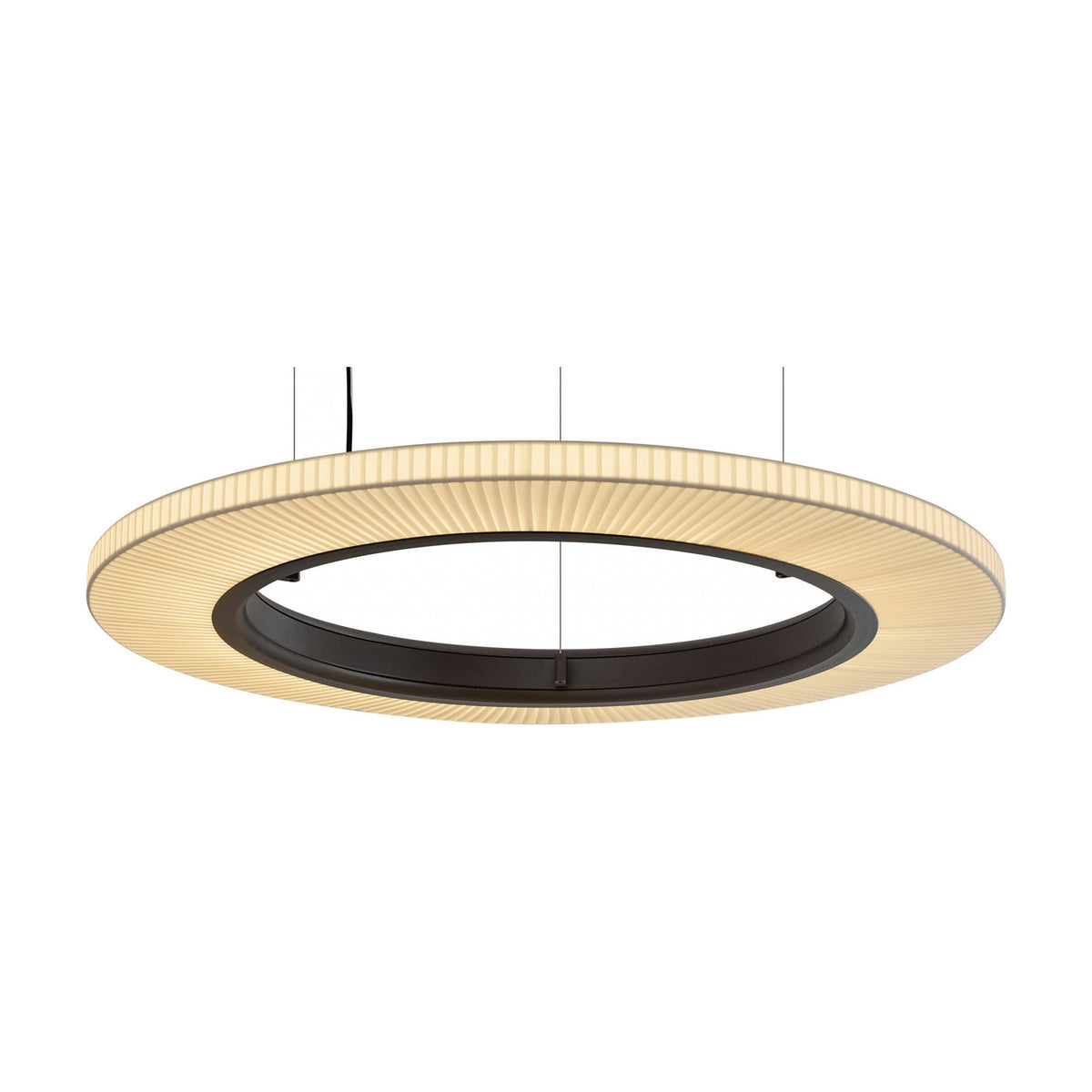

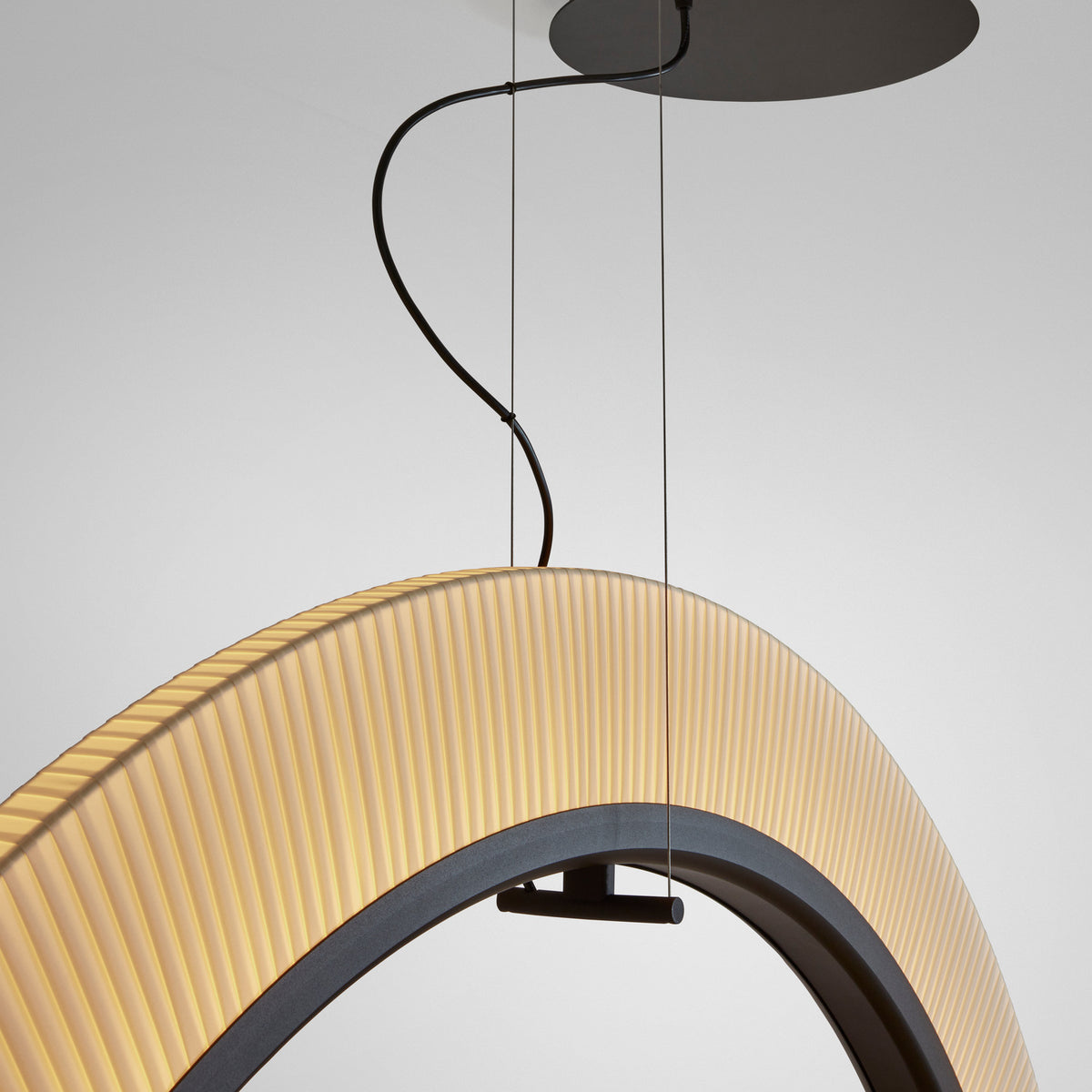

The Roda S/90 is a ring-shaped pendant light, 90cm across and 11cm tall, with a Cream Translucent Ribbon shade gathered into fine pleats all the way round. A dark inner ring outlines the centre, and the integrated LED lights the ribbon from within, so the whole ring glows. It needs no bulb: the LED gives 505 lumens at 2700K, a warm white, from 31W, with a CRI of 90 so colours on the table and in the room look true. It is built from aluminium, steel and ribbon, and hangs level on fine wires from a round canopy 22cm across and 4cm high.
At 90cm across, the Roda S/90 is made for a large dining table or the middle of a generous living room, where a ring of soft light reads well from every chair. Its 505 lumens give gentle background light rather than bright task light. The drop goes to a maximum of 200cm, so it can hang low over a table or sit higher under a tall ceiling. It is rated IP20, so it is for dry rooms indoors only. It is dimmable, and we offer it in three dimming versions: 1-10V, TRIAC and DALI. Choose the one that matches your control system; the TRIAC version works with a compatible dimmer.
The pleats run evenly round the whole ring, and the dark inner ring frames the ribbon shade, so the fitting looks as considered from below as from the side. We offer it in two installation versions, with a surface canopy or with a remote driver. It runs on 230V mains and is a Class I fitting, wired in to the mains by a qualified electrician. Agree the installation version and the dimming version with your electrician before you order, and measure the height you want the ring to hang at against the 200cm maximum drop.
Specification
| Shade |
Cream Translucent Ribbon |
| Material |
Aluminium, Steel & Ribbon |
| Canopy Diameter |
22cm |
| Canopy Height |
4cm |
| Max Drop |
200cm |
| Ring Height |
11cm |
| Ring Diameter |
90cm |
| Light Source |
Integrated LED |
| LED Power |
31W |
| Luminous Flux |
505lm |
| Colour Temperature |
2700K |
| CRI |
90 |
| Dimmable |
Yes (1-10V or DALI or TRIAC) |
| Power |
Mains, wired in by an electrician |
| Voltage |
230V |
| IP Rating |
IP20 |
| Protection Class |
Class I |
| Lead time |
Made to order, usually delivered in 4 to 8 weeks |
Frequently Asked
Does the Roda S/90 pendant need a bulb?
No. It has an integrated LED of 31W giving 505 lumens at 2700K with a CRI of 90, so there is no bulb to fit.
Can the Roda S/90 be dimmed?
Yes. We offer it in 1-10V, TRIAC and DALI dimmable versions. The TRIAC version works with a compatible dimmer, and the other two suit 1-10V or DALI control systems.
How big is the Roda S/90 ring?
The ring is 90cm across and 11cm tall, the round canopy is 22cm across and 4cm high, and the maximum drop is 200cm.
Can I use this ring pendant in a bathroom?
No. It is rated IP20, so it is for dry rooms only, such as a dining room or a living room.
How is the Roda S/90 installed?
It runs on 230V mains and is wired in by a qualified electrician. We offer it in a surface canopy version and a remote driver version.
How long will it take to arrive?
It is made to order for you, so it is usually delivered in 4 to 8 weeks.
