Description

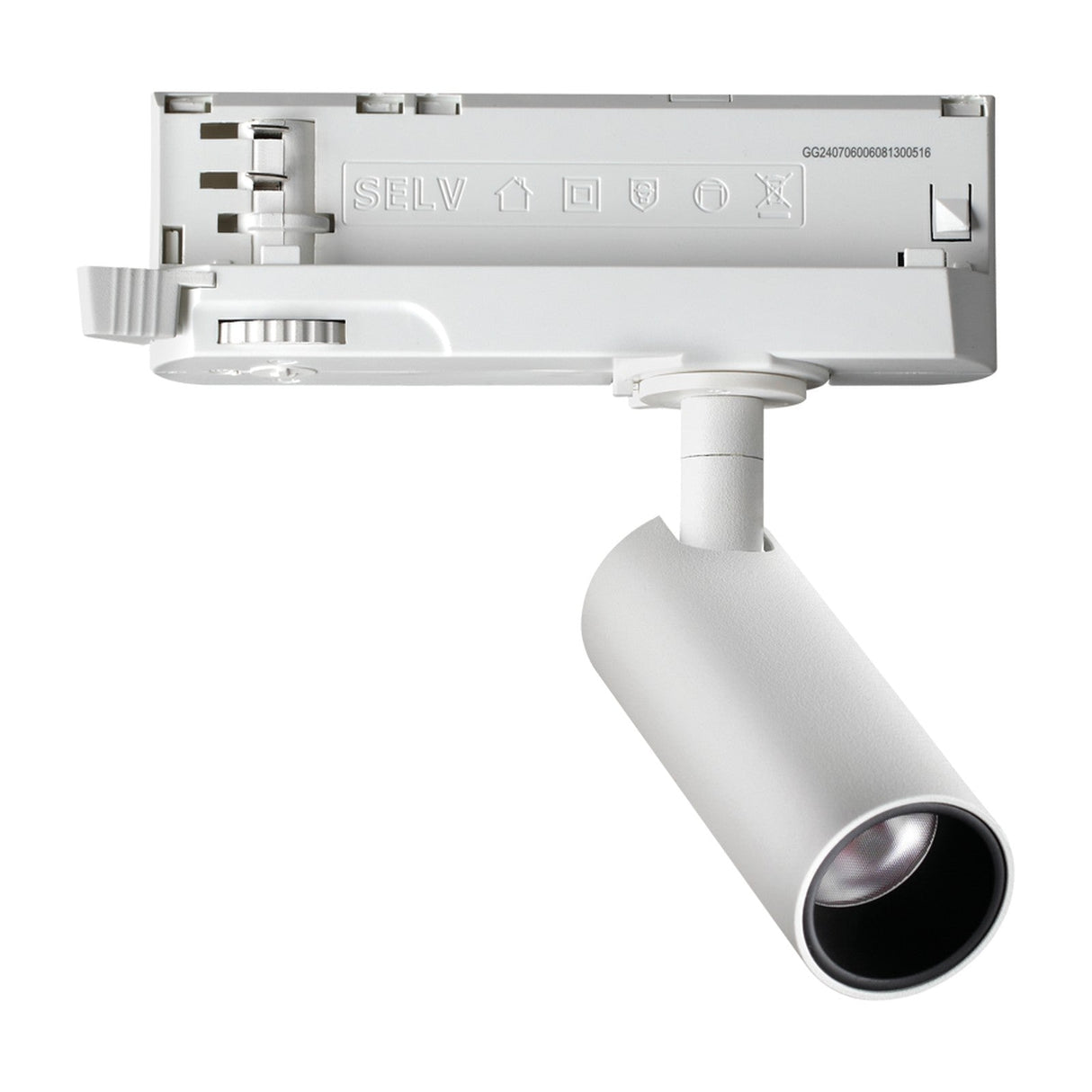

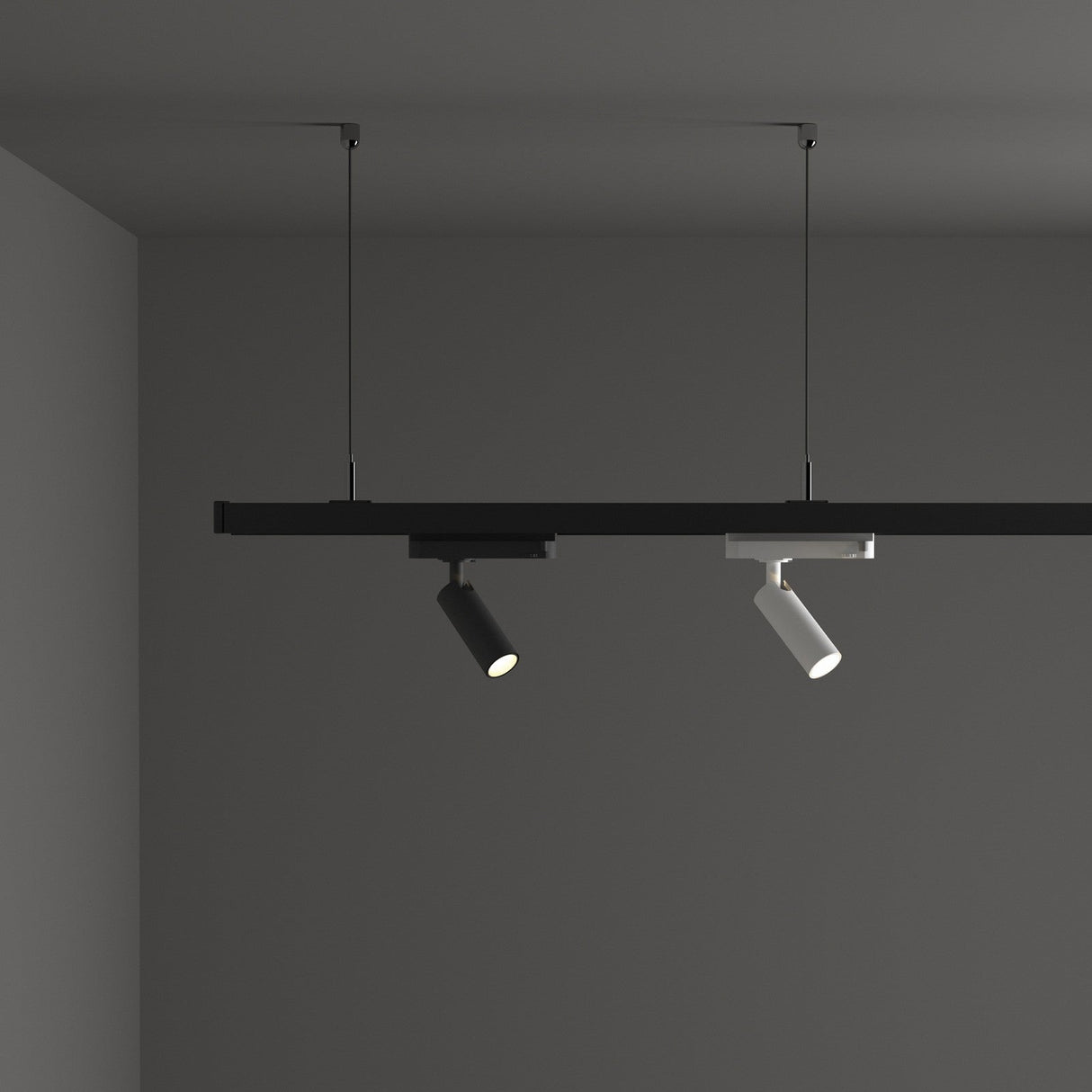

The Play is a compact orientable spotlight that clips onto a three-phase track and puts a focused circle of light exactly where you aim it. The head swivels on its base so the beam can follow a picture, a product on a shelf or a run of artwork, and it slides along the rail to sit wherever it is needed. Lit, it reads as a clean pool of warm 3000K light; unlit, the small white body sits neatly against a pale ceiling.
This is the brighter 13W head in white, its die-cast aluminium body carrying a black rear cover and a black inner ring at the front, which shades the source and keeps glare off the eye. It draws 900 lumens through an 18 degree beam, with a colour rendering index above 90 so tone stays true on whatever it lights, and a knurled clear acrylic diffuser sharpens the beam. At 128mm long and 164mm tall it shares the compact frame of the 7W head while putting out more light, which suits taller shelving, larger pieces or a display that needs a bit more reach.
The source is a built-in LED rated to 50,000 hours, so there is no bulb to fit or replace. This head can be dimmed through a DALI or push control with an optional power supply, so the level can be set across a run of heads. It carries an IP20 rating for dry indoor rooms and needs a live three-phase track to seat on, which we can supply alongside with the feeds, control gear and connectors.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 13W total (900lm, 3000K, CRI>90, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
900lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
18 degrees |
| Length |
128mm |
| Height |
164mm |
| Projection |
47mm |
| IP rating |
IP20 |
| Dimmable |
Yes, DALI / push (optional power supply required) |
| Control |
DALI or push, via optional supply |
| Mounting |
Three-phase track |
| Adjustment |
Orientable head, swivels |
| Frame / Structure finish |
White powder-coated die-cast aluminium, black rear cover and inner ring |
| Diffuser / Glass |
Knurled clear acrylic diffuser |
| Materials |
Die-cast aluminium body, acrylic diffuser |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Play spotlight give?
One focused beam of warm 3000K light with a colour rendering index above 90, so colours stay true. This brighter head runs an 18 degree spread and draws 900 lumens at 13W, reaching taller shelving or larger pieces. The orientable body swivels to aim the beam.
Does it use a bulb?
No. The LED is built in and included, rated to 50,000 hours, so there is nothing to source or replace. The head clips onto a three-phase track and lights from the rail once seated.
Can it be dimmed?
Yes. Unlike the 7W head, the 13W Play dims through a DALI or push control with an optional power supply, so a run of heads can be set to a lower level. We can supply the control gear alongside the track.
What does it look like and where does it suit?
A compact white head 128mm long and 164mm tall, with a black rear cover and inner ring that shade the source. The 18 degree beam and optional dimming suit shops, galleries and studios wanting brighter, adjustable accent light. Rated IP20, it is for dry indoor rooms.
