Description

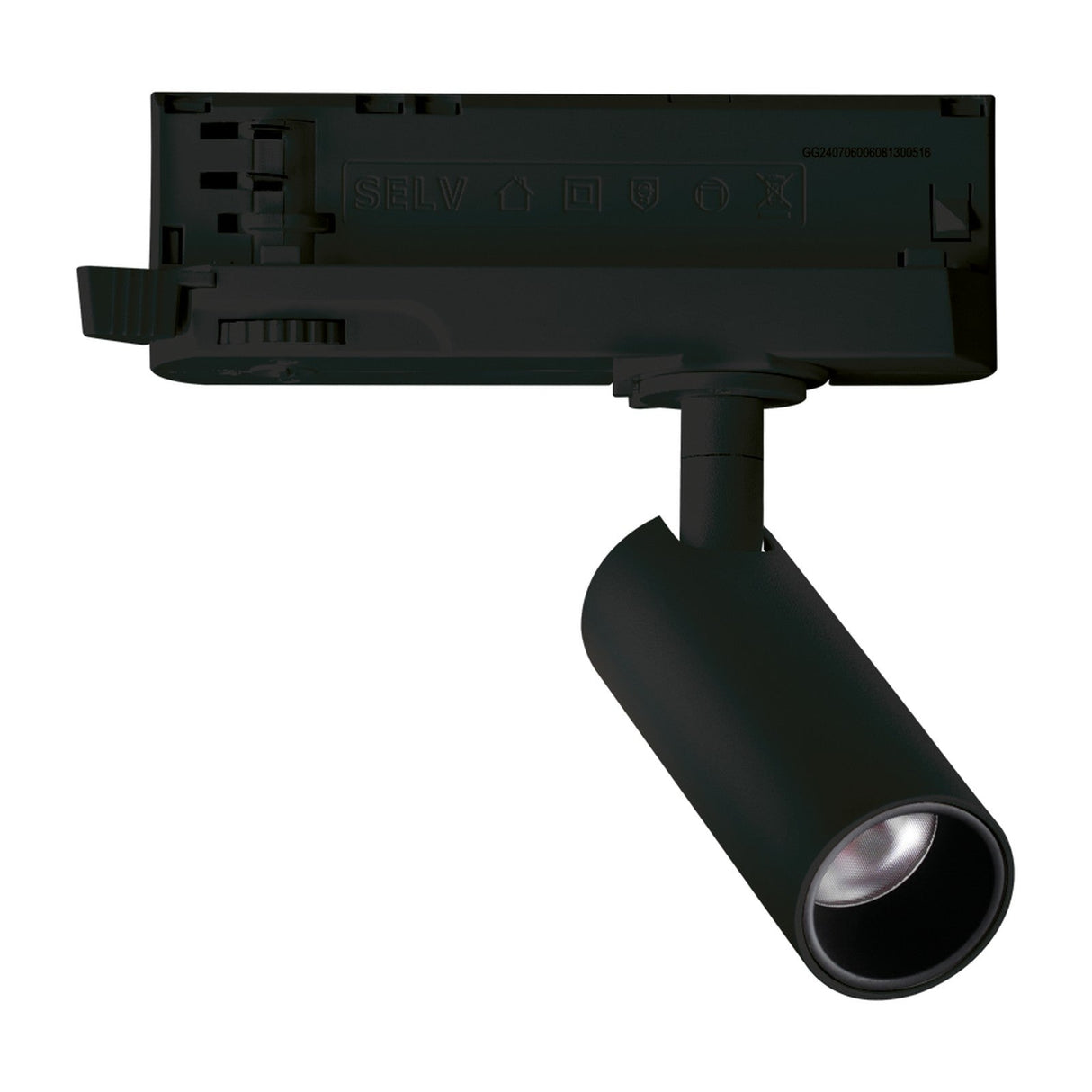

The Play is a compact orientable spotlight that clips onto a three-phase track and puts a focused circle of light exactly where you aim it. The head swivels on its base so the beam can follow a picture, a product on a shelf or a run of artwork, and it slides along the rail to sit wherever it is needed. Lit, it reads as a clean pool of warm 3000K light; unlit, the small black body sits neatly on the track.
This is the brighter 13W head, drawing 900 lumens through an 18 degree beam, with a colour rendering index above 90 so tone stays true on whatever it lights. The body, base and junction are die-cast aluminium finished in black, with a knurled clear acrylic diffuser at the front that sharpens the beam. At 128mm long and 164mm tall it shares the compact frame of the 7W head while putting out more light, which suits taller shelving, larger pieces or a display that needs a bit more reach.
The source is a built-in LED rated to 50,000 hours, so there is no bulb to fit or replace. This head can be dimmed through a DALI or push control with an optional power supply, so the level can be set across a run of heads. It carries an IP20 rating for dry indoor rooms and needs a live three-phase track to seat on, which we can supply alongside with the feeds, control gear and connectors.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 13W total (900lm, 3000K, CRI>90, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
900lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
18 degrees |
| Length |
128mm |
| Height |
164mm |
| Projection |
47mm |
| IP rating |
IP20 |
| Dimmable |
Yes, DALI / push (optional power supply required) |
| Control |
DALI or push, via optional supply |
| Mounting |
Three-phase track |
| Adjustment |
Orientable head, swivels |
| Frame / Structure finish |
Black powder-coated die-cast aluminium |
| Diffuser / Glass |
Knurled clear acrylic diffuser |
| Materials |
Die-cast aluminium body, acrylic diffuser |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Play spotlight give?
One focused beam of warm 3000K light with a colour rendering index above 90, so colours stay true. This brighter head runs an 18 degree spread and draws 900 lumens at 13W, reaching taller shelving or larger pieces. The orientable body swivels to aim the beam.
Does it use a bulb?
No. The LED is built in and included, rated to 50,000 hours, so there is nothing to source or replace. The head clips onto a three-phase track and lights from the rail once seated.
Can it be dimmed?
Yes. Unlike the 7W head, the 13W Play dims through a DALI or push control with an optional power supply, so a run of heads can be set to a lower level. We can supply the control gear alongside the track.
What does it need to run and where does it suit?
A live three-phase track rather than a plain ceiling point, plus the optional supply for dimming. At 128mm long and 164mm tall, the 18 degree beam suits shops, galleries and studios wanting brighter, adjustable accent light. Rated IP20, it is for dry indoor rooms.
