Description

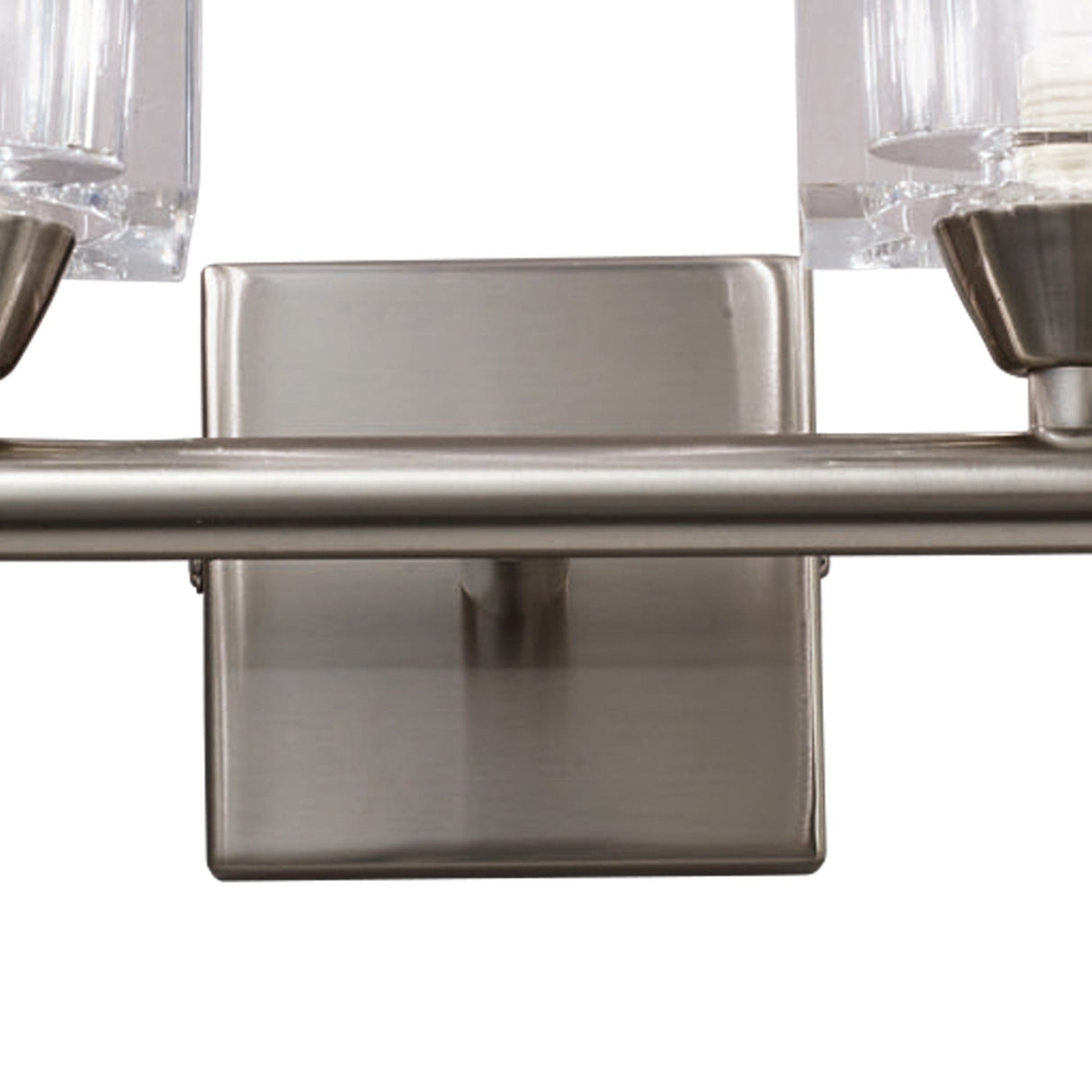

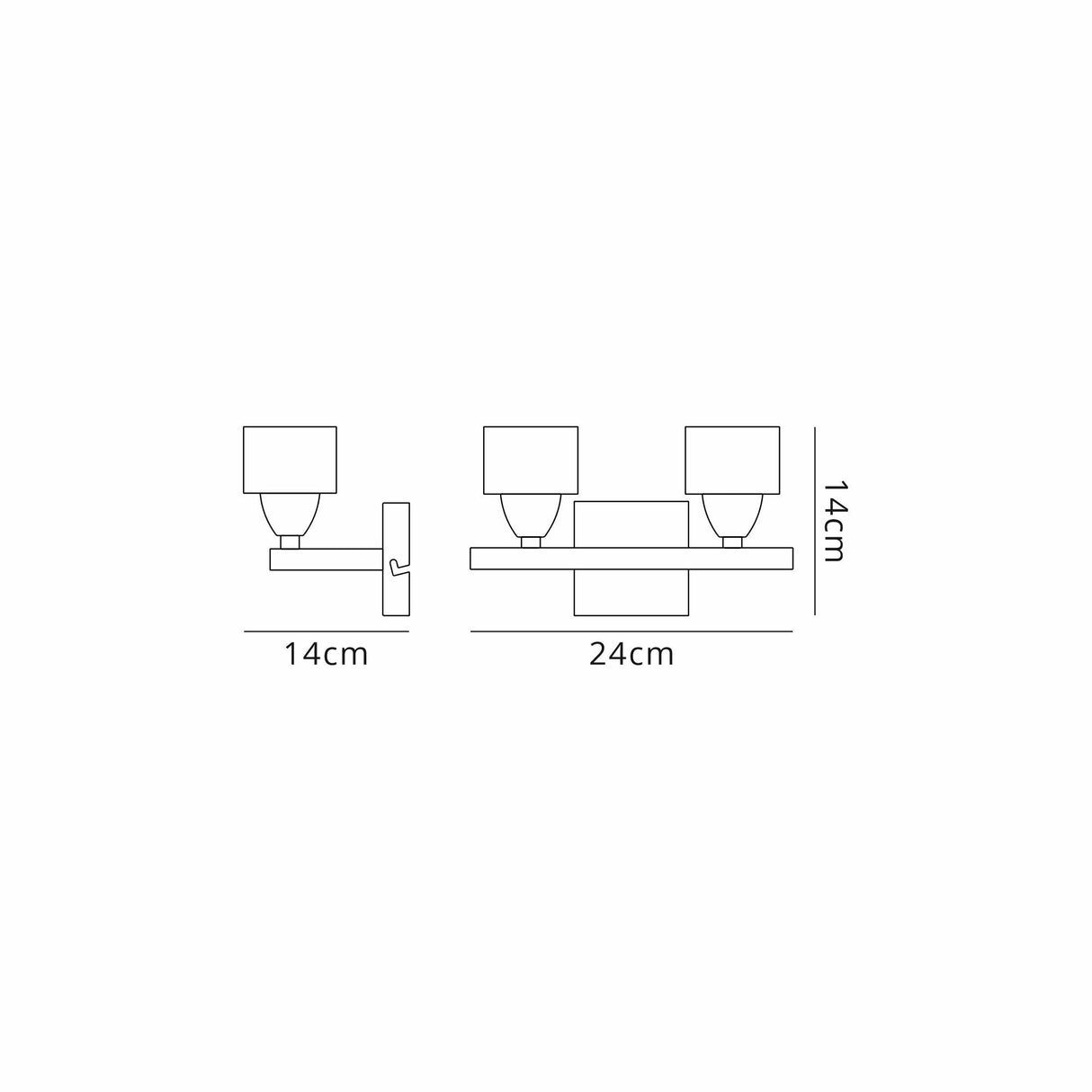

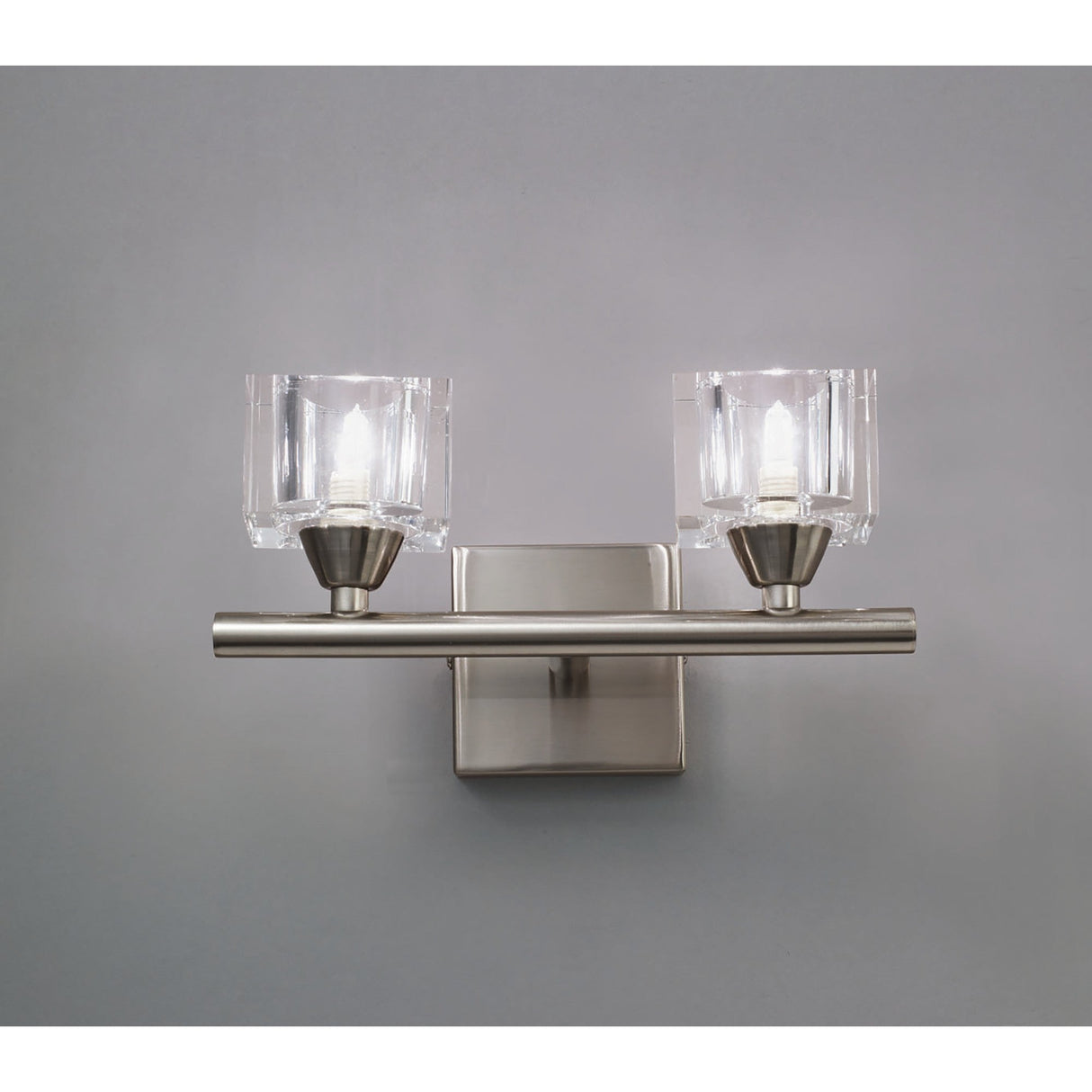

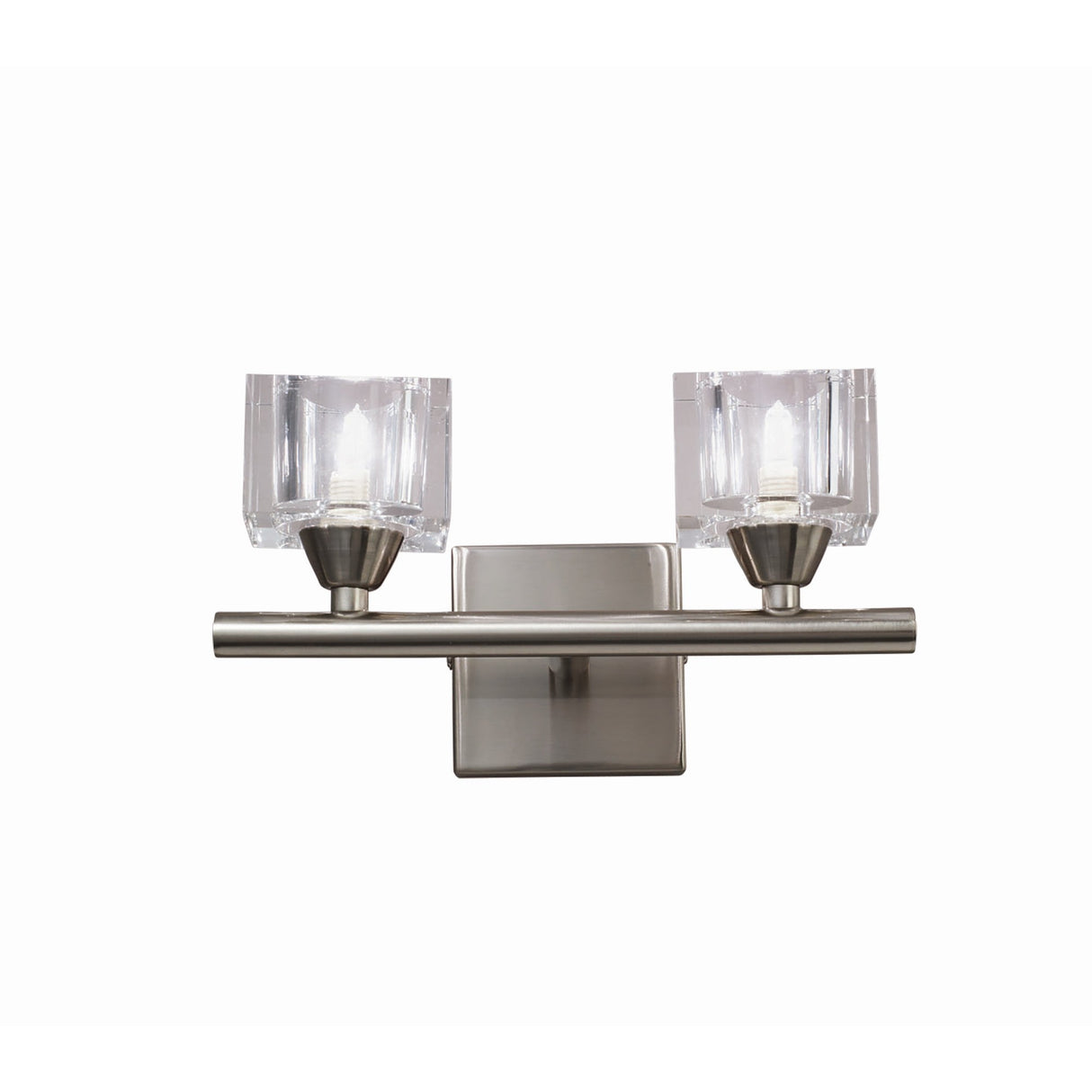

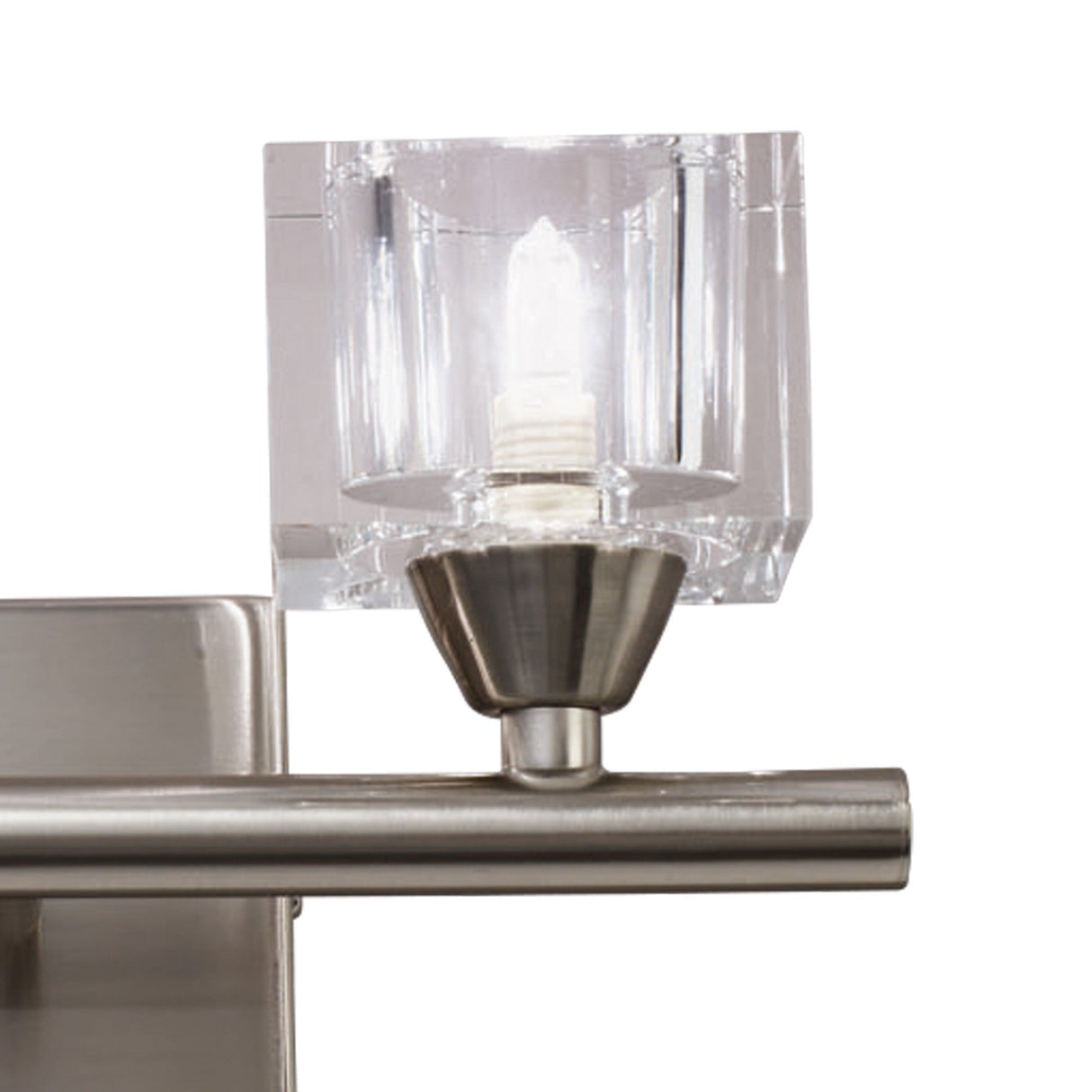

The Cuadrax is a 2 light wall fitting built around a horizontal satin nickel bar supporting two frosted cube glass shades, each housing a G9 bulb (sold separately). The cubes are cut from clear glass with a frosted core, giving a layered translucency when lit. The rectangular backplate measures 240mm wide by 140mm tall, with a 135mm projection from the wall.
Designed for ambient rather than task lighting, the Cuadrax suits hallways, landings, bedroom walls flanking a headboard, and living room alcoves where a horizontal fitting provides gentle background light without occupying ceiling space. The twin cubes balance symmetrically along the bar, spreading light in opposite directions. Fitted 1.6-1.8m above floor level the light sits at eye height without causing glare.
The satin nickel finish on the frame and backplate provides a mid-tone metallic that sits between the warmth of brass and the coolness of polished chrome, pairing comfortably with grey, white, taupe and soft blue interiors. The frosted glass diffuses the G9 bulb inside each cube, softening the light and concealing the bulb shape. At 1.1kg the fitting carries enough weight to feel substantial on the wall without requiring reinforced fixing.
The fitting is dimmable when paired with dimmable G9 bulbs and a compatible dimmer switch. Most users install 3-5W LED G9 capsules in the 2700K-3000K range for warm ambient light, though the G9 socket accepts higher wattages for brighter output if required.
Specification
| Colour Finish 1 |
Satin Nickel |
| Shade Colour |
Clear |
| Width |
240mm |
| Height |
140mm |
| Projection |
135mm |
| Number Of Bulbs |
2 |
| Lamp Socket |
G9 |
| Power Consumption |
Dependent On Lamps Used |
| Voltage |
220-240V~50/60Hz |
| Dimmable |
Yes - Dimmable Lamps Required |
| Weight |
1.1KG |
| Warranty |
1 Year |
Frequently Asked
What bulbs does the Cuadrax take?
The fitting takes two G9 capsule bulbs, sold separately. Most users fit 3-5W LED G9 bulbs in the 2700K-3000K colour temperature range for warm ambient lighting. The G9 socket accepts halogen or LED capsules.
Is it dimmable?
Yes, when paired with dimmable G9 bulbs and a compatible dimmer switch. The fitting itself does not have built-in dimming — bulb and dimmer compatibility determine the dimming function.
What is the projection from the wall?
The fitting projects 135mm from the wall once installed. This is measured from the backplate to the outermost edge of the glass cubes, so allow clearance if fitting above a shelf or piece of furniture.
Where is the Cuadrax typically installed?
Hallways, landings, bedroom walls flanking a headboard, and living room alcoves are the most common installations. The horizontal twin-light format works well where a single central pendant or downlight would look awkward. Fitted at 1.6-1.8m above floor level the light sits at a comfortable eye height without causing glare.
