QTX G Shape Mounting Hook for Stage Lighting - Black

£399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

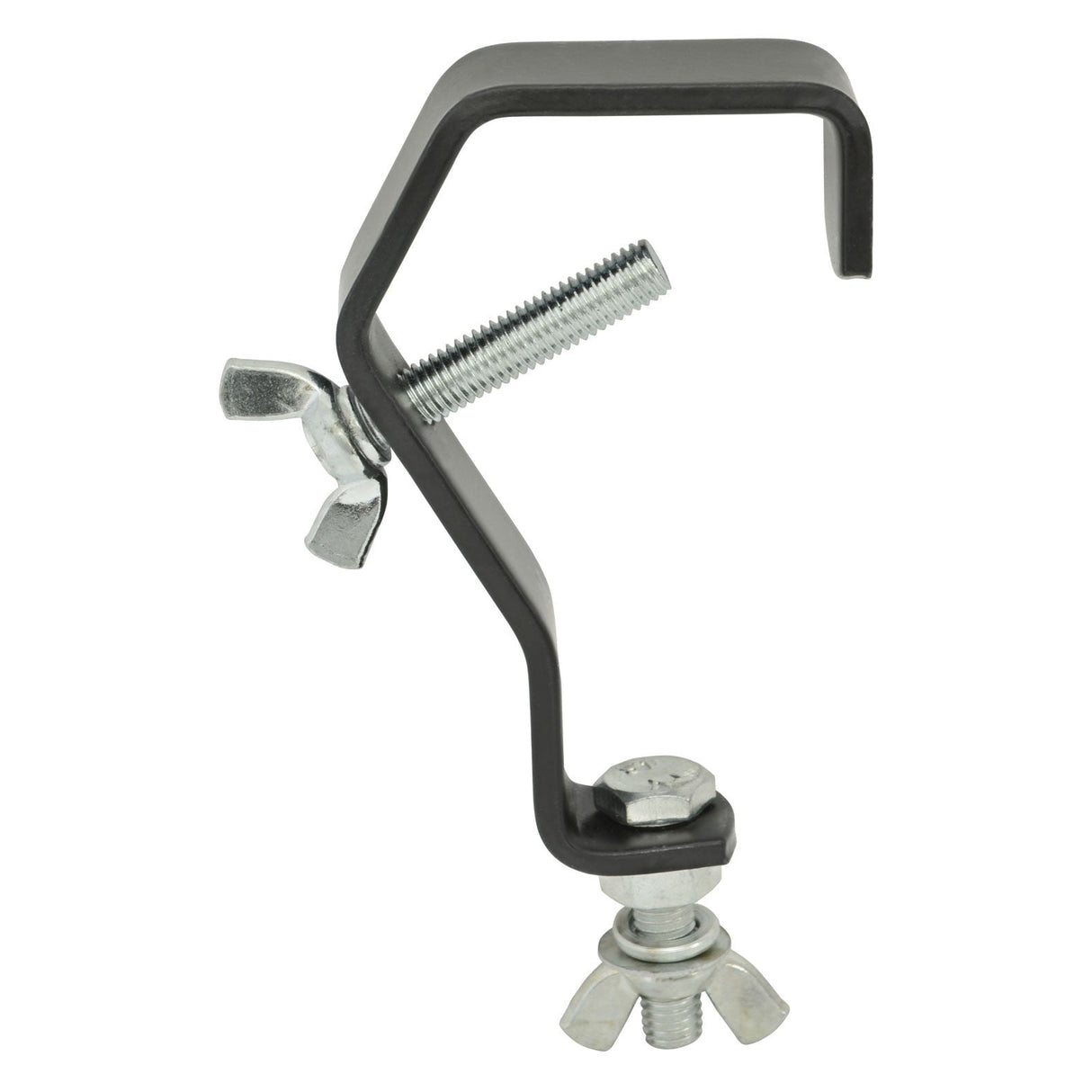

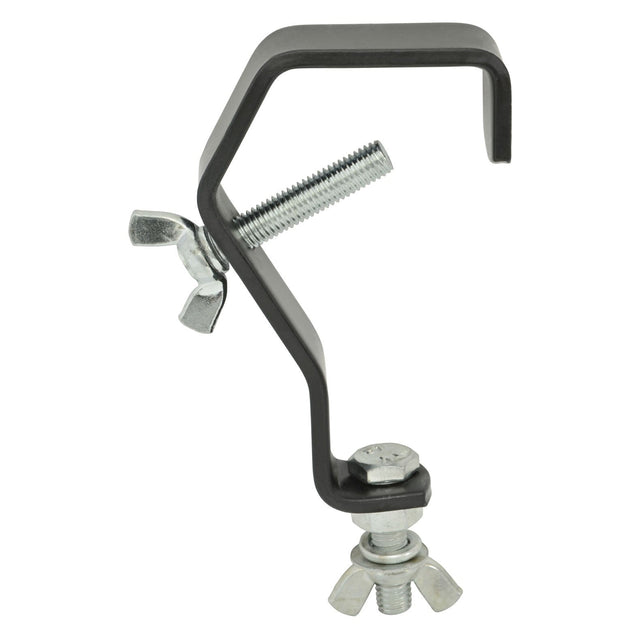

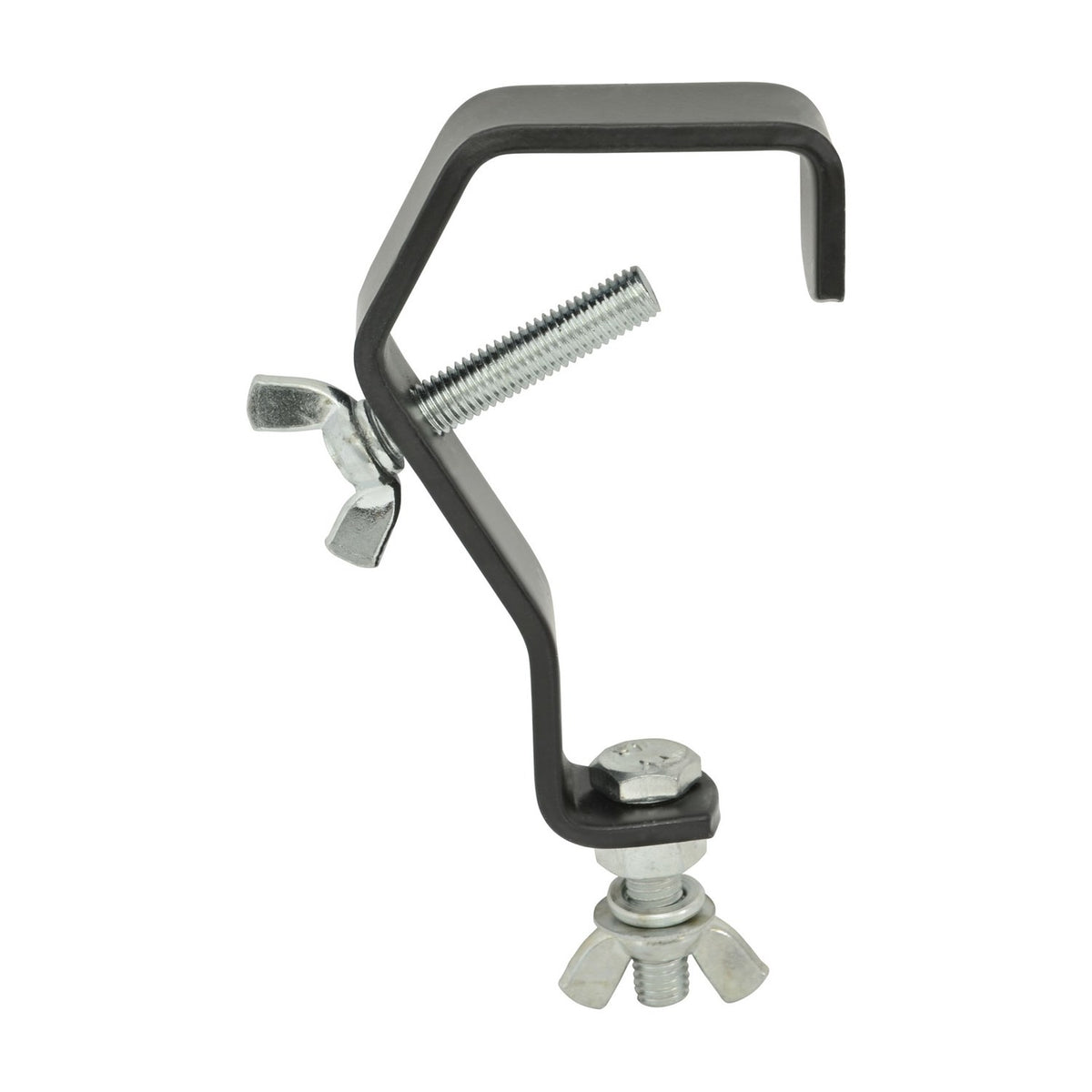

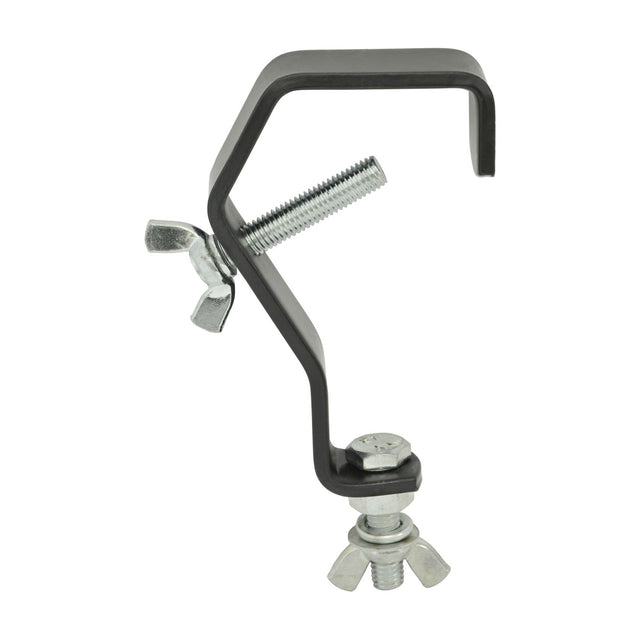

The QTX G-shape mounting hook is a steel clamp designed to secure stage lighting fixtures, moving heads, PAR cans and effects lights onto lighting bars, truss poles and scaffolding tubes up to 55mm in diameter. The hook is formed from powder-coated black steel in a G profile, with a threaded screw clamp that tightens against the pole to lock the fixture in position. It carries a 20kg maximum load rating.

Used in live event production, theatre rigging, mobile DJ setups and permanent installation venues, the hook provides a tool-free mounting solution for lighting fixtures with integrated hanging brackets. The G-shaped profile allows the fixture to hang below the bar while the screw clamp tightens from the side, holding both the hook and the fixture securely without needing additional safety cables for loads within the 20kg limit. The 55mm maximum diameter accommodates standard 50mm lighting bars and 48.3mm scaffolding tube.

The black powder-coated finish resists scratching during repeated mounting and dismounting cycles. The screw clamp uses a wing-nut-style head that can be tightened by hand, though a spanner or adjustable wrench provides additional torque where needed. The hook weighs approximately 250g, keeping it light enough for frequent transport in flight cases and equipment bags without adding significant bulk to touring kit.

Specification
Max. weight load 20kg
Frequently Asked

What diameter poles does it fit?

The hook fits poles and tubes up to 55mm in diameter, which includes standard 50mm lighting bars and 48.3mm scaffolding tube commonly used in stage and event rigging.

What is the maximum load capacity?

The hook is rated for a maximum load of 20kg. This covers most moving heads, PAR cans and LED effects lights used in mobile and permanent installations. Always verify the fixture weight before rigging.

Does it require safety cables?

For loads within the 20kg rating and in non-overhead public areas, the screw clamp provides sufficient hold. For overhead rigging above public spaces or loads approaching the maximum capacity, secondary safety cables are recommended as per standard rigging practice.

Can it be used on truss?

Yes, provided the truss tube diameter does not exceed 55mm. The G-shape profile allows it to hook onto horizontal truss bars in the same way it mounts to lighting poles and scaffolding.
