Description

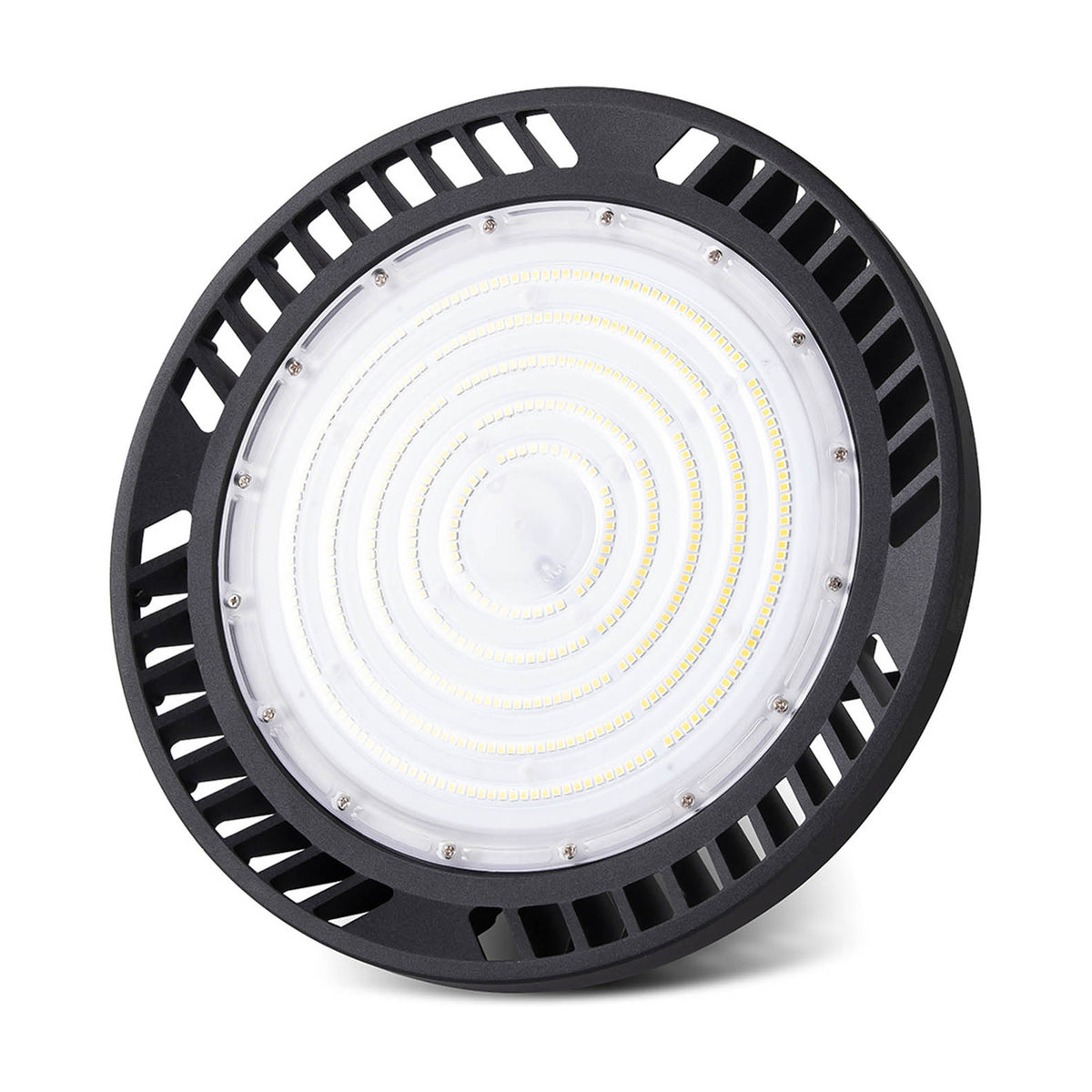

This is high bay output in a compact round body: a single integrated LED module behind a wide, even spread, finished in black and measuring 30cm across. The colour temperature is 5000K, a crisp natural white that keeps colours honest and shadows shallow. At 200W it is a serious amount of light from a single point, and output is fixed rather than dimmable, so it runs at full brightness whenever it is switched on. There is nothing to lamp: the LED and its driver are built in.
We would put this where the ceiling is high and the floor below needs proper light: workshops, garages, storage buildings, packing areas, agricultural sheds and small industrial units. The spread is broad rather than tight, so it covers open floor well and is less suited to lighting a narrow aisle from a great height. It is sealed against dust and water jets, which brings wash-down areas, unheated stores and covered yards within reach. Anyone still working under tired fluorescent tubes will notice the difference at bench level. We stock it in black only.

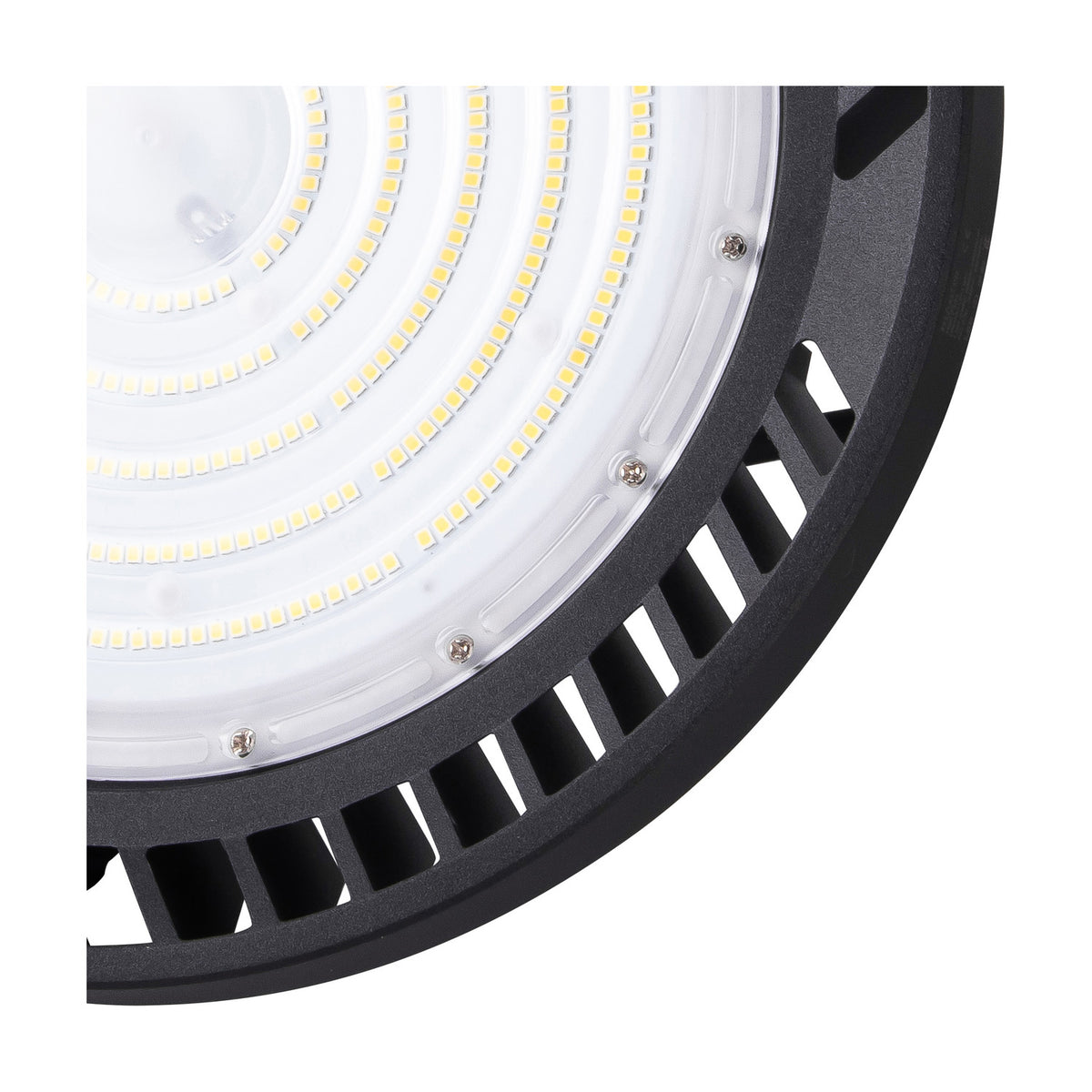

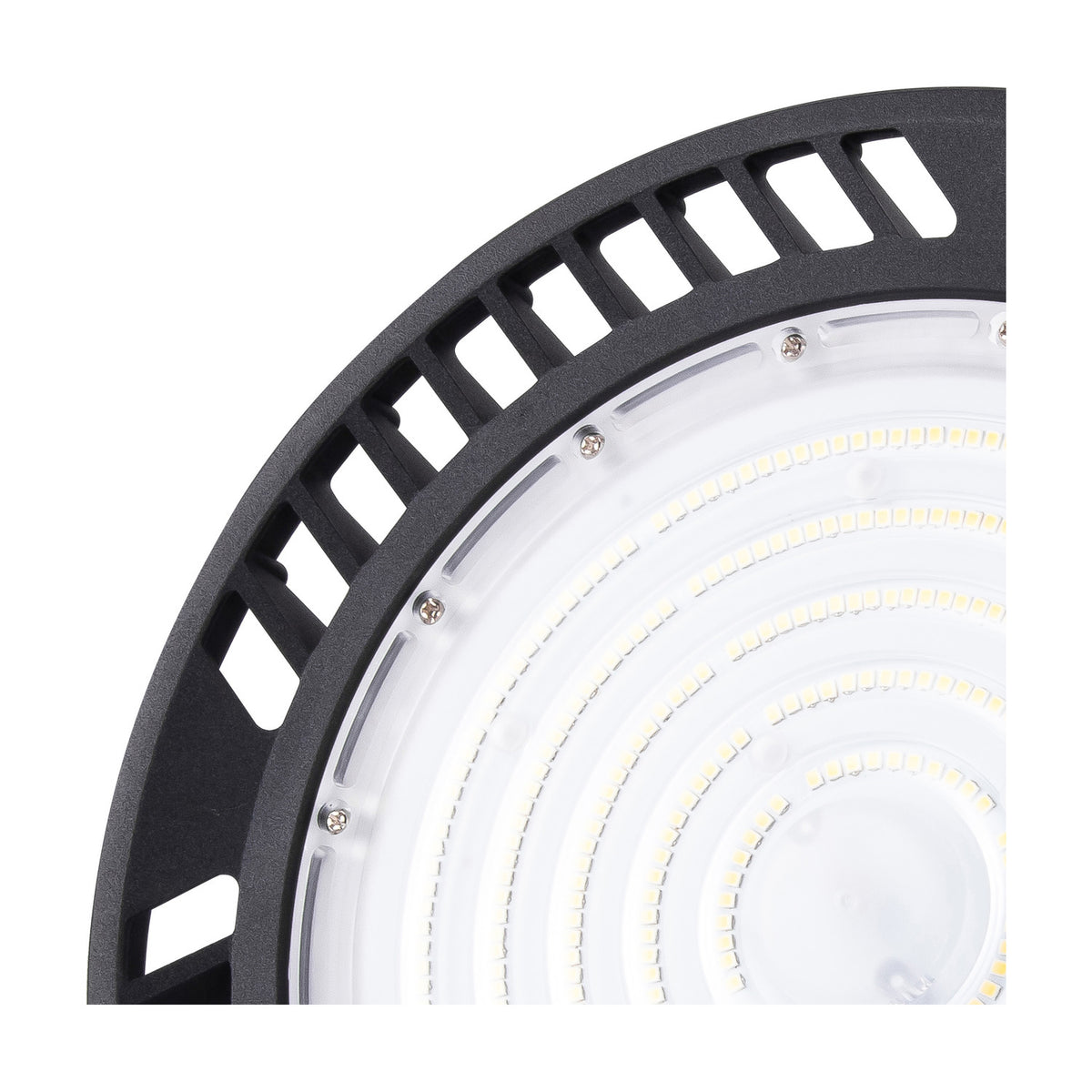

The round housing is finished in black and keeps a plain, low profile for something producing this much light. Dust dulls the face over time and quietly costs you output, so isolate the supply, let the fitting cool and wipe the lens with a dry cloth, keeping moisture well away from the electrical side. It carries a three year warranty. We also stock the range in a smaller diameter, in a warmer natural white, and with narrower and broader beam spreads, so a run of them can be matched to bay height and floor layout.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
3.00KG |
| Diameter |
301mm |
| Height |
178mm |
| Materials Used |
Aluminium |
| Energy Class |
D |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
D |
| Min Energy Class |
D |
| Lamp |
1 x 200W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
5000K Natural White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Power |
1W (±5%) |
| Type of LED |
2835 6V |
| Lumens per Watt (lm/W) |
150lm/W (±5%) |
| Beam Angle |
90° |
| System Flux |
30000lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
200W (±5%) |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it actually produce?
System flux is 30,000 lumens (±5%) from a 200W integrated LED, at 5000K natural white.
Can it be dimmed or run on a sensor circuit?
It is not dimmable. It is designed to switch on and off at full output, so pair it with a plain switched or contactor-controlled circuit.
Will it cope with damp, dust and cold?
Yes. It is rated IP65, which covers dust and low-pressure water jets, so unheated stores, wash-down bays and sheltered outdoor areas are all fair game.
How big and heavy is it?
It is 301mm in diameter and 178mm tall, with a nett weight of 3kg.
How long should the LED last, and can it be replaced?
Average rated life is 50,000 hours. The LED and driver are integral, so there is no lamp to change during that time.
Is the light quality good enough for colour work?
Colour rendering is quoted at 80 CRI, which is fine for storage, assembly and general workshop tasks, though close colour matching wants a higher figure.
