Description

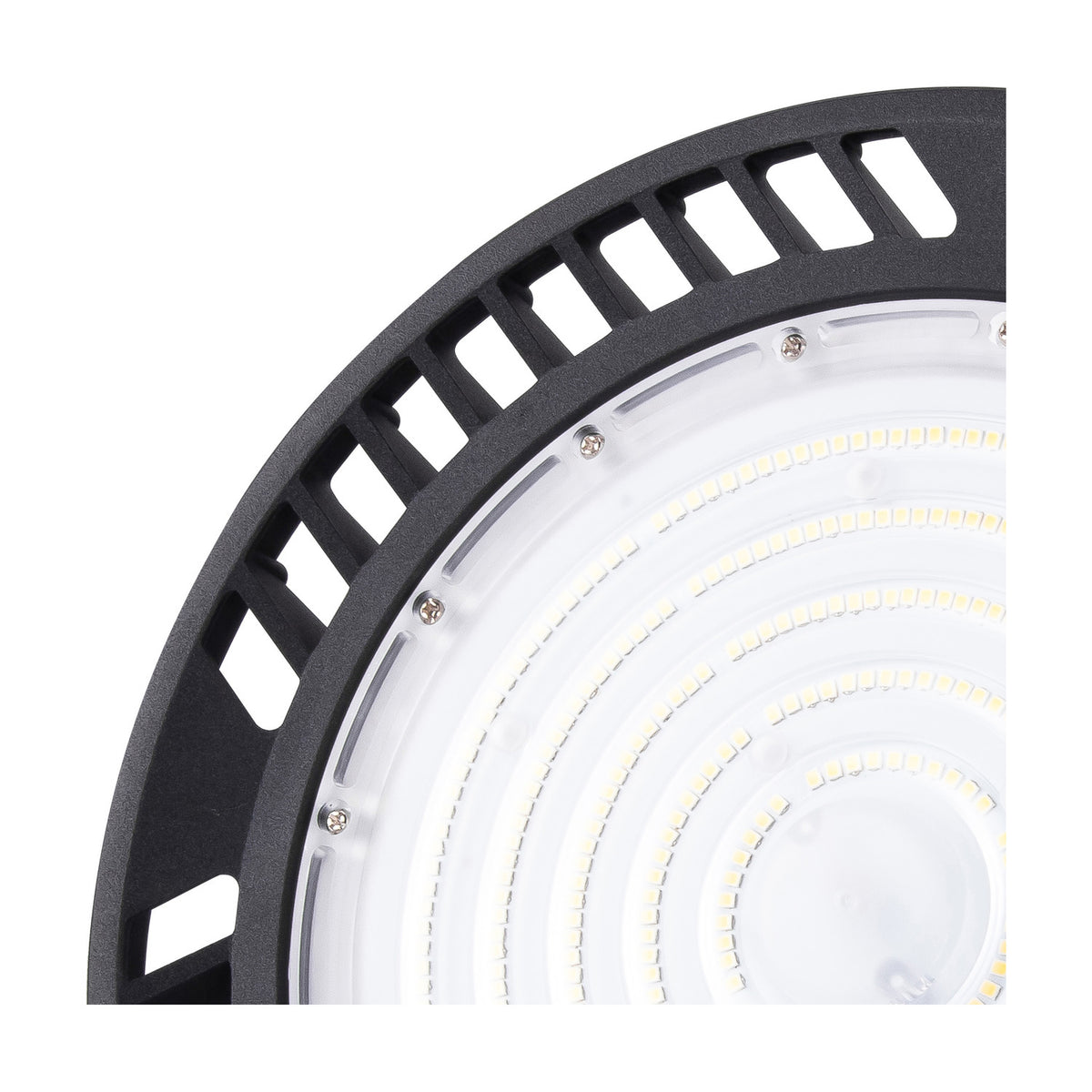

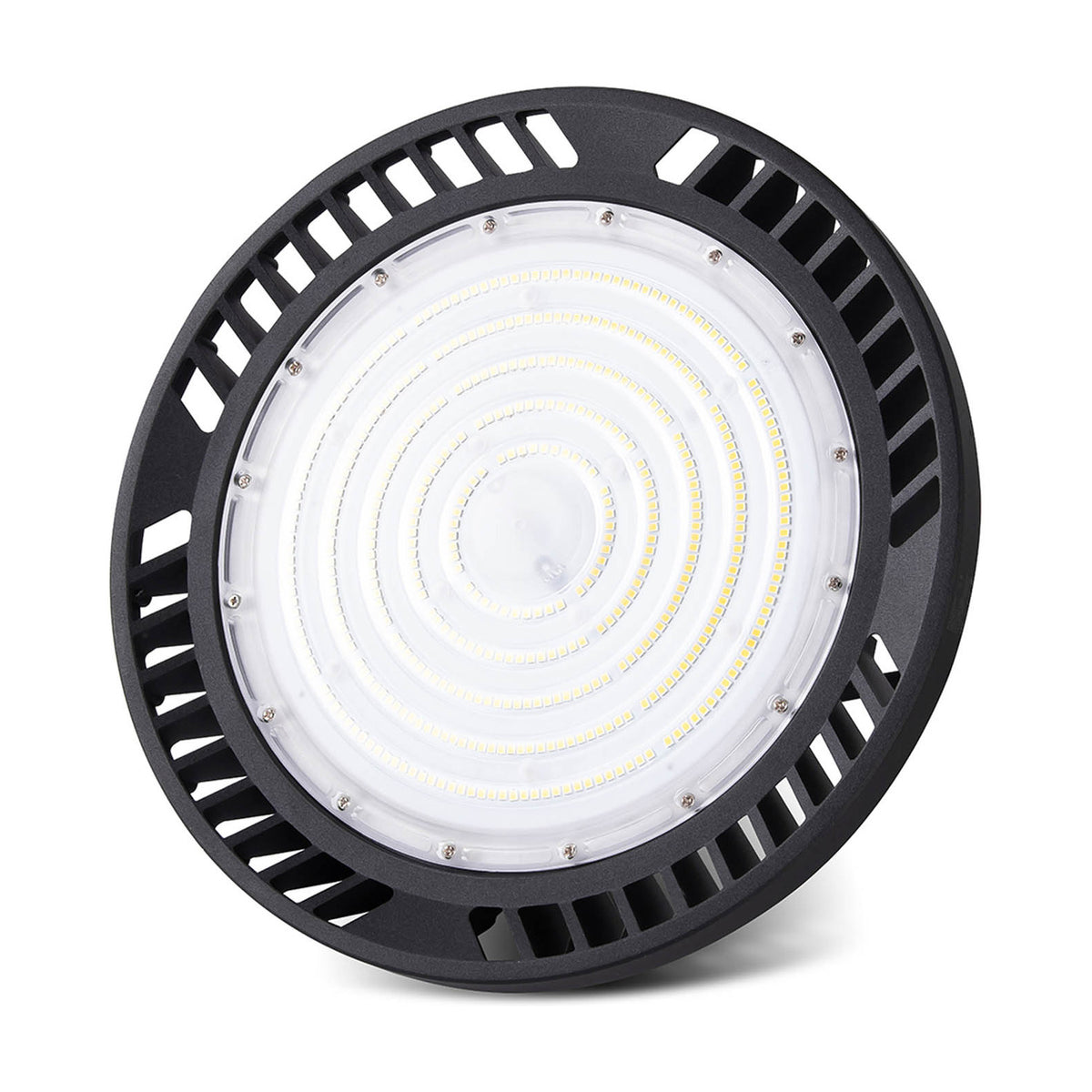

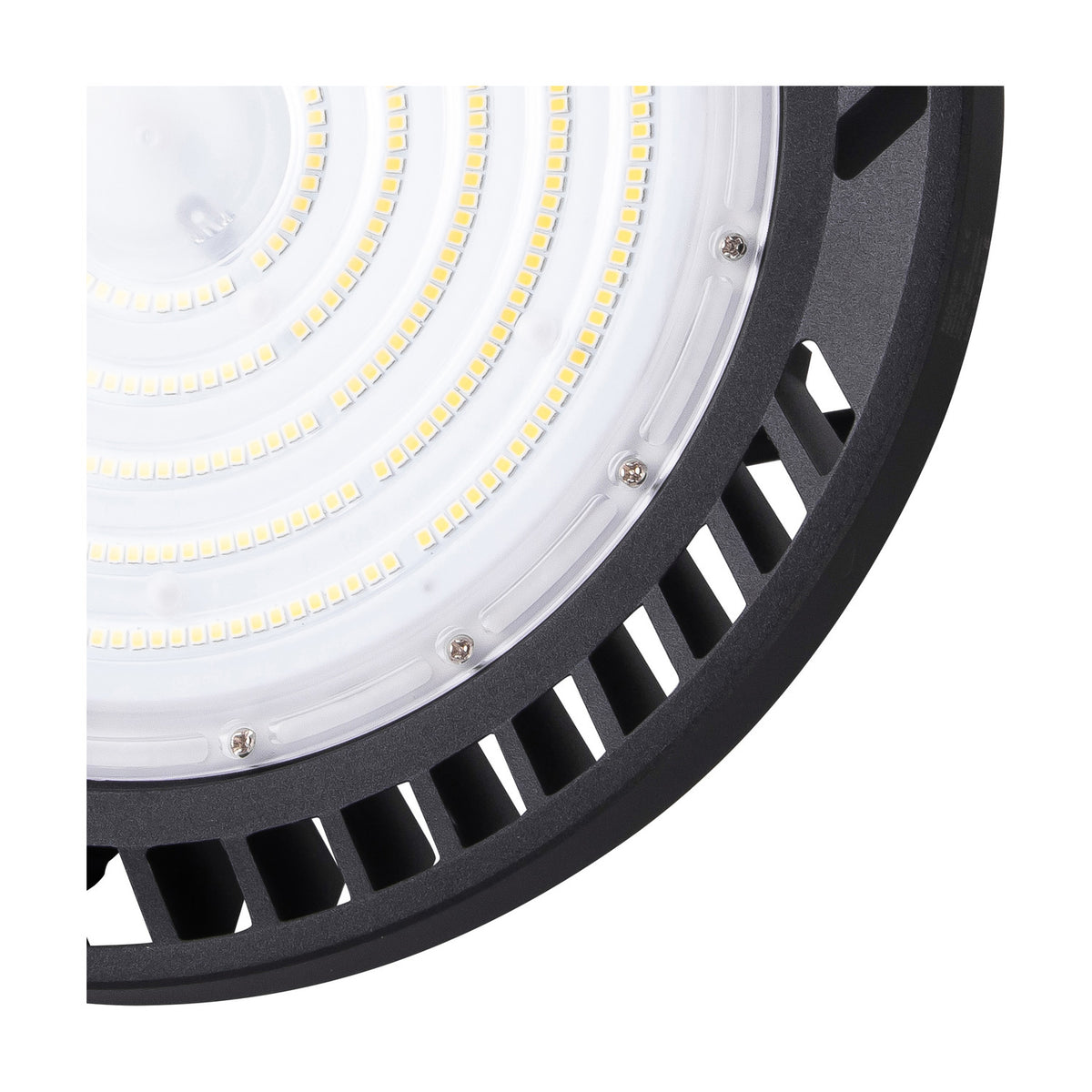

Here is a high-output bay light for rooms where a normal ceiling fitting simply cannot throw far enough. The body is a broad black disc of about 30cm across, deeper than it is wide across the top, with the light-emitting face set into the underside. Output comes from an integrated LED array drawing 200W, with the driver supplied as part of the unit, so there is nothing to buy alongside it. The colour is a crisp natural white at 5000K, and the optic is a narrower one, sending light down in a defined pool rather than washing it sideways. It is not dimmable and is intended to run at full output.
We reach for this where the ceiling sits well above head height and the floor still needs proper light: workshops and machine shops, double garages, stores and stock aisles, agricultural buildings, gyms and covered yards. The narrower spread suits taller mounting heights, where a wide beam would lose too much of its punch before it lands. Sealing against dust and water jets means it copes with unheated, dusty or wash-down surroundings that would see off a domestic fitting, and it works as well over a single bench as it does in a row down a long span.
The black casing gives a low-key look against dark steelwork and painted soffits, and it keeps its appearance in industrial rooms where a pale finish shows every mark. Keep the outer face clean and the output stays where it should be; grime on the lens dims a fitting like this faster than most people expect, so an occasional wipe with a barely damp cloth, power off and the unit cool, is all it asks. It carries a three year warranty. We stock the same body in wider beam spreads and a warmer shade of white, plus a smaller diameter version for lower ceilings, so a mixed run can be matched throughout.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
3.00KG |
| Diameter |
301mm |
| Height |
178mm |
| Materials Used |
Aluminium |
| Energy Class |
D |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
D |
| Min Energy Class |
D |
| Lamp |
1 x 200W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
5000K Natural White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
50000hrs |
| LED Power |
1W (±5%) |
| Type of LED |
2835 6V |
| Lumens per Watt (lm/W) |
150lm/W (±5%) |
| Beam Angle |
60° |
| System Flux |
30000lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
200W (±5%) |
| Dimmable |
No |
| IP Rating |
IP65 |
| Average Life |
50000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
System flux is 30,000 lumens (±5%) at 5000K natural white, from a 200W integrated LED.
What are the exact dimensions and weight?
301mm in diameter and 178mm tall, weighing 3kg.
Can it be dimmed?
No. This version is non-dimmable and should be run on a plain switched circuit.
Do I need to buy a lamp or a driver?
Neither. The LED is integrated and the driver is included, so the unit arrives complete.
How wide is the beam?
It uses a 60 degree optic, which concentrates light downwards and suits higher mounting heights.
Is it suitable for a damp or dusty building?
Yes. It is rated IP65 against dust and jets of water, so unheated stores, workshops and covered outdoor areas are all within its remit.
