Description
This is a small spotlight head with the LED built in, finished in sand black so it reads as a quiet dark point rather than a bright ring of metal. It gives a warm white light at 3000K, drawing 7W and putting out around 560 lumens in a tight, directional beam that lands where you aim it and keeps spill off the surrounding surfaces. The driver comes with it, and the light is switched rather than dimmed, so it runs at one steady level.

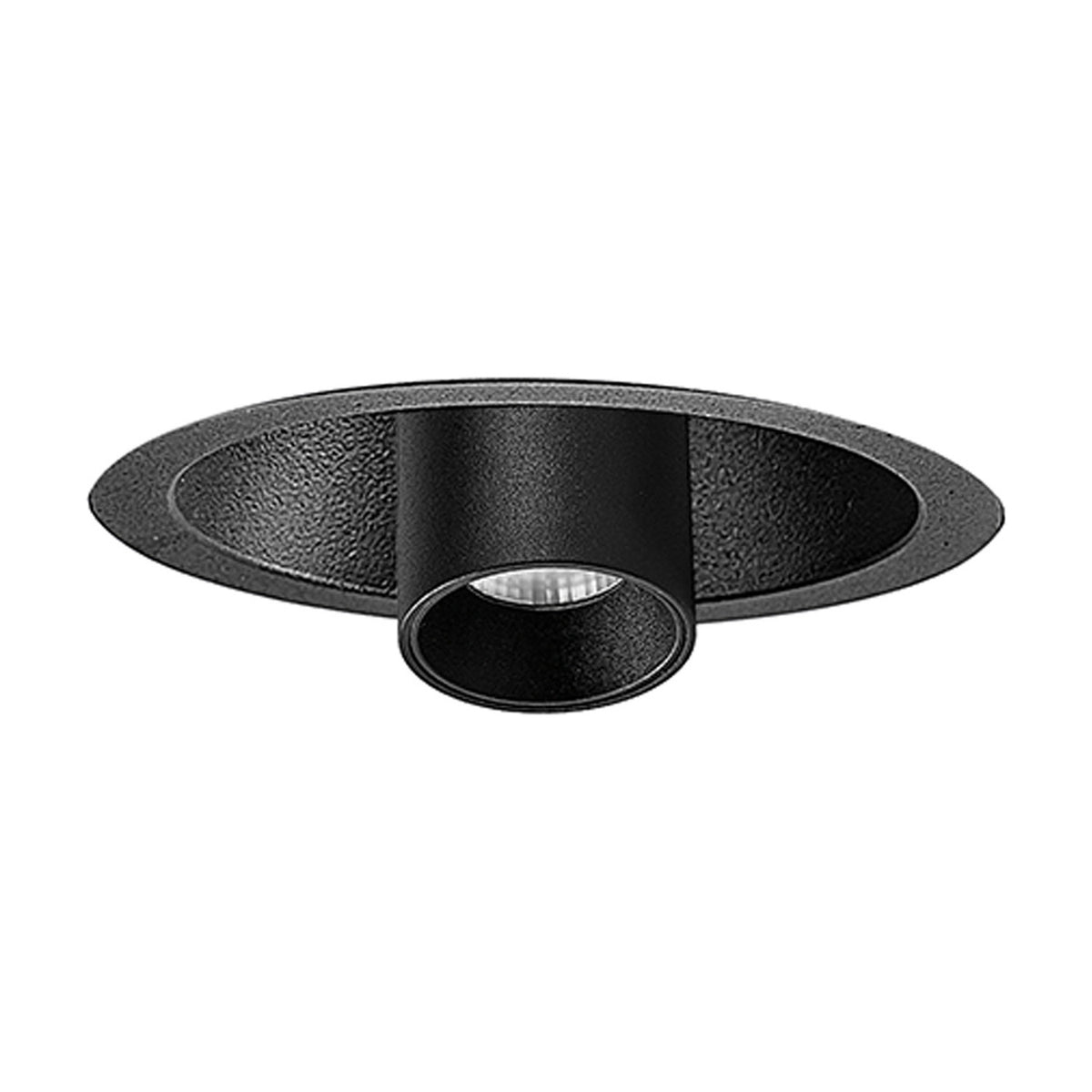

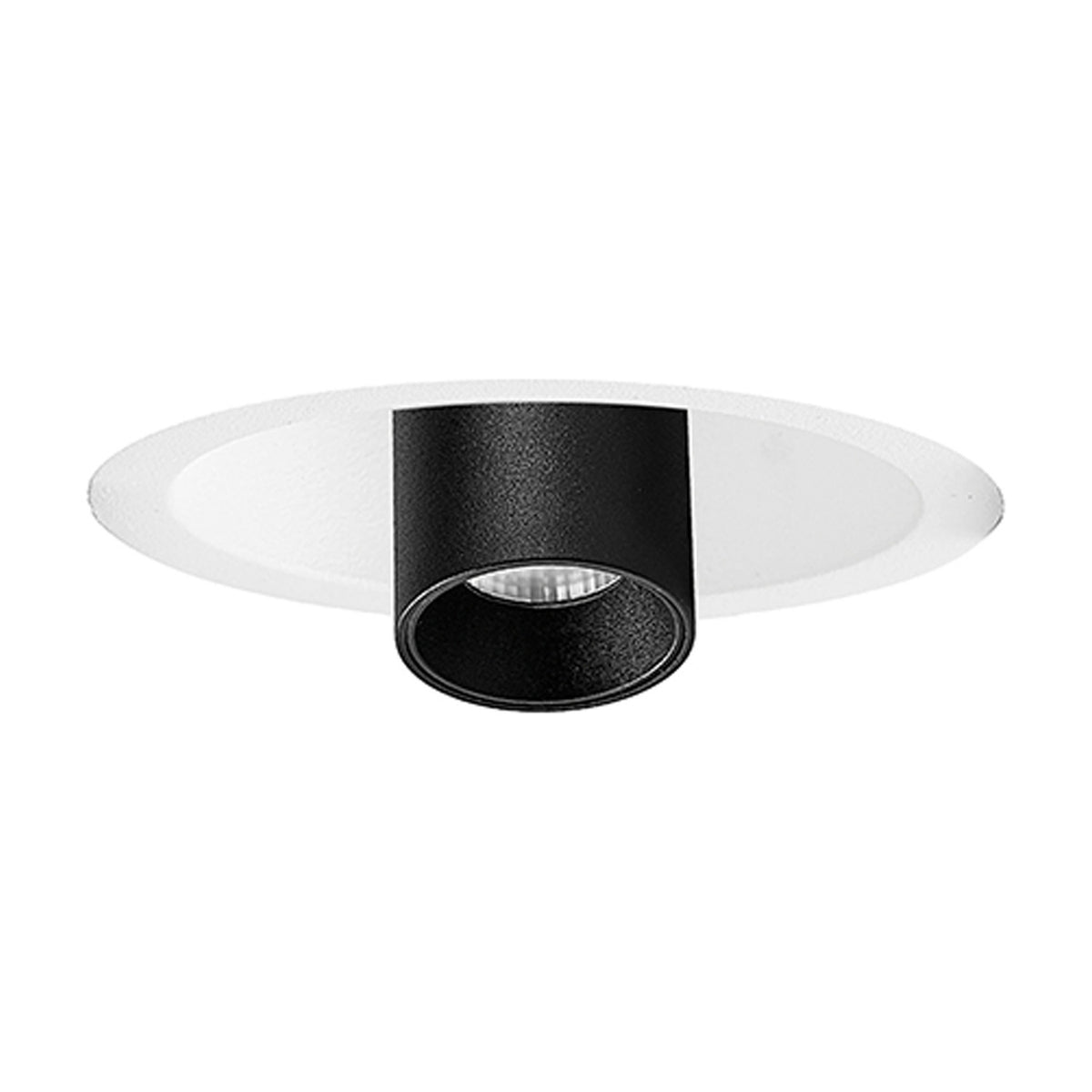

We use fittings of this kind where light needs a job to do: washing down a run of shelving, picking out a picture, marking a worktop or a reading chair without lighting the whole room. The narrow beam and warm tone suit hallways, alcoves and display niches, and the short body keeps the head close to the ceiling line in rooms where nothing should project. It suits anyone building up a lighting scheme in layers instead of relying on a single central fitting, and the range also takes in recessed bases in sand black and sand white if you want the head to sit within the ceiling.
The sand black surface has a soft, low-sheen quality that hides fingerprints well and takes dust lightly. To clean it, turn the power off, let the head lose any warmth, then run a dry microfibre cloth over the outside and around the front aperture; nothing wet, nothing abrasive, and no cleaning sprays near the lens. It is rated for dry interiors only, so keep it out of shower zones and unheated outbuildings. It carries a three year warranty. We stock the same short body in sand gold and sand white, plus a taller version of this head and a smaller one for tighter spaces, which makes it easy to mix sizes across a single ceiling.
Specification
| Colour |
Sand Black |
| Weight |
0.17KG |
| Diameter |
50mm |
| Height |
60mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM1202 |
| Qty of SMD |
1 |
| LED Power |
7W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
24º |
| System Flux |
560lm (±5%) |
| CRI |
>90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Constant Voltage Output |
48V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
200-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How big is it?
The head measures 50mm in diameter and stands 60mm tall, so it is a genuinely compact fitting.
Can I dim it?
No. It is non-dimmable and should be run on a plain switched circuit, not a dimmer.
How wide is the beam?
It is a 24 degree beam, which is narrow enough to accent a picture or an object rather than light a whole room.
What is the light quality like?
Warm white at 3000K with a CRI above 90, so timber, fabric and skin tones look natural under it.
Do I need to buy a lamp or a driver?
Neither. The LED is integrated and the driver is supplied with the fitting.
How long should the LED last?
It is rated at 30,000 hours average life, and it is IP20, so dry indoor rooms only.
