Description
A shallow square panel with a matt white frame, this one sits recessed so only the flat face and a fine border show at ceiling level. The LED is integrated and the driver is supplied with it, putting out 2090 lumens of warm white at 3000K from 24W. The face is diffused rather than open, so you look at an evenly lit panel instead of a bright point of light. Light is switched rather than dimmed, so it comes on at full output.

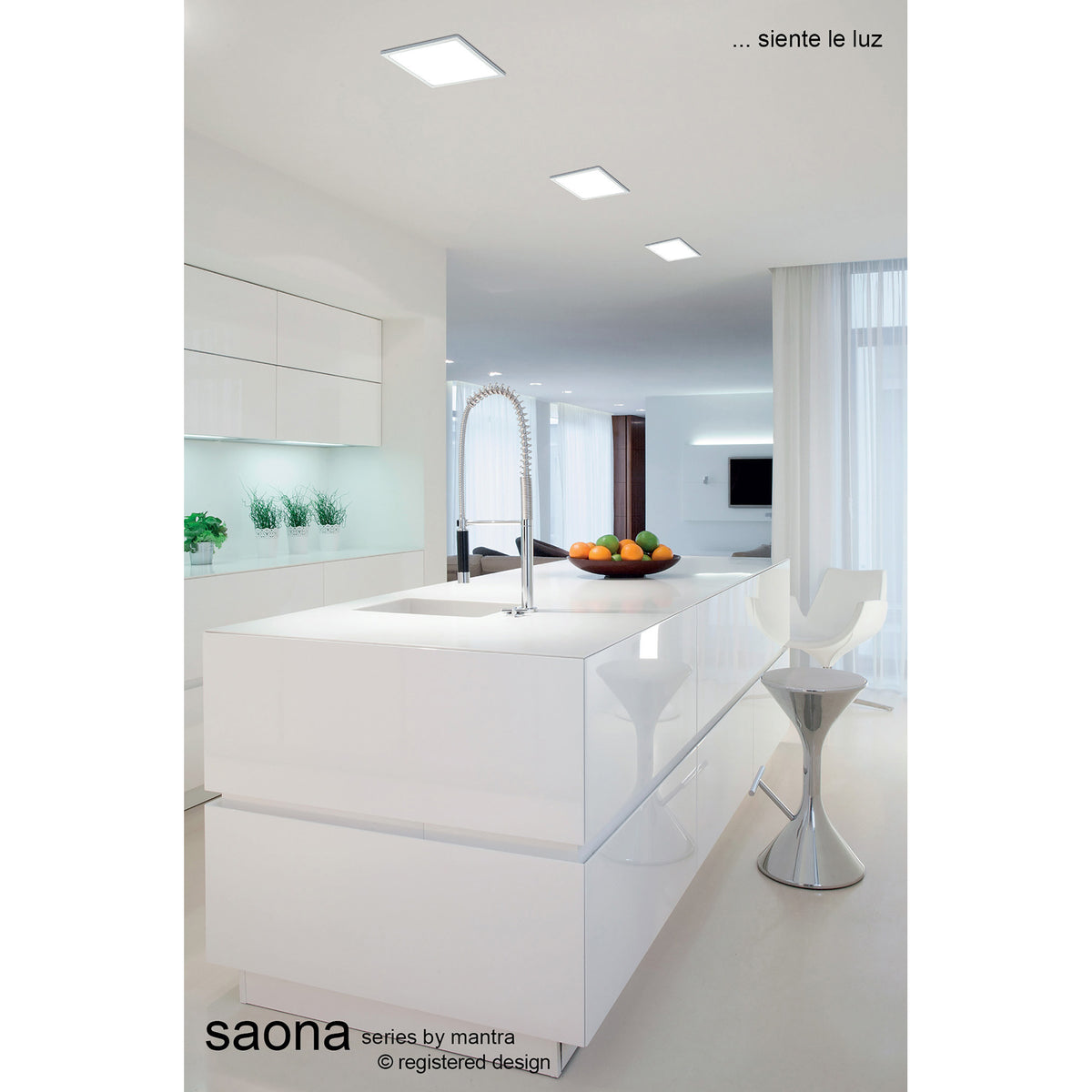

We fit these where a pendant would hang too low and a spotlight bar would look busy: hallways, landings, kitchens, utility rooms, home offices and stair returns with little headroom to spare. The spread is broad, so the light washes across a space instead of dropping in tight circles, and the warm tone keeps kitchens and living rooms easy on the eye. Ganged in a row it lights a corridor evenly; used on its own it covers a small room. It belongs in rooms that stay dry, away from shower zones and anywhere open to the weather.

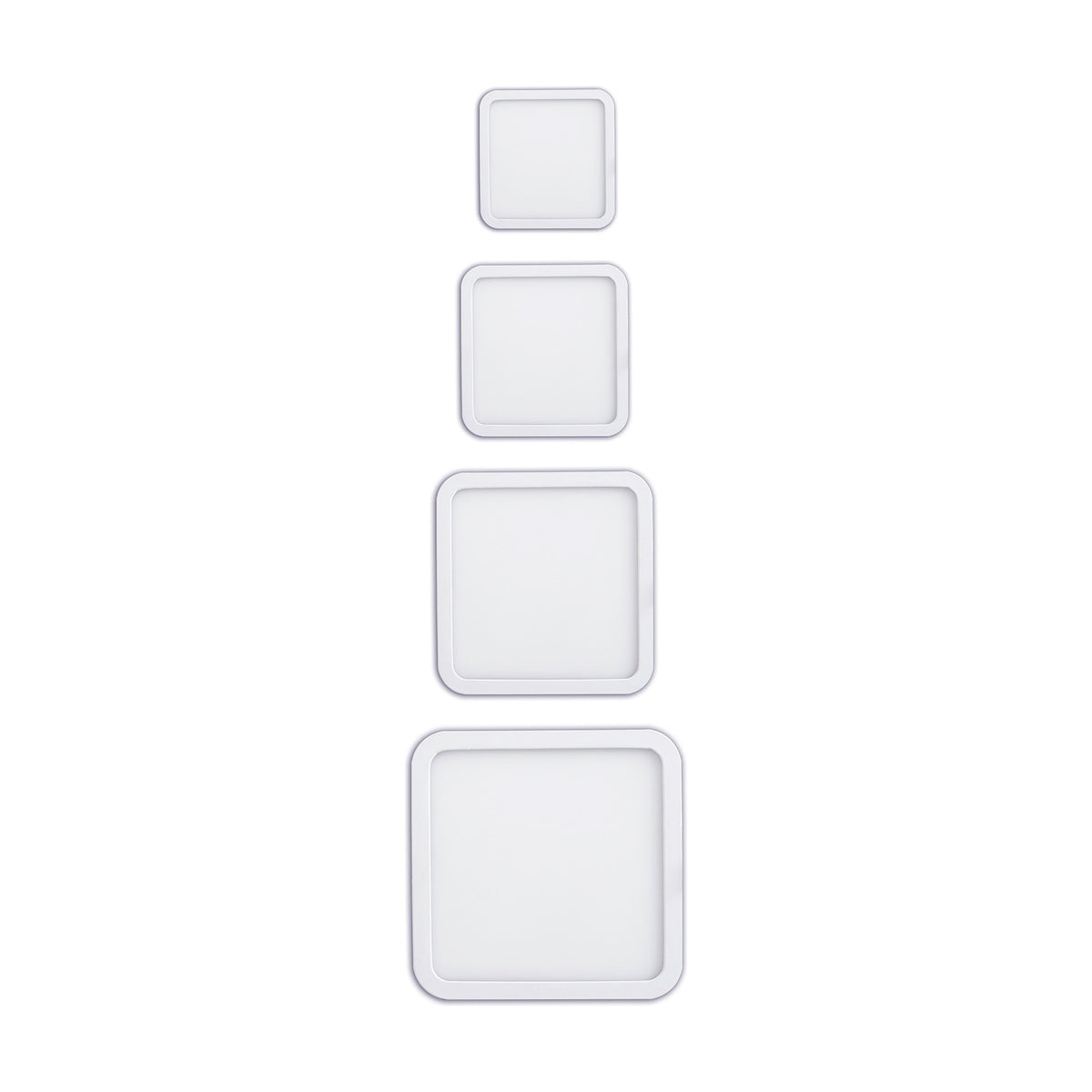

The finish is matt white through the frame, flat enough that the fitting reads as part of the ceiling when it is off, and white on white keeps it discreet against painted plaster. Cleaning asks very little: kill the power, let it cool, then wipe the face with a barely damp cloth and dry it off. Skip solvents and scouring pads, which will dull the white. It carries a three year warranty. The wider Saona range continues with surface flush fittings in both round and square shapes, across several sizes, for ceilings where a recess is not an option.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.80KG |
| Length |
220mm |
| Width |
220mm |
| Height |
25mm |
| Cut Out |
210mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 24W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
120 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
26-28lm |
| Lumens per Watt (lm/W) |
87lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
2090lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
54-84V |
| Load Range |
24W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
24W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
It is made for a 210mm cut-out, with the outer trim overlapping the edge of the aperture and standing only 25mm deep.
How much light does it give?
Around 2090 lumens at 3000K warm white, which is a comfortable general light for a small to medium room.
Can I put it on a dimmer?
No. It is a non-dimmable fitting and should be run from an ordinary switched circuit.
Do I need a separate driver?
No, the driver is supplied with the panel and the LED is built in, so there is no lamp to buy or replace.
Is it suitable for a bathroom?
It is rated IP20, so keep it to dry rooms rather than bathroom zones or outdoor areas.
How long should the LED last?
It is rated at 30000 hours of average life, with colour rendering above 80.
