Description

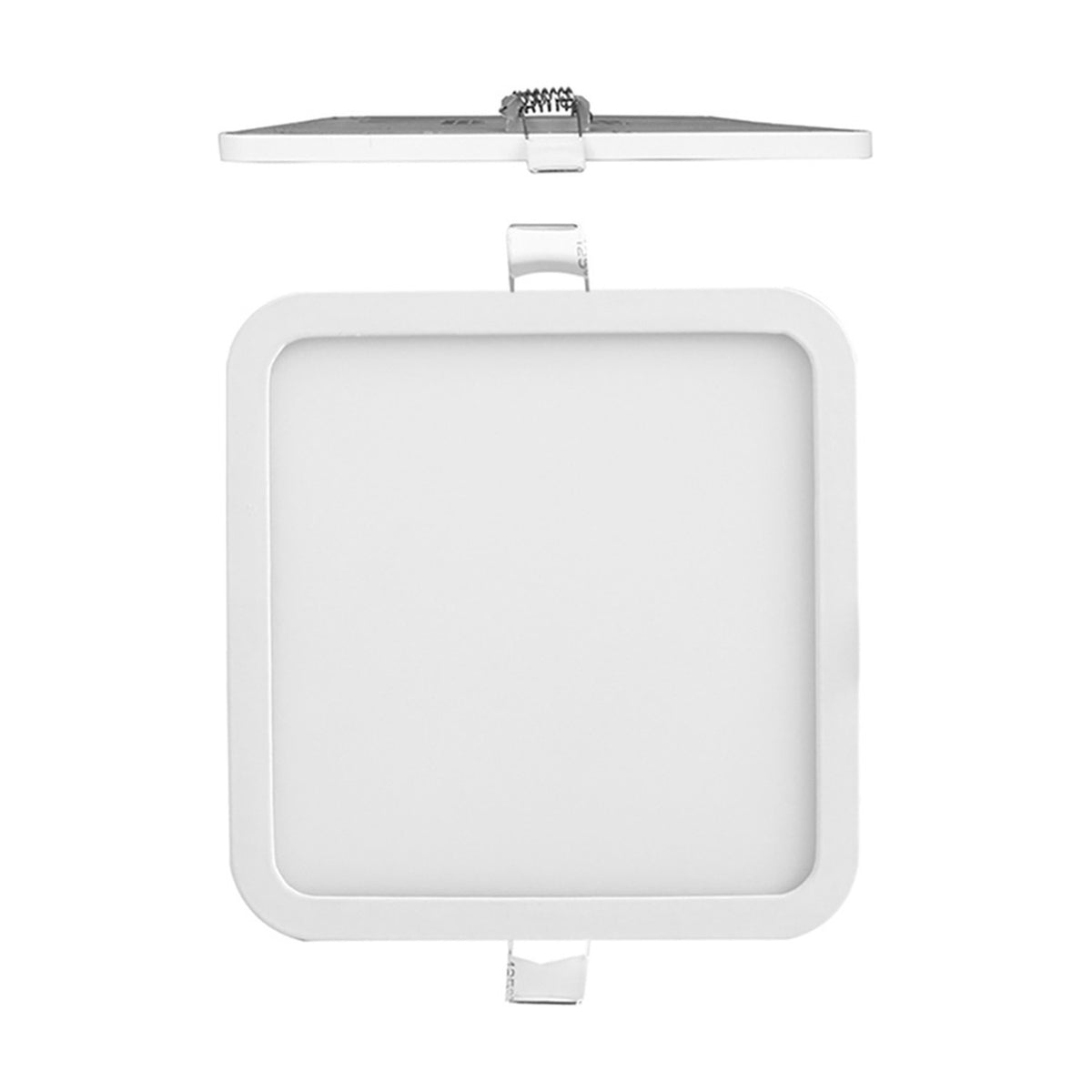

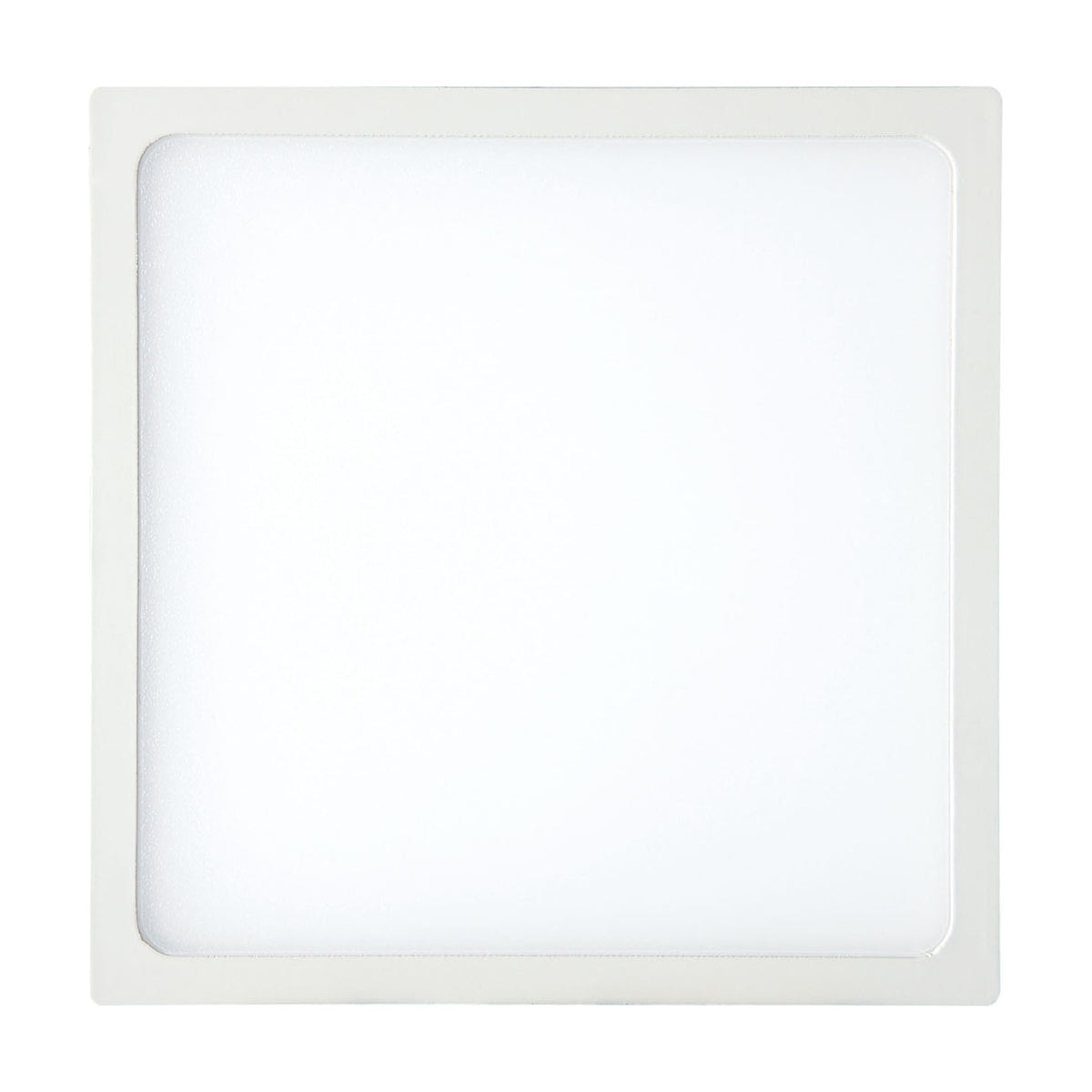

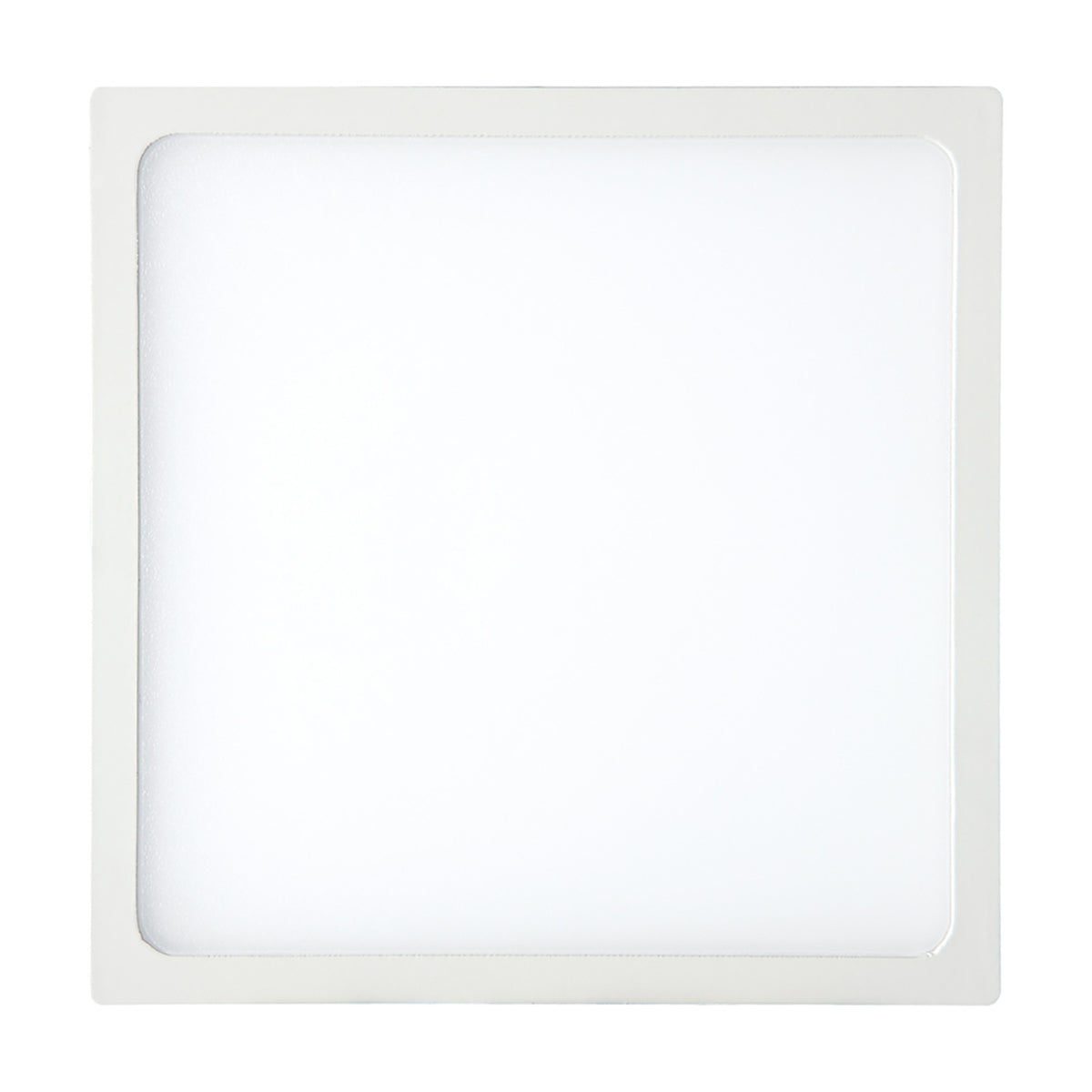

A shallow square light with a matt white bezel, made to sit down into the ceiling so only the face shows. The LED is built in and runs at 4000K, a clean neutral white that keeps whites looking white and stops warm rooms turning yellow under artificial light. The spread is wide rather than tight, so a line of them gives even cover across a ceiling instead of scalloped pools. Its driver is supplied with it. It is not dimmable, so we would wire it to a plain switch.
It takes an 80mm cut-out and draws 6W, so you can plan plenty of light points across a ceiling without a heavy total load. We reach for these in hallways, landings, utility rooms and along kitchen perimeters, and they suit a home office where a cooler tone keeps paperwork and screens comfortable to read. The square face lines up tidily with tiles, cupboard runs and square ceiling details, which is worth having where a round downlight would sit at odds with everything else. It belongs in dry rooms indoors; a shower area or a covered porch wants something sealed against damp.

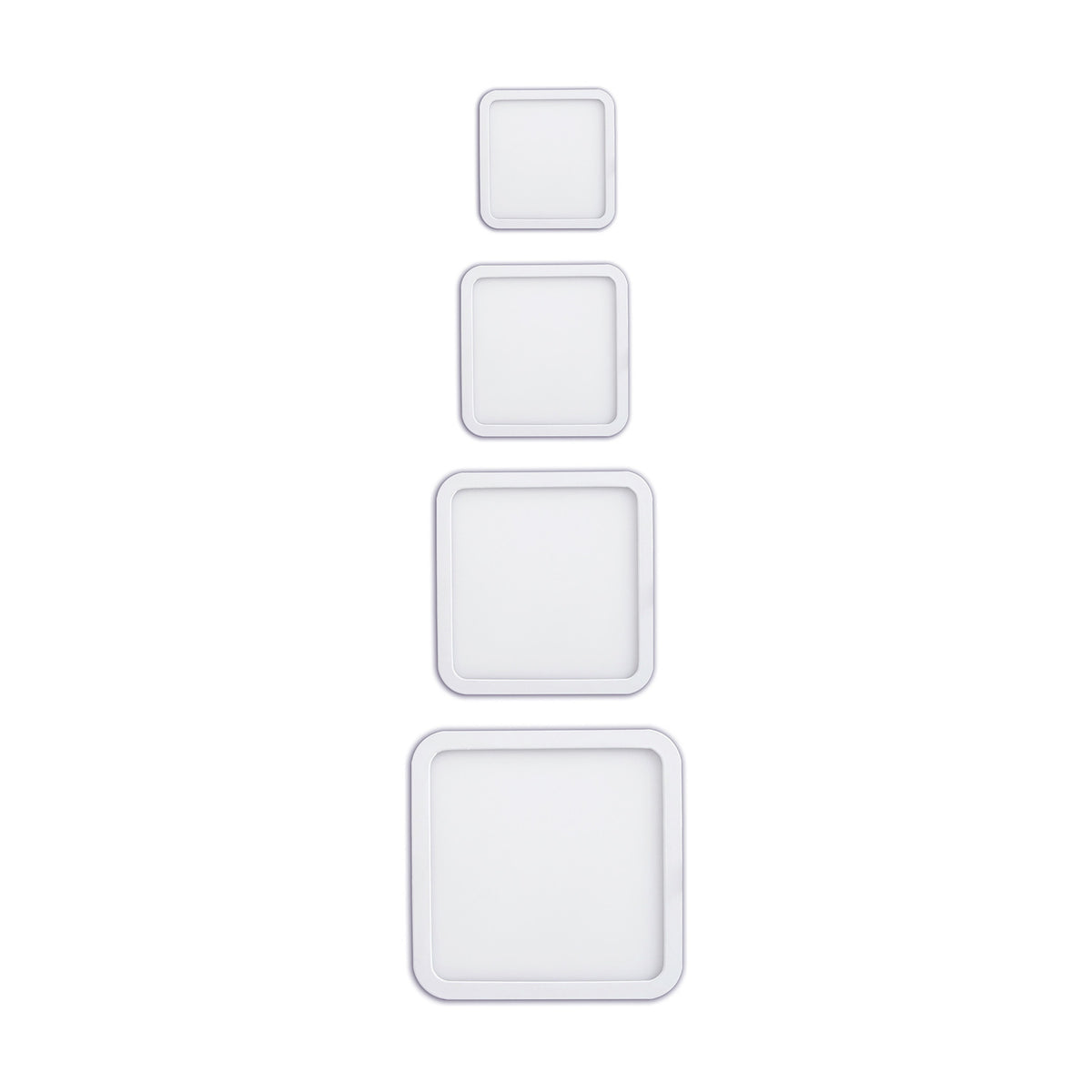

Finished in matt white throughout, it reads quietly against a painted ceiling rather than pulling the eye upward. Keeping it clean is a matter of a dry microfibre cloth across the face and bezel with the power off first, leaving sprays and damp cloths well alone. It carries a three year warranty. The wider Saona range runs to surface flush fittings in round and square shapes, in the same matt white, for rooms where a surface fitting suits better than a recessed one, so a landing and a hallway can be lit to match. The LED is integral, so there is no lamp to source.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.19KG |
| Length |
90mm |
| Width |
90mm |
| Height |
25mm |
| Cut Out |
80mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 6W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
30 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
24-26lm |
| Lumens per Watt (lm/W) |
90lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
540lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
240mA |
| Min/Max. Voltage Output |
16-25V |
| Load Range |
6W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
6W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
The cut-out is 80mm. The visible face measures 90mm by 90mm square, so the bezel covers a small margin around the opening.
How bright is it?
It gives 540 lumens from 6W, with a neutral 4000K colour. That suits general ambient light in halls, landings and utility rooms, and several in a run will light a kitchen perimeter comfortably.
Can it be dimmed?
No. It is a non-dimmable fitting, so it should be run from a standard on/off switch rather than a dimmer.
Do I need a separate driver?
No, the driver is supplied with the fitting.
How deep is it?
The body stands 25mm high, which is what makes it an ultra slim downlight rather than a conventional deep can type.
How should I clean it?
Switch the power off and let it cool, then wipe the face and bezel with a dry microfibre cloth. Avoid solvents and sprays, which can mark a matt white finish.
