Description
A square of even, low-profile light for ceilings where a hanging fitting would be in the way. The LED is built in and draws 24W, putting out 2200 lumens at 4000K, a crisp neutral white that keeps whites clean and stops pale tiles and painted plaster looking yellow. Spread is wide rather than focused, so the light lands as general brightness across a room instead of pooling under the fitting. The driver comes with it, and there is no dimming to arrange: a standard switch does the job.

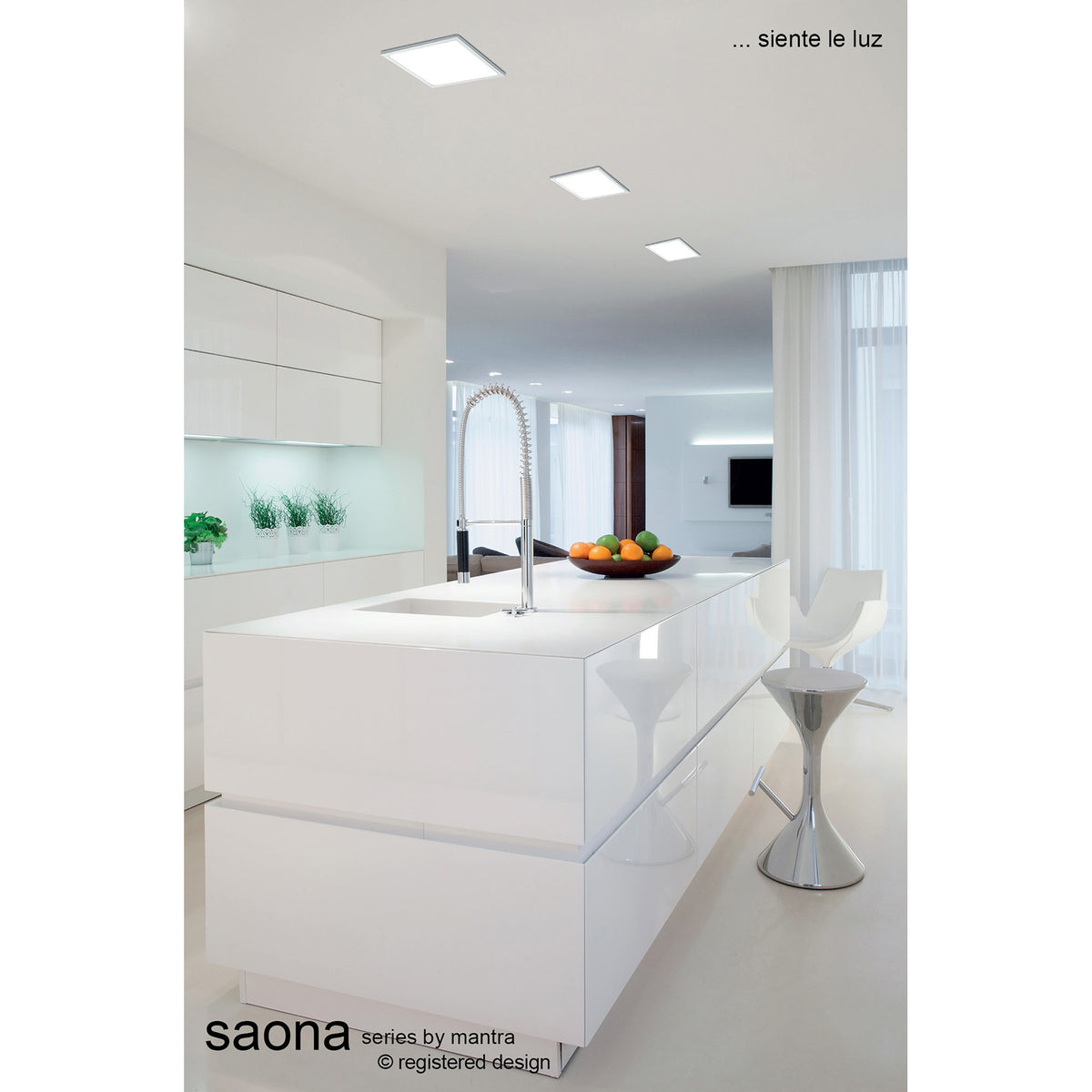

We reach for this where a pendant would hang too low: a hallway with a low ceiling, a landing, a small home office or a utility room. One is enough for a modest room on its own, and a pair spaced along a corridor gives steady light from end to end with nothing to duck around. The neutral tone works well over worktops, desks and laundry where you want to see colour properly. Keep it to dry rooms indoors, though: it runs from an ordinary household supply and is not one for a shower zone or an exposed porch.

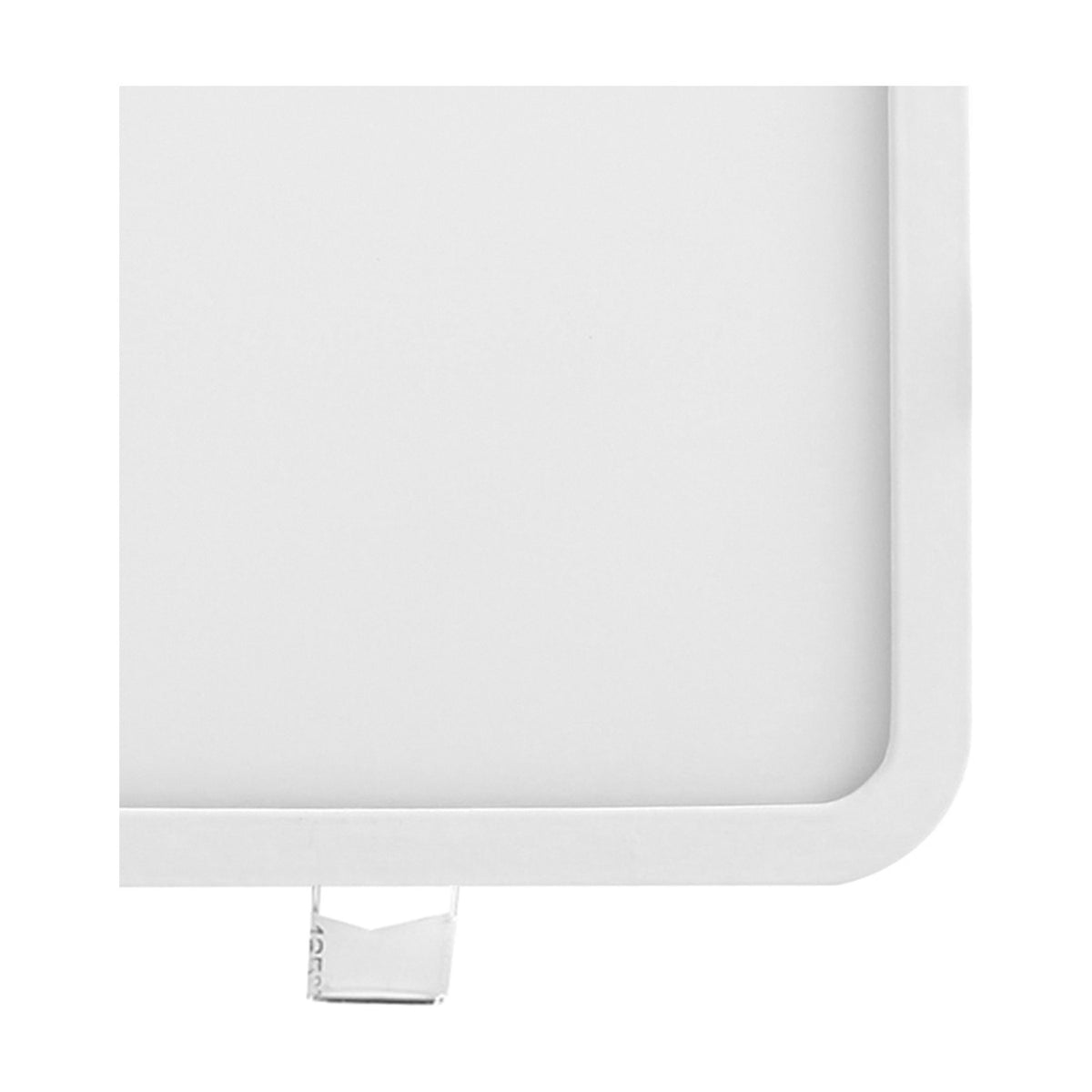

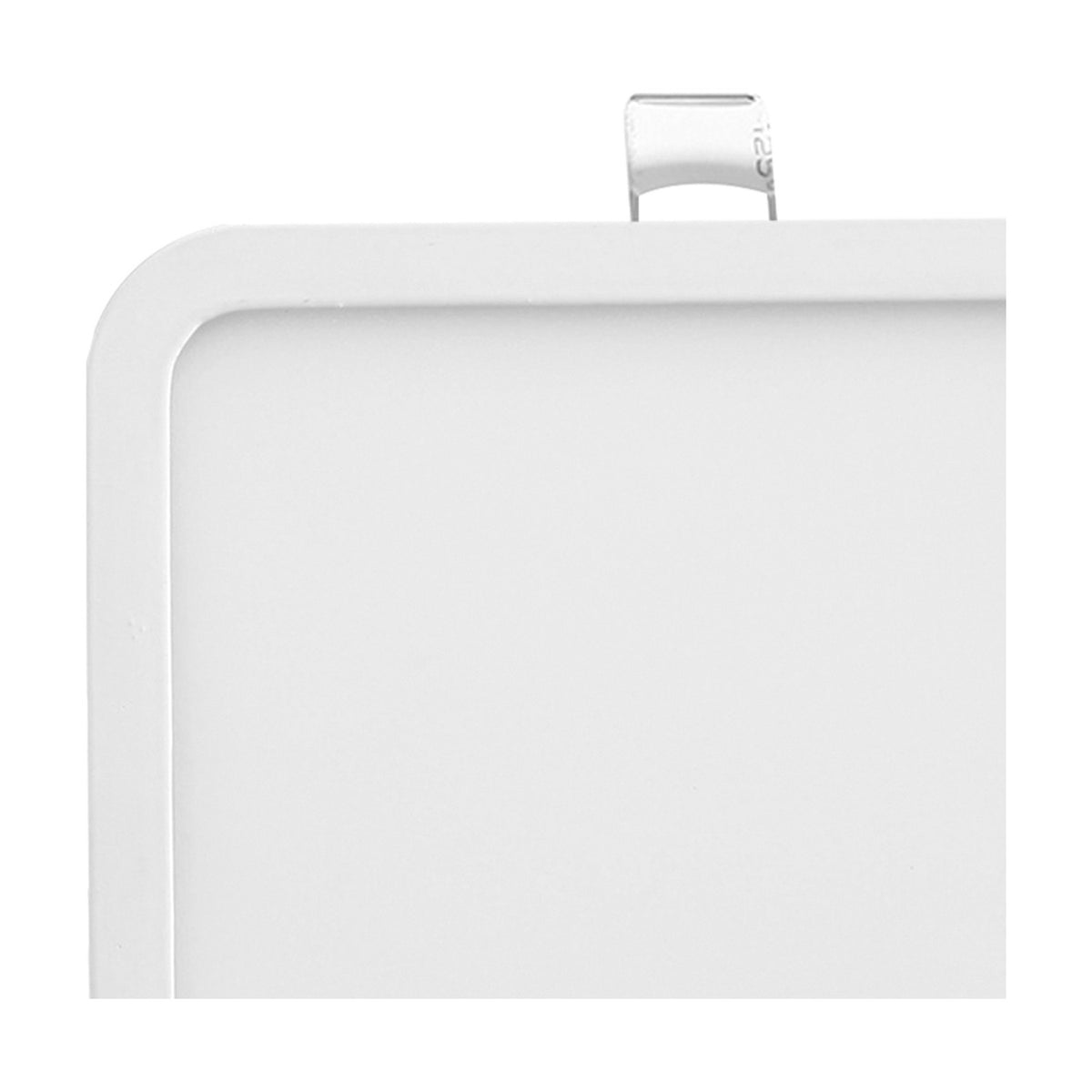

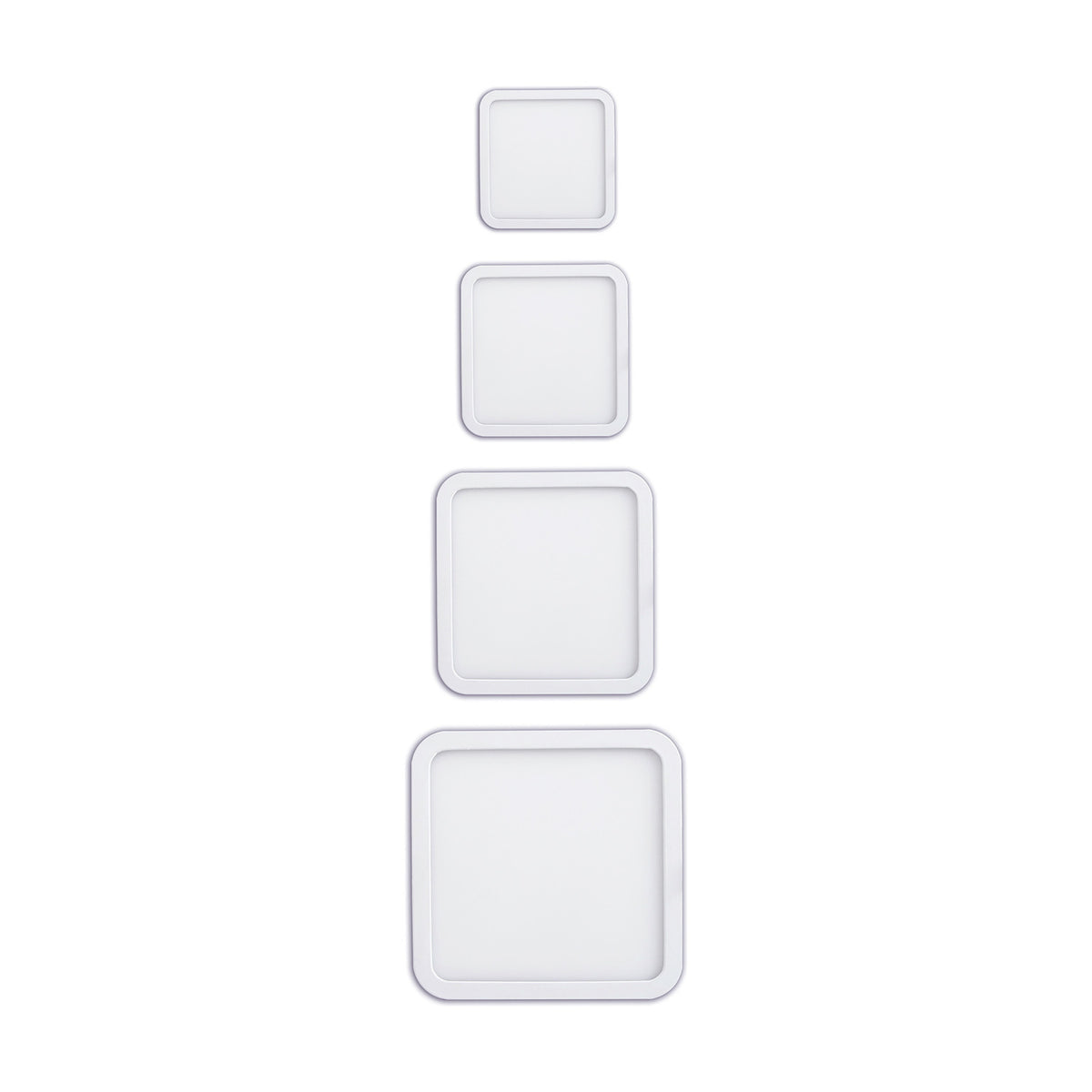

The body is slim and the visible frame is matt white, so it settles into a white ceiling and reads as a lit square rather than hardware. With the power off and the fitting cool, a dry microfibre cloth across the face keeps it bright; if cooking film has settled, wipe with a barely damp cloth and dry it straight after. The LED is integral, so there is nothing to unscrew or change. It carries a three year warranty. The range carries on in surface flush fittings, round and square, in a few sizes and in a warmer white if that suits the room better.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.80KG |
| Length |
220mm |
| Width |
220mm |
| Height |
25mm |
| Cut Out |
210mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 24W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
120 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
26-28lm |
| Lumens per Watt (lm/W) |
92lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
2200lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
54-84V |
| Load Range |
24W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
24W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
Can this downlight be dimmed?
No, it is non-dimmable. Run it from an ordinary on/off wall switch and leave dimmer modules out of the circuit.
What size is it, and what size hole does it need?

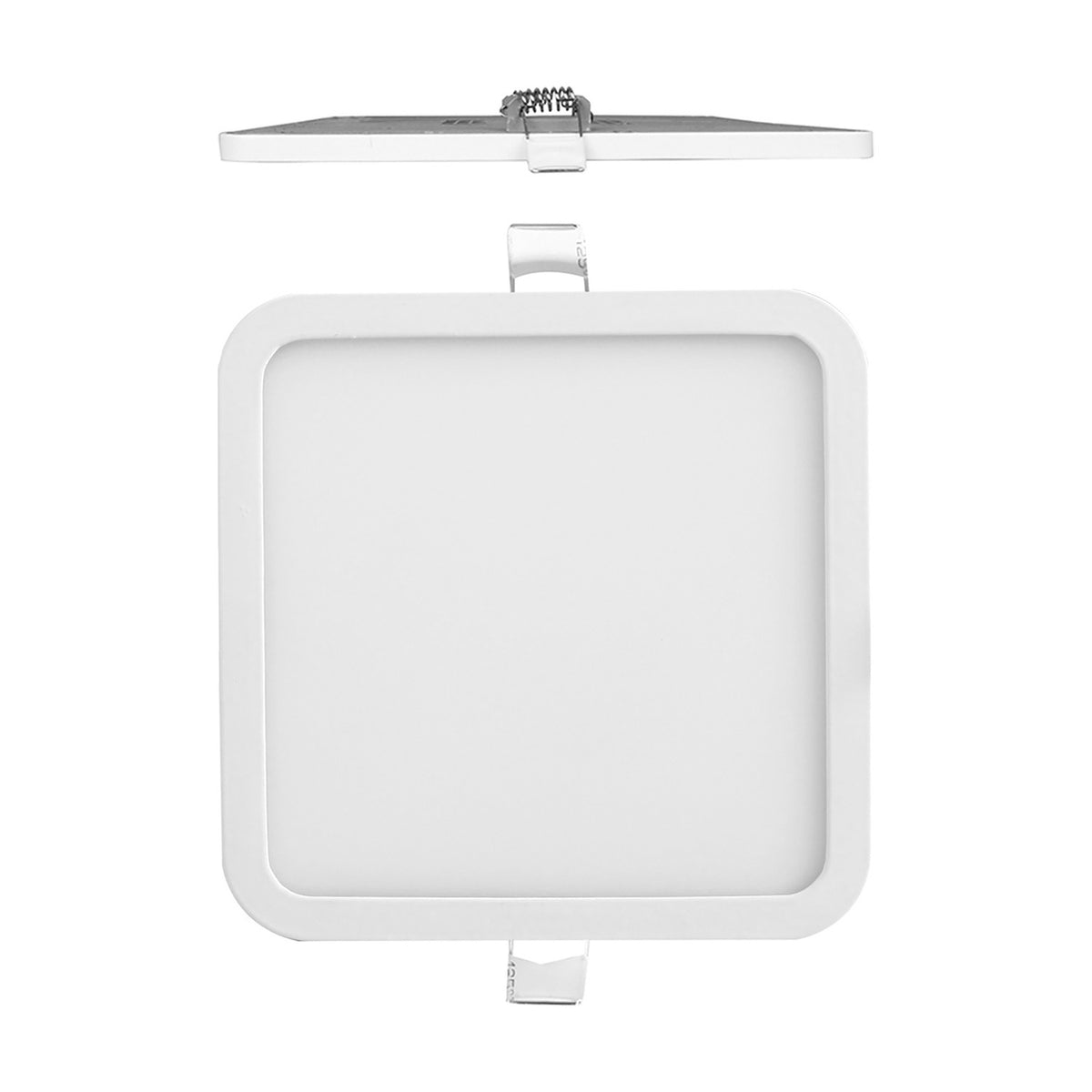

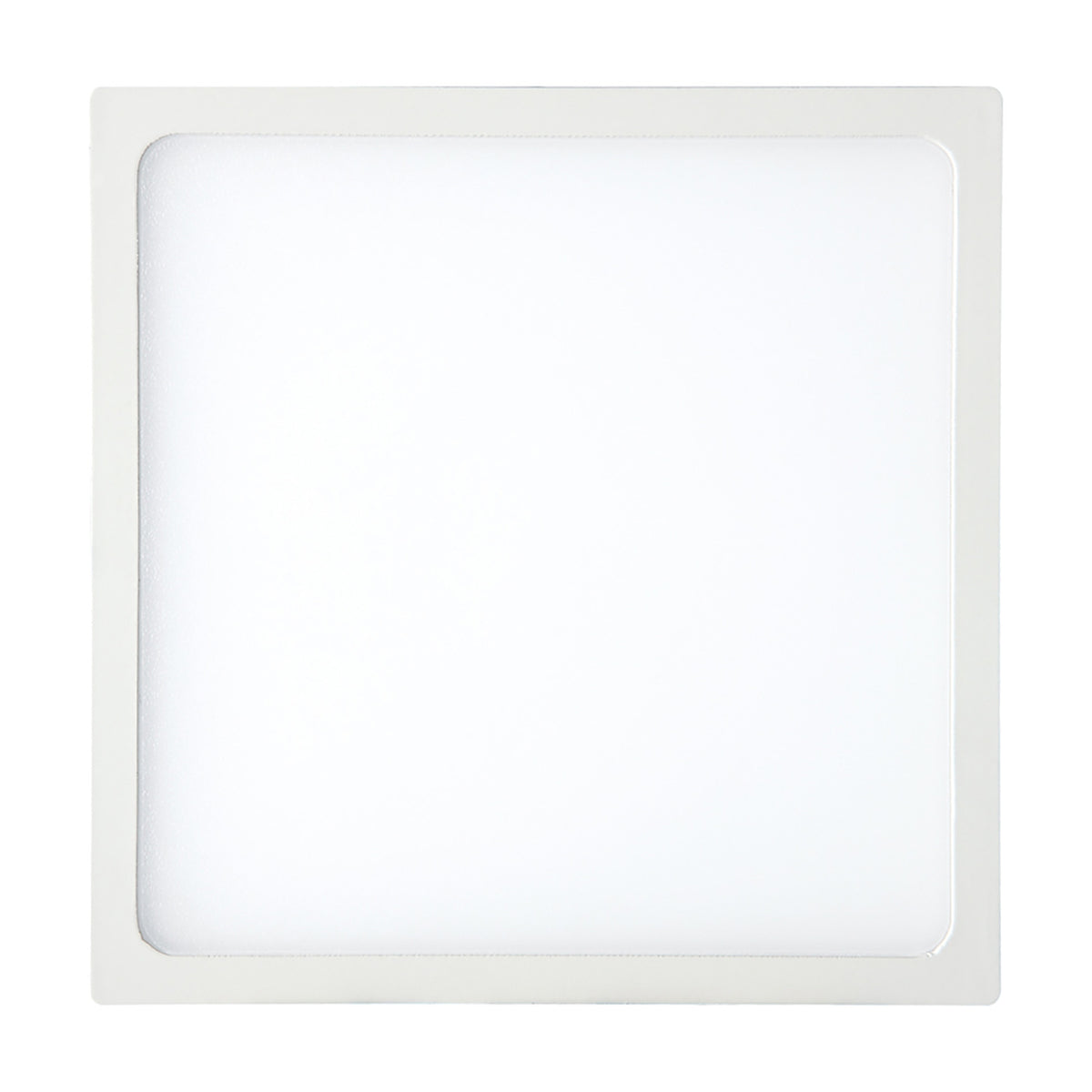

The visible face is 220mm square and the body is just 25mm deep, with a 210mm cut-out.
What sort of white light does it give?
4000K neutral white at 2200 lumens, with a colour rendering figure above 80, so colours read accurately without the light feeling warm or yellow.
Do I need to buy a driver separately?
No, the driver is supplied with the fitting, and it is a Class 2 double insulated product.
Can the LED be changed when it fails?
The LED is integral rather than a replaceable lamp. Average life is rated at 30,000 hours, after which the fitting itself is swapped.
Is it suitable for a bathroom or an outside soffit?
It is rated IP20, so it belongs in dry indoor rooms only.
