Description

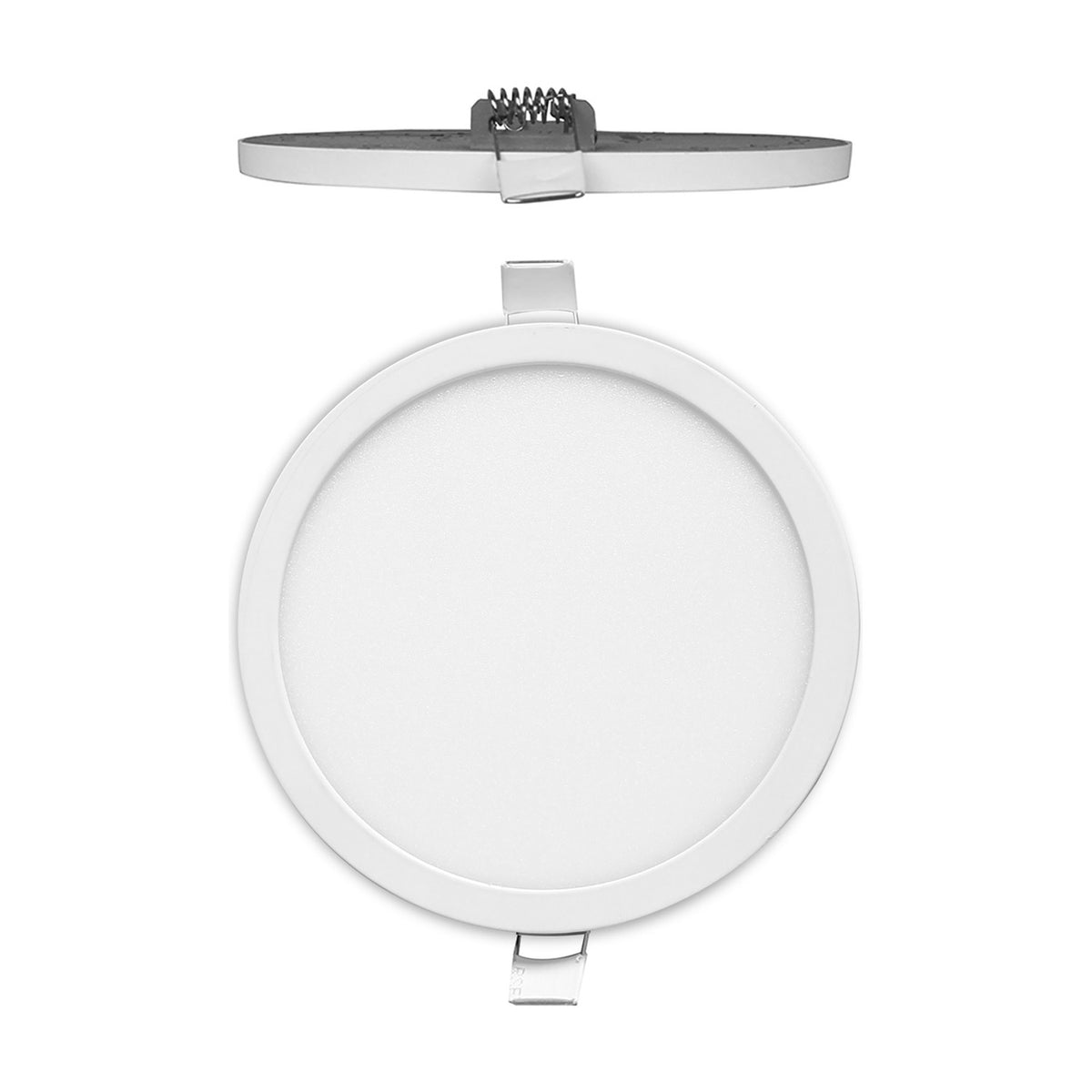

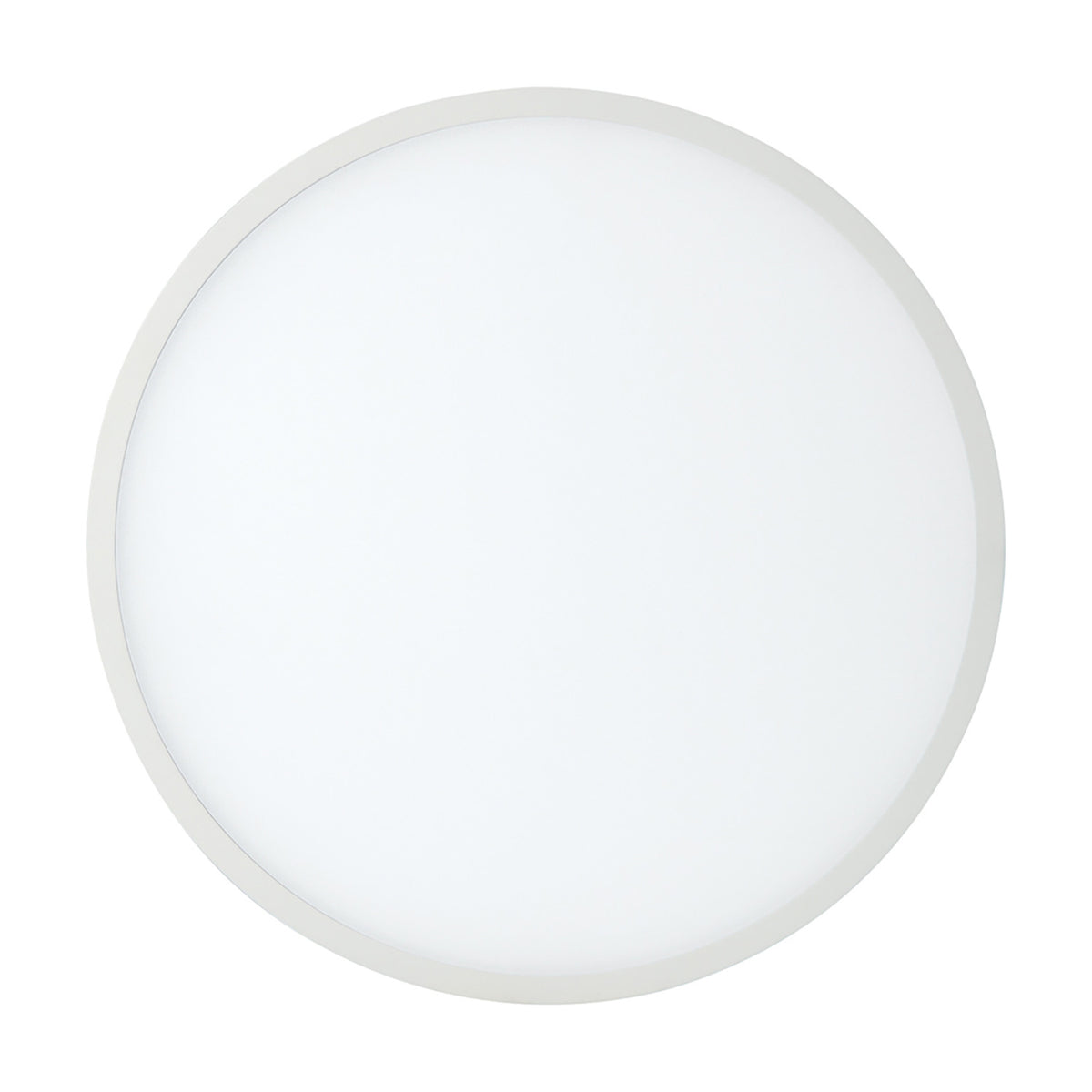

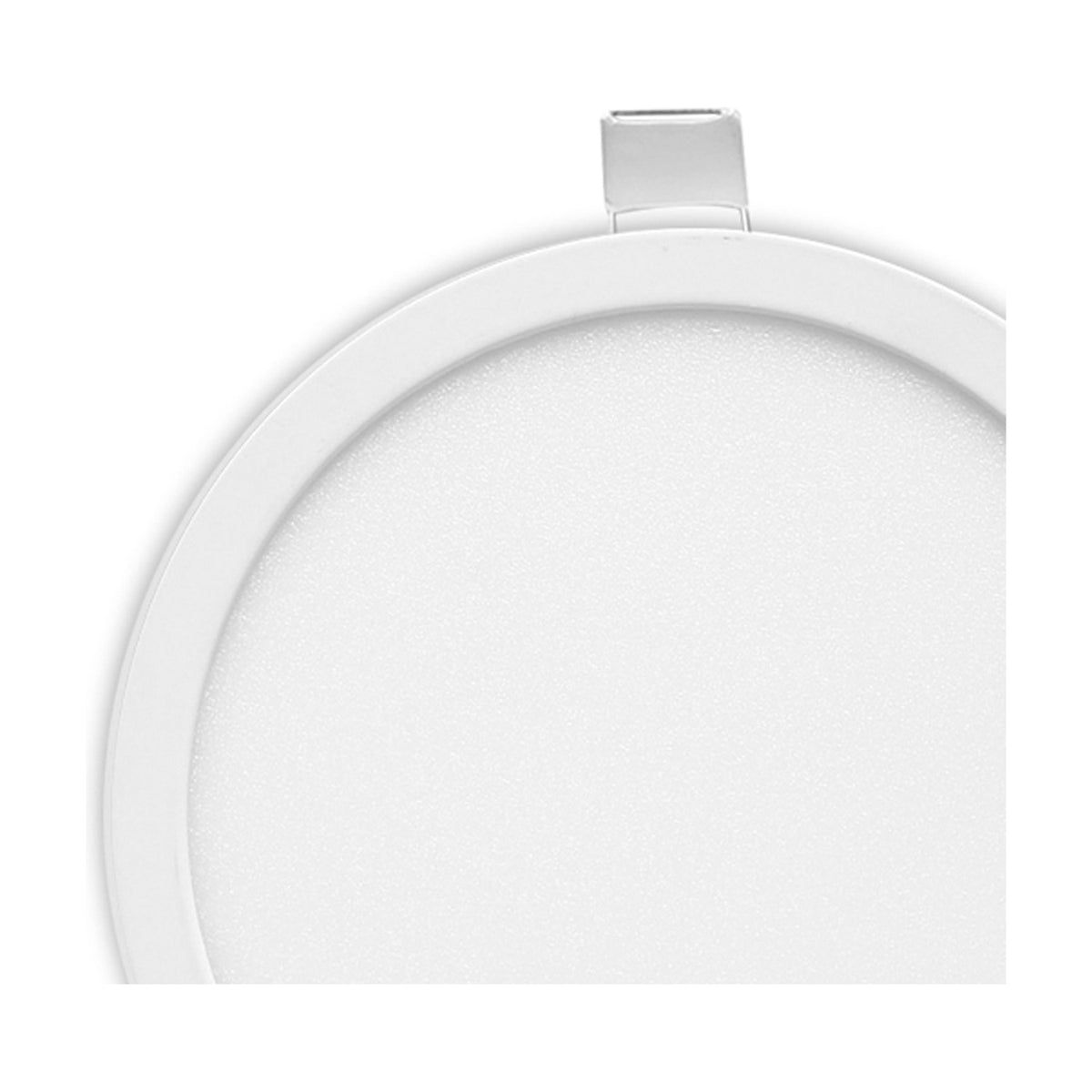

A slim round face of frosted acrylic sits in a matt white surround, giving a soft, wide spread of light with no glare pit and no visible lamp. The LED is built in and the driver comes with it, so there is nothing to buy separately and nothing to change later. At 24W it produces 2200 lumens of cool white light, which is a bright, clean quality rather than a warm one, and it needs a 210mm cut-out.

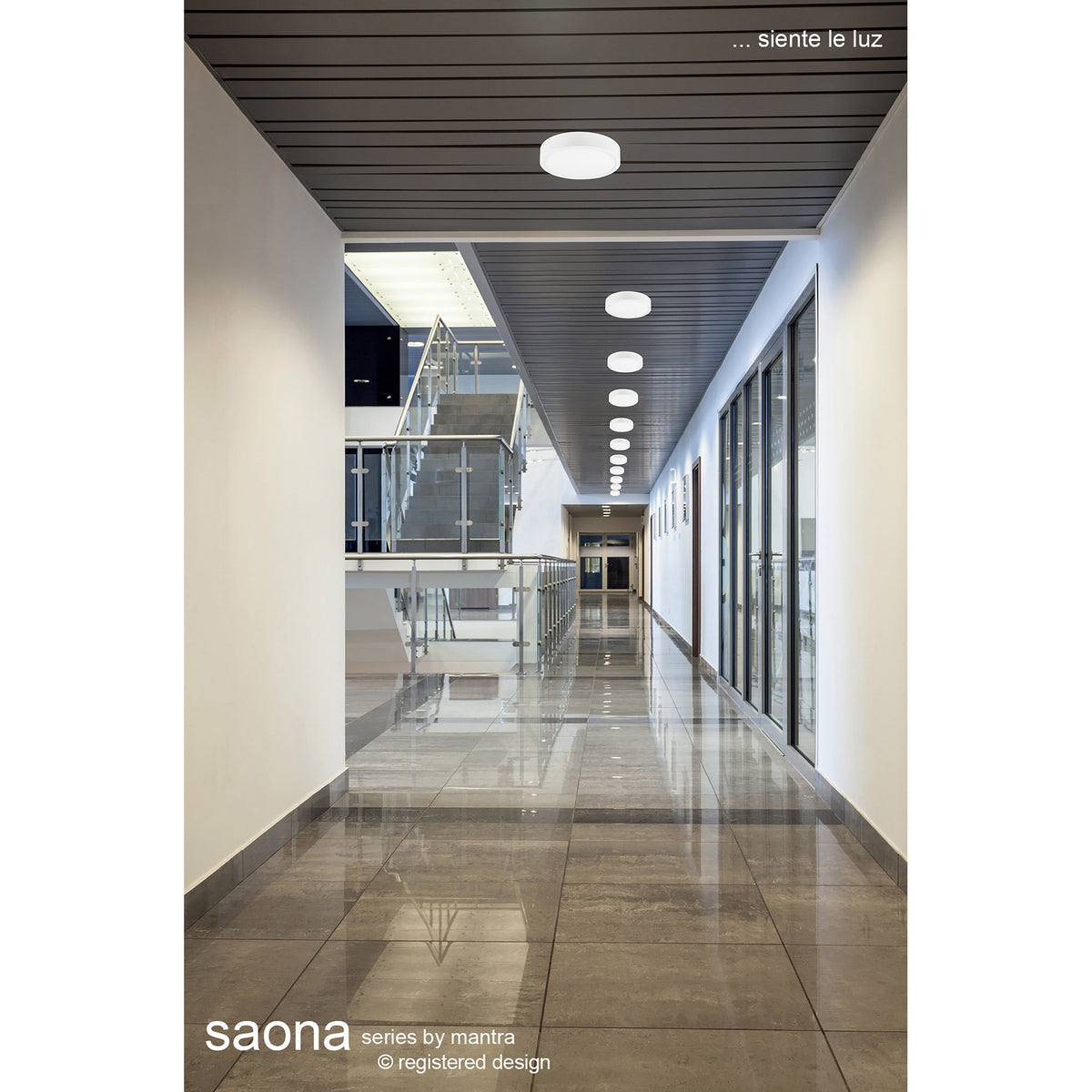

We would choose this where a room wants broad, even brightness from something that barely reads as a light at all: kitchen ceilings, hallways and landings, home offices, utility rooms and box rooms with low headroom. The wide throw means one unit covers more floor than a cluster of narrow spots, and the cool tone keeps worktops and paperwork looking sharp. It is not dimmable, so plan it onto a plain switched circuit rather than a dimmer plate. Keep it to dry rooms indoors; it is not made for a shower zone or anywhere exposed to steam and splashing.

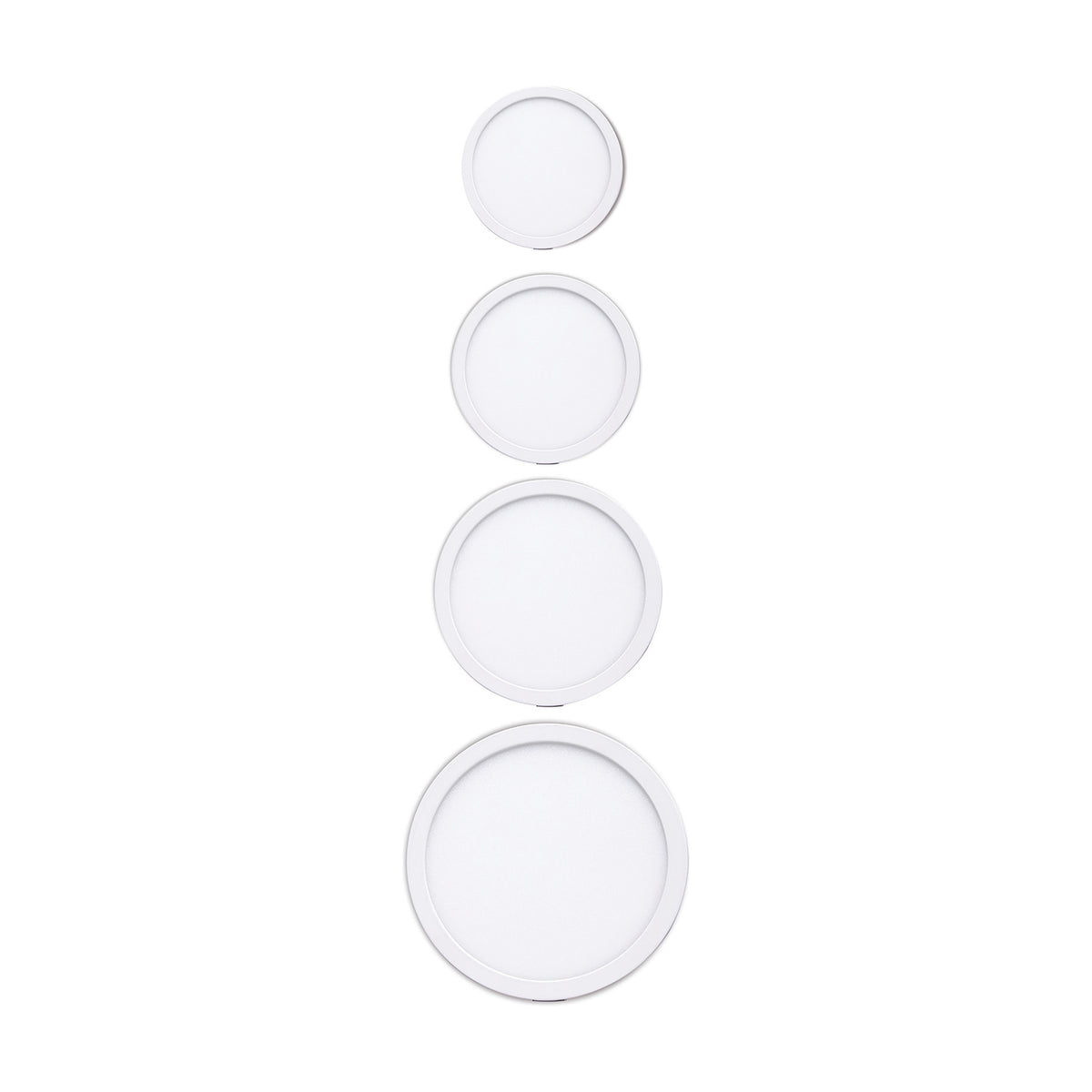

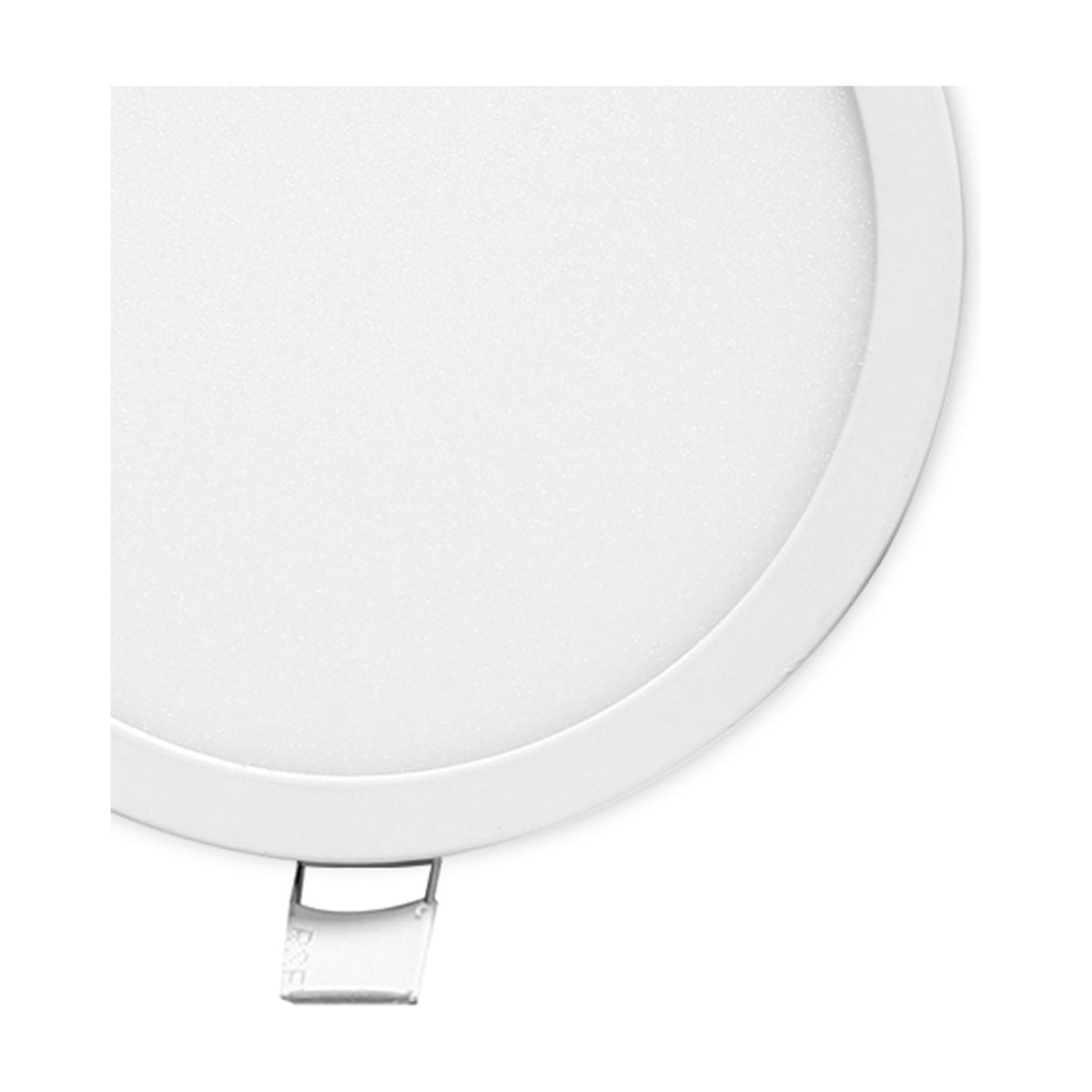

The body is metal-backed with an acrylic diffuser, and the white finish is a true flat matt that disappears against a painted ceiling. Acrylic marks if you are rough with it, so leave the fitting switched off and cool, then wipe the face with a soft cloth, barely damp if there is kitchen grease to lift, and keep solvents and scouring pads well away. It carries a three year warranty. We stock the wider Saona range as surface flush fittings, round and square, in small, medium and large sizes with warm white or cool white light, which is worth knowing if you want the same clean disc look in a room where a recessed fitting is not on the cards. As the LED is integral, there is no lamp to fit.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.65KG |
| Diameter |
220mm |
| Height |
25mm |
| Cut Out |
210mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 24W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
120 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
26-28lm |
| Lumens per Watt (lm/W) |
92lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
2200lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
54-84V |
| Load Range |
24W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
24W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
A 210mm cut-out. The visible outer diameter is 220mm, so the trim covers the edge of the opening by a small margin all round.
How deep is the fitting?
Just 25mm in height, which is why it suits ceilings with little space above them.
Can I put it on a dimmer switch?
No. It is a non-dimmable fitting and should be wired to a standard on/off switch.
What colour of light does it give?
4000K cool white, a crisp neutral tone, at 2200 lumens from 24W.
Is it suitable for a bathroom?
It is rated IP20, so it is for dry rooms only. Keep it out of shower and bath zones.
Do I need to buy a driver or a lamp?
Neither. The driver is included and the LED is integrated, with an average life of 30,000 hours.
