Description

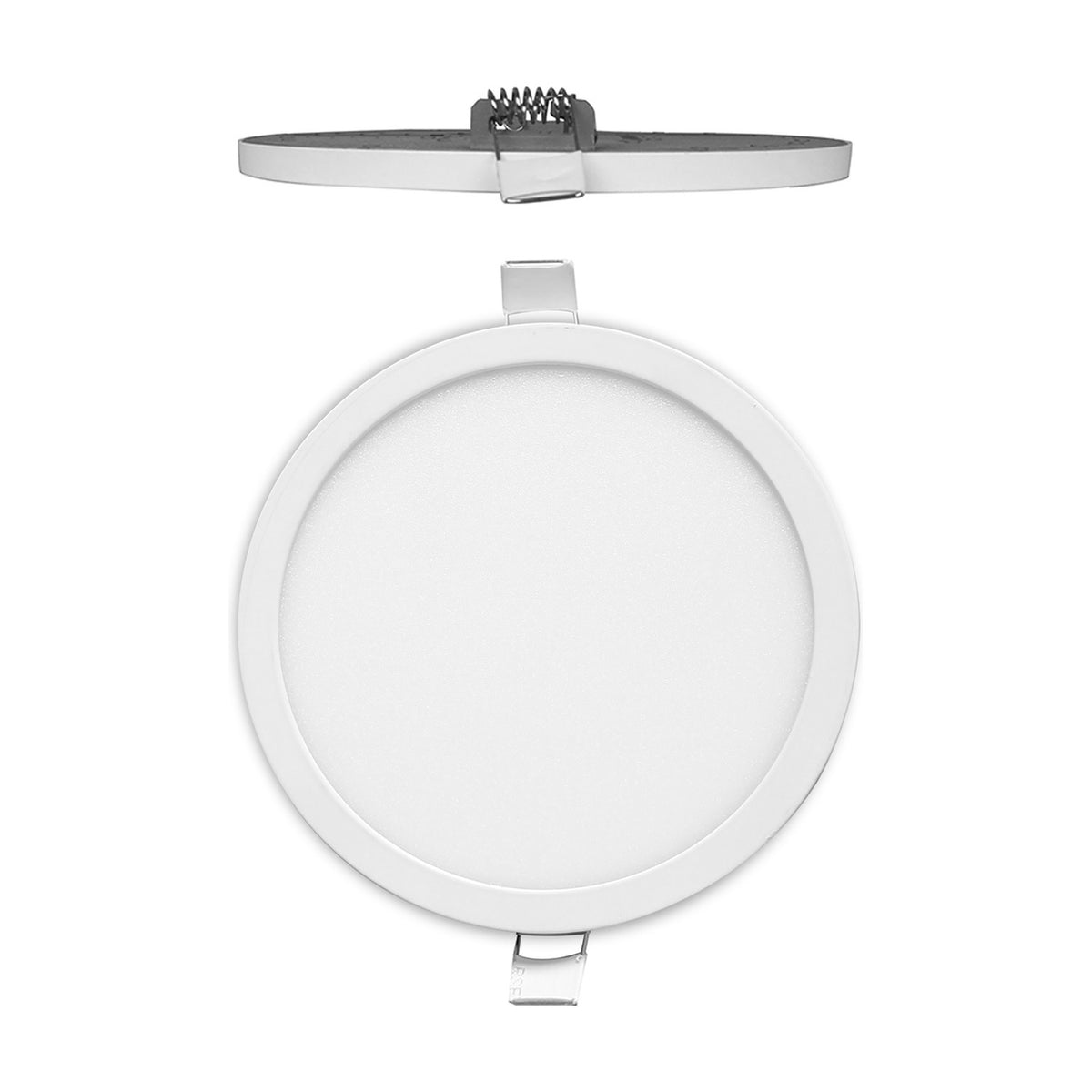

A wide round face set into the ceiling, with a body slim enough to all but disappear behind it. The integrated LED runs at 24W and gives a warm white light across a broad spread, so a single unit covers more floor than a cluster of small spots would. The face is matt white, the rim plain and unbroken, and the driver comes with it. Output is fixed at one level, with no dimming. It is one of the shallower recessed fittings we stock.

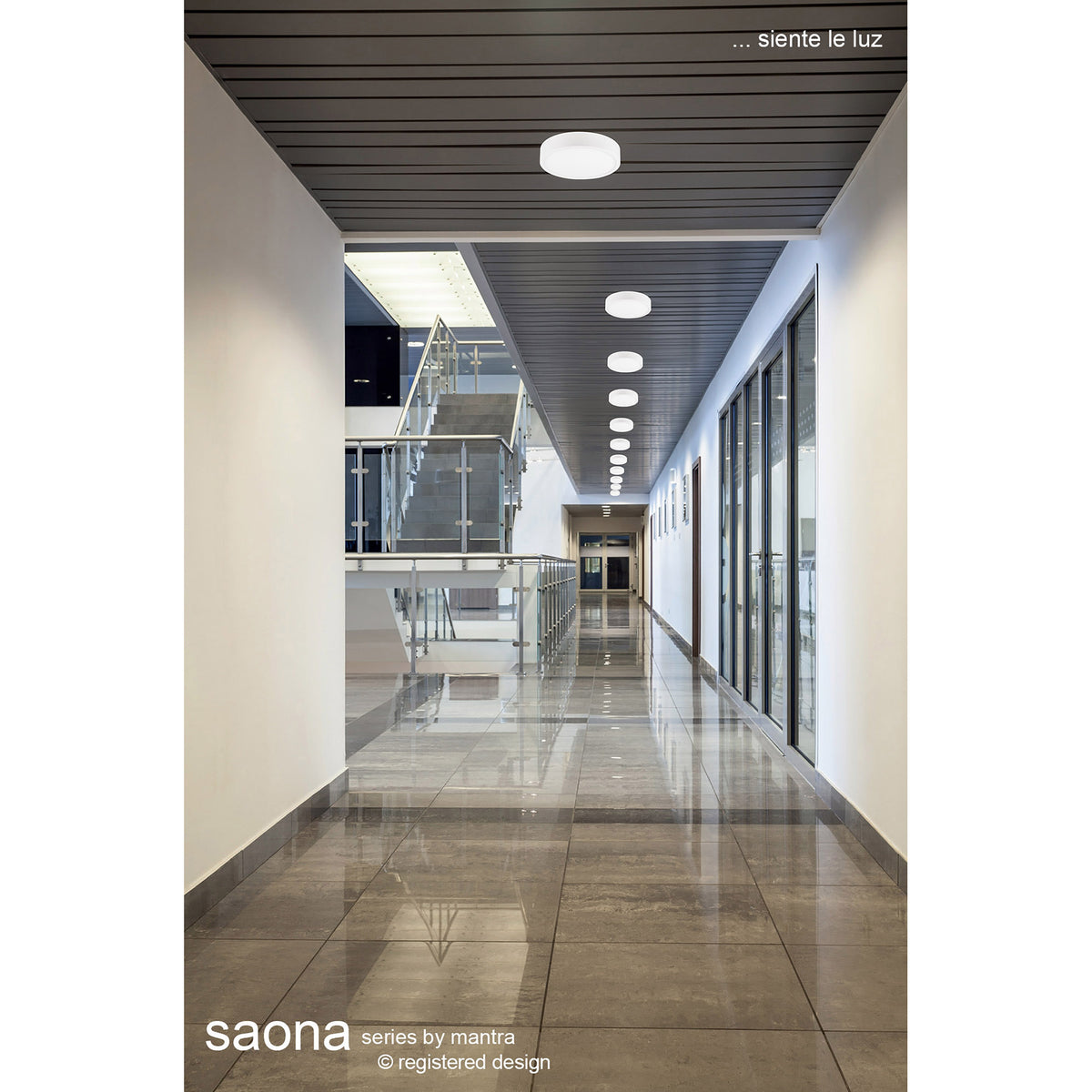

Sized for a 210mm cut-out, it suits hallways, landings, kitchens and utility rooms where the ceiling is low and a hanging fitting would be in the way. We reach for it in flats and loft conversions for that reason, and often in pairs down a corridor rather than a long line of narrow spots. The warm tone keeps living rooms and bedrooms comfortable in the evening rather than clinical. Keep it to dry rooms indoors; it is not one for a shower area or an open porch.

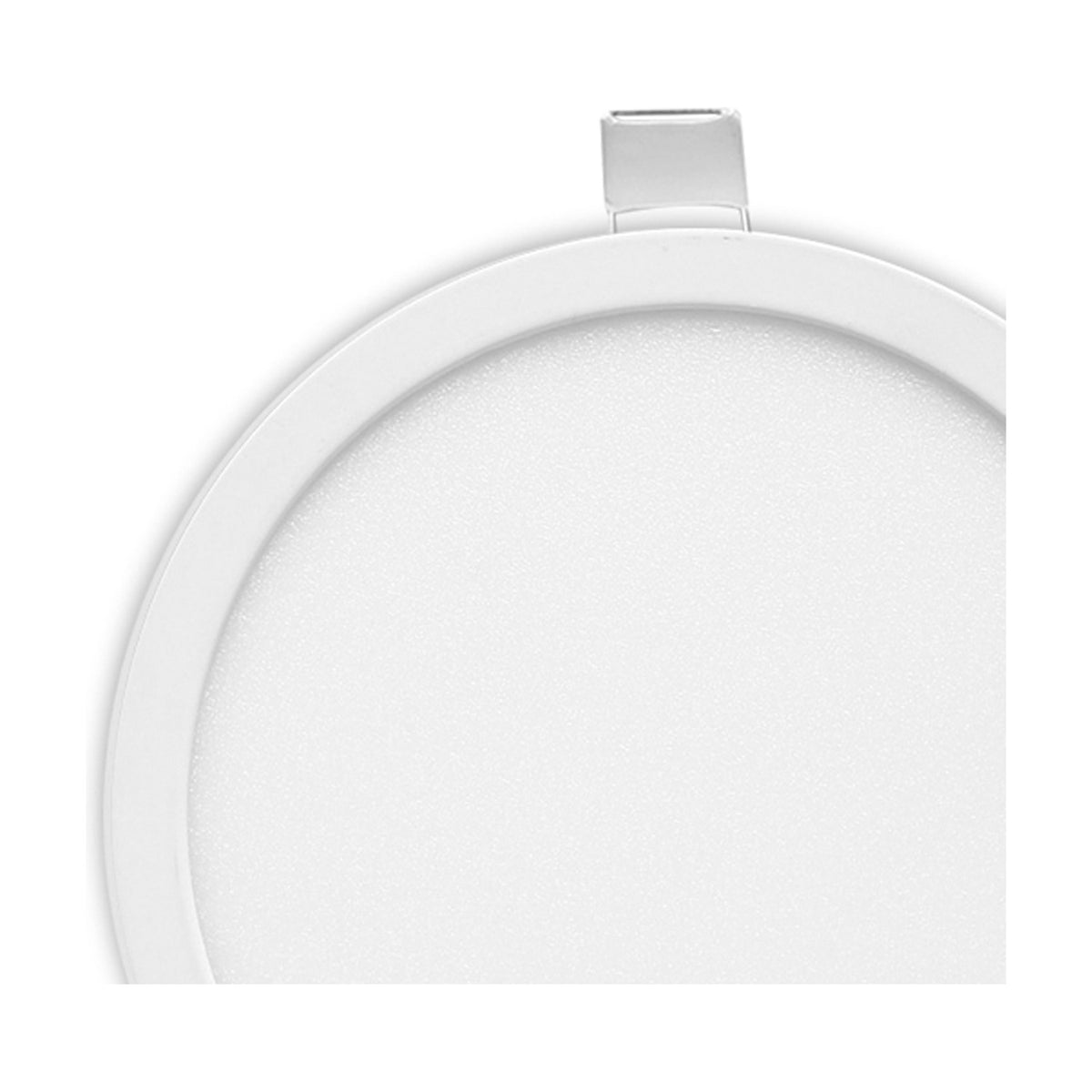

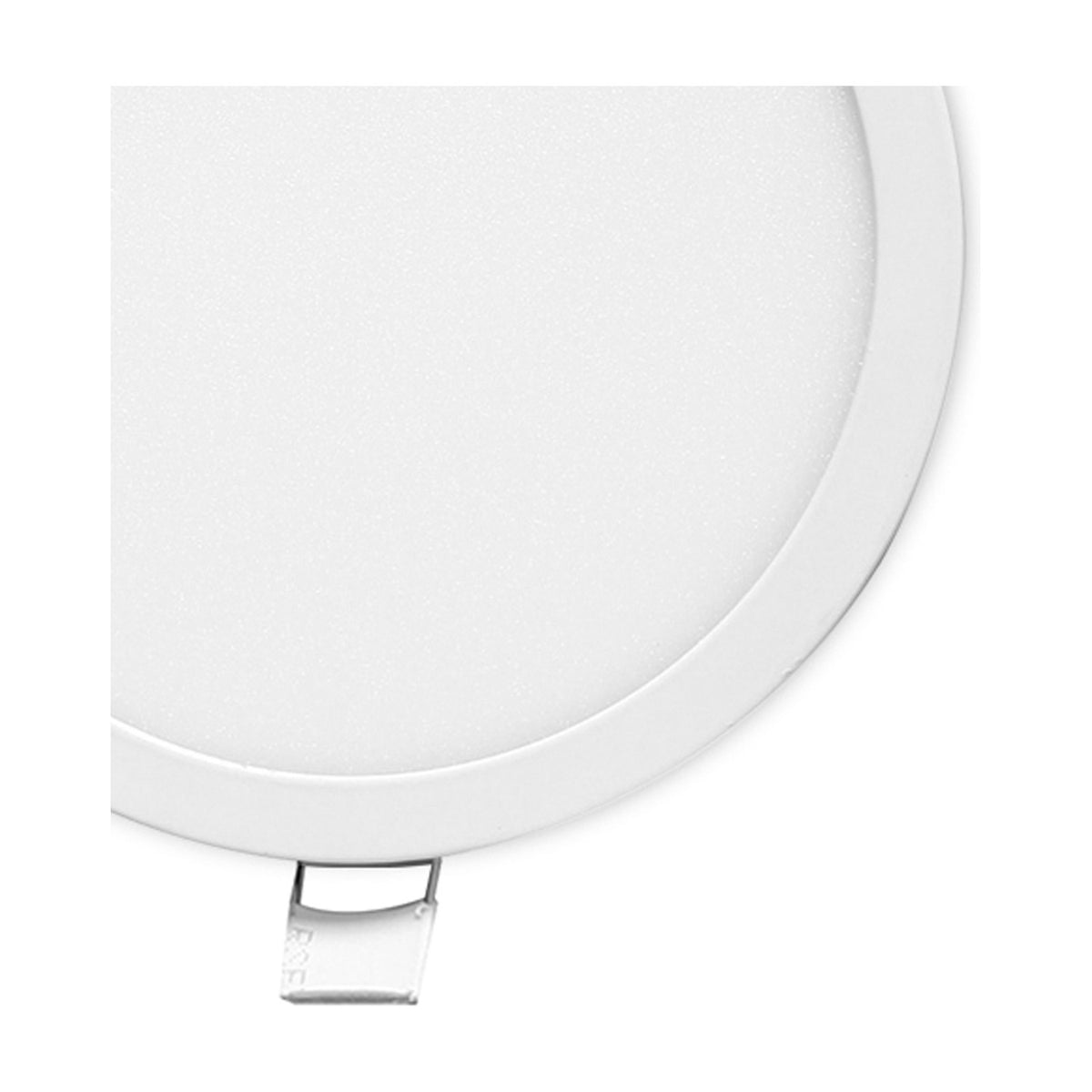

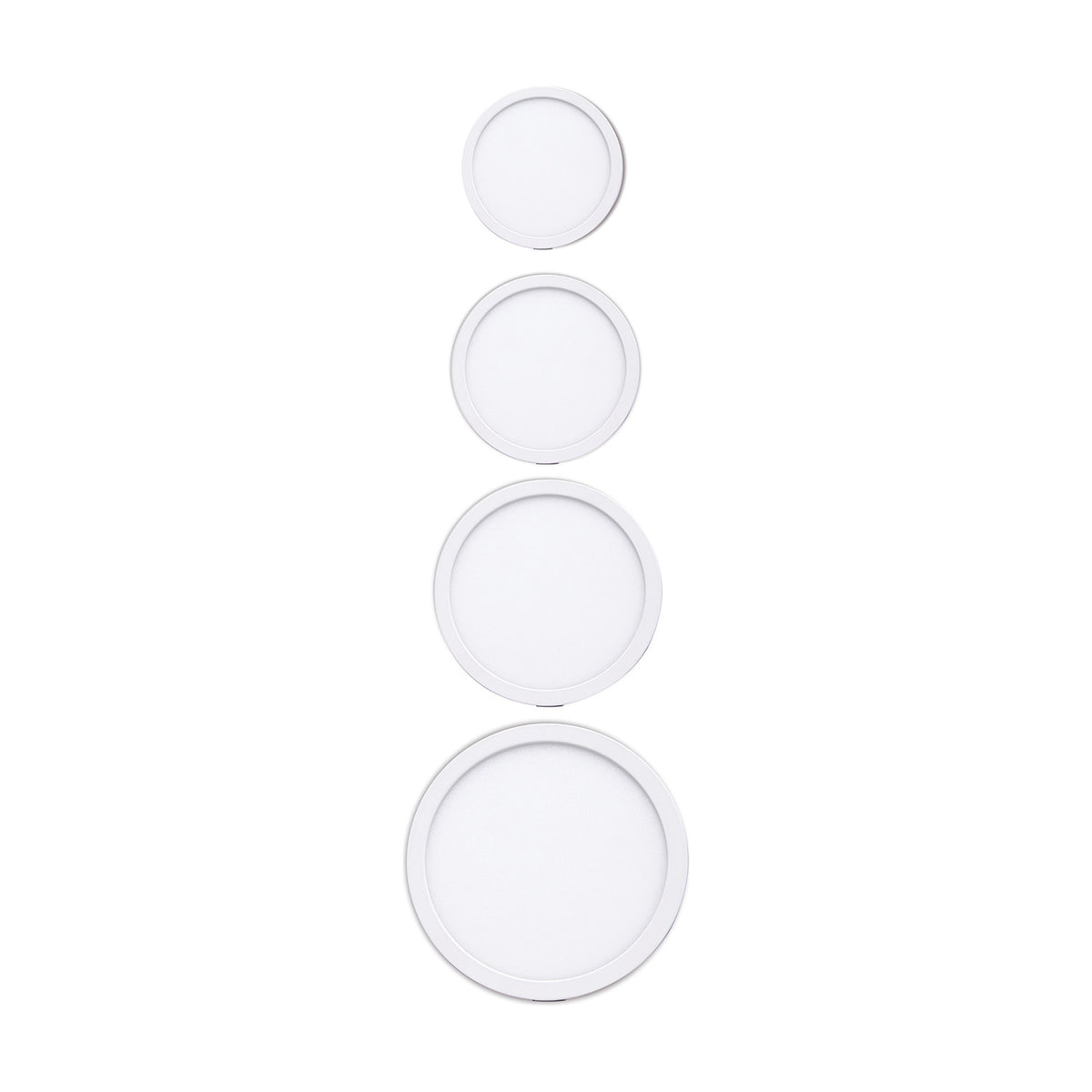

Construction is double insulated, and the matt white finish holds its flat, chalky look without picking up a sheen under its own light. For cleaning, wipe the visible face with a dry microfibre cloth when you dust the ceiling, and keep sprays and polishes well away from the diffuser. It carries a three year warranty. The wider Saona range runs alongside it in surface flush fittings, round and square, in smaller sizes as well as this one, all in the same matt white, so one look can carry across rooms with different ceilings. The LED is built in, so there is nothing to fit or change inside.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.65KG |
| Diameter |
220mm |
| Height |
25mm |
| Cut Out |
210mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 24W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
120 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
26-28lm |
| Lumens per Watt (lm/W) |
87lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
2090lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
54-84V |
| Load Range |
24W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
24W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size opening does it need?
The cut-out is 210mm. The visible face measures 220mm across, so it covers the aperture edge neatly.
How deep is the fitting?
The body is 25mm high, which is why we describe it as ultra slim compared with most recessed fittings.
How much light does it give?
2090 lumens from a 24W integrated LED, at 3000K warm white. Its wide spread makes it more of a general room light than a directional spot.
Can it be dimmed?
No. It runs at a single level, so it should be wired to an ordinary on/off switch.
Is a driver supplied?
Yes, the driver is included with the fitting.
Is it suitable for a bathroom?
It is rated IP20, so it belongs in dry rooms. For a shower zone or above a bath you would want a fitting with a higher protection rating.
