Description

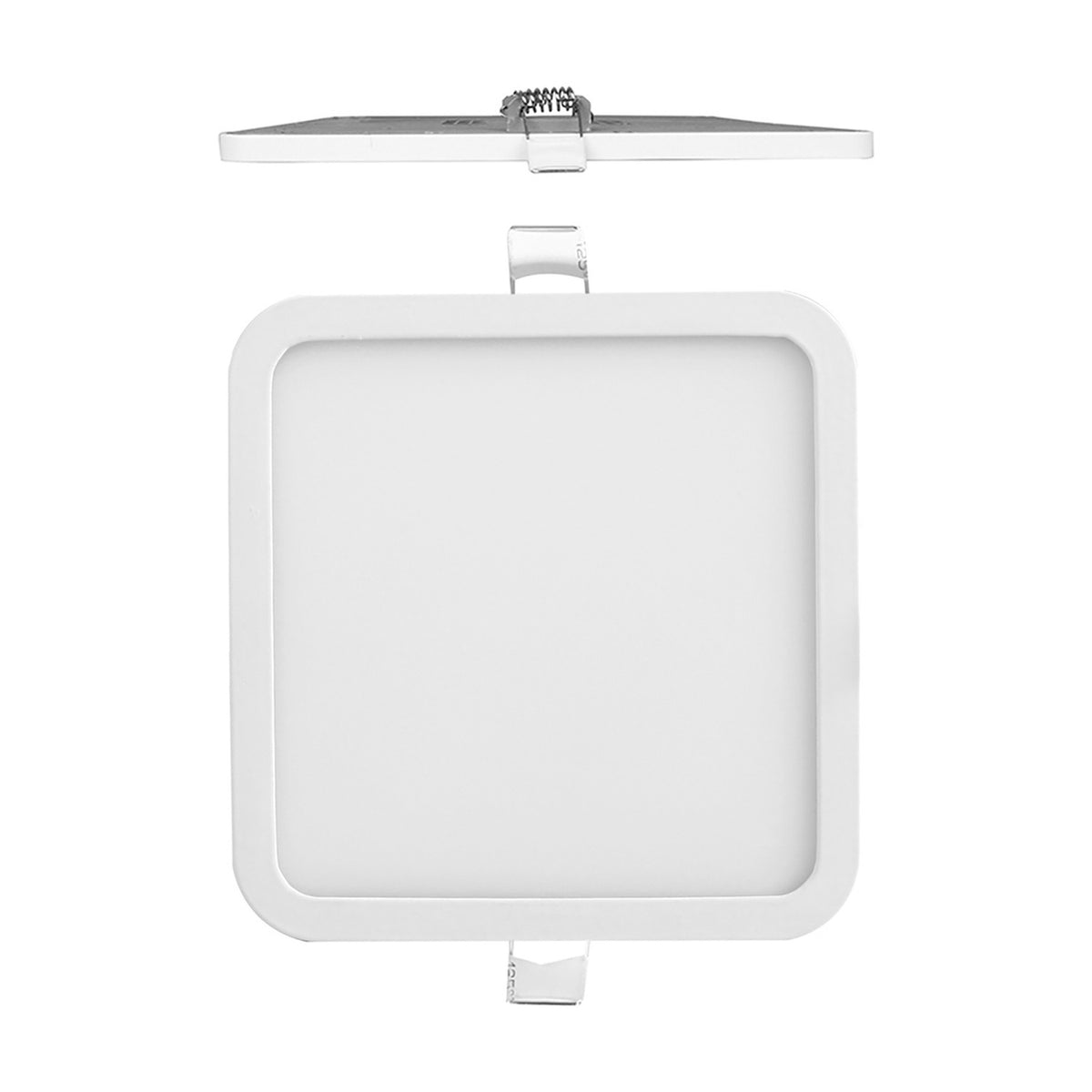

A slim square of matt white that sits down into the ceiling line, leaving little more than a neat white border on show. Light comes from a built-in LED drawing 18W, at a warm 3000K that reads soft against white paint and pale timber rather than clinical. The spread is broad rather than tight, so it washes a room fairly evenly instead of dropping hard pools underfoot. We treat this as a general light rather than an accent one, and would run several across a ceiling where a single pendant leaves the corners dim.
It earns its keep in hallways, landings, kitchens, utility rooms and home offices, and anywhere a low ceiling makes a hanging fitting a nuisance to walk under. It works at the wall switch rather than on a dimmer, which suits circuits where full brightness is simply what is wanted. Keep it to dry rooms indoors, away from steam and splashing. If you are replacing an older set of downlights and want a cleaner, flatter face, this is the shape we tend to point people towards, and the square outline lines up tidily with square tiles or a run of joinery.

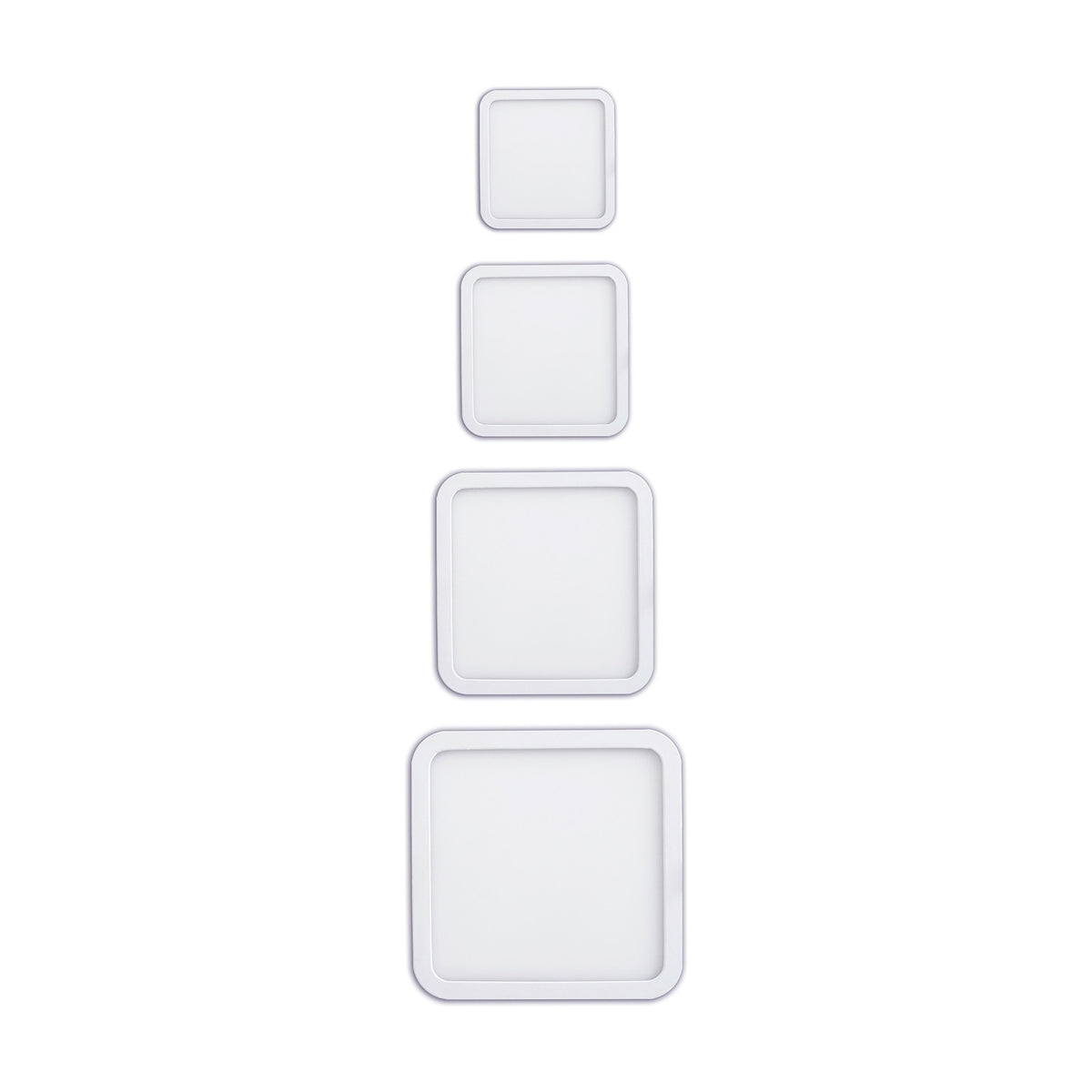

The body and bezel are finished in matt white throughout, and the driver comes supplied with the fitting rather than being bought separately. Cleaning takes very little: with the power off and the fitting cool, a dry microfibre cloth over the face lifts dust, and a barely damp cloth deals with kitchen film. The LED is built in, so there is no lamp to change. It carries a three year warranty. The wider Saona range covers surface flush fittings as well, round and square, in several sizes and in warm or cool white, so a recessed hallway and a surface-mounted landing can be kept in the same family of shapes and the same matt white.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.53KG |
| Length |
170mm |
| Width |
170mm |
| Height |
25mm |
| Cut Out |
160mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 18W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
90 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
24-26lm |
| Lumens per Watt (lm/W) |
88lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
1590lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
36-63V |
| Load Range |
18W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
18W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
It is designed for a 160mm cut-out, with a face measuring 170mm square.
How deep is the fitting?
The body is only 25mm deep, which is why it is described as ultra slim.
How bright is it?
It gives around 1590 lumens at 3000K warm white, enough to act as the main light in a small to medium room when several are used together.
Can it be dimmed?
No, this version is non-dimmable and is intended for a standard on/off switch.
Do I need to buy a driver?
No, the driver is included with the fitting.
Is it suitable for a bathroom?
It is rated for dry indoor use only, so keep it out of bathroom zones and away from steam.
