Description

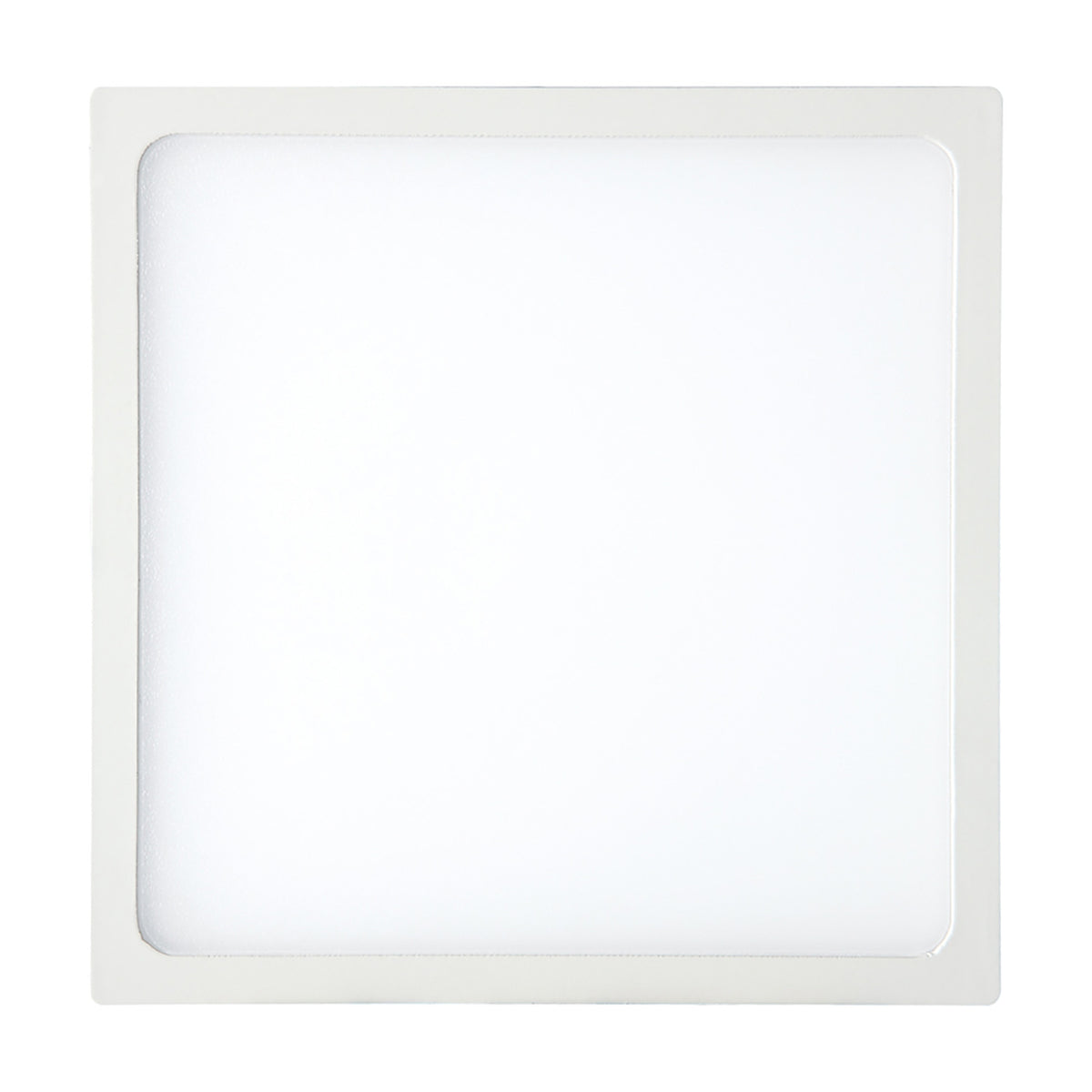

A slim square downlight with a matt white face, it sits quietly in the ceiling line and gives a broad, even wash of light rather than a tight beam. The integrated LED draws 12W and runs at 4000K, a crisp cool white that keeps paintwork looking clean and worktops clearly lit. The cut-out it needs is 130mm. A driver is supplied with it, and there is no dimming, so it works as a simple on and off fitting.
We fit these in kitchens, hallways, landings and home offices, usually several to a room so the light lands evenly instead of in pools. The wide spread suits lower ceilings and open plan spaces where you want steady brightness without a row of hard little spots overhead. It is intended for dry rooms indoors on an ordinary household circuit, and we would keep it well away from shower areas or anywhere steam and splashes gather. In a bedroom or a snug, the warm white flush fittings in the range may sit easier.

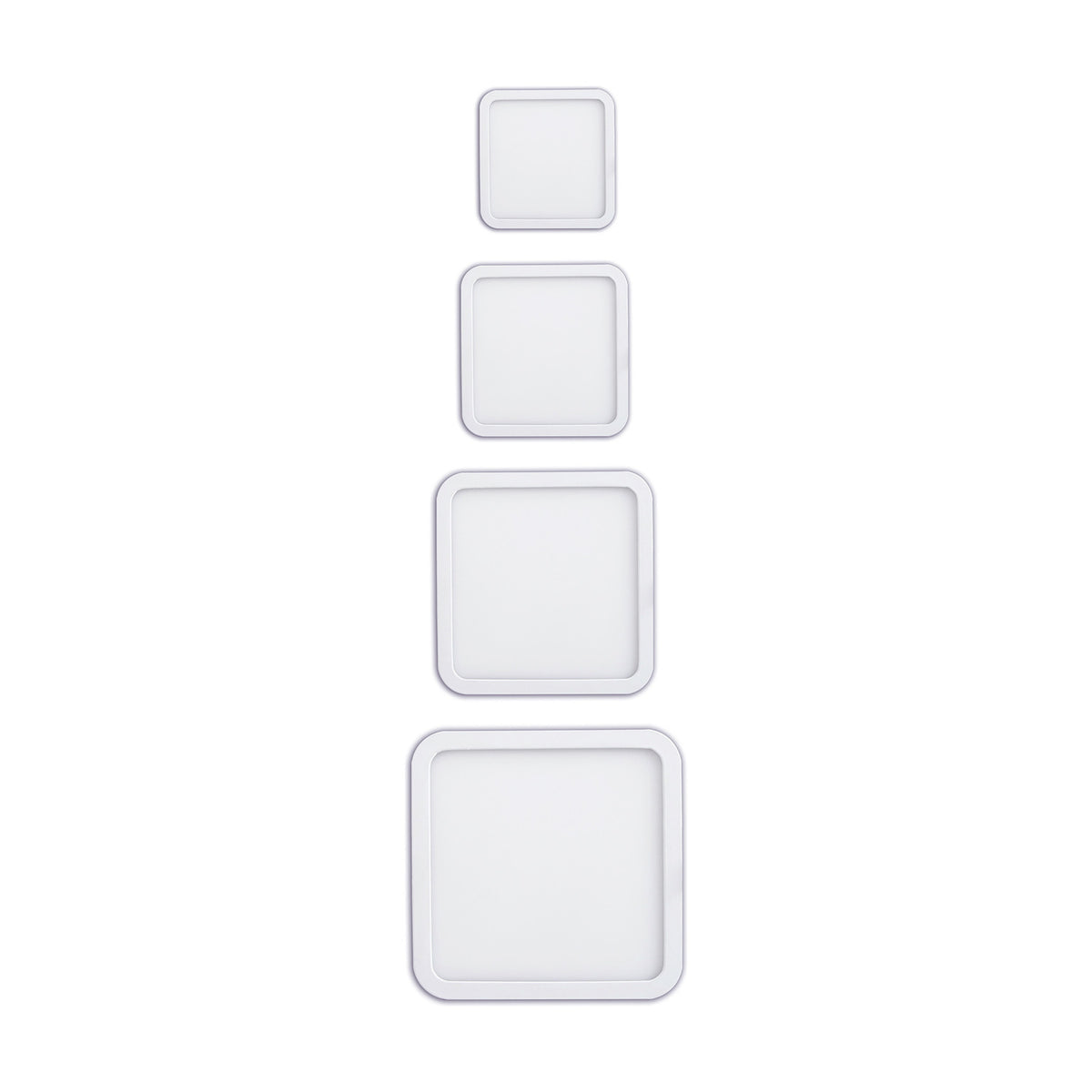

The face is matt white throughout, plain edged and shallow in section, so it reads as part of the ceiling rather than as hardware sitting below it. It is double insulated, and the light source is built in rather than lamped, so there is nothing to replace over its working life. For cleaning, turn the power off at the switch and give it a moment to cool, then take dust off the face with a dry cloth; a barely damp cloth and a dry wipe afterwards will lift any cooking film in a kitchen. It carries a three year warranty. The wider Saona range runs to round and square surface flush fittings in a spread of sizes, useful where you would rather match the look with a surface fitting.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.37KG |
| Length |
145mm |
| Width |
145mm |
| Height |
25mm |
| Cut Out |
130mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 12W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
60 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
26-28lm |
| Lumens per Watt (lm/W) |
90lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
1080lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
24-42V |
| Load Range |
12W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
12W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size aperture does it need?
It calls for a 130mm cut-out. The visible face measures 145mm square, so it covers the opening with a modest margin all round.
How much light does it give?
1080lm from a 12W integrated LED, spread over a wide 113 degree beam for general room lighting rather than accent work.
Can it be dimmed?
No. It is a non-dimmable fitting and should be run from a standard on and off switch.
How deep is the body?
Just 25mm, which is why it is described as ultra slim. It weighs 0.37kg.
Is it suitable for a bathroom?
It is rated IP20, so it belongs in dry rooms only. Choose a fitting with a suitable IP rating for zoned bathroom areas.
Does the LED need replacing?
No. The LED is integrated and rated at around 30,000 hours, and the driver is included with the fitting.
