Description

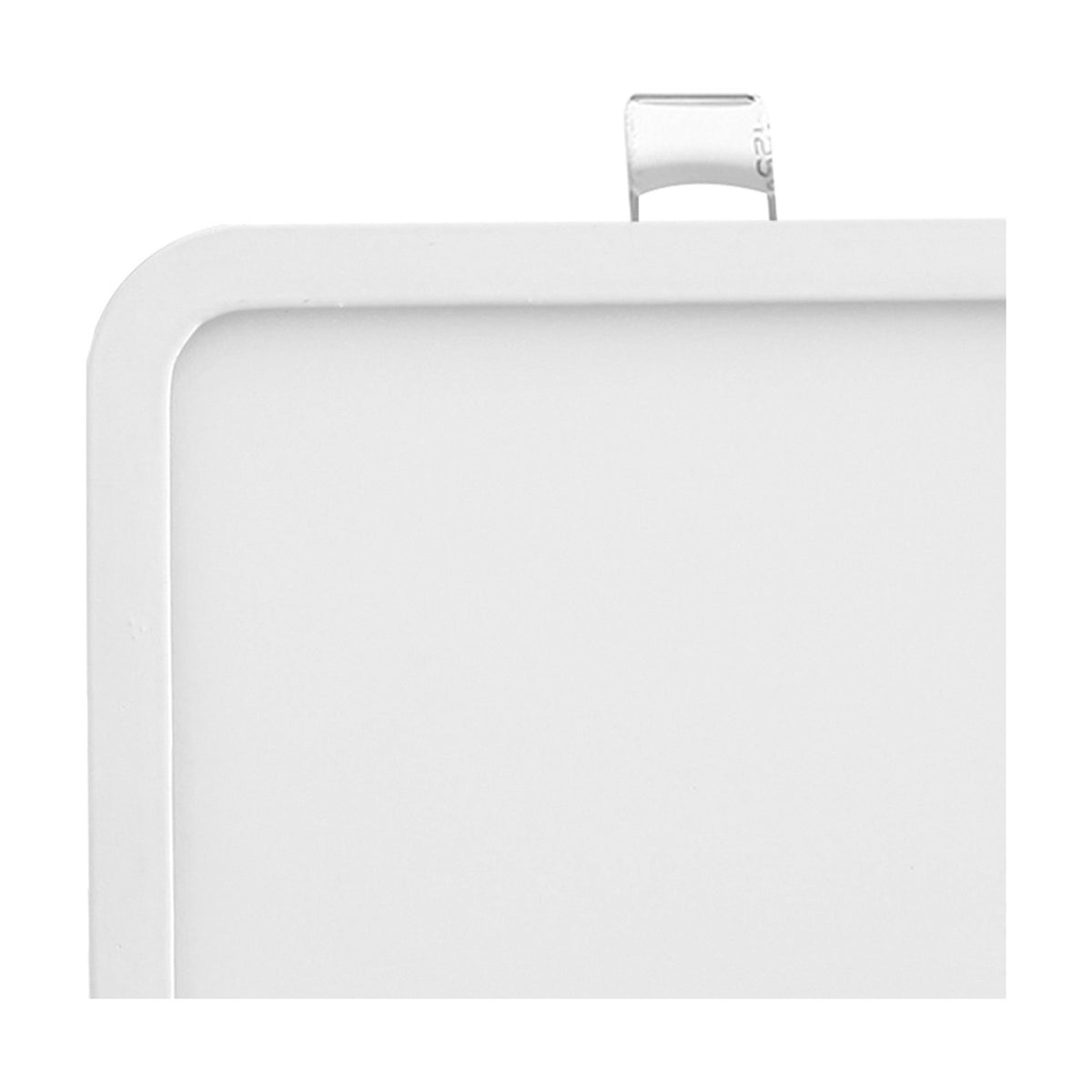

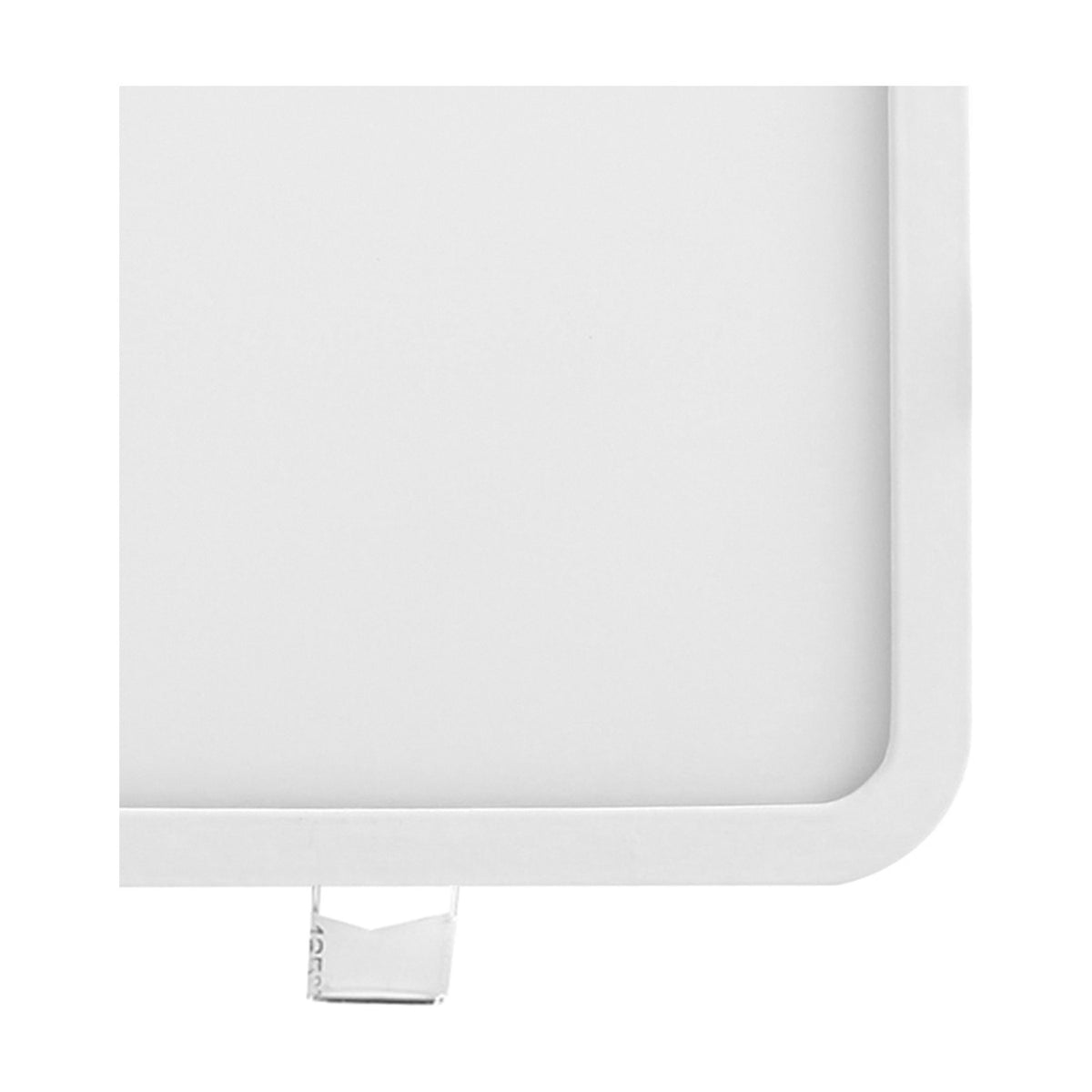

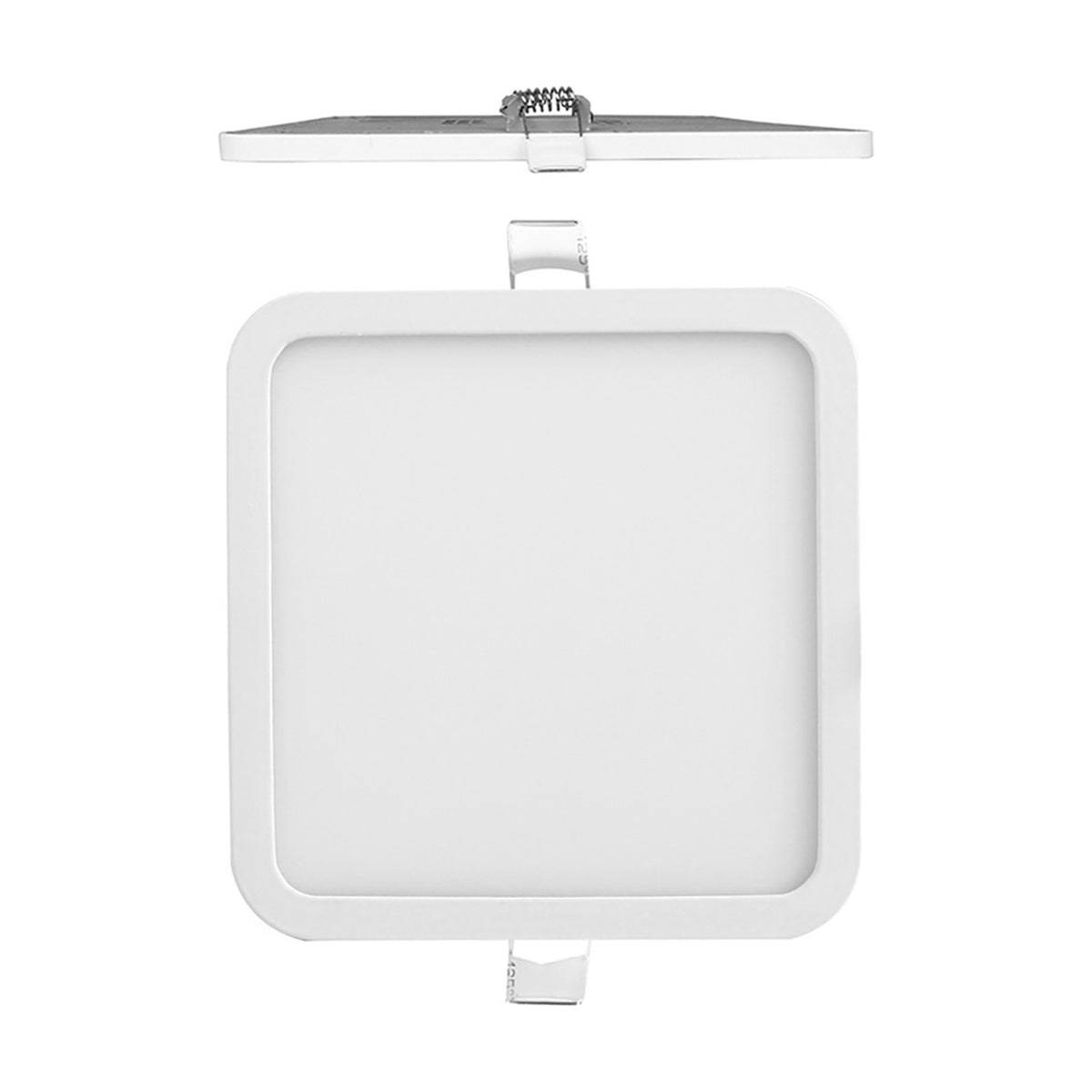

A square face in matt white sits close against the ceiling line, with a shallow body behind it and an integrated LED doing the work. The output is warm at 3000K, drawn from 12W, and it spreads widely rather than pooling in a tight circle, so a run of them washes a room evenly. The driver is supplied with the fitting. There is no dimming, so it is switched simply on and off.
We use these where a plain, quiet ceiling is wanted and the light needs to come from above with nothing hanging down: hallways, landings, home offices and kitchens. The 130mm cut-out is a common size, so it sits happily in a scheme alongside other square detailing. Warm white keeps bedrooms and sitting rooms comfortable rather than clinical, and the broad spread means fewer of them are needed to cover a floor. It is meant for dry rooms indoors, not for shower zones or anywhere open to the weather.

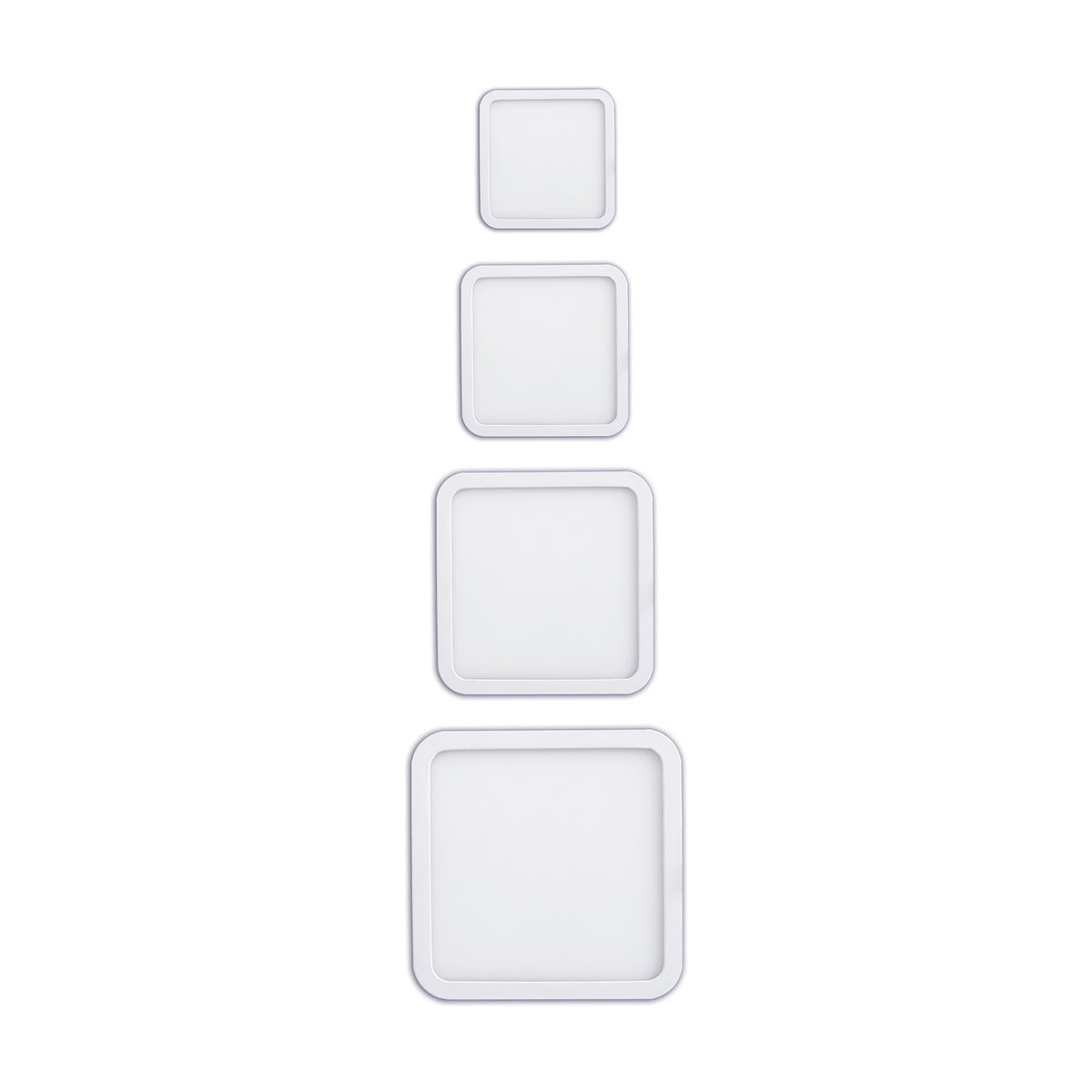

The body and trim are finished in matt white, which reads as part of a painted ceiling rather than a bright ring on it, and the fitting is double insulated. For cleaning, switch off at the wall, let the face lose its heat, then take the dust off with a dry cloth; abrasives and solvents will dull the paint, so keep them away from it. The LED is built in, so there is no lamp to change. It carries a three year warranty. The rest of the Saona range runs to surface-mounted flush fittings in both round and square shapes, in warm and cooler white, if you would rather have the same matt white finish sitting on the ceiling than set into it.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.37KG |
| Length |
145mm |
| Width |
145mm |
| Height |
25mm |
| Cut Out |
130mm |
| Materials Used |
Aluminium, Acrylic |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 12W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
60 |
| SMD Chipset |
4014 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
26-28lm |
| Lumens per Watt (lm/W) |
82lm/W (±5%) |
| Beam Angle |
113° |
| System Flux |
990lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
24-42V |
| Load Range |
12W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
12W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Number of Shades |
1 |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How bright is it?
It produces 990 lumens from 12W, with a wide spread that suits general room lighting rather than tight accent beams.
What size is the visible part?
The square face measures 145mm across each side and the body is only 25mm deep.
Can I put it on a dimmer?
No. This version is non-dimmable and should be run from a standard on/off switch.
Do I need to buy a driver separately?
No, the driver is included with the fitting.
Is it suitable for a bathroom?
It is rated IP20, so keep it to dry rooms. Choose a sealed fitting for bathroom zones.
What shade of white is the light?
3000K warm white, a soft yellow-toned light rather than the cooler, bluer 4000K found elsewhere in the range.
