Description

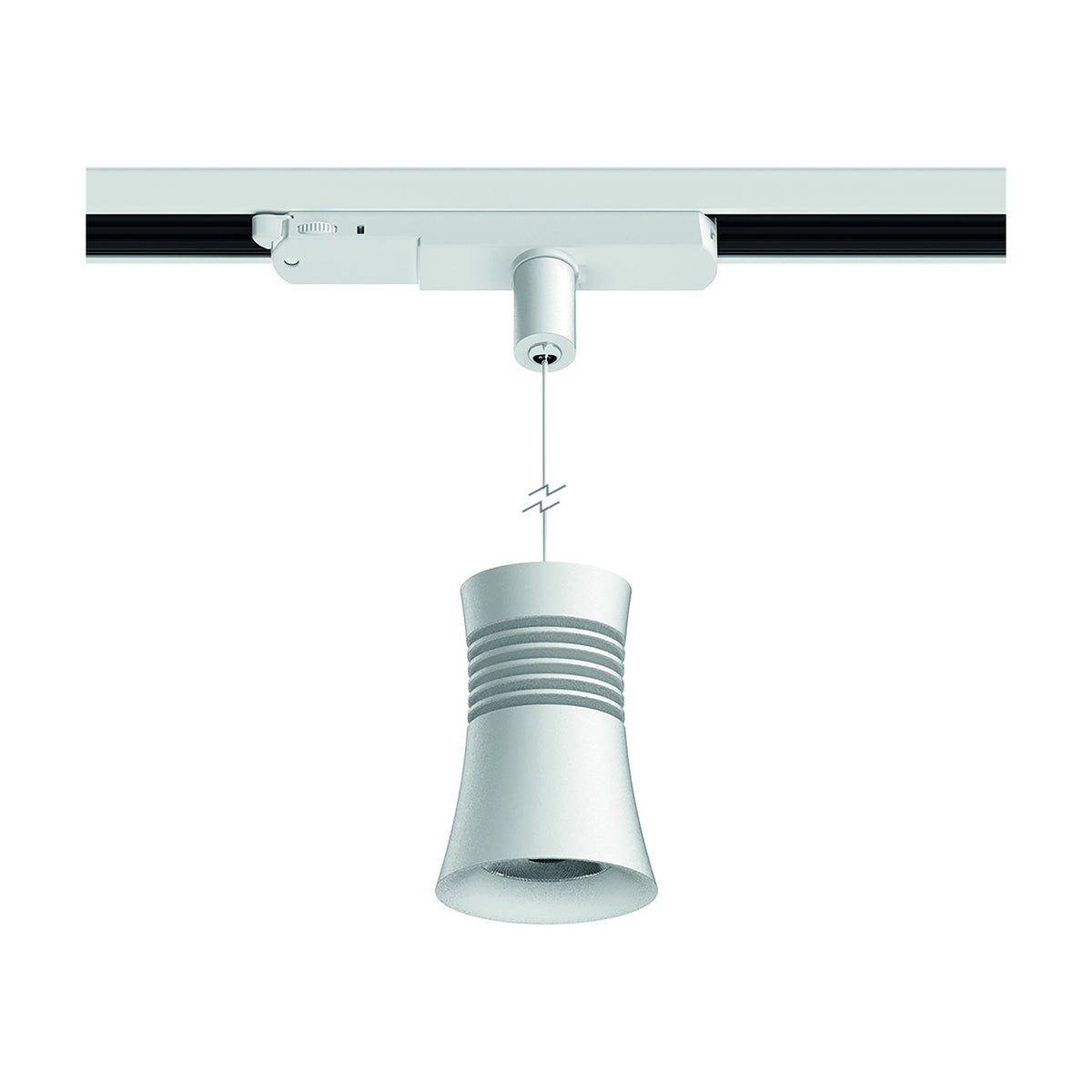

This is a small track light with a pendant drop, made to hang from a lighting track, so a single run can be dressed with as many or as few lights as a room needs. The shade is a tapered pagoda form, about 14cm across at its widest, finished in white. The LED sits inside the housing with its driver, drawing 12.5W and giving 950 lumens of warm white light. It is not dimmable, so it runs at full output whenever the track is live.
We reach for track pendants like this where a fixed ceiling point would land in the wrong place: over a long kitchen island, above a breakfast bar, or along a run of open shelving. The drop can be shortened or let out to suit the height of the surface below, and each head can be moved along the track later if the furniture moves. The beam is on the narrow side, which keeps light on the worktop rather than spreading it across the room, so it suits counters, display niches and reading corners.
The body is compact and light, which keeps the load on a track run modest even where several are used together. Wipe the outside with a dry cloth now and then, with the circuit off, and keep water away from it: the fitting is double insulated and meant for dry rooms indoors. Because the LED is built in, there is no lamp to change over its life. It carries a three year warranty. We stock the same head in black, in a cooler white version, and with a GU10 lampholder if you would rather choose your own lamp, and there is a matching ceiling pendant in the range for spots a track does not reach.
Specification
| Colour |
White |
| Weight |
0.70KG |
| Diameter |
135mm |
| Minimum Drop |
210mm |
| Maximum Drop |
2210mm |
| Body Height |
110mm |
| Materials Used |
Aluminium, Iron |
| Adjustable Height |
Yes |
| Hanging Method |
Cable |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 12.5W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM |
| SMD Chipset |
COB |
| LED Power |
12.5W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB 1203 CRI90 |
| Lumens per LED |
1020lm |
| Lumens per Watt (lm/W) |
76lm/W (±5%) |
| Beam Angle |
36° |
| System Flux |
950lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Max. Current Output |
300mA |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
30V-40V |
| Load Range |
10W-12W |
| Ta |
50°C |
| Tc |
85°C |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
12.5W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Cable Information |
L:2000mm, Colour: Grey |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How far down does it hang?
The drop adjusts from 210mm at its shortest to 2210mm at its longest, so it can sit close under the track or hang low over an island.
What size is the shade?
It measures 135mm in diameter with a body height of 110mm, so it reads as a small head rather than a full-size pendant.
Can I dim it?
No. The integrated LED is non-dimmable and should be run on a plain switched circuit rather than a dimmer.
What colour of light does it give?
3000K warm white, at 950 lumens from 12.5W. A 4000K version of the same track pendant is also made if you prefer a cooler, crisper light.
Do I ever need to replace the LED?
The LED and its driver are built in, with a rated average life of 30,000 hours, so there is no lamp to swap during normal use.
Is it suitable for a bathroom or outdoors?
No. It is rated IP20, which means dry interior rooms only.
