Description

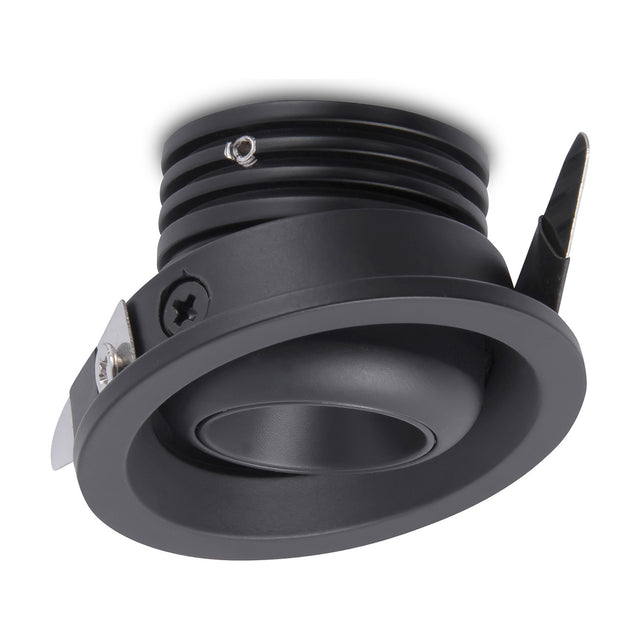

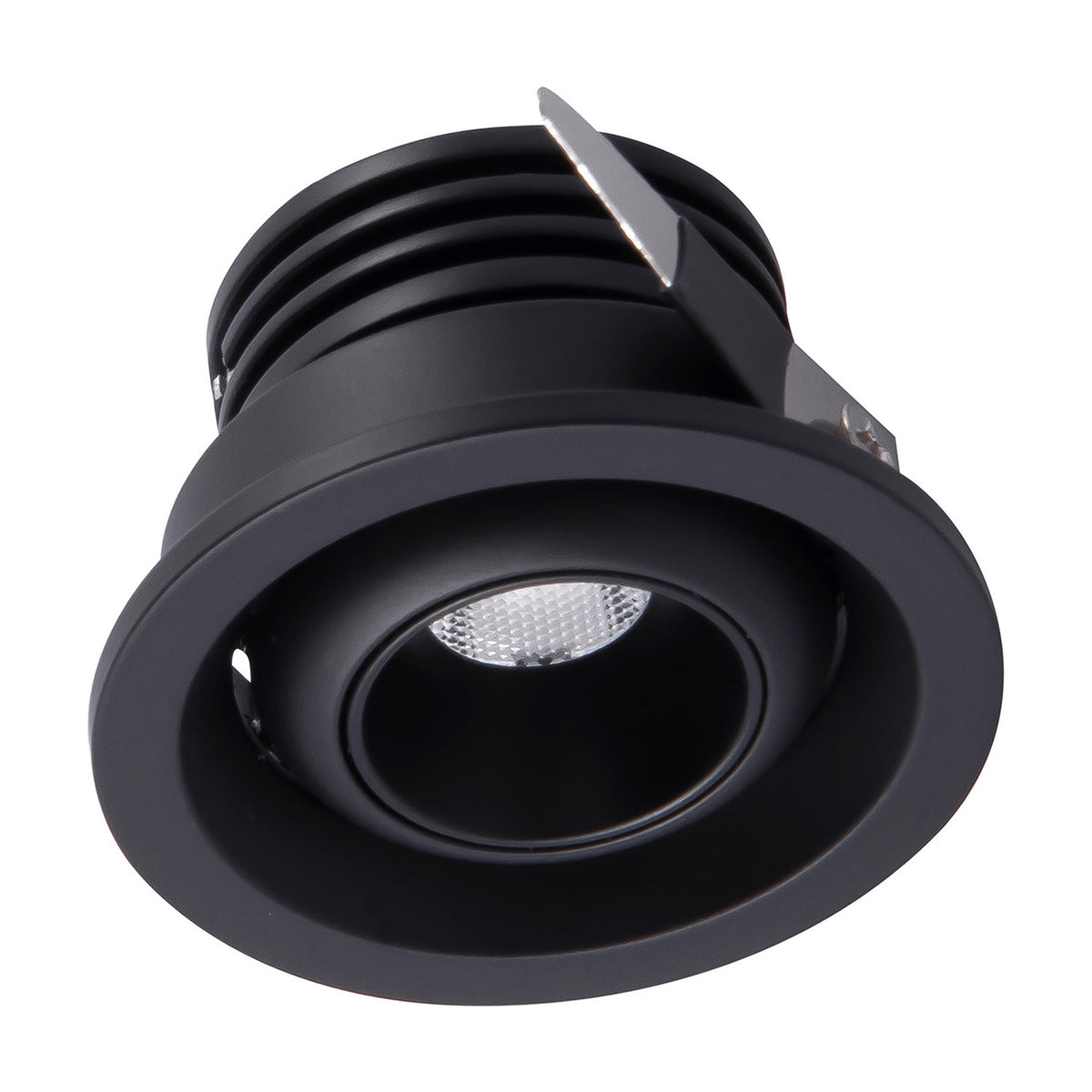

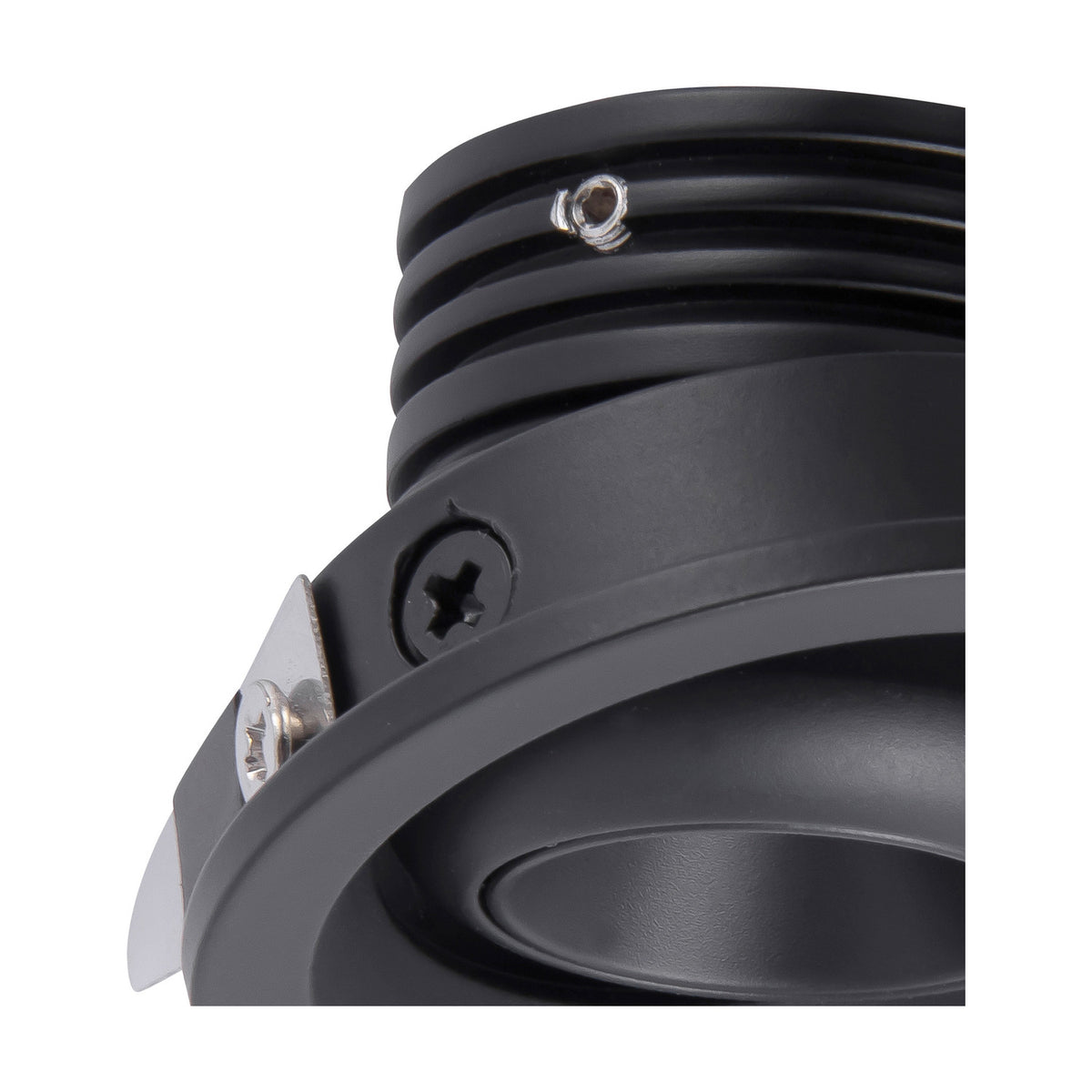

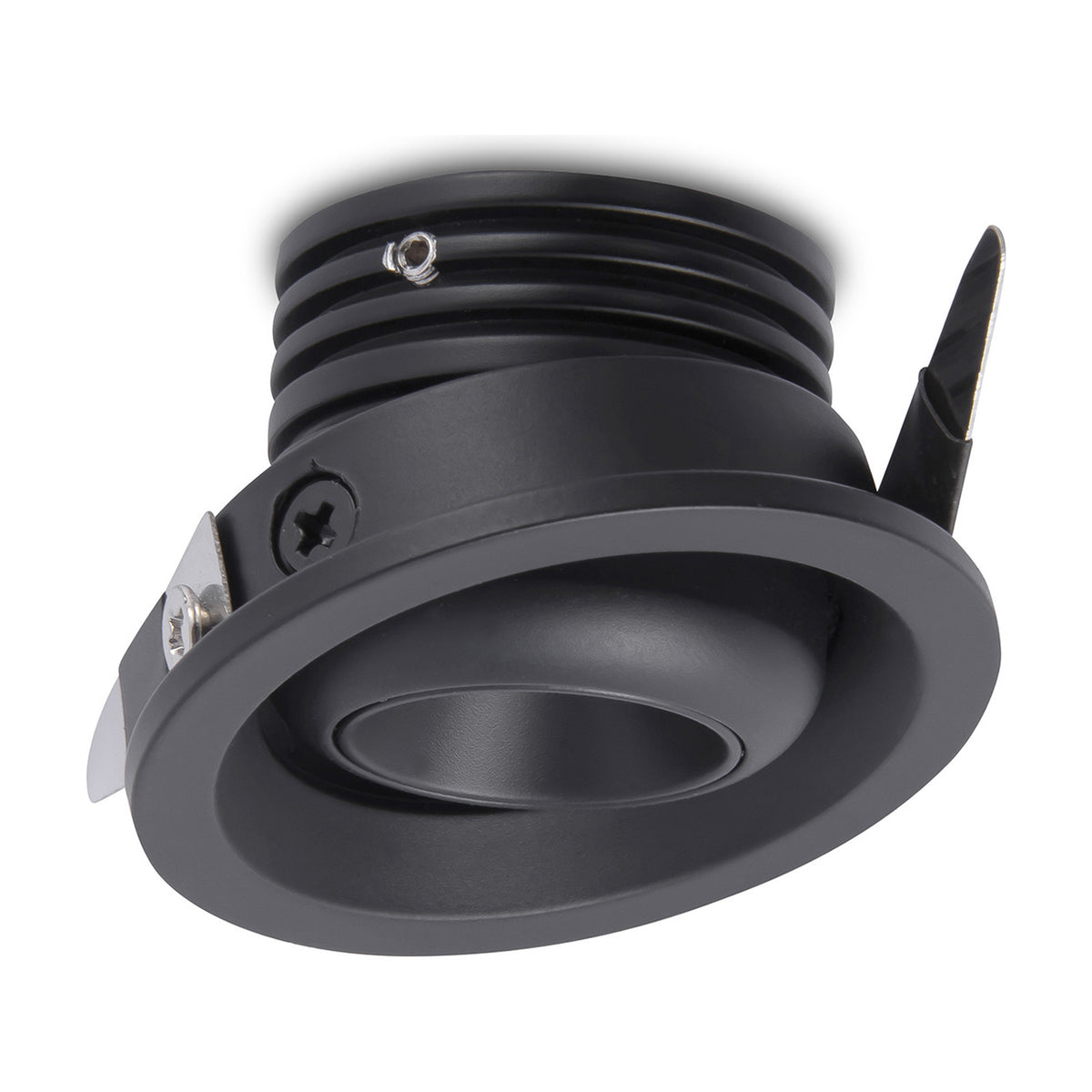

A small round spotlight with a tilting head, this one sits into a ceiling or a run of joinery and shows only a slim black trim, 50mm across. The LED behind it is integrated, drawing 3W and giving a cool white 4000K light that reads crisp rather than yellow. The beam is fairly tight, so it puts light on a chosen spot instead of washing a whole room, and the head swivels within its surround so you can angle it away from vertical. Its driver is supplied, and it is not a dimming fitting.
We use these where a full-size downlight would look heavy: display niches, the inside of a tall bookcase, a short line of them above a worktop, or picking out pictures along a stair wall. Being able to move each head means one row can be aimed at several different things, which is why we like them for shelving. The cool white output suits close work and shows colours honestly, so it is a sensible choice over a kitchen run or a desk. Keep it to dry rooms indoors; shower zones and porches want a sealed fitting instead.

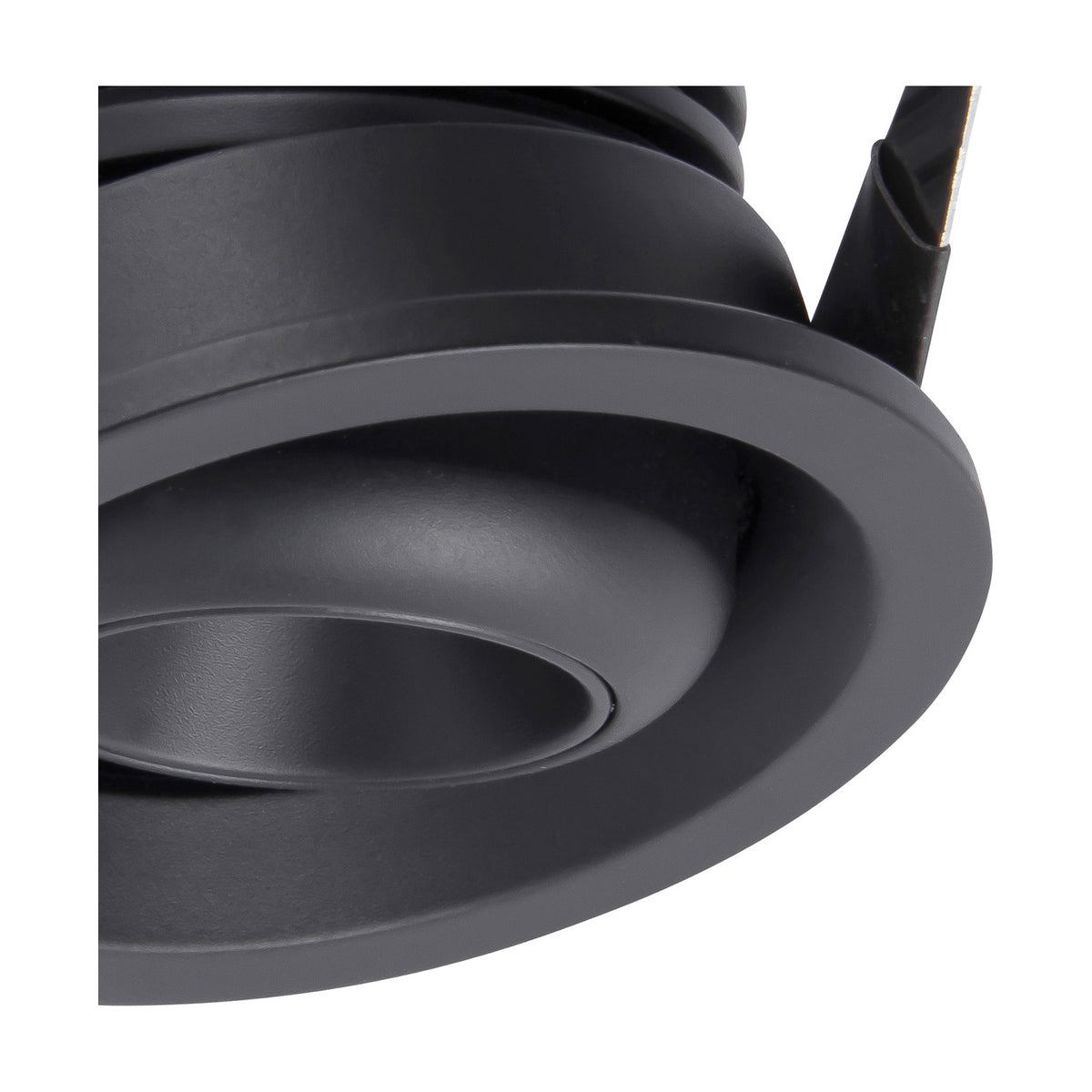

Black runs across the trim and the moving head, so the fitting reads as a dark circle rather than a bright ring. Cleaning takes very little: with the power off and the fitting cold, run a dry cloth over the trim and lens, and keep polishes and solvents well away. The LED is built in, so there is no lamp to change. It carries a three year warranty. We stock the same spotlight in white, and in warmer colour temperatures in both black and white, so one range can light a whole house with the tone shifted room by room.
Specification
| Colour |
Black |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.09KG |
| Diameter |
50mm |
| Height |
30mm |
| Cut Out |
42mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 3W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM |
| SMD Chipset |
3030 |
| LED Power |
3W (±5%) |
| Type of LED |
OSRAM3030 |
| Lumens per Watt (lm/W) |
73lm/W (±5%) |
| Beam Angle |
40° |
| System Flux |
220lm (±5%) |
| CRI |
>90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
700mA |
| Min/Max. Voltage Output |
2.5-4V |
| Load Range |
2.8W |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
3W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
Around 220 lumens from its 3W integrated LED, in a cool white 4000K tone with a fairly narrow beam.
Can it be dimmed?
No. It is a non-dimmable fitting, so it should run on a plain switched circuit rather than a dimmer.
How big is it overall?
The visible diameter is 50mm and the body stands 30mm tall, which is why we treat it as a mini fitting rather than a standard downlight.
Do I need a separate driver?
No, the driver comes with the spotlight.
How long should the LED last?
It is rated at an average life of 30,000 hours, and the fitting carries a three year warranty.
What is the best way to clean it?
Switch off at the wall, let it go cold, then wipe the trim and lens with a dry cloth. Avoid sprays, polishes and anything abrasive on the lens.
