Description

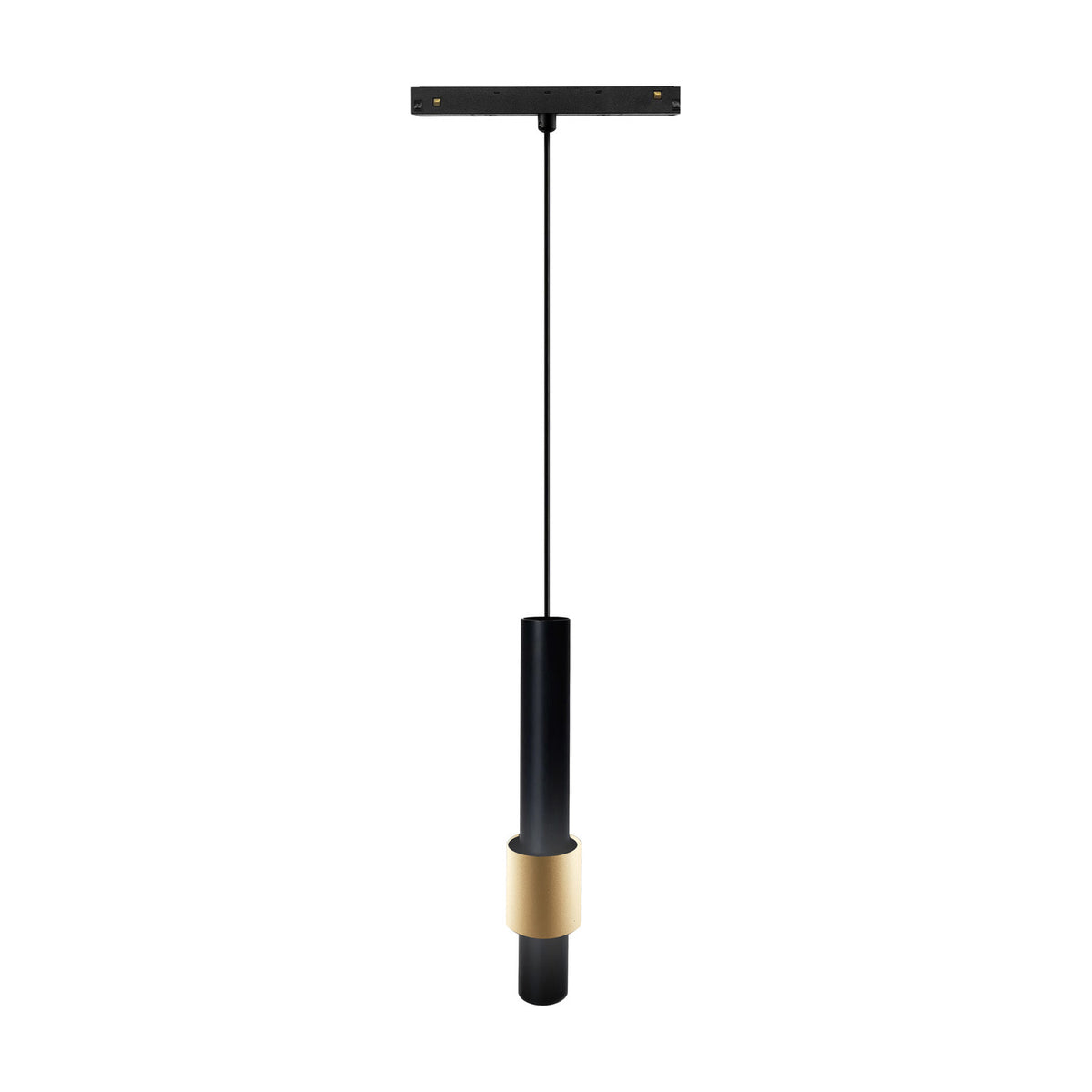

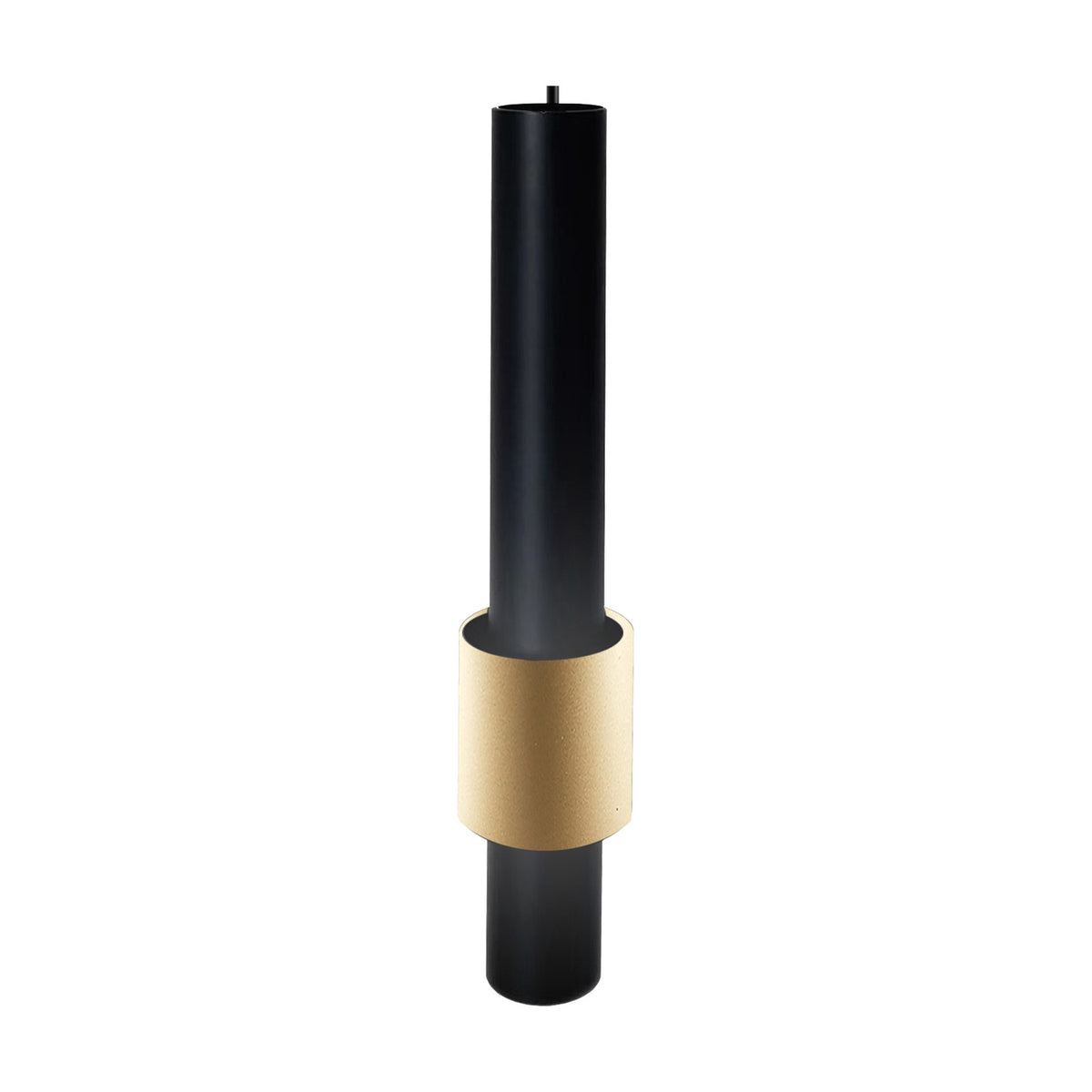

A slim tube on a fine suspension, this one hangs from the Magneto track rather than sitting tight against it. The body runs to 200mm and is finished in gold with black, so it reads as a small piece of hardware rather than a shade. The LED sits inside and is fixed at 7W, giving a warm 3000K light in a narrow downward beam. It is not dimmable, so it works as a straightforward on and off light.
We reach for these over a kitchen island, where a row of tubes along the track drops even pools of light onto the worktop without the bulk of bigger pendants. The drop can be set short or long, so the same fitting can sit low over a dining table or be kept well up in a hallway. Because the track carries the supply, tubes can be slid along, added to or taken out again as the room changes. It suits open plan kitchens and dining rooms, and anyone who would rather plan a track layout than live with fixed ceiling points.
Gold with black is a warmer pairing than all black hardware, and it sits happily next to brass taps, handles and other kitchen metalwork. Power comes from the track at low voltage, and the fitting is for dry indoor rooms only, so keep it out of bathrooms and away from anywhere it might catch the weather. Cleaning takes a moment: isolate the track, let the tube cool, then wipe it over with a soft dry cloth and leave polishes and sprays well alone. We stock the black Magneto track in surface and recessed forms, plus L-joints and end caps to close off a run, so a layout can follow the shape of the room. The LED is built in, so there is no lamp to change. It carries a three year warranty.
Specification
| Colour |
Gold |
| Second Colour |
Black |
| Weight |
0.50KG |
| Length |
200mm |
| Width |
58mm |
| Minimum Drop |
505mm |
| Maximum Drop |
2000mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM 1202 |
| Qty of SMD |
1 |
| SMD Chipset |
1202 |
| LED Power |
7W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
DC48V |
| Constant Voltage Output |
DC48V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
200-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How low can it hang?
The drop is adjustable between 505mm and 2000mm, so it can be dropped over an island or kept high in a circulation space.
How much light does it give?
560 lumens at 7W, in a warm white 3000K tone with a narrow 38 degree beam, which keeps the light on the surface below rather than spreading it across the room.
Can it be dimmed?
No. This tube is a non-dimmable fitting and should be run on a plain switched circuit.
Does it need a separate driver?
No, the driver is included. It runs at 36V from the track and is Class 2, double insulated.
What are the dimensions and weight?
The tube is 200mm long and 58mm across, and it weighs 0.5kg. Rated life of the LED is 30,000 hours.
Which track does it go with?
We stock the Magneto deep surface and pendant track in black for suspended fittings such as this, along with shallow surface and recessed profiles for other parts of a scheme.
