Description

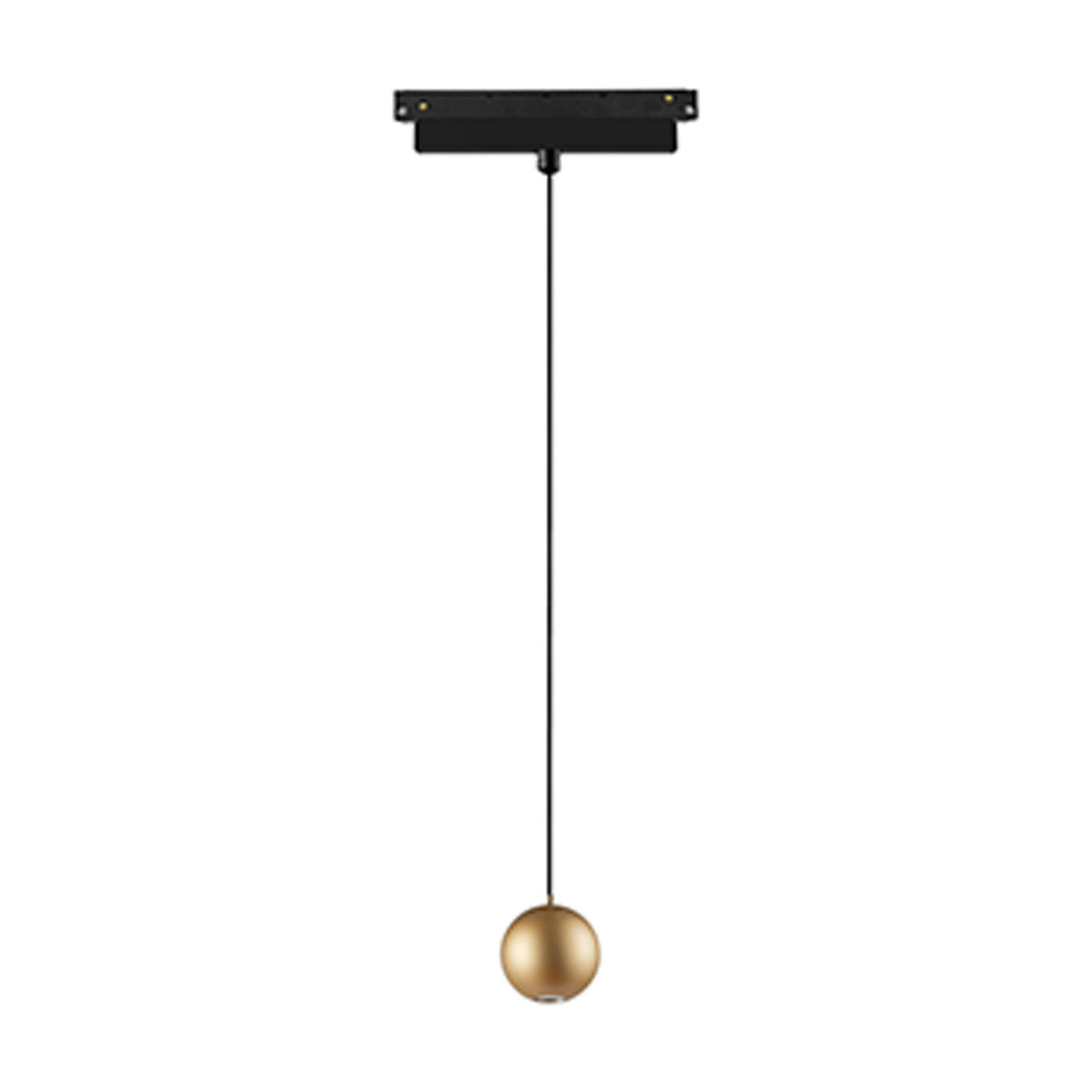

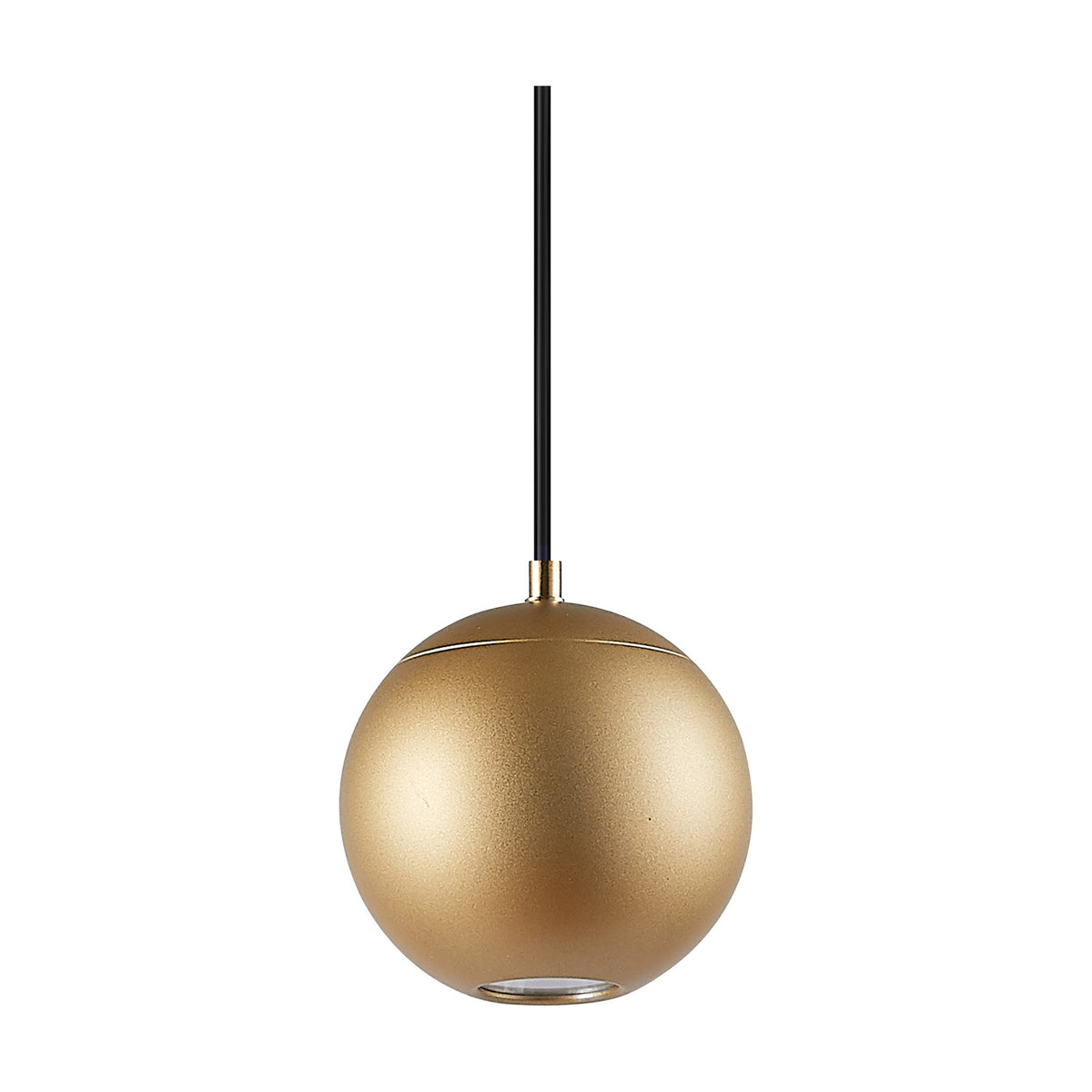

This is a small ball head on a slim suspension cable, made to run on the Magneto magnetic track range. Gold covers the shell, with black at the cable and the track head, and the ball is only 55mm across, so it reads as a neat point of light rather than a shade. The integrated LED draws 7W and puts out 560 lumens of warm white in a narrow, directional cone. Drop is adjustable within a set span, so a run of them can be levelled or stepped to suit the surface below.
We reach for this one over kitchen islands and breakfast bars, where a full pendant would crowd the sightline. It works just as well above a bar counter, a display shelf or a long console, and a group along a single track gives even pools of light without any visible wiring between them. The warm tone sits comfortably with timber, brass and stone, and the narrow spread keeps light on the work surface instead of spilling up the walls. This head is not dimmable, so it suits a simple on and off.

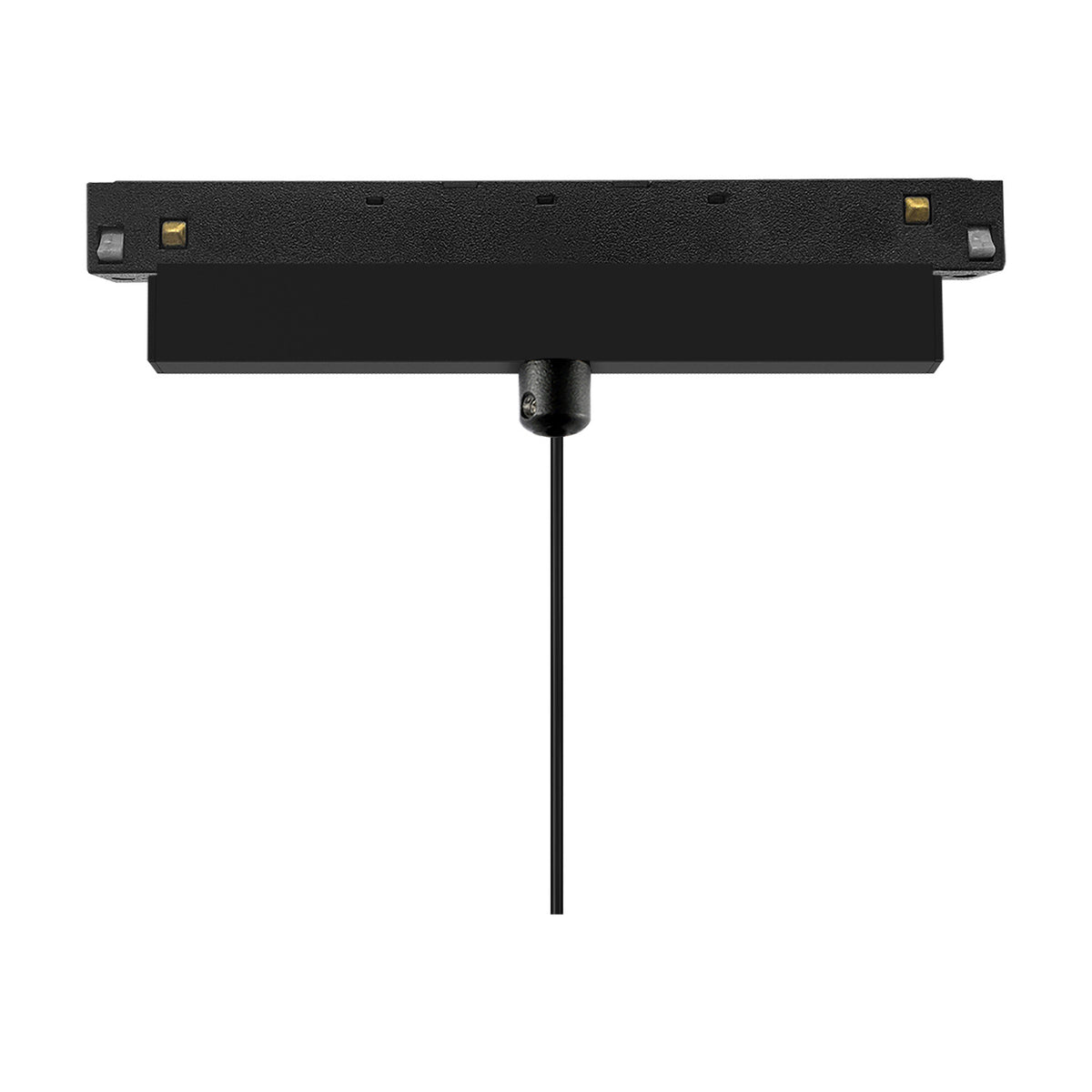

The two-tone finish keeps the gold as the visible face while the black parts recede into the track above. To clean, turn the power off at the track, let the head cool and take dust off with a dry cloth; keep sprays and solvents away from it. The LED and its driver are built in, so there is no lamp to buy or change, and it carries a three year warranty. We stock the deep surface and pendant track this head sits on, along with recessed track, corner joints and end caps in black, so a run can be laid out to the shape of the room.
Specification
| Colour |
Gold |
| Second Colour |
Black |
| Weight |
0.33KG |
| Length |
200mm |
| Width |
55mm |
| Minimum Drop |
1305mm |
| Maximum Drop |
1805mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM 2835 |
| Qty of SMD |
1 |
| LED Power |
7W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Constant Voltage Output |
48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How far does it hang below the track?
The drop is adjustable from 1305mm to 1805mm, so it can sit low over an island or be pulled up close to the track line.
Which Magneto track does it need?
It is built for the deep profile, the 55mm wide surface and pendant track, rather than the shallow 30mm section.
Can I put it on a dimmer?
No. This head is non-dimmable and is designed for straightforward switching.
What is the light like?
560 lumens at 3000K, a warm white, in a 38 degree beam. The CRI of 90 or above keeps food, timber and fabric colours looking true.
Will I ever need to change the LED?
No. The LED is integrated and rated at 30,000 hours, with the driver included in the system.
Can it go in a bathroom or outside?
No. It is rated IP20 and belongs in dry indoor rooms only.
