Description

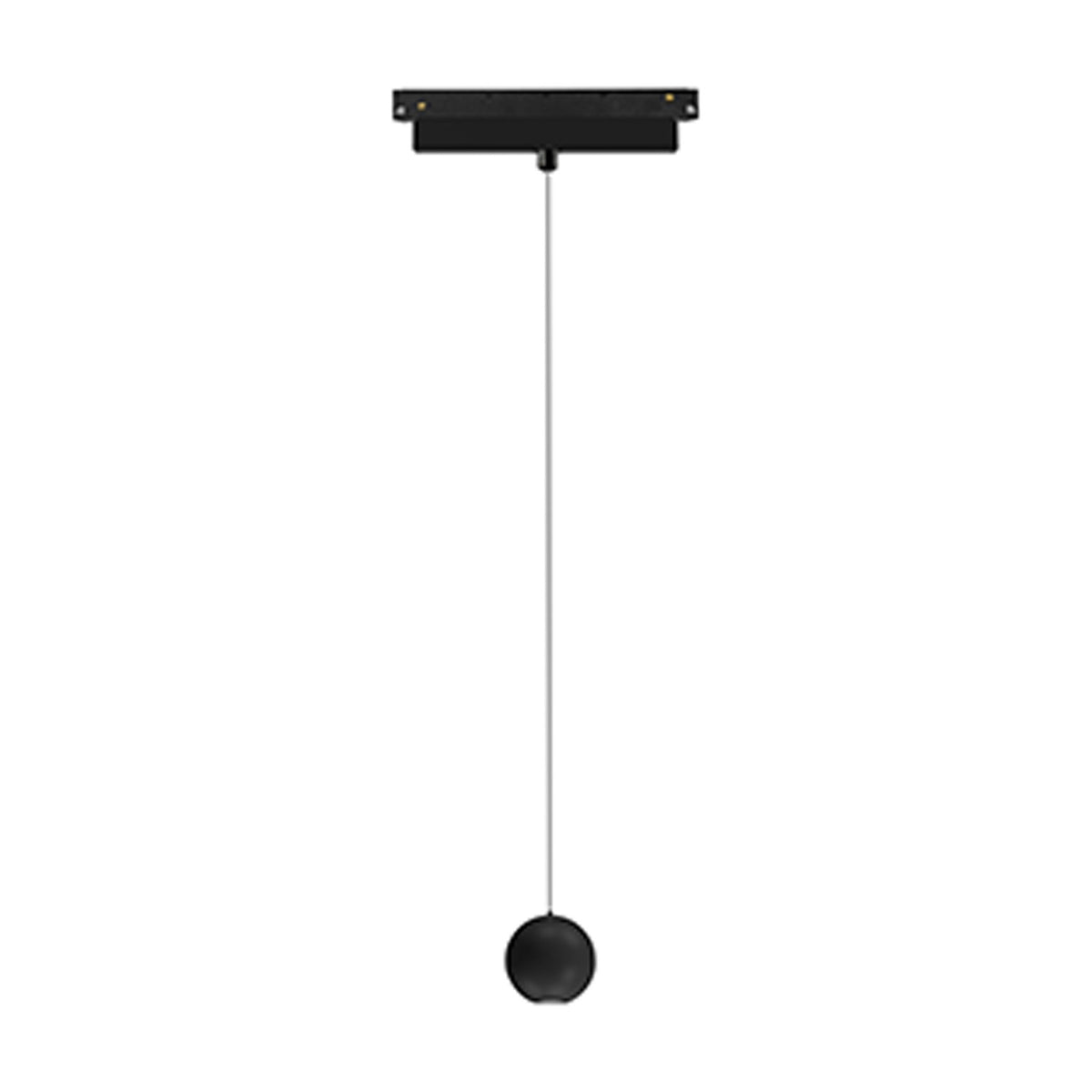

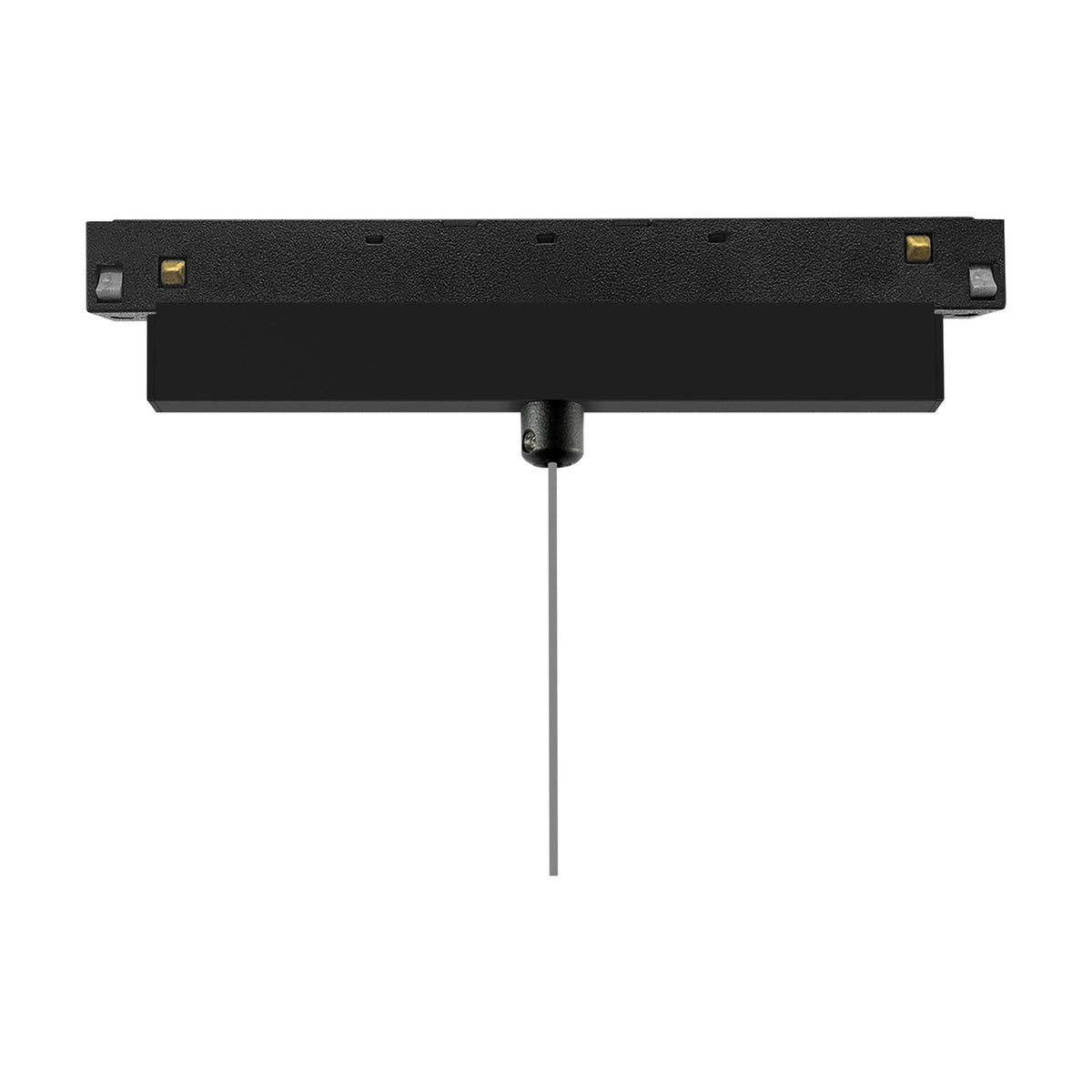

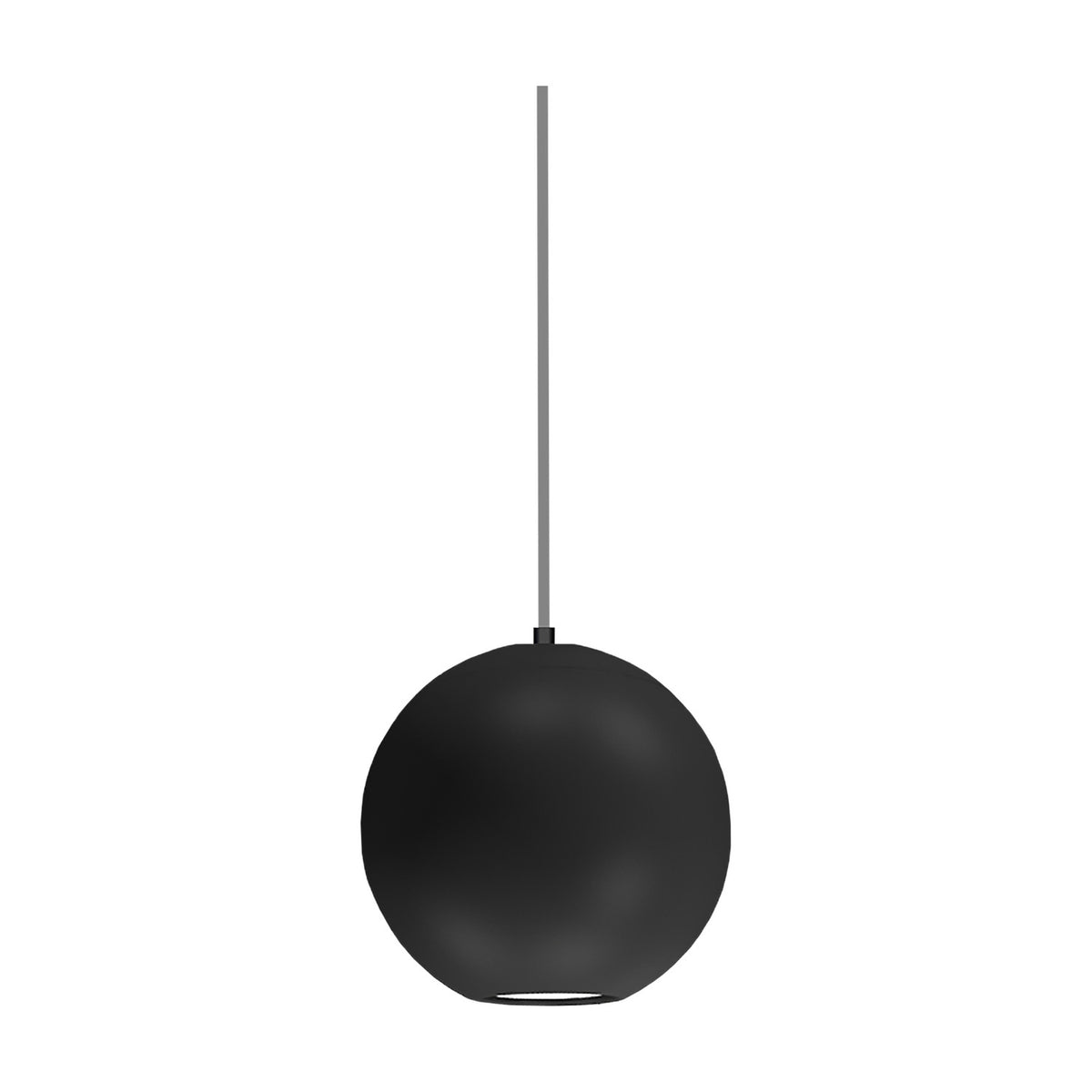

A small ball head on a slender drop, hung from the Magneto track rather than a fixed ceiling point, so it can be slid along the run and repositioned later if the furniture below moves. The head is 55mm across and the LED inside it is integrated, giving 560 lumens of warm white from 7W with a narrow beam that keeps the light on the surface below rather than washing it around the room. The driver sits inside, and it is not a dimming fitting.
We reach for these over an island or a breakfast bar, where a run of them puts pooled light along a worktop without the bulk of larger glass shades. The drop adjusts within a set range, so the same fitting can hang tight to the ceiling in a room with low headroom or sit lower over a table. The tight beam and the warm tone suit display as well: open shelving, a bar back, a row of pictures. Since the position is decided on the track itself, it suits a kitchen where the final layout is still being worked out.
Head and drop are black throughout, which reads as a quiet dark line rather than something asking to be looked at, and it keeps company with the black track, joints and end caps we stock for the same system. Dark finishes show dust, so give the ball a wipe with a dry cloth whenever you clean the worktop underneath, power off first. Keep it to dry rooms indoors. It carries a three year warranty. The LED is built in, so there is no lamp to swap, and the track sections and corner joints in the range let a single run turn along a wall or return above a peninsula.
Lamps are not a consideration here, as the light source is part of the head.
Specification
| Colour |
Black |
| Weight |
0.33KG |
| Length |
200mm |
| Width |
55mm |
| Minimum Drop |
1305mm |
| Maximum Drop |
1805mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM |
| Qty of SMD |
1 |
| LED Power |
7W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
DC48V |
| Constant Voltage Output |
DC48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How far down does it hang?
The drop is adjustable from 1305mm to 1805mm, so roughly 1.3m at its shortest and 1.8m at its longest.
Can it be dimmed?
No. This head is non-dimmable and should be run on a plain switched circuit.
Do I need the track as well?
Yes. It is a track fitting, and we stock the black deep surface and pendant track in one metre lengths, along with recessed track, L-joints and end caps.
What is the light like?
Warm white at 3000K, 560 lumens in total, with a narrow 38 degree beam that concentrates the light downwards.
Can the LED be replaced?
The LED is integral rather than a changeable lamp, and it is rated for 30,000 hours of use.
Is it suitable for a bathroom?
No. It is rated IP20 and belongs in dry indoor rooms such as kitchens, dining rooms and hallways.
