Description

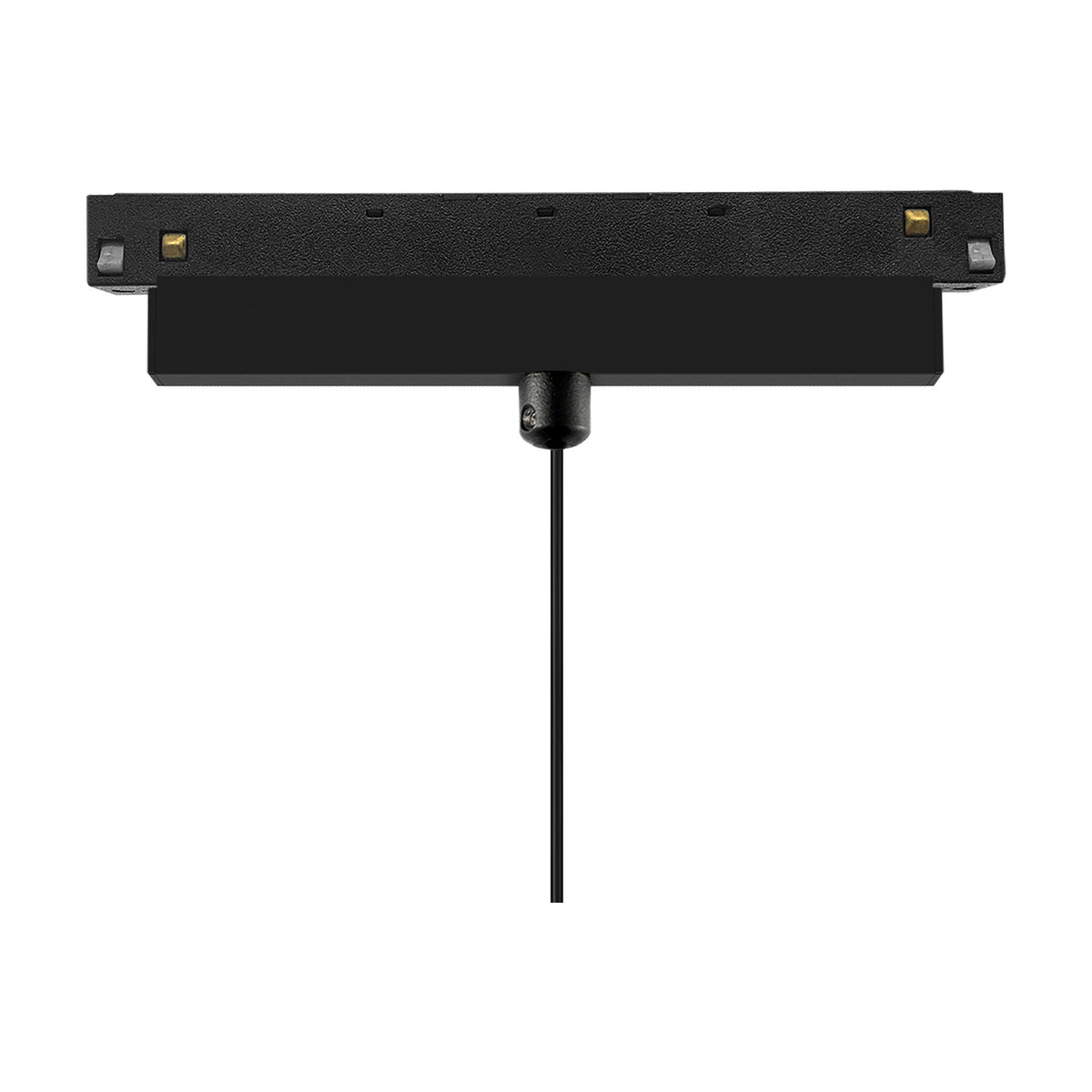

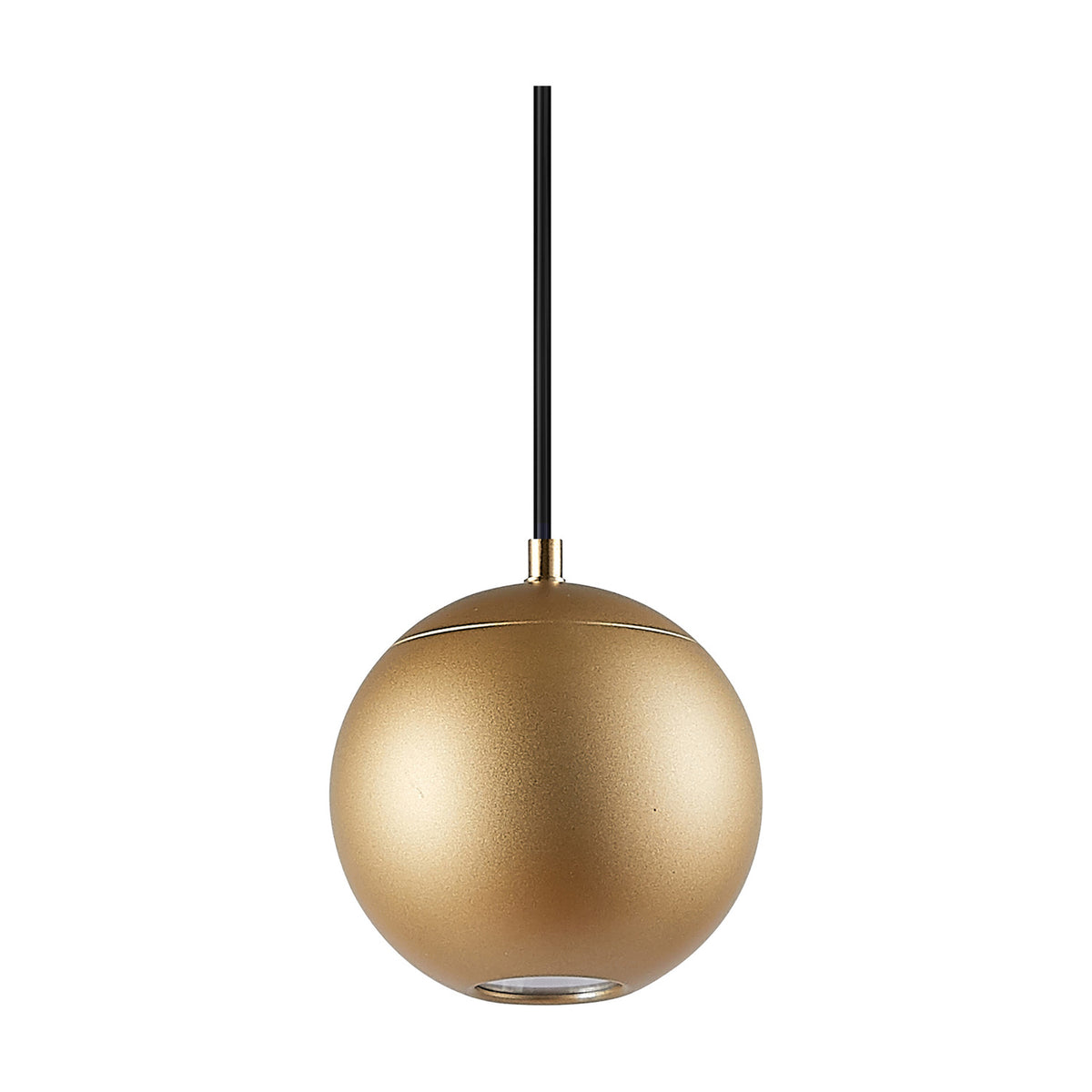

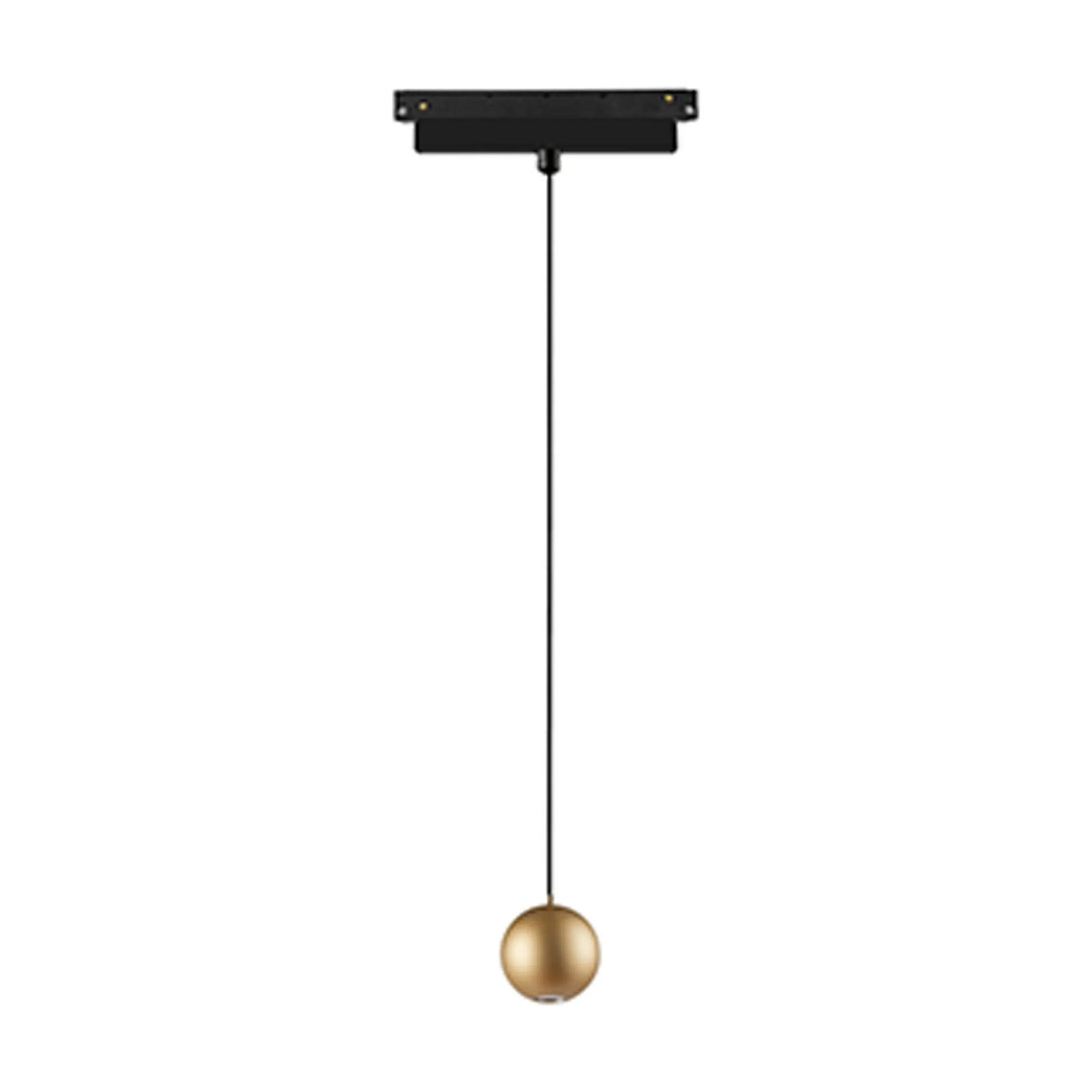

A small ball head hung from a slim suspension, finished in gold with black, this is a pendant fitting for the Magneto low voltage track system. The LED sits inside the ball and draws 7W, giving 560 lumens of warm 3000K light in a focused pool rather than a broad wash. The drop is adjustable, so heads can be levelled across a run or stepped deliberately along it. It is a small head, at home where a full-sized pendant would crowd the room. We stock this one in gold, alongside the black track it runs on.
It suits places where light needs to land on something in particular: a kitchen island, a length of worktop, a dining table or a display shelf. Two or three heads spaced along a track give better balance than one larger pendant, and because they draw power from the track they can be moved as a room's layout changes. We would use it over a breakfast bar in a flat where the existing ceiling point sits nowhere near the spot that actually needs light. Dimming works through a triac dimmer, bought separately, and the range includes a controller that handles a whole system.
The ball and stem are slight enough to sit quietly under a ceiling, and the gold reads warm against black track. Keep it clean by switching off, letting the head cool, then wiping the sphere with a soft dry cloth; nothing abrasive and no sprays near the flex. The light engine is integral, so there is no lamp to change. It carries a three year warranty. Surface and recessed track lengths, corner joints, end caps and a dimming controller all sit in the same range, so a short single line or a full circuit can be built from matching parts.
Specification
| Colour |
Gold |
| Second Colour |
Black |
| Weight |
0.33KG |
| Length |
200mm |
| Width |
55mm |
| Minimum Drop |
1305mm |
| Maximum Drop |
1805mm |
| Materials Used |
Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Lamp |
7W integrated LED (no lamps to fit) |
| Lamps Included |
Yes - Integrated |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
OSRAM 2835 |
| Qty of SMD |
1 |
| LED Power |
7W (±5%) |
| LED Voltage |
36V (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
80lm/W (±5%) |
| Beam Angle |
38° |
| System Flux |
560lm (±5%) |
| CRI |
=90 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Constant Voltage Output |
48V |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
Yes - Triac Dimmer Required |
| Dimmer Included |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
Does it come with a dimmer?
No. It is dimmable but needs a triac dimmer, and the range includes a controller rated for 12-48V systems at up to 720W, one per system.
How far down does it hang?
The drop adjusts between 1305mm and 1805mm, with the head measuring 200mm in length and 55mm across.
Which track does it work with?
It is made for the Magneto low voltage track, running at 36V, and matches the 5.5cm deep surface/pendant track in the range.
Can the LED be replaced?
No, the LED is built in. It is rated at 7W and gives 560 lumens at 3000K warm white, with an average life of 30,000 hours.
Is the light warm or cool, and how wide is the spread?
Warm at 3000K, with a colour rendering figure of 90 and a narrow 38 degree beam that concentrates light onto a surface below.
Is it suitable for a bathroom?
No. It is rated IP20, so keep it to dry rooms away from splashing water.
