Description

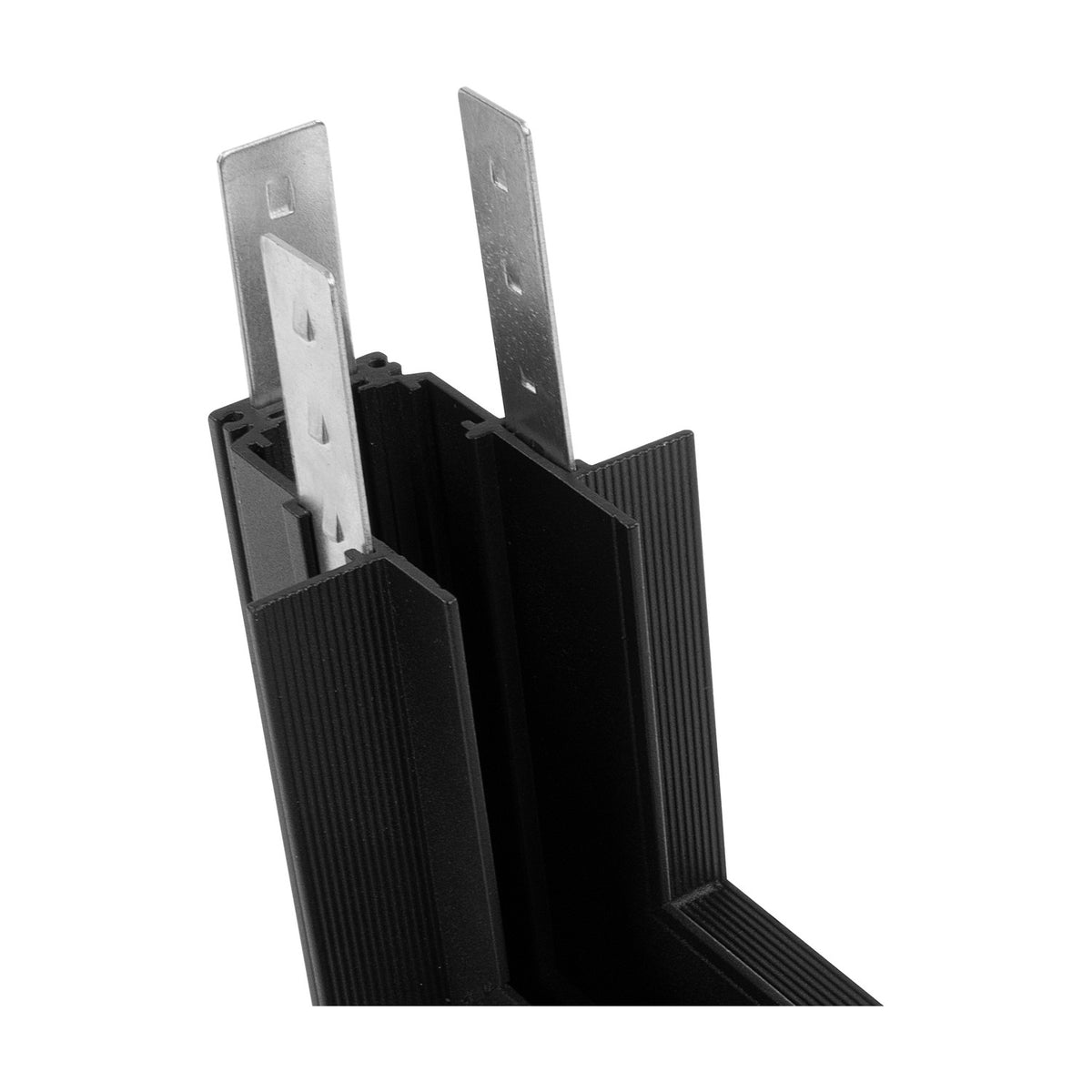

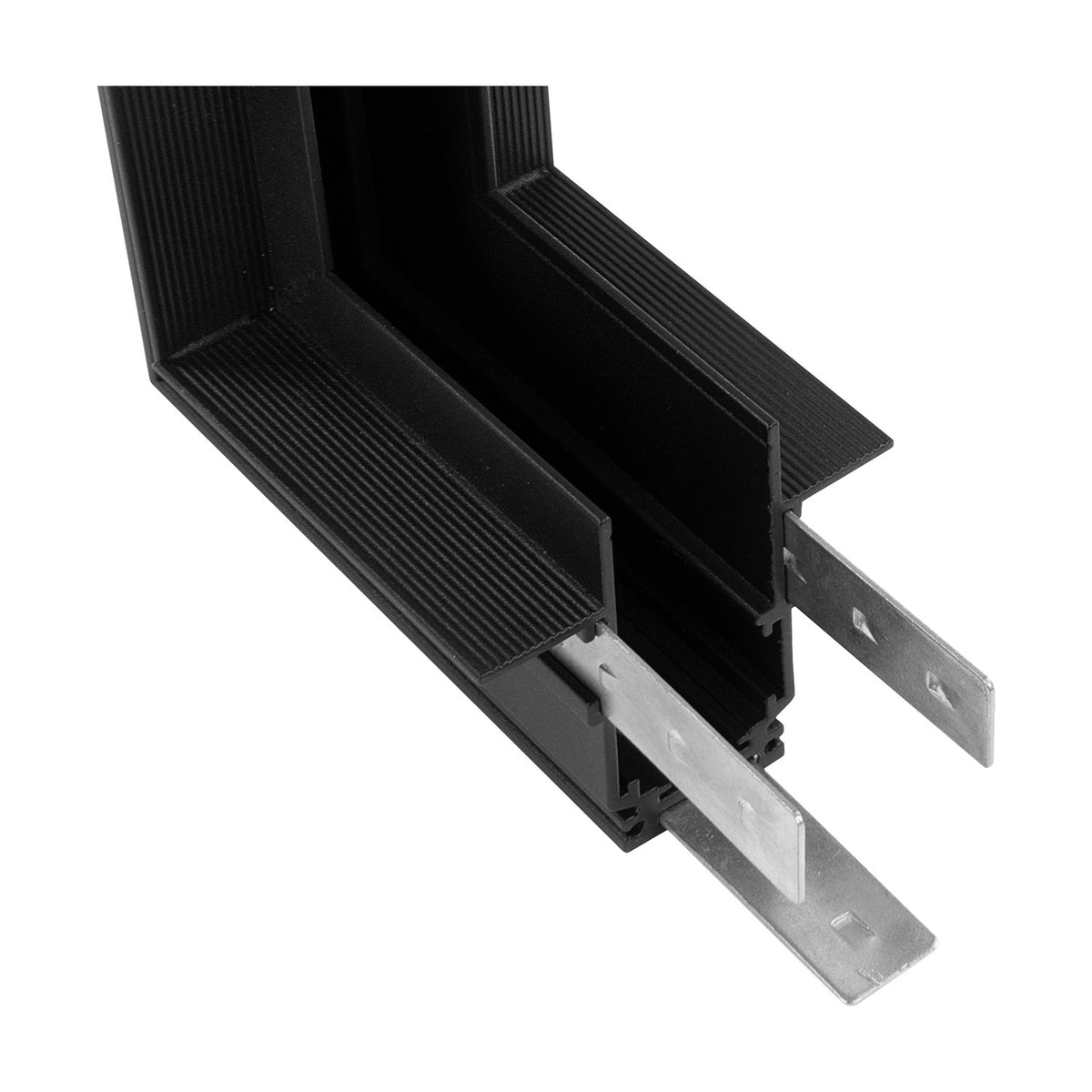

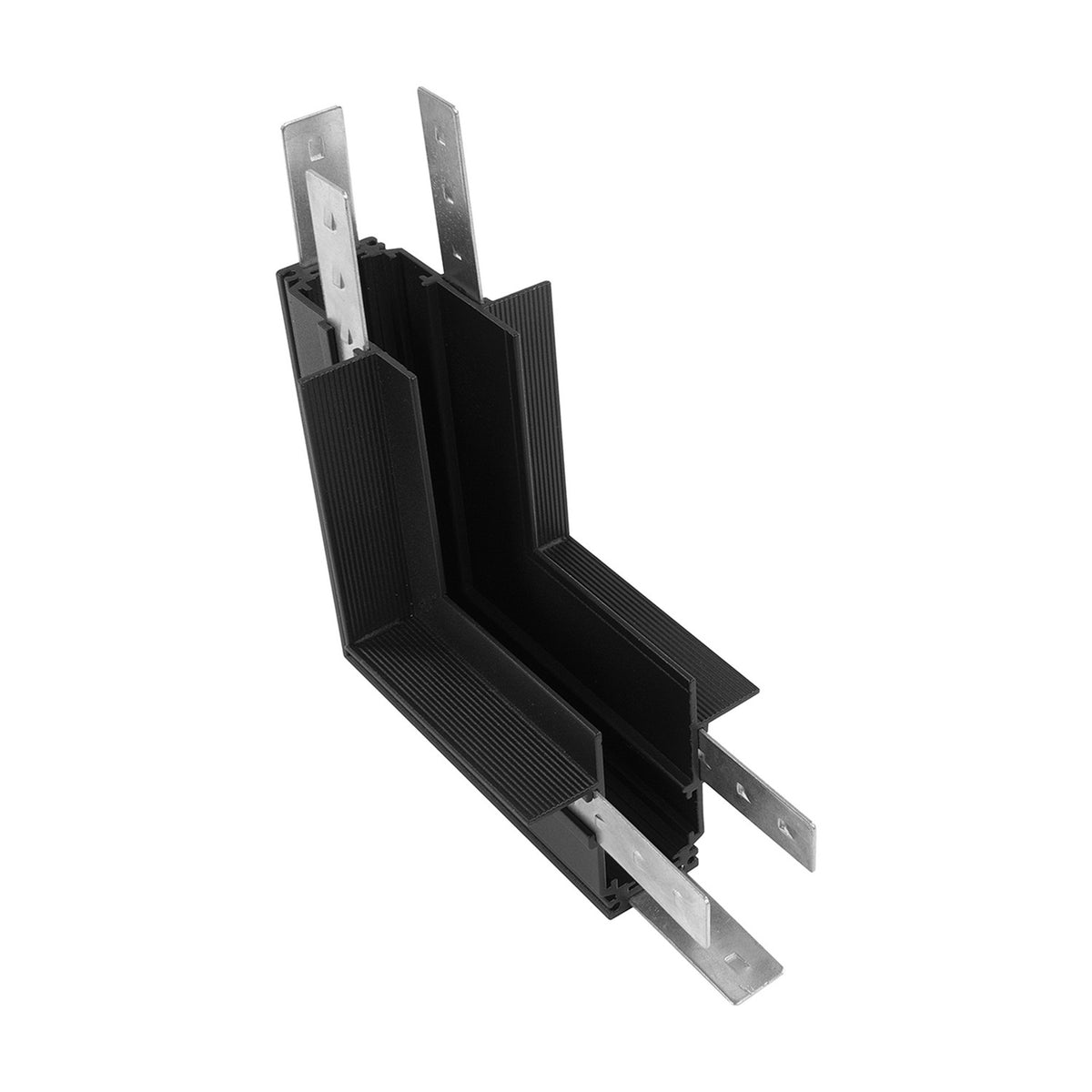

Corners are where a run of track usually stops, and this small black L-joint is what keeps it going. It links a length of Magneto recessed track to the next at right angles, taking the line from one wall across to the other and turning inward at the junction. The body measures 11cm each way, compact enough to sit quietly where the runs meet, and the black finish matches the track and end caps in the same range. It carries no lamp and no socket of its own; the light comes from the heads you choose for the system.
We reach for this where a scheme needs to follow the shape of a room rather than stop at the wall: a kitchen where the track runs along the units and then carries on down the return wall, a hallway that turns, a landing lit from end to end. It suits anyone building up a Magneto layout piece by piece, and it is as useful in a shop or studio as it is at home. Because the joint carries the line round the corner, the finished run reads as a continuous channel rather than a series of stops and starts.
Finished in black so it sits quietly against the rest of the system, it asks very little of you: dust the visible edge when you go over the track itself, using a dry cloth, and keep polish and solvent well away from the finish. It carries a three year warranty. Alongside it we stock the same recessed joint turned the other way, a 90º version for a corner that turns square, recessed track with end caps, and the driver and dimmable controller the system runs on, so a whole layout can be gathered in one go. Pick the joint that matches the direction your corner takes.
Specification
| Colour |
Black |
| Weight |
0.26KG |
| Length |
110mm |
| Width |
110mm |
| Height |
67mm |
| Materials Used |
Aluminium |
| Lamp Cap |
Non-Electric |
| IP Rating |
IP20 |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What does this joint actually do?
It connects two runs of Magneto recessed track where they meet at a corner, wall to wall, turning the line inward so the lighting continues round rather than stopping.
Which track is it made for?
It is designed for the Magneto recessed track, references M8307 and M8308. It will not fit the shallow or deep surface tracks, which have their own joints.
How big is it?
The joint is 110mm long by 110mm wide and 67mm deep, so it takes up very little of the run.
Does it hold a lamp?
No. It is a non-electrical part of the system, there to carry the line round the corner. Your light output comes from the heads fitted to the track.
How should I clean it?
A dry cloth over the visible edge is all it needs. Avoid polishes, sprays and solvents, which can mark a black finish.
Is there a version for a corner that turns the other way?
Yes. We stock the outward wall to wall joint and a 90º joint for the same recessed track, so you can match whichever way your corner runs.
