Description

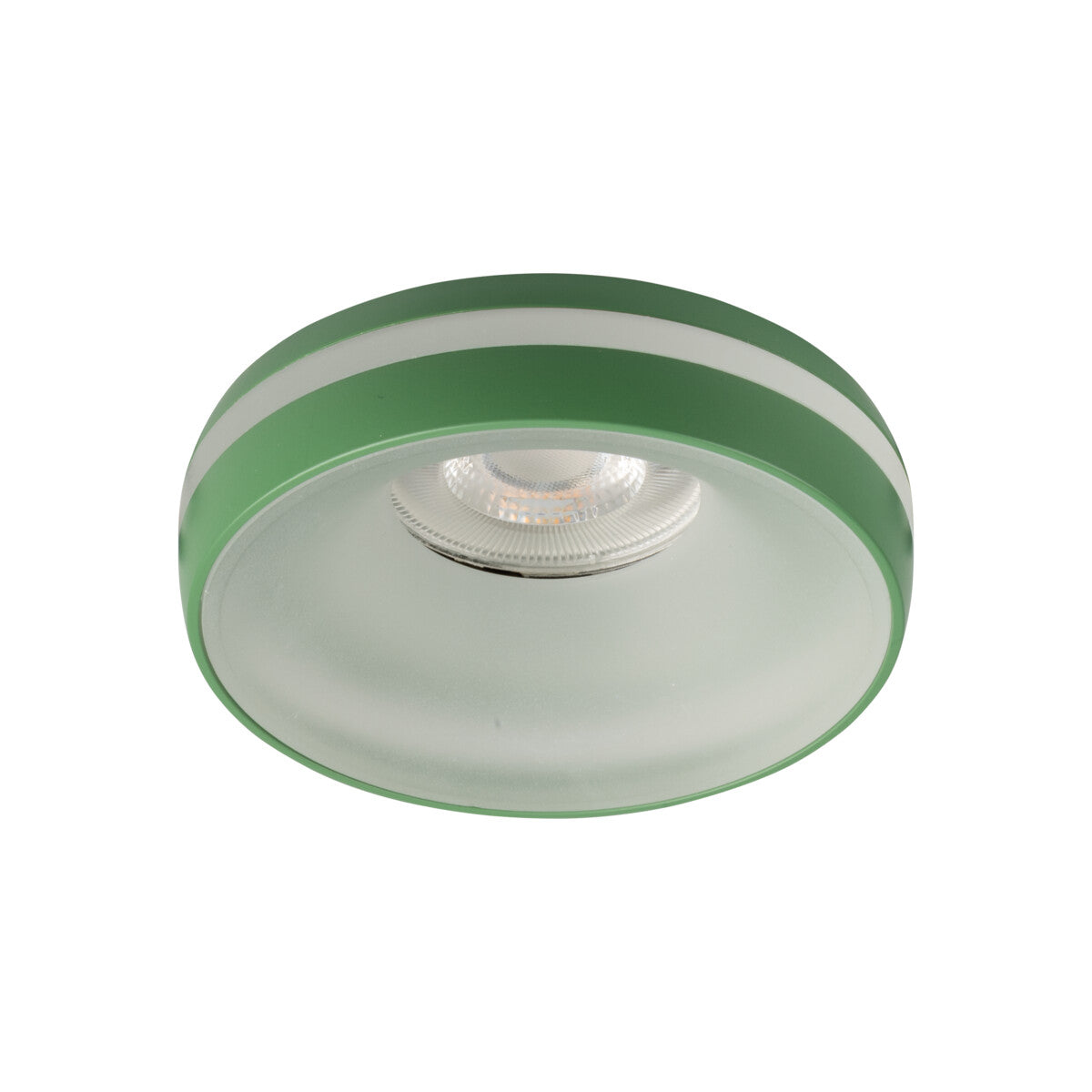

This recessed downlight is a round housing that accepts a single GU10 twist-lock lamp, which is not included so you can pick the brightness and tone that suit the room. The fixed aluminium alloy body drops cleanly into a 68mm ceiling cut-out, sitting almost flush with the ceiling face for a tidy, unobtrusive finish. It takes a GU10 bulb rated up to 10W, leaving the light output entirely to your choice of lamp.
The compact Ø96 × 42 mm form makes it a practical choice for kitchens, hallways, living rooms and bedrooms where several downlights are spaced across a ceiling. With an IP20 rating it is built for dry indoor use only, so keep it clear of bathrooms, porches and any exposed location. The green finish gives a clear point of difference against standard white trims, useful where a coloured detail is wanted in the ceiling line.
Made from aluminium alloy, the housing holds its shape well and offers a solid fixing for the lamp. The position is fixed rather than tiltable, directing light straight down once a GU10 bulb is fitted. Installation is a straightforward recess into the prepared 68mm cut-out, with the spring clips holding it against the ceiling board.
Specification
| Fitting type |
Recessed downlight |
| Bulb cap (lamp not included) |
GU10 twist-lock |
| Adjustment |
Fixed |
| Cut-out |
68mm cut-out |
| Max lamp wattage |
max 10W |
| IP rating |
IP20 |
| Material |
Aluminium Alloy |
| Colour / finish |
Green |
| Dimensions |
Ø96 × 42 mm |
| Lamp included |
No, supplied without a bulb |
Frequently Asked
Is a bulb included?
No, the fitting is supplied without a bulb. It accepts a separate GU10 twist-lock lamp, so you can choose the wattage and white tone to suit the room.
What size cut-out do I need?
It requires a 68mm ceiling cut-out. The housing then sits almost flush with the ceiling face, held in place by its spring clips.
Can it be used in a bathroom or outdoors?
No. With an IP20 rating it is rated for dry indoor use only, so it should be kept clear of bathrooms, porches and any exposed or damp location.
What is the maximum lamp wattage?
It takes a GU10 bulb rated up to 10W. Stay within that limit when choosing your lamp.
