Description

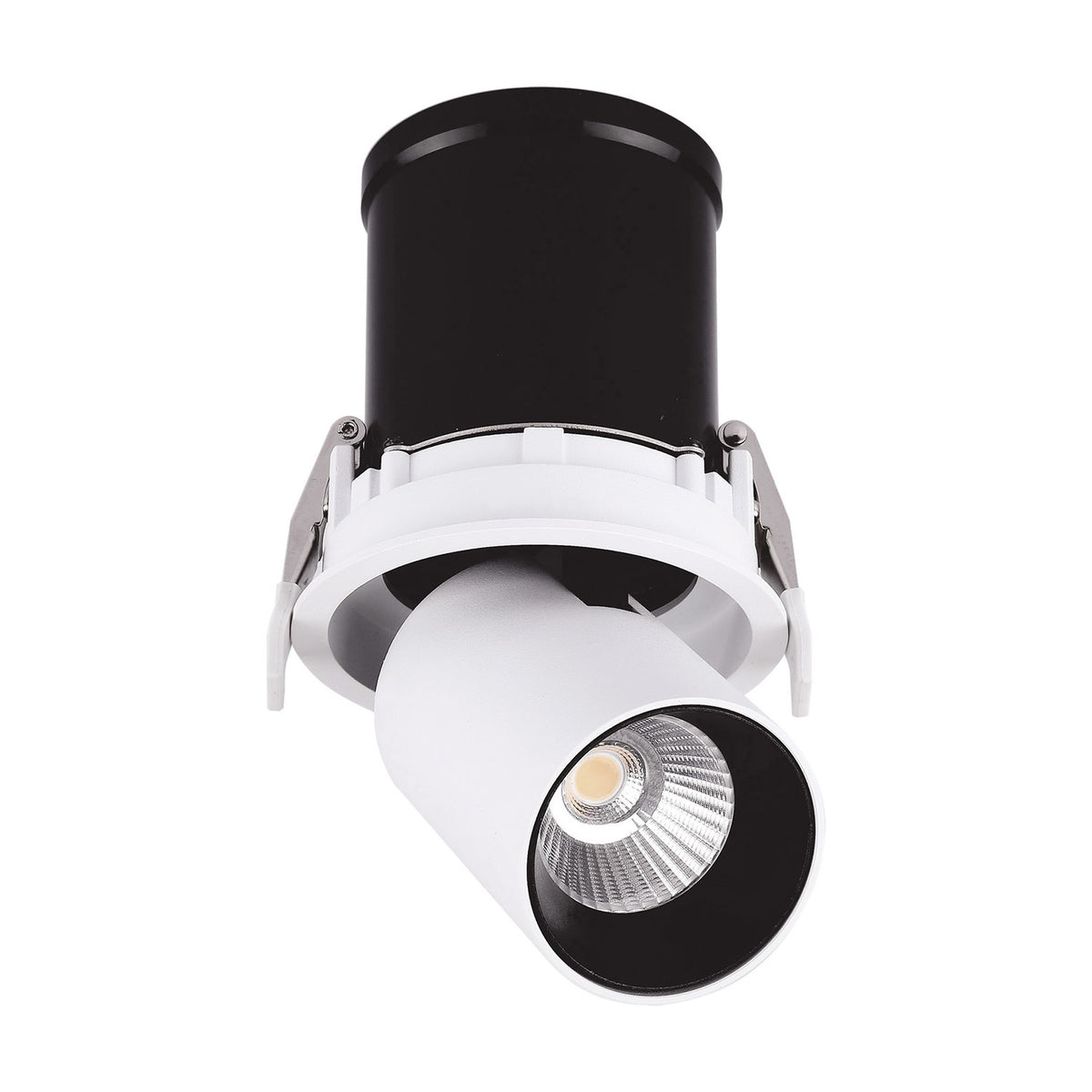

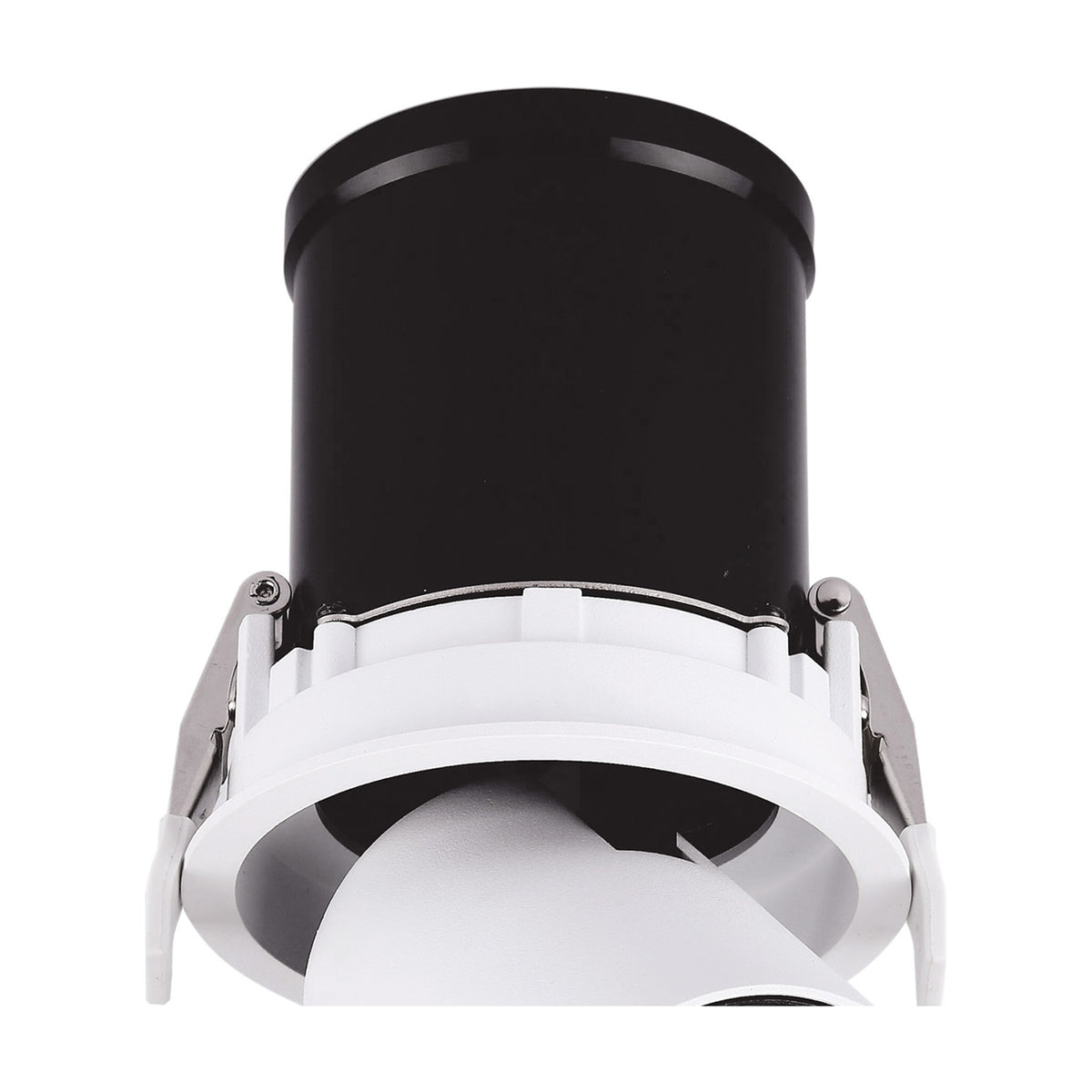

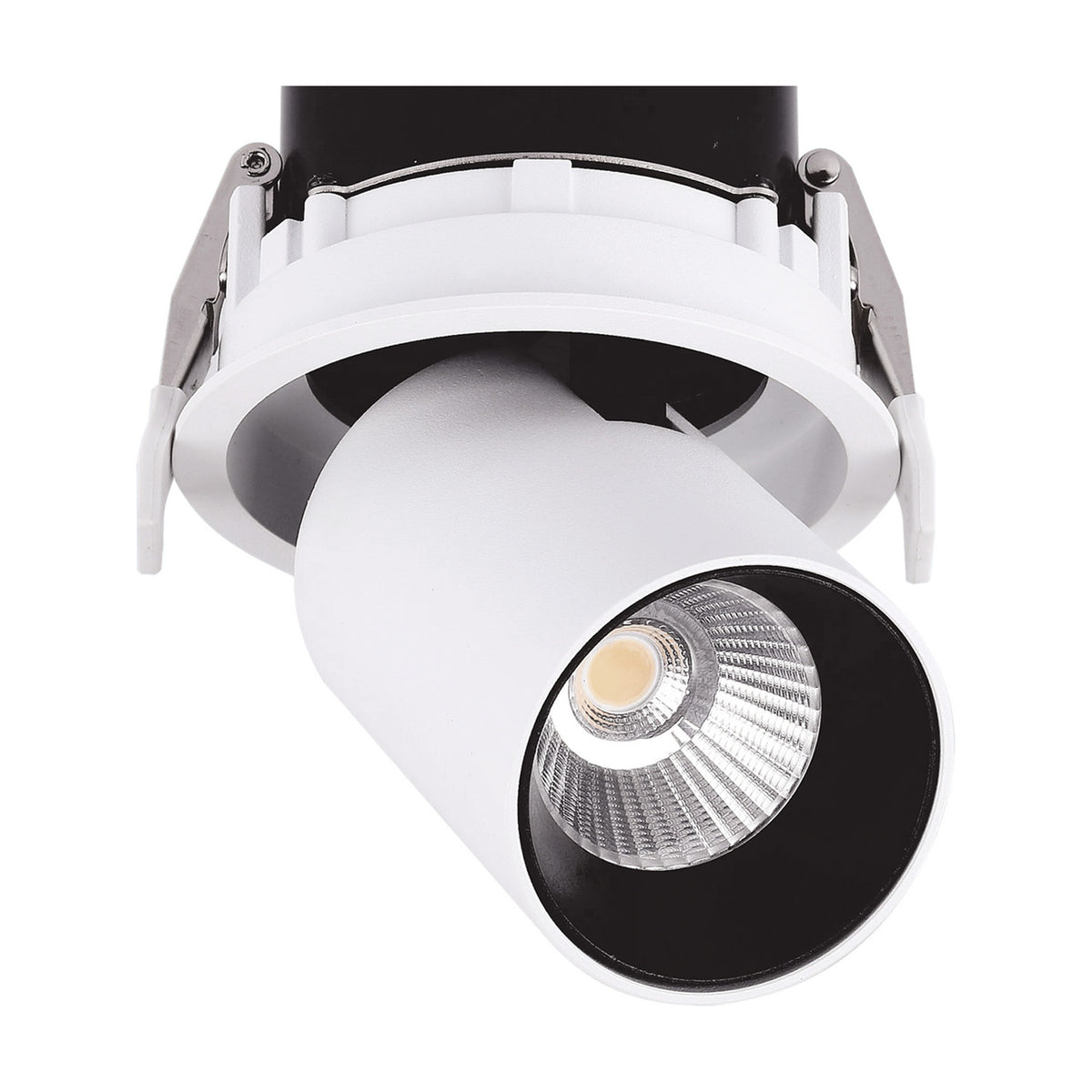

The head on this one sits back in the ceiling when it is not wanted, then pulls down and swivels so light can be aimed at something in particular rather than straight at the floor. It is a single integrated LED drawing 12W, giving 1020 lumens of warm white with a fairly tight beam, and the driver comes with it. Output is fixed rather than dimmable, so it works from an ordinary switch. The visible face is small and quiet, sized to a 95mm cut-out.
We use adjustable downlights of this sort where the light needs a job to do: grazing a run of kitchen cupboards, picking out shelving or a framed print, washing a stair wall, or lifting a dark corner of a hallway. The warm tone keeps living rooms and bedrooms comfortable rather than clinical, and because the head tucks away, a ceiling full of them reads as plain circles until they are angled. It suits dry, heated rooms indoors and should stay clear of bathroom zones, unheated porches and anywhere steam or damp collects.
The trim is finished in matt white, with the moving head in black so the aperture reads as a shadow rather than a bright ring. Matt paint hides fingerprints well; an occasional pass with a dry cloth around the rim is all it asks, and keep sprays and damp cloths away from the lens. It carries a three year warranty. Across the range we also stock an all black version, cooler warm and neutral white tones, and a lower output option for spaces where 12W would be too much of a good thing, so a whole floor can be kept consistent while changing the brightness room by room. The LED is built in, so there is no lamp to buy or swap later.
Specification
| Colour |
Matt White |
| Second Colour |
Black |
| Weight |
0.57KG |
| Diameter |
100mm |
| Height |
117mm |
| Cut Out |
95mm |
| Materials Used |
Aluminium, ABS |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
2700K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| SMD Chipset |
COB/12W |
| LED Power |
7W (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
85lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
1020lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
220-240V~50/60Hz |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
12W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give?
1020 lumens at 2700K, which reads as a soft warm white. The beam is 35 degrees, so it lands as a defined pool rather than a broad wash.
Can it be dimmed?
No. It is a non-dimmable unit and should be wired to a standard on/off switch rather than a dimmer plate.
What size hole does it need?
A 95mm cut-out. The trim measures 100mm across and the body is 117mm deep, so allow that depth of clear space above the ceiling.
How far does the head move?
It retracts into the housing when level and swivels once pulled down, so light can be tilted towards a wall, worktop or picture.
Does a driver come with it?
Yes, the driver is supplied with the fitting. It is a Class 2 double insulated unit rated IP20.
Will the LED need replacing?
The LED is integrated and rated at 30,000 hours, so in normal domestic use it should run for many years without attention.
