Description

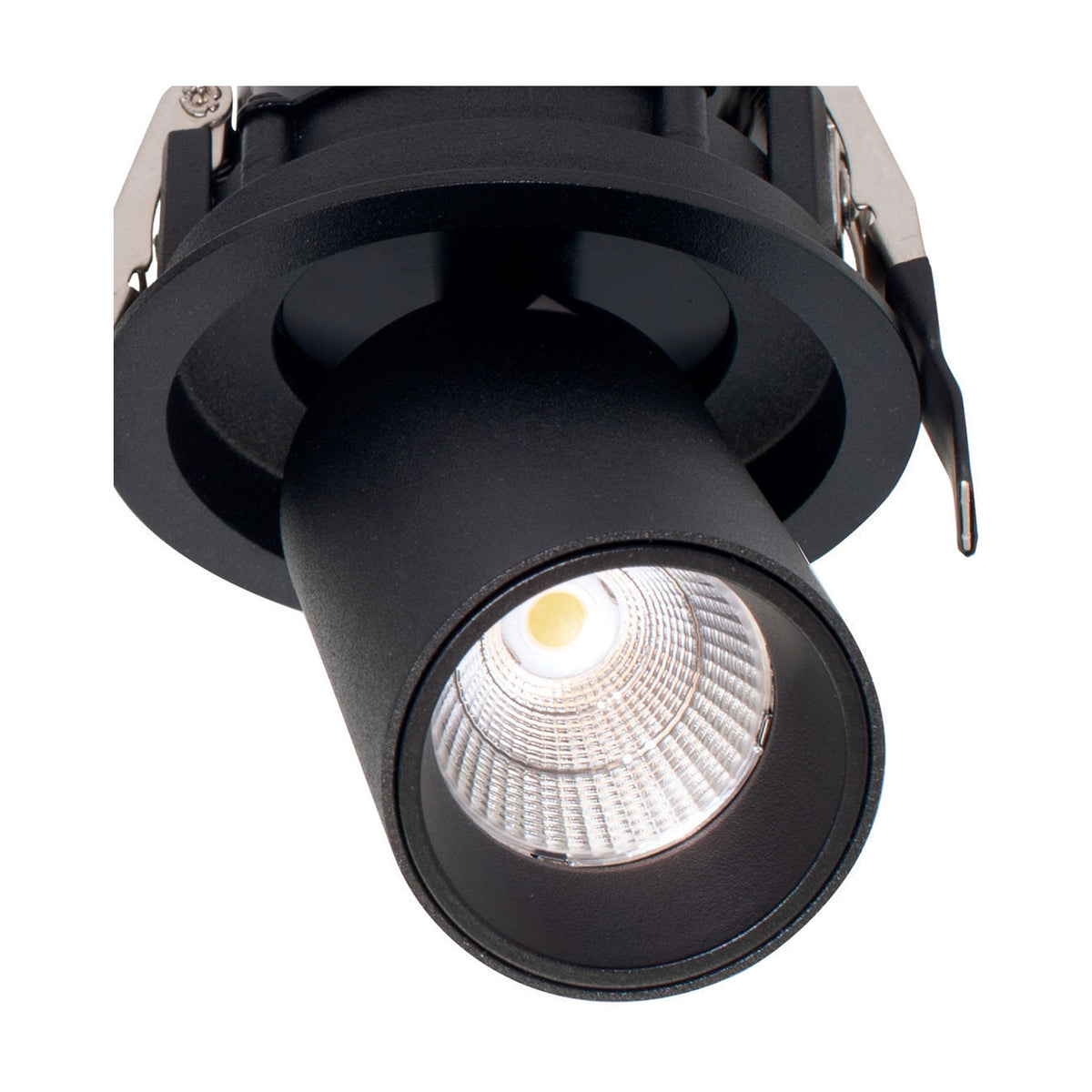

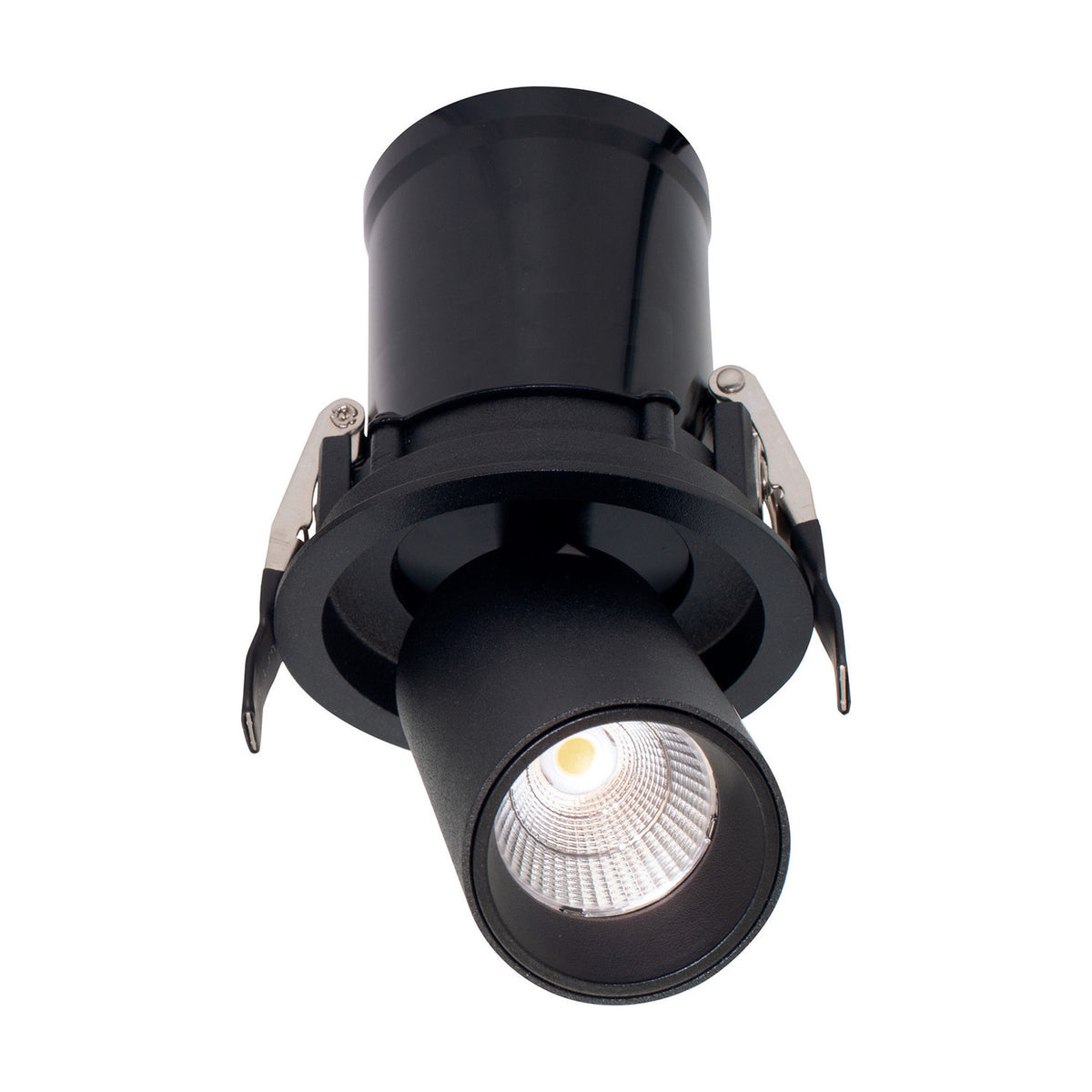

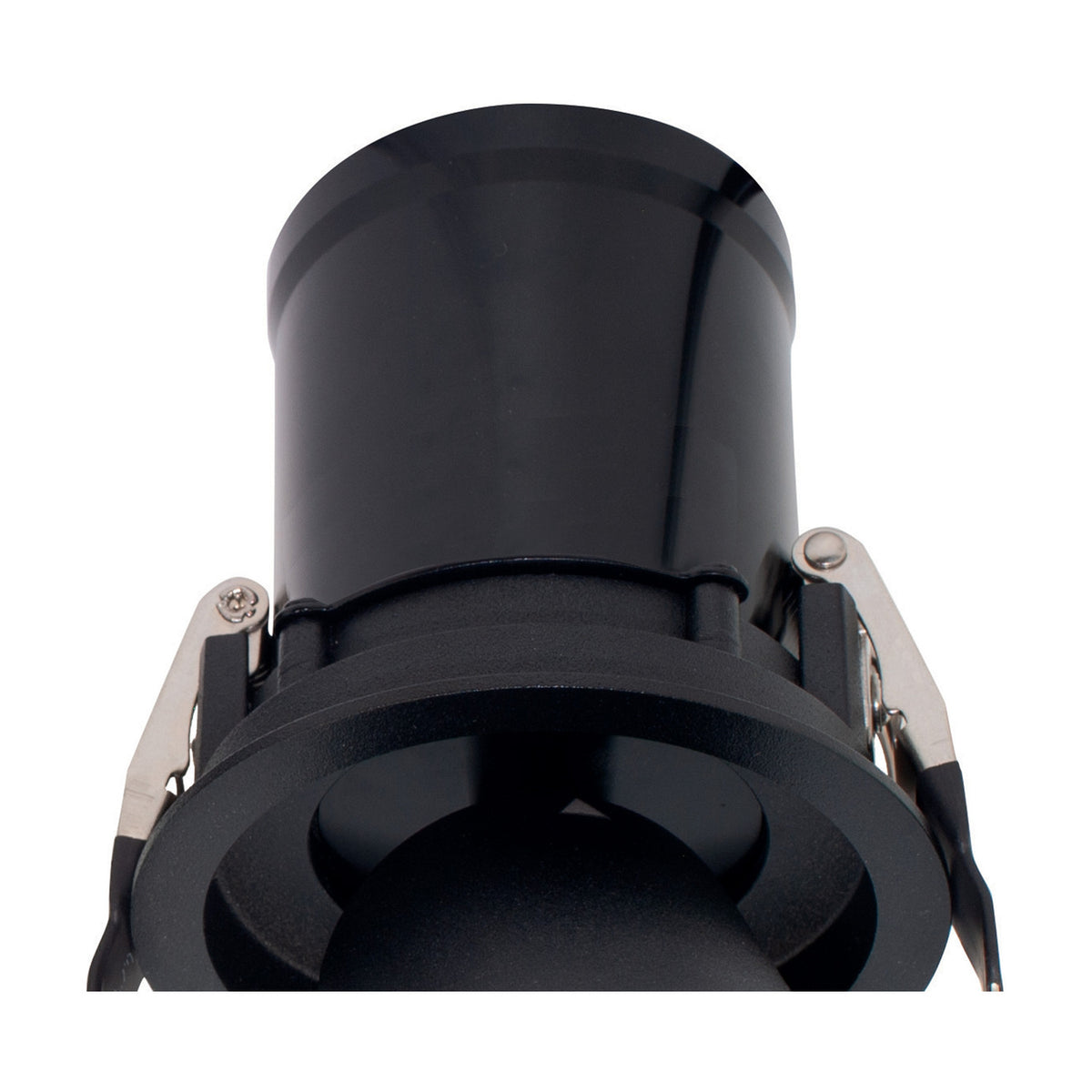

The head sits back inside the ceiling and pulls down and swivels round when you need it, so light can be aimed at a worktop, a picture or the spine of a bookcase rather than dropped straight at the floor. Output is warm white at 2700K, from a 7W integrated LED, and the driver is supplied with it. It is a single, non-dimmable light, switched on and off in the usual way, and it is one of the smaller apertures in the range.
We reach for a retractable spot like this where a fixed downlight would leave a room looking flat: kitchens with a long run of cupboards, a hallway with something worth lighting on the wall, a study, a display shelf at home. Because the beam is on the tighter side, it rewards a little planning, so work out what each one is pointing at rather than spacing them evenly and hoping. Keep it to rooms that stay dry, which means away from shower zones and out of unheated outbuildings.
The trim and the moving head are finished in black, which recedes against a dark ceiling and reads deliberately against a pale one. Cleaning asks very little: turn the light off, give the head time to cool, then wipe the visible ring with a barely damp cloth and dry it, keeping solvents and kitchen sprays off the lens. It carries a three year warranty. We stock the same fitting in matt white with black, in cooler white tones, and in a brighter version for higher ceilings, so one scheme can run through a whole floor. The LED is integrated, so there is no lamp to buy or change.
Specification
| Colour |
Black |
| Weight |
0.37KG |
| Diameter |
84mm |
| Height |
85mm |
| Cut Out |
75mm |
| Materials Used |
Aluminium, ABS |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
2700K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| SMD Chipset |
COB/7W |
| LED Power |
7W (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
87lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
610lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Constant Current Output |
650mA |
| Min/Max. Voltage Output |
220-240V~50/60Hz |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
The cut-out is 75mm, with an overall diameter of 84mm and a body depth of 85mm behind the ceiling line.
How much light does it give?
610 lumens at 2700K, a warm white that suits living rooms, bedrooms and hallways.
Can it be dimmed?
No. This version is non-dimmable, so pair it with a standard switch rather than a dimmer plate.
Do I need a separate driver?
No, the driver is included with the fitting.
How far does the head move?
It retracts into the housing and swivels, letting you tilt the beam away from vertical to pick out a wall, worktop or shelf.
What is the warranty?
It carries a three year warranty from the manufacturer.
