Description

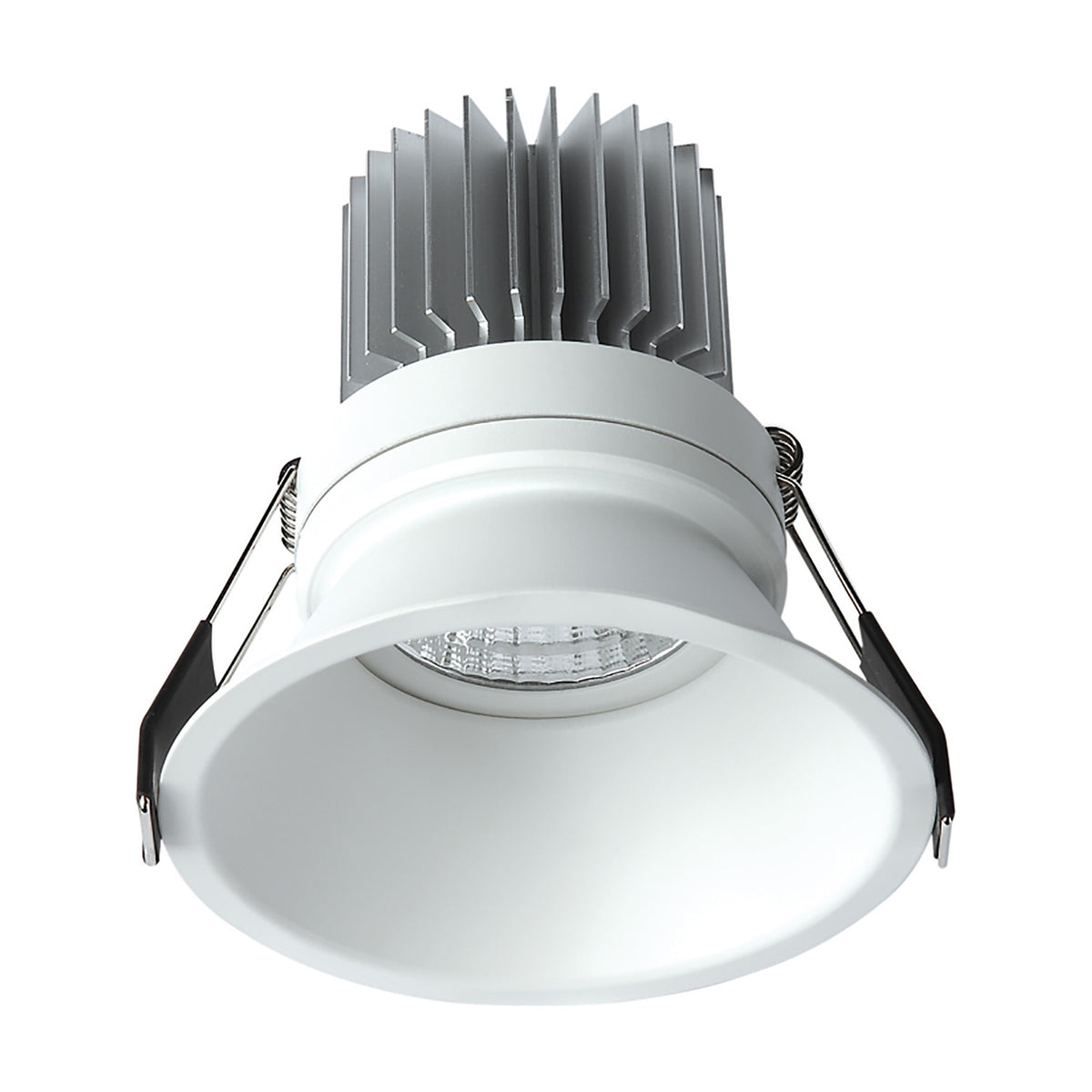

A round downlight with a matt white trim and an integrated COB LED set behind it. Output is 1080 lumens at 4000K, a crisp cool white that keeps whites reading as white and edges looking sharp. The beam is on the narrow side, so it lays down a defined pool of light rather than a broad wash, which makes it useful for lighting worktops and floors instead of walls. The driver is supplied with it. It is not dimmable, so it pairs with an ordinary switch rather than a dimmer plate.
We would fit these in kitchens, utility rooms, hall ceilings, landings and home offices, anywhere the light needs to be useful before it is decorative. The 100mm cut-out is the size most ceilings are already set up for, which makes it a sensible choice when you are replacing tired halogen units one for one. Run in a line or a grid, the narrow beam and cool tone suit task areas and circulation space; it is less at home over a dining table or beside a bed, where something warmer and softer does better work. Keep it to dry indoor rooms, away from shower zones and anywhere it would take steam or splashing.
The trim is finished in a low sheen white that sits quietly against a painted ceiling and takes paint colour well around it. Dust it with a dry duster when you do the ceilings, and if the trim marks, a barely damp cloth and a dry wipe afterwards will lift it; no sprays or abrasive creams. It carries a three year warranty. Because the LED is built in, there is no lamp to change. We stock the same downlight in a warmer white, a smaller version in both tones, and swivel versions in round and square if you want to angle the light towards artwork or a wall.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.32KG |
| Diameter |
108mm |
| Height |
108mm |
| Cut Out |
100mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 12W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| LED Power |
12W (±5%) |
| Type of LED |
COB |
| Lumens per LED |
70-75lm |
| Lumens per Watt (lm/W) |
90lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
1080lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
24-42V |
| Load Range |
12W |
| Ta |
50°C |
| Tc |
90°C |
| Casing Material |
PC |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
12W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
The cut-out is 100mm. The visible trim measures 108mm across, so it covers the aperture with a small margin.
Can I dim it?
No. This one is non-dimmable and should be run from a standard switch. Fitting it to a dimmer circuit can cause flicker, buzz or early failure.
How bright is it and what colour is the light?
It gives 1080 lumens at 4000K, a cool white. As a rough guide, that is comparable to a 50W halogen downlight but with a cleaner, whiter tone.
Do I need to buy a driver or a bulb?
Neither. The LED is integrated and the driver is included with the fitting.
Is it suitable for a bathroom?
It is rated IP20, so it is for dry rooms only. Choose a rated downlight for zones near a bath or shower.
How much space does it need above the ceiling?
The body is 108mm deep, and the driver needs room alongside it, so allow a clear void above the aperture.
